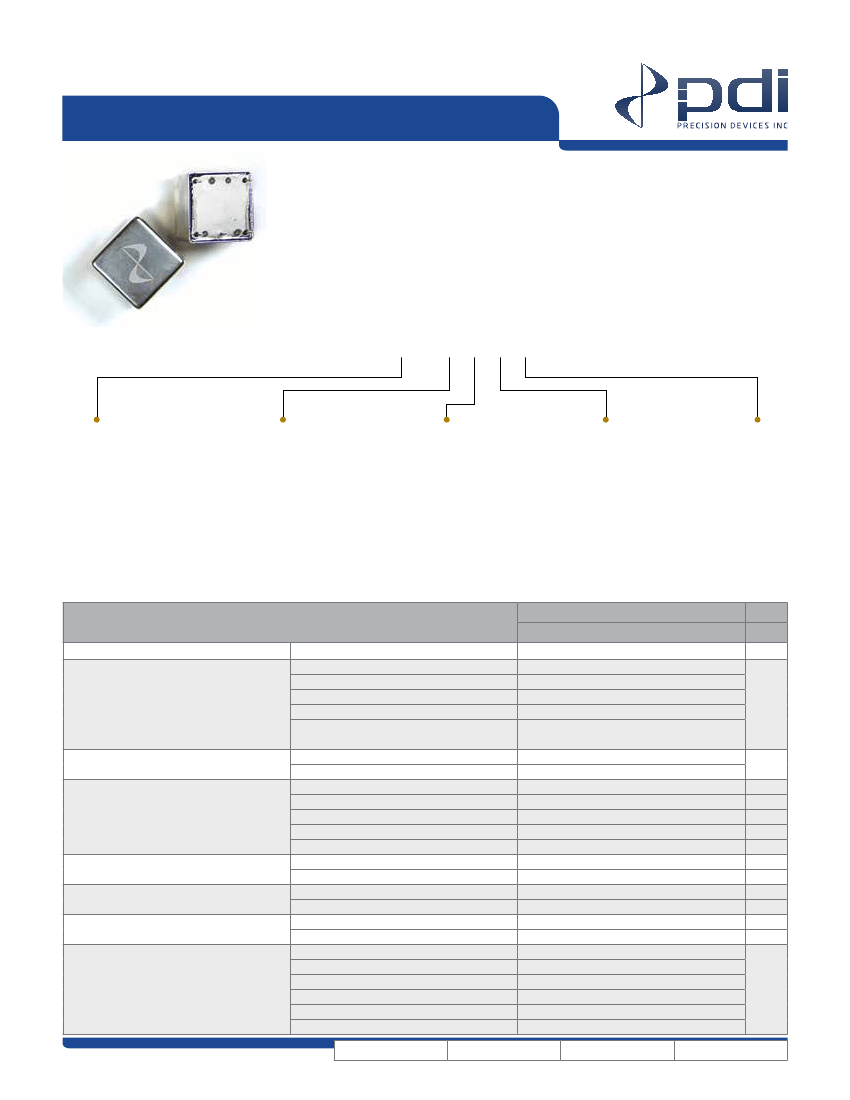

VN03-Series Specifications
25.80L x 25.80W x 16.81H (mm)
1.425L x 1.070W x 0.662H (in)
PDI
VN03-Series
Oven Controlled Crystal Oscillators (OCXO) ensures precise frequency
under the most demanding circumstances. With low phase noise, performance in
high vibration environments, and double-hermetically sealed quartz crystal, this OCXO
can also be made available in custom frequencies. PDI provides fast sampling for your
proto-typing needs, mass production capability, and competitive pricing.
ex)
VN03—12000X—C—R—D—5—XX
*
FREQUENCY
10000X – 50000X
=
10.000MHz – 50.000MHz
OUTPUT
C
= TTL/CMOS
O
= LVCMOS
W
= Sinewave
FREQUENCY
STABILITY
O
= +/-5 PPB **
P
= +/-10 PPB
Q
= +/-20 PPB
R
= +/-50 PPB
T
= +/-100 PPB
S
= Special
OPERATING
TEMPERATURE
A
= 0 to +70°C
B
= -20 to +70°C
F
= -20 to +90°C
D
= -40 to +85°C
G
= -40 to +90°C
S
= Special
SUPPLY
VOLTAGE
5 =
5.0
12 =
12.0
15 =
15.0
28 =
28.0
** - Only available with A and B Operating Temperature Options.
* - for standard or assigned for customization.
Parameter
Frequency Range
vs Temperature (Max.)
vs Supply Voltage (Max. for a 5% charge)
vs Load (Max. for a 10% charge)
vs Aging (Max. per year)
Calibration (@ +25°C)
3 Minutes After Switch On (Max.)
Operating
Storage
Frequency Tuning (Min.)
Voltage Control Range
Reference Voltage Output (±2.0%)
Slope
Linearity (Max.)
During 3 Minutes After Switch On (Max.)
Steady State @
25°C (Max.)
TTL/CMOS or LVCMOS
Sinewave
TTL/CMOS or LVCMOS
Sinewave
@ 1 Hz
@ 10 Hz
@ 100 Hz
@ 1 kHz
@ 10 kHz
@ 100KHz
REV:
NA
SIZE:
A
Supply Voltage Range (±5%)
5.0 to 28.0
10.000000 to 50.000000
Per Option
±2.0
±2.0
±200
±100
Per Option
-55 to +85
±500
0.0 to Vref
+5.0
Monotonic and Positive
10
6.0
2.5
5.0
0.0 to 6.0
15
50
-77
-118
-144
-156
-164
-165
CAGE:
A
Units
V
MHz
Frequency Stability
ppb
Temperature Range
°C
ppb
V
V
%
W
W
V
dBm
pF
Ω
Frequency Adjustment
Supply Power
Output
Load (±10%)
Phase Noise (Typical)
(10MHz @ +12Vdc)
dBc/Hz
1
of
3
VN03-Series
25.80 x 25.80 x 16.81
(mm)

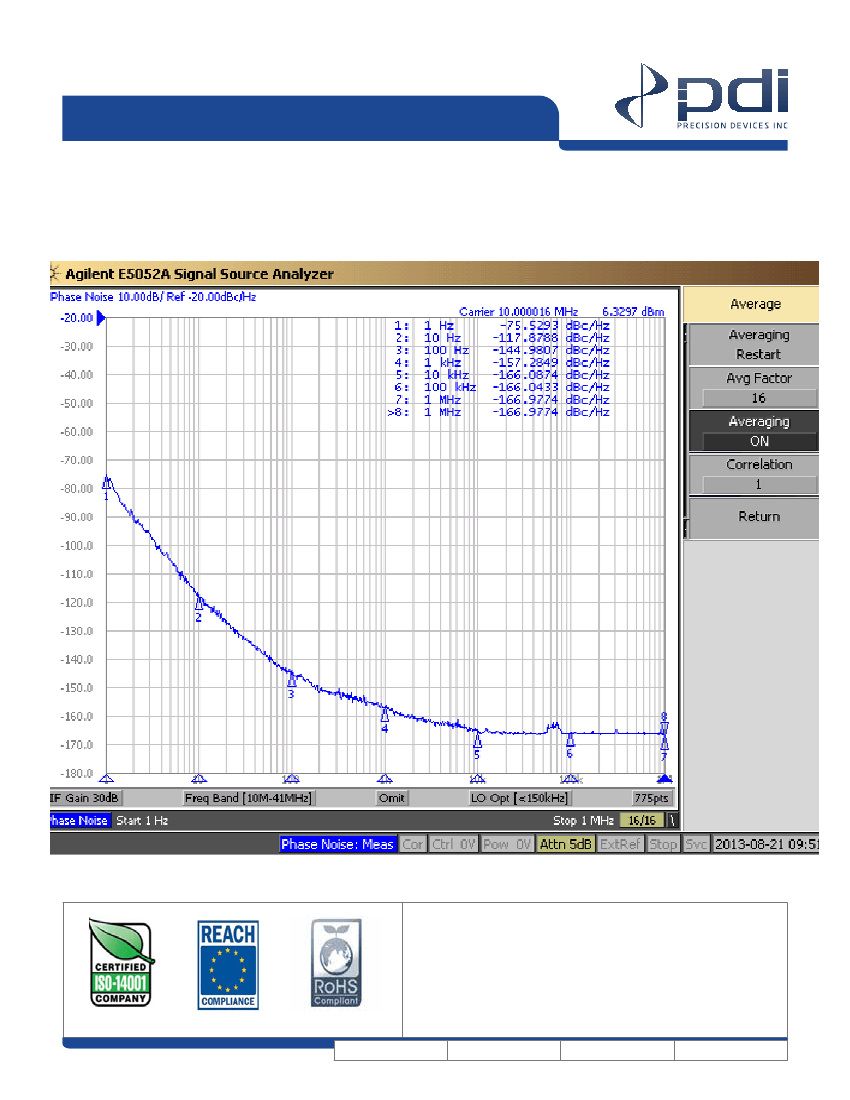

PHASE NOISE PLOT
NOTES:
All product supplied in anti-static packaging.
All product is supplied
RoHS
and
REACH
compliant.
All tests are performed in Still Air test conditions, unless otherwise stated.
Specifications subject to change without notice, last updated 4/1/13.
REV:
NA
SIZE:
A
CAGE:
A
2
of
3
VN03-Series
25.80 x 25.80 x 16.81
(mm)

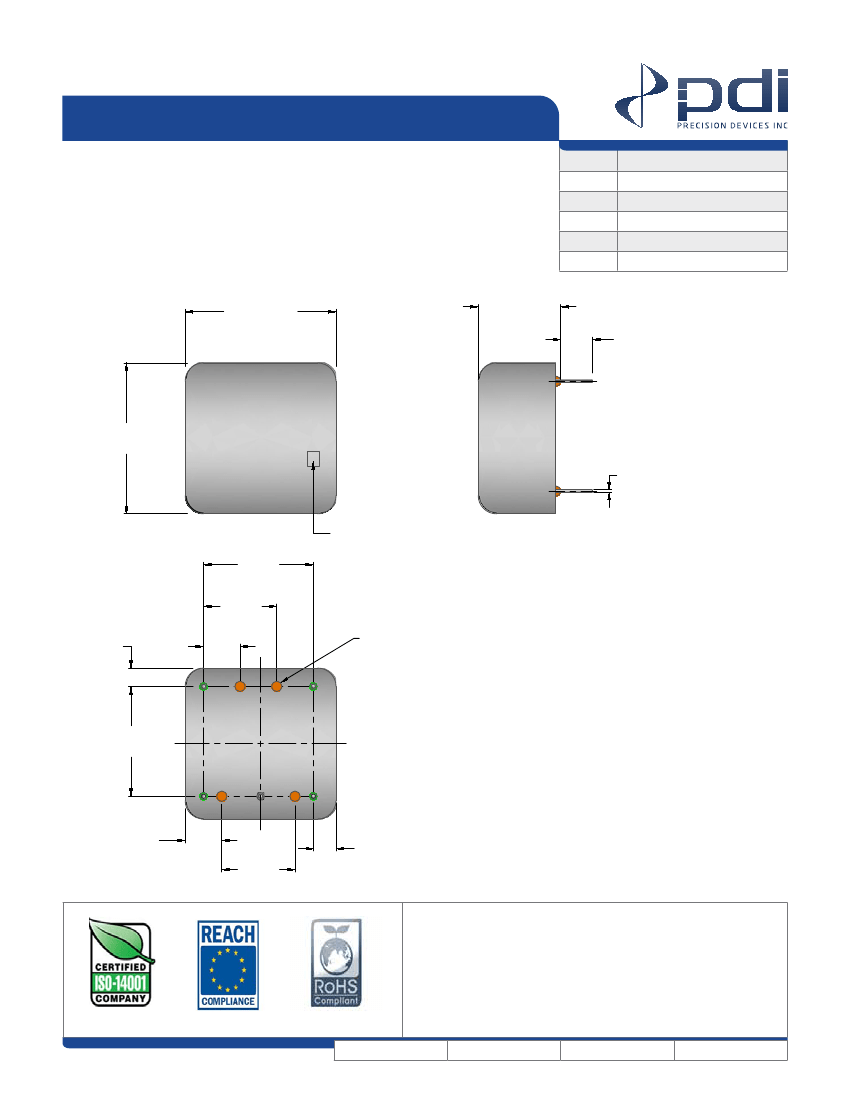

PA C K A G E D I M E N S I O N S
PIN
1
2
3
4
5
CONNECTION
Output
Ground/Case
EFC or No Connect
Vref or No Connect
Supply Voltage
Decimal XXX = ± .008, XX = ± .02 Metric [XXX = ± .20], [XX = ± .50]
1.015 Max.
[25.80 Max.]
.662 Max
[16.81 Max]
.218 ±.020
[5.54 ±.50]
1.015 Max.
[25.80 Max.]
PDI P/N
Frequency
Date Code
.030 ±.003
[.76 ±.08]
Traceability Code
.750
[19.05]
.500
[12.70]
.125
[3.18]
4
.250
[6.35]
5
Ø.070
[Ø1.78]
Insulated
.750
[19.05]
C
L
3
2
1
C
L
.250
[6.35]
.500
[12.70]
.125
[3.18]
NOTES:
All product supplied in anti-static packaging.
All product is supplied
RoHS
and
REACH
compliant.
All tests are performed in Still Air test conditions, unless otherwise stated.
Specifications subject to change without notice, last updated 4/1/13.
REV:
NA
SIZE:
A
CAGE:
A
3
of
3
