AD2702LD datasheet, PDF - EEWORLD Datasheet

AD2702LD: Description2-OUTPUT THREE TERM VOLTAGE REFERENCE, 10V, CDIP14, BOTTOM BRAZED, CERAMIC, DIP-14; CategoryPower/power management The power supply circuit; File Size2MB，4 Pages; ManufacturerADI; Websitehttps://www.analog.com; Environmental Compliance

Download Datasheet Parametric View All

AD2702LD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AD2702LD	-	-	View	Buy Now

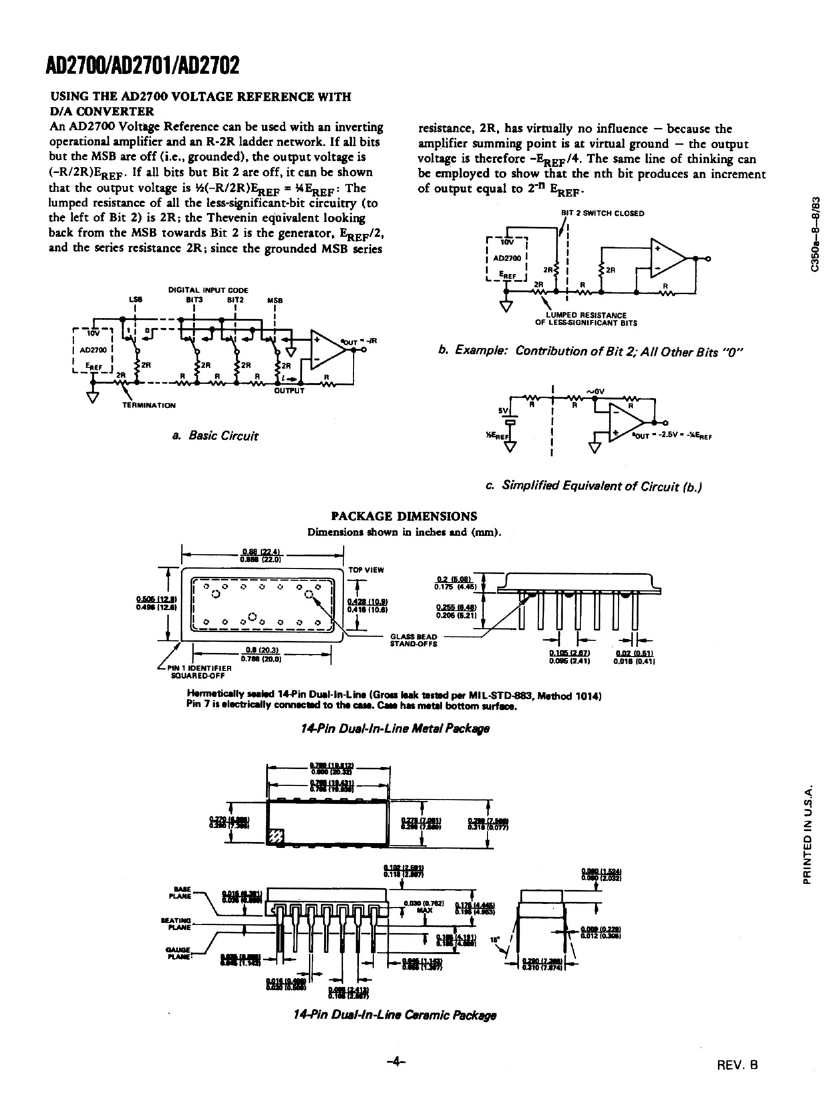

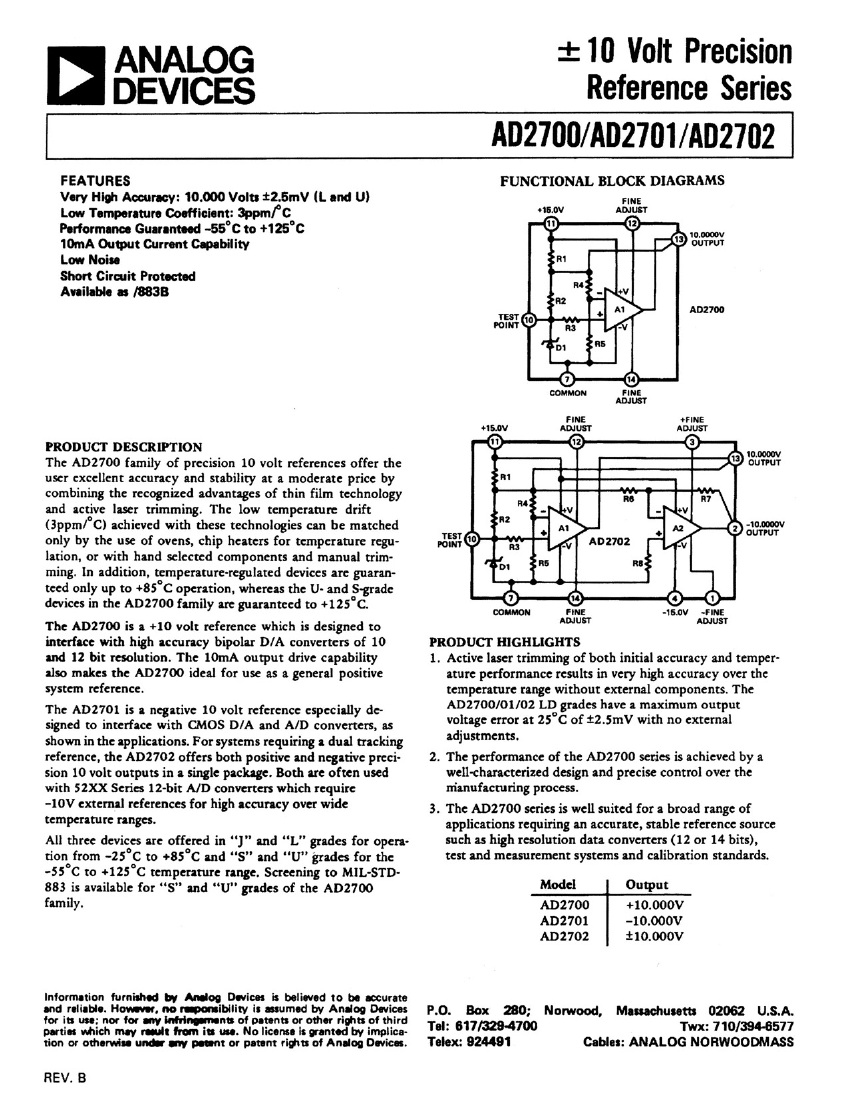

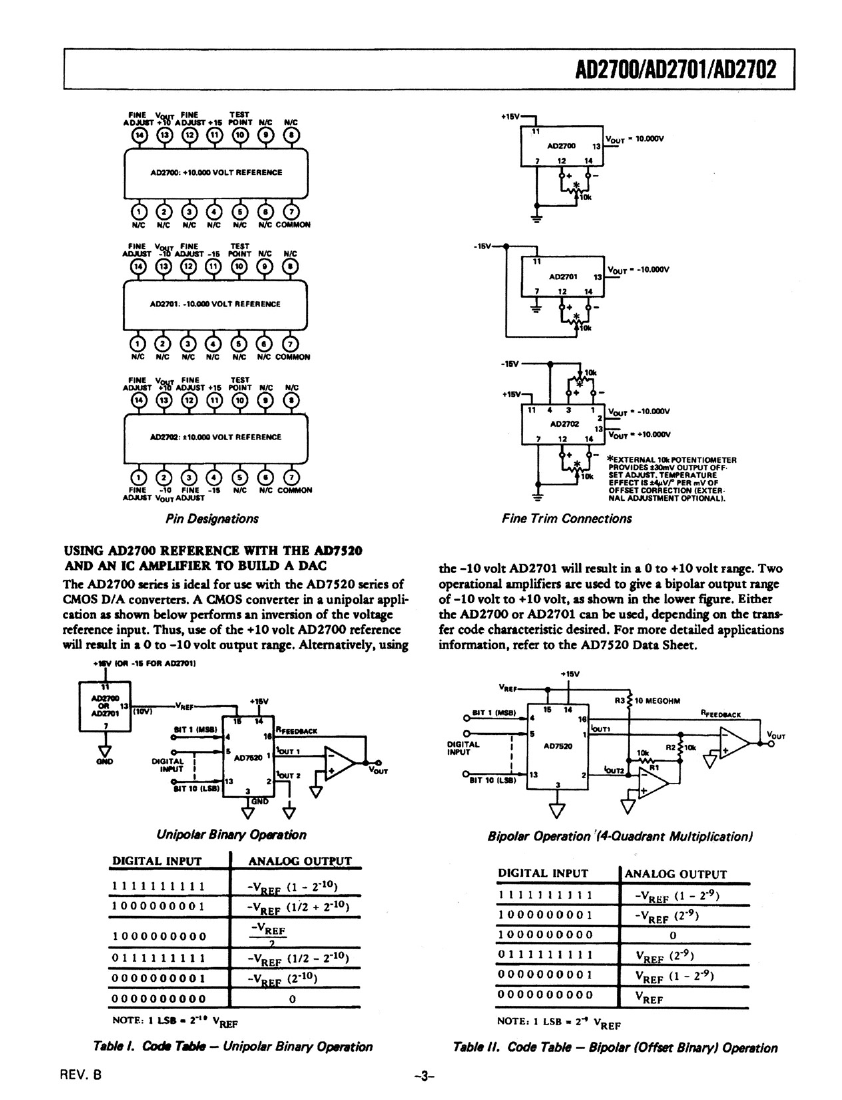

2-OUTPUT THREE TERM VOLTAGE REFERENCE, 10V, CDIP14, BOTTOM BRAZED, CERAMIC, DIP-14

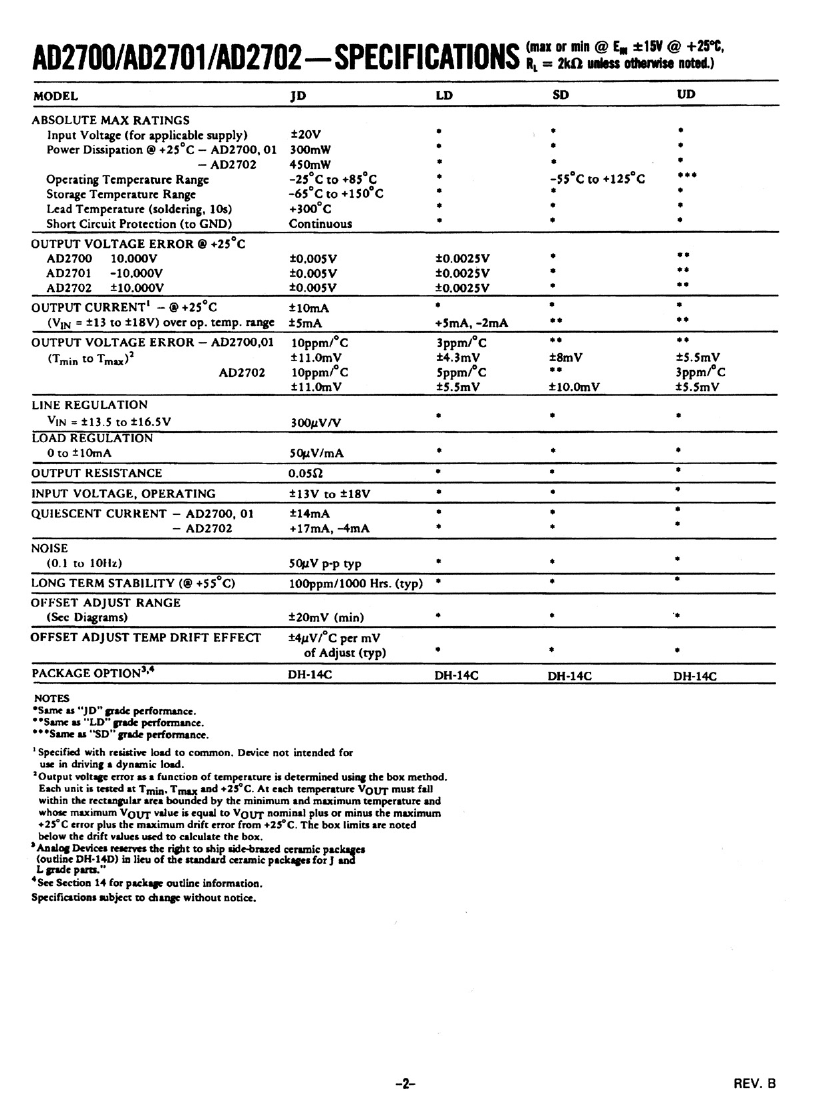

Parameter Name	Attribute value
Brand Name	Analog Devices
Is it lead-free?	Lead free
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	DIP
package instruction	DIP-14
Contacts	14
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-CDIP-T14
JESD-609 code	e4
length	20.065 mm
Maximum negative supply voltage (Vsup)	-16.5 V
Negative supply voltage minimum (Vsup)	-13.5 V
Number of functions	1
Output times	2
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Maximum output voltage	10.0025 V
Minimum output voltage	9.9975 V
Nominal output voltage	10 V
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply current (Isup)	17 mA
Maximum supply voltage (Vsup)	16.5 V
Minimum supply voltage (Vsup)	13.5 V
surface mount	NO
technology	HYBRID
Maximum voltage temperature coefficient	5 ppm/°C
Temperature level	OTHER
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Fine-tuning/adjustable output	YES
Maximum voltage tolerance	0.06%
width	7.62 mm
