B024-L35-01 datasheet, PDF - EEWORLD Datasheet

B024-L35-01: DescriptionBlindmate Connector, Male, Stripline Mount,; CategoryThe connector The connector; File Size67KB，1 Pages; ManufacturerCorning Gilbert Inc

Download Datasheet Parametric Compare View All

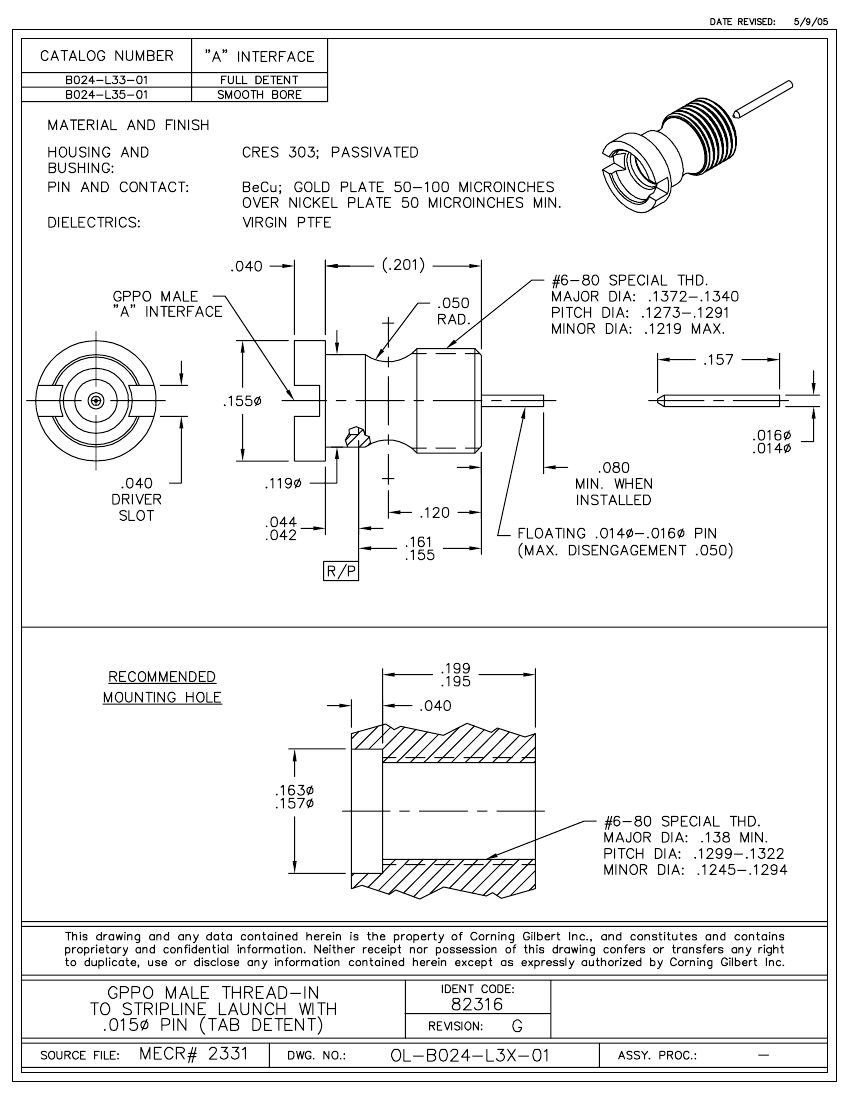

B024-L35-01 Overview

Blindmate Connector, Male, Stripline Mount,

Parameter Name	Attribute value
Maker	Corning Gilbert Inc
Reach Compliance Code	unknown
Other features	GPPO, VSWR MAX AT 50GHZ
Characteristic impedance	50 Ω
Connector type	BLINDMATE CONNECTOR
Contact to complete cooperation	GOLD (100) OVER NICKEL (50)
Contact completed and terminated	GOLD (100) OVER NICKEL (50)
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	PTFE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	B024-L
Installation method	STRAIGHT
Installation type	STRIPLINE
Maximum operating frequency	65 GHz
Panel mounting	NO
voltage standing wave ratio	1.3

Corning Gilbert Inc.

	B024-L35-01	B024-L33-01
Description	Blindmate Connector, Male, Stripline Mount,	Blindmate Connector, Male, Stripline Mount,
Maker	Corning Gilbert Inc	Corning Gilbert Inc
Reach Compliance Code	unknown	unknown
Other features	GPPO, VSWR MAX AT 50GHZ	GPPO, VSWR MAX AT 50GHZ
Characteristic impedance	50 Ω	50 Ω
Connector type	BLINDMATE CONNECTOR	BLINDMATE CONNECTOR
Contact to complete cooperation	GOLD (100) OVER NICKEL (50)	GOLD (100) OVER NICKEL (50)
Contact completed and terminated	GOLD (100) OVER NICKEL (50)	GOLD (100) OVER NICKEL (50)
Contact point gender	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
Coupling type	SNAP	SNAP
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	PTFE	PTFE
JESD-609 code	e4	e4
MIL compliance	NO	NO
Manufacturer's serial number	B024-L	B024-L
Installation method	STRAIGHT	STRAIGHT
Installation type	STRIPLINE	STRIPLINE
Maximum operating frequency	65 GHz	65 GHz
Panel mounting	NO	NO
voltage standing wave ratio	1.3	1.3
