RNF1/2T980.6K1%A datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> RNF1/2T980.6K1%A

RNF1/2T980.6K1%A: DescriptionRESISTOR, METAL FILM, 0.5W, 1%, 25ppm, 80600ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT; CategoryPassive components The resistor; File Size173KB，2 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/; Environmental Compliance

Download Datasheet Parametric View All

RNF1/2T980.6K1%A Overview

RESISTOR, METAL FILM, 0.5W, 1%, 25ppm, 80600ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT

RNF1/2T980.6K1%A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SEI(Stackpole Electronics Inc.)
package instruction	AXIAL LEADED, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PRECISION, FLAME PROOF
structure	Flame Retardant
JESD-609 code	e3
Lead diameter	0.65 mm
Lead length	28 mm
Manufacturer's serial number	RNF
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package diameter	3.25 mm
Package length	8.75 mm
Package shape	TUBULAR PACKAGE
Package form	Axial
method of packing	BULK
Rated power dissipation(P)	0.5 W
Rated temperature	70 °C
resistance	80600 Ω
Resistor type	FIXED RESISTOR
series	RN1/2(25TC,1%)
surface mount	NO
technology	METAL FILM
Temperature Coefficient	25 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	WIRE
Tolerance	1%
Operating Voltage	350 V

Preview

Download Datasheet

View All

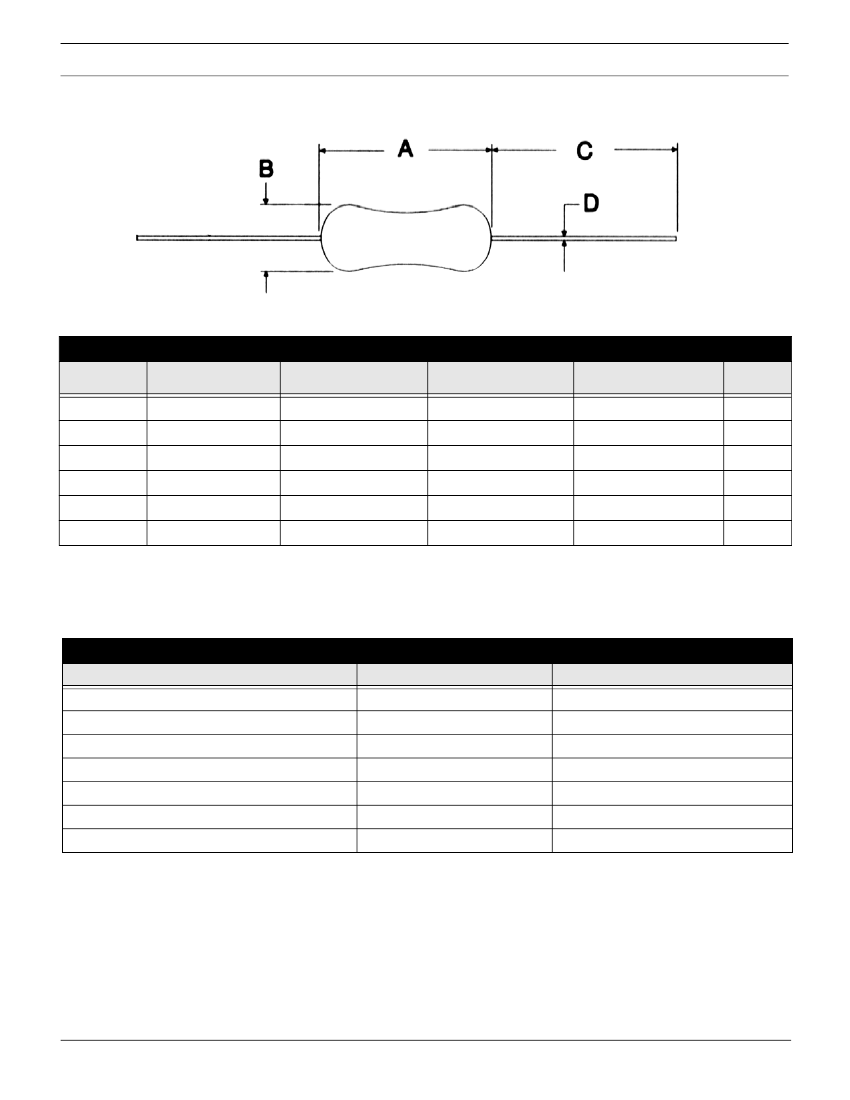

RN / RNM Series — General Purpose Metal Film Resistors

Features

• Precision metal film

• Superior electrical, TCR performances

• Flame-retardant coatings are standard

• Panasert available (selected sizes; contact factory)

• RNM (mini) an ideal choice where size constraints apply

• RoHS compliant / lead-free available (RNF/RNMF)

Electrical Specifications

Type / Code

Power Rating

(Watts) @ 70°C

Max

Working

Voltage*

Max

Pulse

Voltage

Resistance

Temperature

Coefficient

±100 ppm/°C

±50 ppm/°C

±25 ppm/°C

±100 ppm/°C

±50 ppm/°C

±25 ppm/°C

±10 ppm/°C

±100 ppm/°C

±50 ppm/°C

±25 ppm/°C

±100 ppm/°C

±50 ppm/°C

±100 ppm/°C

±50 ppm/°C

±25 ppm/°C

±100 ppm/°C

±50 ppm/°C

±25 ppm/°C

Ohmic Range and Tolerance

0.1%

51.1Ω – 100K

100Ω – 100K

1Ω – 2.2M

100Ω – 301K

100Ω – 100K

0.25%

100Ω – 100K

1Ω – 2.2M

–

100Ω – 100K

0.5%

10Ω – 1M

30.1Ω – 499K

1Ω – 2.2M

–

10Ω – 1M

49.9Ω – 499K

–

10Ω – 100K

10Ω – 1M

30.1Ω – 499K

10Ω – 1M

49.9Ω – 1M

1Ω – 4.9M

10Ω – 1M

49.9Ω – 499K

1Ω – 10M

1Ω – 5.11M

10Ω – 1M

–

1Ω – 10M

1Ω – 4.99M

49.9Ω – 499K

1Ω – 1M

10Ω – 1M

1Ω – 4.99M

10Ω – 1M

30.1Ω – 499K

1Ω – 10M

1Ω – 2.15M

49.9Ω – 1M

1Ω – 2.2M

–

1Ω – 10M

–

1Ω – 10M

–

RN 1/8

0.125W

200

400

RN 1/4

0.25W

250

500

RN 1/2

0.5W

350

700

RN 1

350

700

–

RNM 1/4

0.25W

250

500

100Ω – 100K

30.1Ω – 1M

100Ω – 294K

100Ω – 100K

30.1Ω – 1M

100Ω – 294K

10Ω – 2M

–

10Ω – 2M

–

RNM 1/2

0.5W

350

700

* Lesser of

√PR

or maximum working voltage.

How to Order

SEI Type

1/4

Code

TCR

4.75K

Nominal Resistance

Tolerance

Packaging

Type

RNM

RNF

RNMF

Description

EIA standard

Mini

Standard RoHS

Mini RoHS

Code

1/8

1/4

1/2

TCR

T1 = 100ppm

T2 = 50ppm

T9 = 25ppm

TB = 10ppm

Tolerance Values

0.1%

0.25%

0.5%

E96

E96,E24

E24

Styles

1/8, 1/4, RNM 1/2

RN 1/2, 1

1/8, 1/4, 1/2

Pkg Qty Description Code

5,000

2,500

2,000

2,500

1,000

Reel

Ammo

Bulk

Toll Free: (888) SEI-SEIS

(888) 734-7347

www.seielect.com

email: marketing@seielect.com
