Extended Duty Pressure Switch With Direct Action Blade Contacts

Preview

Download Datasheet

View All

Set Points from 0.5 to 150 psi

5000 Series

Extended Duty Pressure Switch With Direct Action Blade Contacts

The 5000 Series switch is specifically

designed to stand up to extended duty

applications. This switch is factory set

but capable of field adjustment. It

features a Kapton diaphragm for

compatibility with a wide variety of

fluids, and various terminations

including a Metri-Pack connector that

forms a tight seal when connected.

Among the outstanding design benefits

are its durable construction, compact

size, and enhanced set point integrity.

Standard Specifications

Type:

Direct action

blade contact

Contacts:

Silver alloy,

gold plated

Set Point:

Factory set

from 0.5 to 150 PSI

Operating Pressure:

150 PSI for 0.5-24 PSI set point range,

250 PSI for 25-150 PSI set point range

Proof Pressure:

500 PSI

Burst Pressure:

750 PSI for 0.5-24 PSI

set point range

1250 PSI for 25-150 PSI

set point range.

Ratings:

Resistive:

Inductive:

0.5

AMP-

120

240

VDC

VAC

Switch Boot P/N 79380

for Vacuum and Pressure

2.9” REF.

Diaphragm:

Polyimide film

2.3” REF.

Temperature

Range:

Connector:

Terminals:

-40° F to + 250° F

1/8

-27 NPT male thread

#8-32 screws,

1/4” blade,

280 Series Metri-Pack

Circuitry:

SPST-N.O., N.C.,

1 circuit adjustable dual

circuit, or 2 circuits

adjustable dual circuit.

Also available are

N.O./N.O. dual circuit

and N.C./N.C. dual circuit.

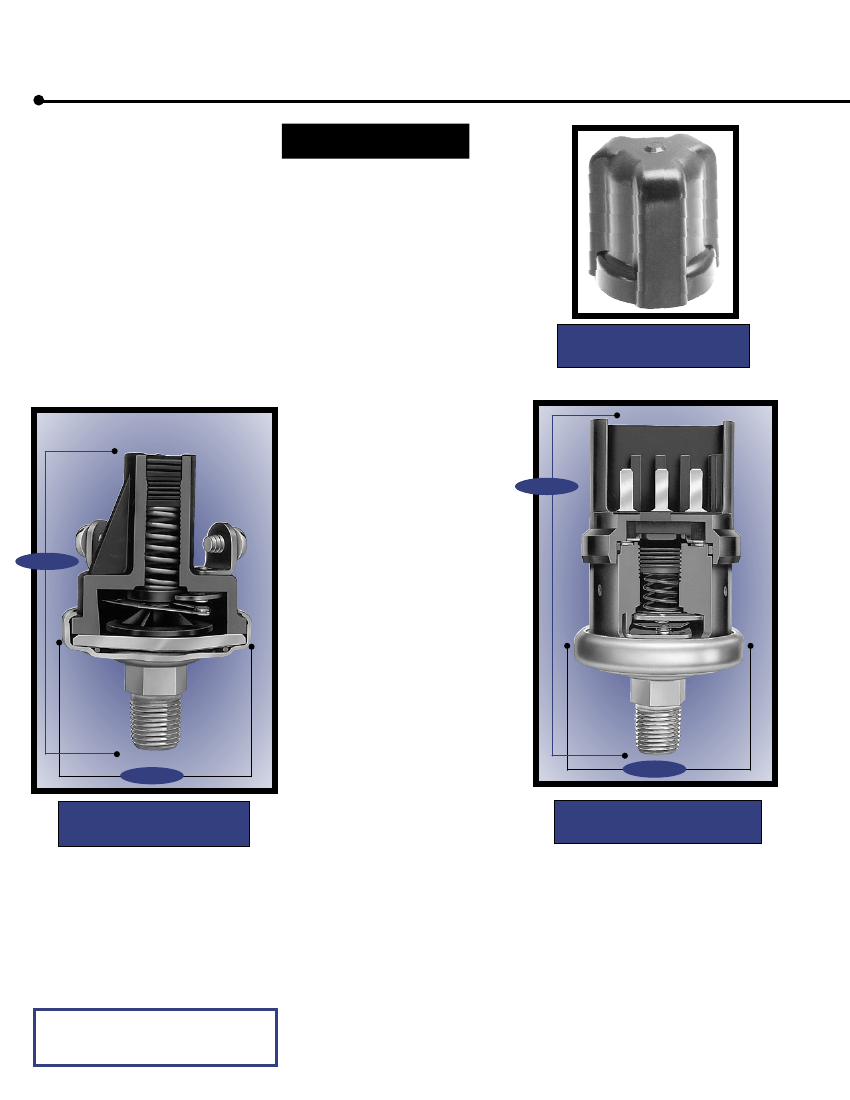

5000 Series Switch

with Metri-Pack Terminal

1.47” REF.

5000 Series Switch

with Screw Terminals

Base:

Cover:

Options:

Plated Steel

Glass reinforced polyester

Brass, plastic or stainless

steel base; various base

connector thread sizes;

wire leads (potted & sealed).

NOTE:

OPERATING MEDIA (PRESSURE SWITCH)

The pressure switch is designed to operate with air,

motor oils, transmission oils, jet fuels and other similar

hydrocarbon media.
