Datasheet> All Categories > Discrete semiconductor> diode> UFT7260AE3

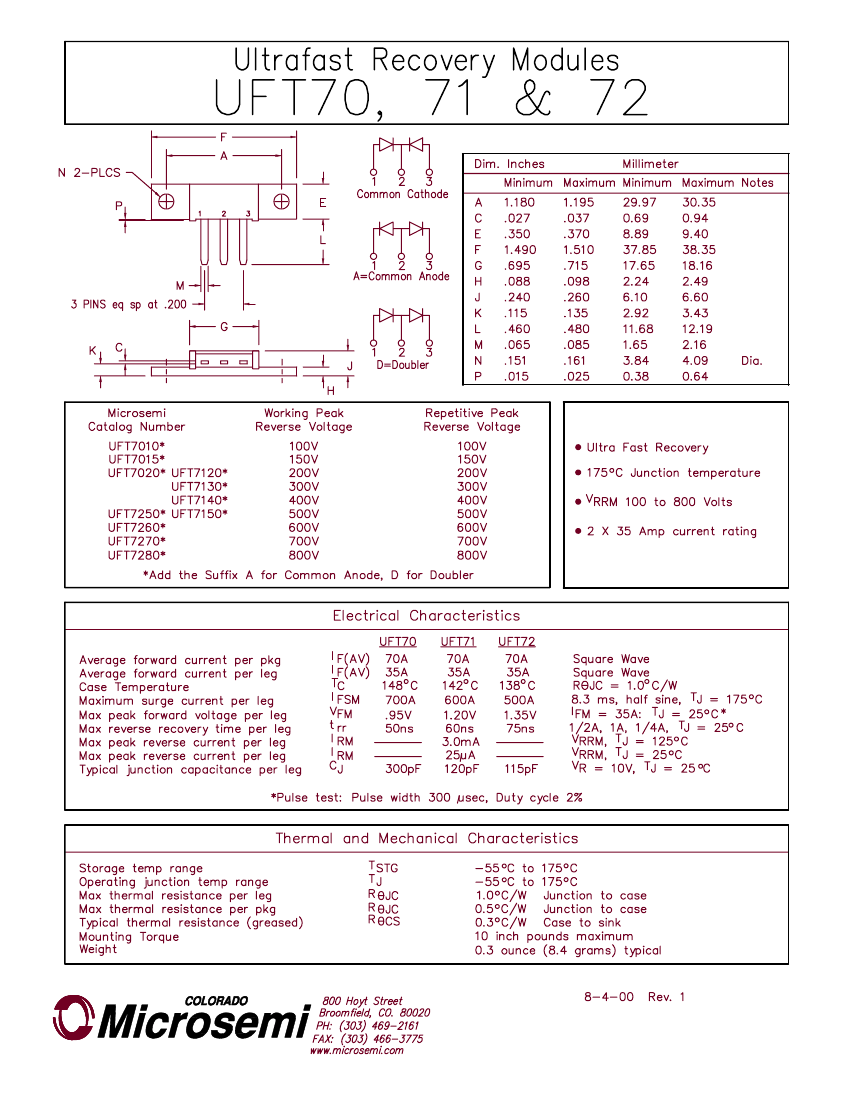

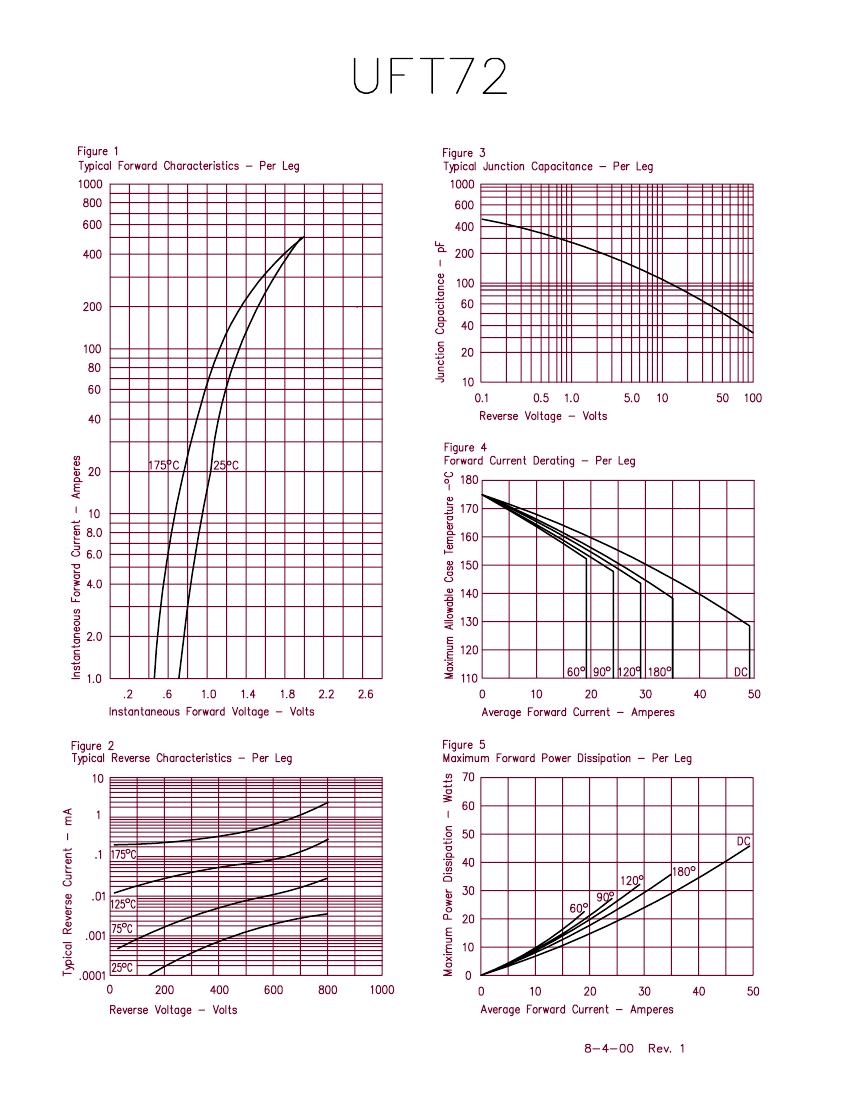

Preview

UFT7260AE3: DescriptionRectifier Diode, 1 Phase, 2 Element, 35A, 600V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size213KB，4 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

UFT7260AE3 Overview

Rectifier Diode, 1 Phase, 2 Element, 35A, 600V V(RRM), Silicon,

UFT7260AE3 Parametric

Parameter Name	Attribute value
Maker	Microsemi
package instruction	R-XSFM-T3
Reach Compliance Code	unknown
ECCN code	EAR99
application	ULTRA FAST RECOVERY
Shell connection	ISOLATED
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.35 V
JESD-30 code	R-XSFM-T3
Maximum non-repetitive peak forward current	500 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Maximum output current	35 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Maximum repetitive peak reverse voltage	600 V
Maximum reverse current	25 µA
Maximum reverse recovery time	0.075 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

Preview

Download Datasheet

View All

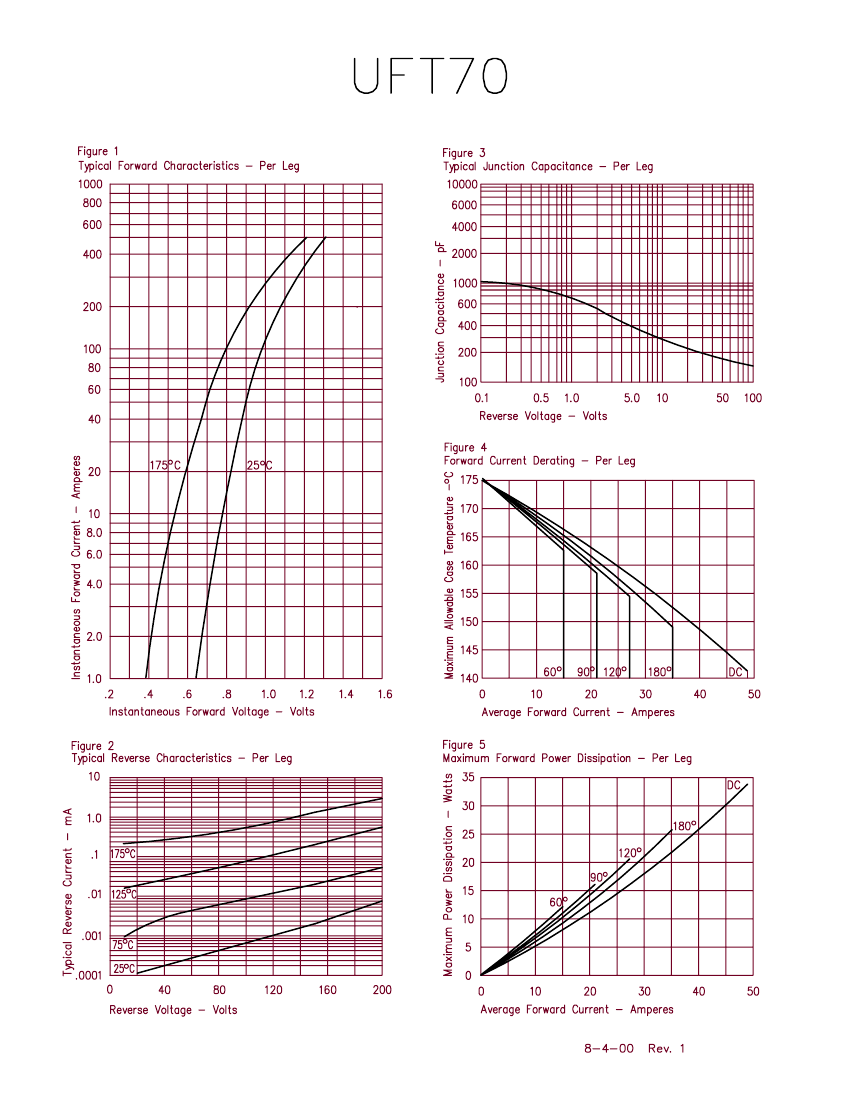

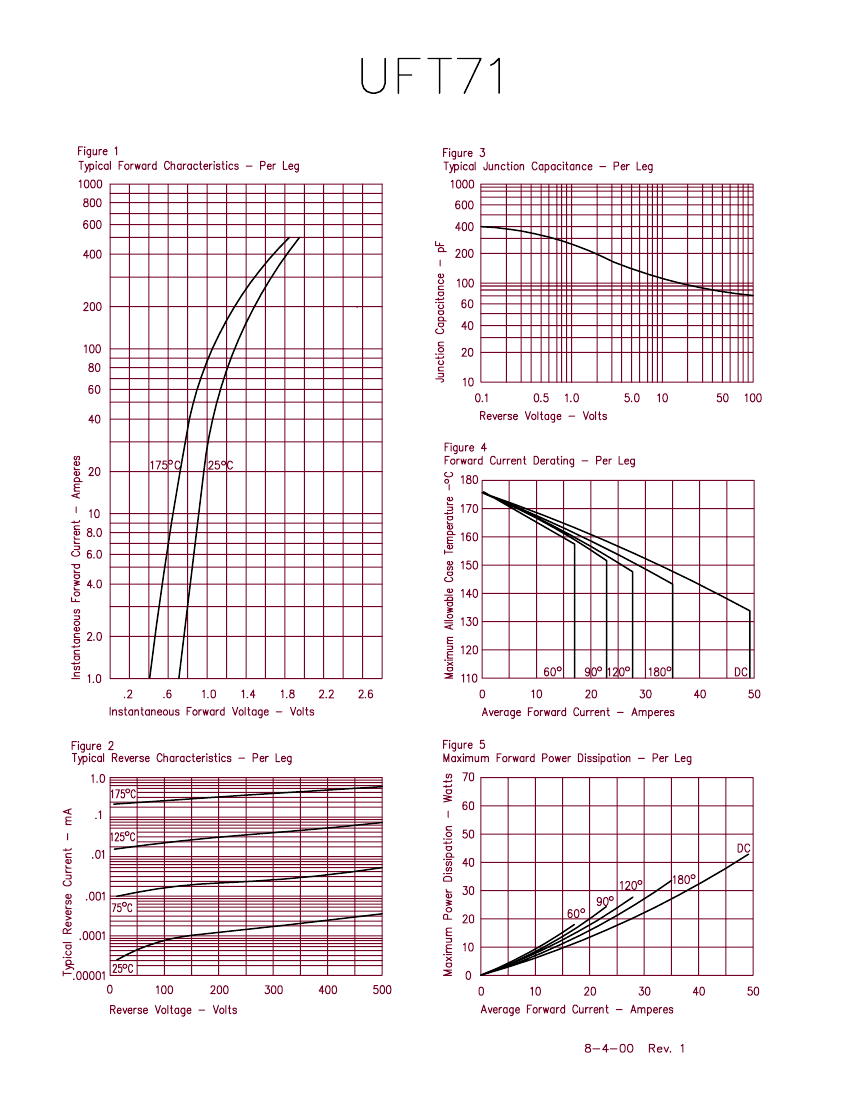

UFT7260AE3 Related Products

	UFT7260AE3	UFT7020DE3	UFT7010DE3	UFT7120AE3	UFT7280AE3	UFT7130AE3	UFT7140AE3	UFT7260DE3	UFT7150DE3
Description	Rectifier Diode, 1 Phase, 2 Element, 35A, 600V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 35A, 200V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 35A, 100V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 35A, 200V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 35A, 800V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 35A, 300V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 35A, 400V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 35A, 600V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 35A, 500V V(RRM), Silicon,
package instruction	R-XSFM-T3	R-XSFM-T3	R-XSFM-T3	R-XSFM-T3	R-XSFM-T3	R-XSFM-T3	R-XSFM-T3	R-XSFM-T3	R-XSFM-T3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	COMMON ANODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.35 V	0.95 V	0.95 V	1.2 V	1.35 V	1.2 V	1.2 V	1.35 V	1.2 V
JESD-30 code	R-XSFM-T3	R-XSFM-T3	R-XSFM-T3	R-XSFM-T3	R-XSFM-T3	R-XSFM-T3	R-XSFM-T3	R-XSFM-T3	R-XSFM-T3
Maximum non-repetitive peak forward current	500 A	700 A	700 A	600 A	500 A	600 A	600 A	500 A	600 A
Number of components	2	2	2	2	2	2	2	2	2
Phase	1	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3	3
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	35 A	35 A	35 A	35 A	35 A	35 A	35 A	35 A	35 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Maximum repetitive peak reverse voltage	600 V	200 V	100 V	200 V	800 V	300 V	400 V	600 V	500 V
Maximum reverse current	25 µA	25 µA	25 µA	25 µA	25 µA	25 µA	25 µA	25 µA	25 µA
Maximum reverse recovery time	0.075 µs	0.05 µs	0.05 µs	0.06 µs	0.075 µs	0.06 µs	0.06 µs	0.075 µs	0.06 µs
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Objectid	-	8073445357	8073445351	8073445359	-	1658872293	8073445364	-	8073445368
