MC68HC11E9MFN1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> MC68HC11E9MFN1

MC68HC11E9MFN1: Description8-BIT, MROM, 3MHz, MICROCONTROLLER, PQCC52, PLASTIC, LCC-52; CategoryThe embedded processor and controller Microcontrollers and processors; File Size74KB，2 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

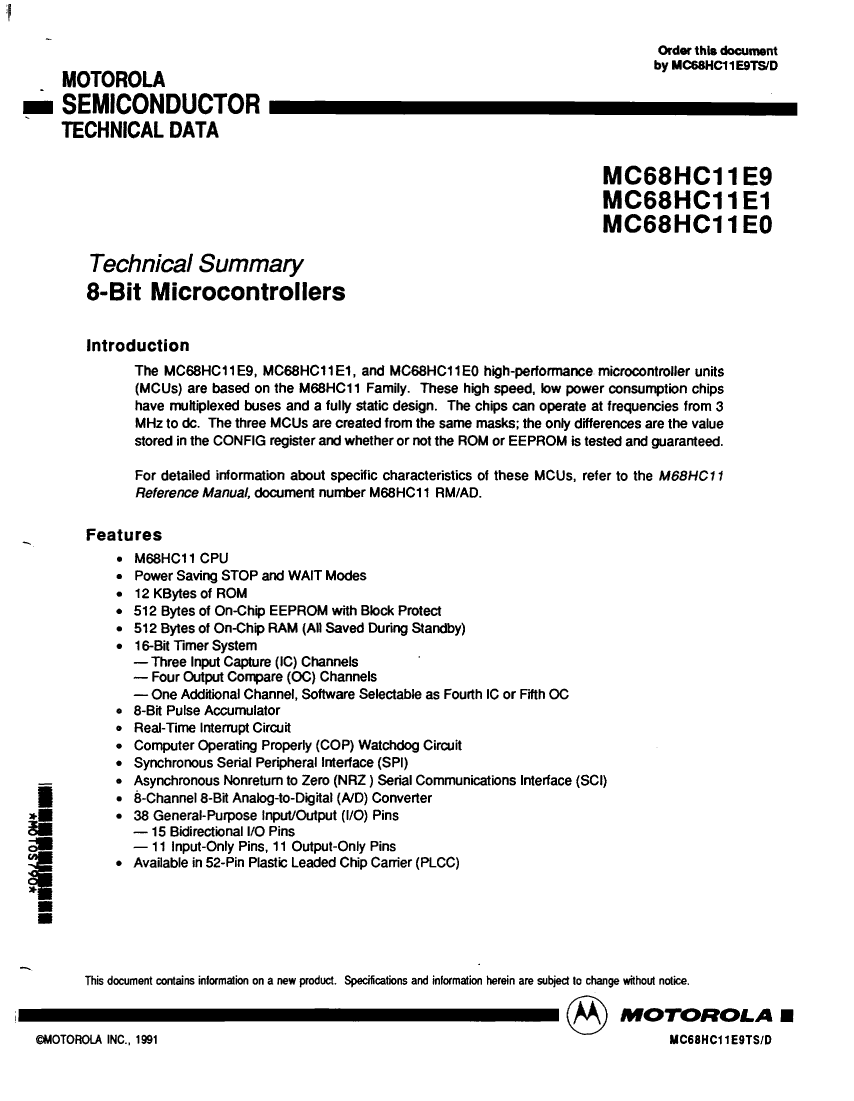

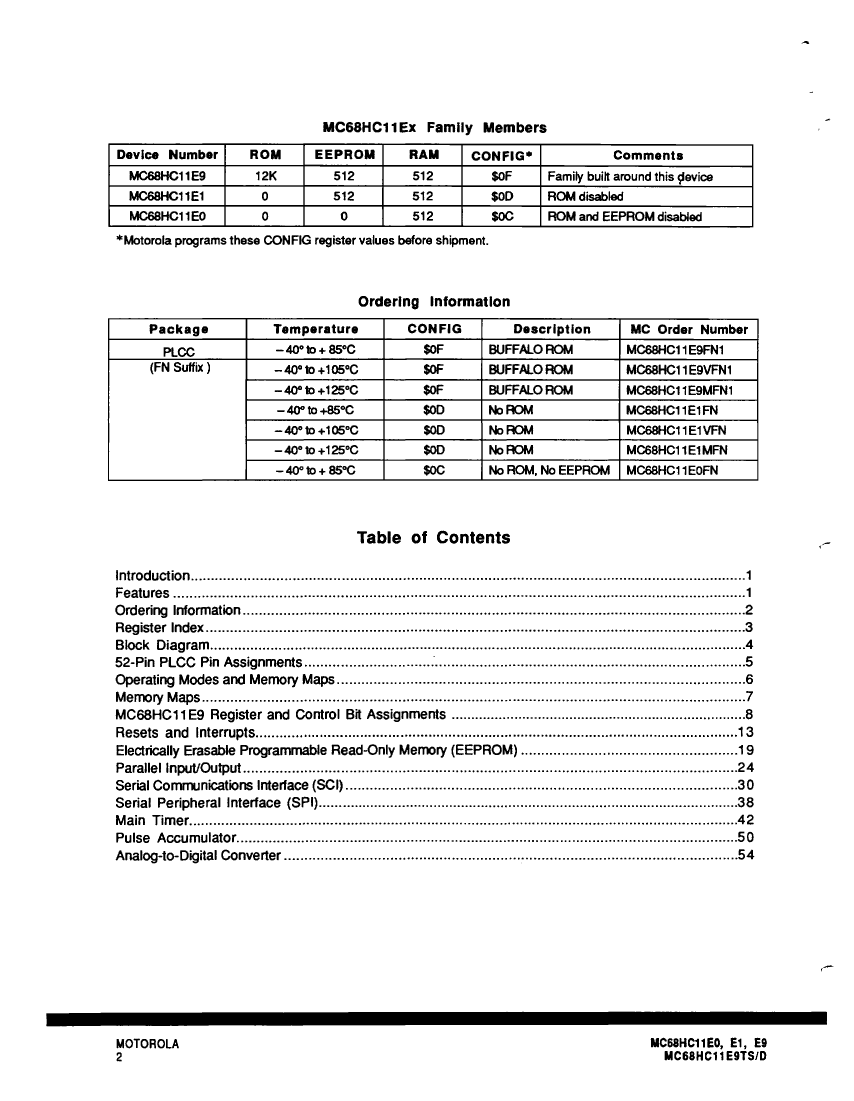

MC68HC11E9MFN1 Overview

8-BIT, MROM, 3MHz, MICROCONTROLLER, PQCC52, PLASTIC, LCC-52

MC68HC11E9MFN1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
Parts packaging code	LCC
package instruction	QCCJ, LDCC52,.8SQ
Contacts	52
Reach Compliance Code	unknown
Has ADC	YES
Address bus width	16
bit size	8
CPU series	6800
maximum clock frequency	12 MHz
DAC channel	NO
DMA channel	YES
External data bus width	8
JESD-30 code	S-PQCC-J52
JESD-609 code	e0
length	19.1262 mm
Number of I/O lines	38
Number of terminals	52
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC52,.8SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	512
rom(word)	12288
ROM programmability	MROM
Maximum seat height	4.57 mm
speed	3 MHz
Maximum slew rate	27 mA
Maximum supply voltage	5 V
Minimum supply voltage	5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	19.1262 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

Preview

Download Datasheet

View All

MC68HC11E9MFN1 Related Products

	MC68HC11E9MFN1	MC68HC11E1FN	MC68HC11E9VFN1	MC68HC11E1VFN	MC68HC11E0FN	MC68HC11E1MFN
Description	8-BIT, MROM, 3MHz, MICROCONTROLLER, PQCC52, PLASTIC, LCC-52	8-BIT, EEPROM, 3MHz, MICROCONTROLLER, PQCC52, PLASTIC, LCC-52	8-BIT, MROM, 3MHz, MICROCONTROLLER, PQCC52, PLASTIC, LCC-52	Microcontroller, 8-Bit, 3MHz, CMOS, PQCC52, PLASTIC, LCC-52	8-BIT, 3MHz, MICROCONTROLLER, PQCC52, PLASTIC, LCC-52	8-BIT, 3MHz, MICROCONTROLLER, PQCC52, PLASTIC, LCC-52
package instruction	QCCJ, LDCC52,.8SQ	QCCJ, LDCC52,.8SQ	QCCJ, LDCC52,.8SQ	QCCJ,	QCCJ, LDCC52,.8SQ	QCCJ, LDCC52,.8SQ
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
Has ADC	YES	YES	YES	YES	YES	YES
Address bus width	16	16	16	16	16	16
bit size	8	8	8	8	8	8
maximum clock frequency	12 MHz	12 MHz	12 MHz	12 MHz	12 MHz	12 MHz
DAC channel	NO	NO	NO	NO	NO	NO
DMA channel	YES	YES	YES	YES	YES	YES
External data bus width	8	8	8	8	8	8
JESD-30 code	S-PQCC-J52	S-PQCC-J52	S-PQCC-J52	S-PQCC-J52	S-PQCC-J52	S-PQCC-J52
length	19.1262 mm	19.1262 mm	19.1262 mm	19.1262 mm	19.1262 mm	19.1262 mm
Number of I/O lines	38	38	38	38	38	38
Number of terminals	52	52	52	52	52	52
Maximum operating temperature	125 °C	85 °C	105 °C	105 °C	85 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PWM channel	NO	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.57 mm	4.57 mm	4.57 mm	4.57 mm	4.57 mm	4.57 mm
speed	3 MHz	3 MHz	3 MHz	3 MHz	3 MHz	3 MHz
Maximum supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
Minimum supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	AUTOMOTIVE	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	AUTOMOTIVE
Terminal form	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	19.1262 mm	19.1262 mm	19.1262 mm	19.1262 mm	19.1262 mm	19.1262 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Is it Rohs certified?	incompatible	incompatible	incompatible	-	incompatible	incompatible
Maker	Motorola ( NXP )	-	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
Parts packaging code	LCC	LCC	LCC	-	LCC	LCC
Contacts	52	52	52	-	52	52
CPU series	6800	6800	6800	-	6800	6800
JESD-609 code	e0	e0	e0	-	e0	e0
Encapsulate equivalent code	LDCC52,.8SQ	LDCC52,.8SQ	LDCC52,.8SQ	-	LDCC52,.8SQ	LDCC52,.8SQ
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	-	5 V	5 V
RAM (bytes)	512	512	512	-	512	512
Maximum slew rate	27 mA	27 mA	27 mA	-	27 mA	27 mA
Nominal supply voltage	5 V	5 V	5 V	-	5 V	5 V
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
