MXB-1003-13 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> MXB-1003-13

MXB-1003-13: DescriptionRF/Microwave Device,; CategoryWireless rf/communication Radio frequency and microwave; File Size39KB，1 Pages; ManufacturerQorvo; Websitehttps://www.qorvo.com

Download Datasheet Parametric View All

MXB-1003-13 Overview

RF/Microwave Device,

MXB-1003-13 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Qorvo
package instruction	SMT, 6 PIN
Reach Compliance Code	compliant
Other features	HIGH RELIABILITY
structure	COMPONENT
Maximum frequency conversion loss	9 dB
Maximum input power (CW)	20 dBm
Maximum operating frequency	1000 MHz
Minimum operating frequency	700 MHz
Maximum operating temperature	80 °C
Minimum operating temperature	-50 °C
RF/Microwave Device Types	DOUBLE BALANCED

Preview

Download Datasheet

View All

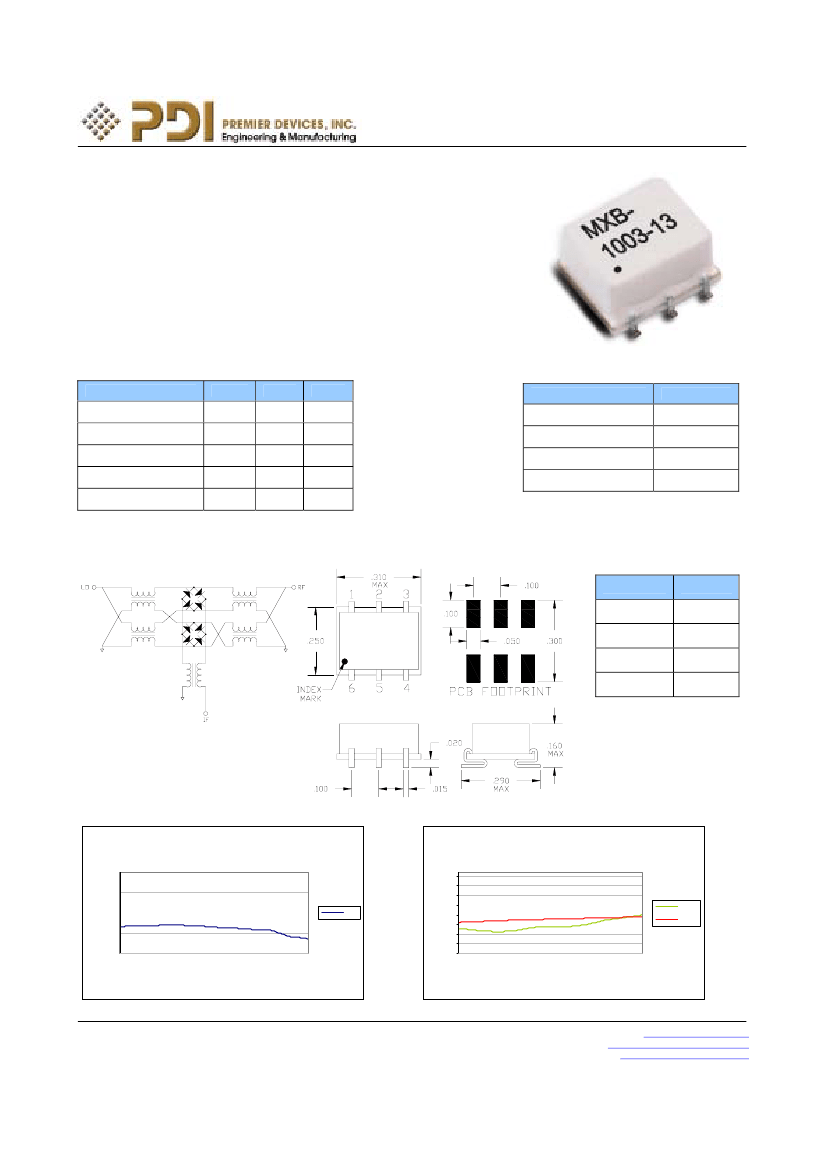

MXB-1003-13

Features

•

Frequency Range: LO & RF 700– 1000 MHz, IF DC – 250 MHz

L.O. Drive: +13 dBm

Industry Standard SMT package

Available in Tape-and -Reel

Low Cost

The MXB-1003-13 is a medium-high drive level, surface mount mixer

designed for applications that require small, low cost and highly

reliable surface mount components. This mixer is a

double balanced design for wideband high dynamic range

use in communications up and down-converter applications.

SURFACE MOUNT MIXER

Description

Specifications

Parameter

Frequency Range (MHz)

Conversion Loss (dB)

LO – RF Isolation (dB)

LO – IF Isolation (dB)

IIP

(dBm)

Min

700

7.0

+20

Typ

Max

1000

9.0

Absolute Maximum Ratings

Parameter

RF Power

Operating Temperature

Storage Temperature

Re-flow Temperature

Maximum

+ 20 dBm

-50 to +80

°C

-65 to +100

°C

+ 240

°C

Notes: Test Conditions-LO +13 dBm, RF -10 dBm, IF 30 MHz.

Typical values represent Mid-band performance @ 25°C.

Schematic

Package – S07

Pin Functions

Function

LO INPUT

RF INPUT

IF OUTPUT

GROUND

2,3,6

Typical Test Data – Conversion Loss

Typical Test Data – LO-RF and LO-IF Isolation

Conversion Loss

-1.5

-3.5

-5.5

-7.5

-9.5

700

730

760

790

820

850

880

910

940

970 1000

S21

Isolation

-5

-10

-15

-20

-25

-30

-35

-40

-45

700

760

820

880

940

1000

LO-IF

LO-RF

Frequency (MHz)

Specifications and information on this data sheet are subject to change without notice.

1860 Hartog Drive, San Jose, California 95131 USA

Leffelholzstr. 20, D-90441, Nurnberg, Germany

2/1-2F, No.99 Lane 2535 Gudai Rd, Shanghai, China PC 201100

Tel: 001-408-436-7720

Tel: +49(0)911/9411 233

Tel: (86)21-5416-8648

Fax: 001-408-436-7689

Fax: +49(0)911/9411 198

Fax: (86)21-5416-8753

Email:

Sales@premierdevices.com

Email:

Sales.germany@premierdevices.com

Email:

Sales.china@premierdevices.com
