XO5162AGV5D-RFREQ: DescriptionSine Output Oscillator, 10MHz Min, 40MHz Max, ROHS COMPLIANT, DIP-14/4; CategoryPassive components oscillator; File Size524KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric View All

XO5162AGV5D-RFREQ Overview

Sine Output Oscillator, 10MHz Min, 40MHz Max, ROHS COMPLIANT, DIP-14/4

XO5162AGV5D-RFREQ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	MtronPTI
Reach Compliance Code	unknown
Ageing	0.7 PPM/FIRST YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	0.075%
Frequency Stability - Voltage	0.1 ppm
input power	0.35 W
Installation features	THROUGH HOLE MOUNT
offset frequency	1 kHz
Maximum operating frequency	40 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	60 °C
Minimum operating temperature
Oscillator type	SINE
Output impedance	50 Ω
Output level	2 V
Oven power supply voltage	5V
phase noise	-140 dBc/Hz
physical size	20.2mm x 13.2mm x 8.1mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
Preheating power	1.25 W

Preview

Download Datasheet

View All

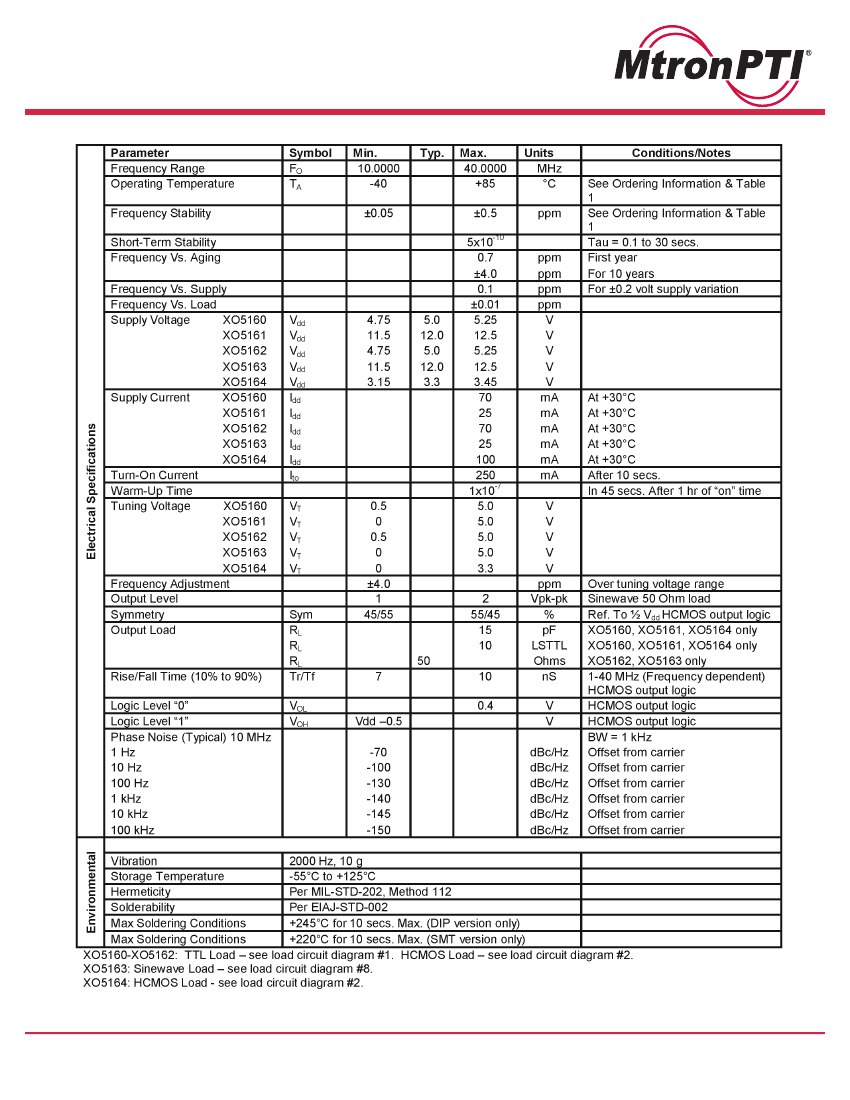

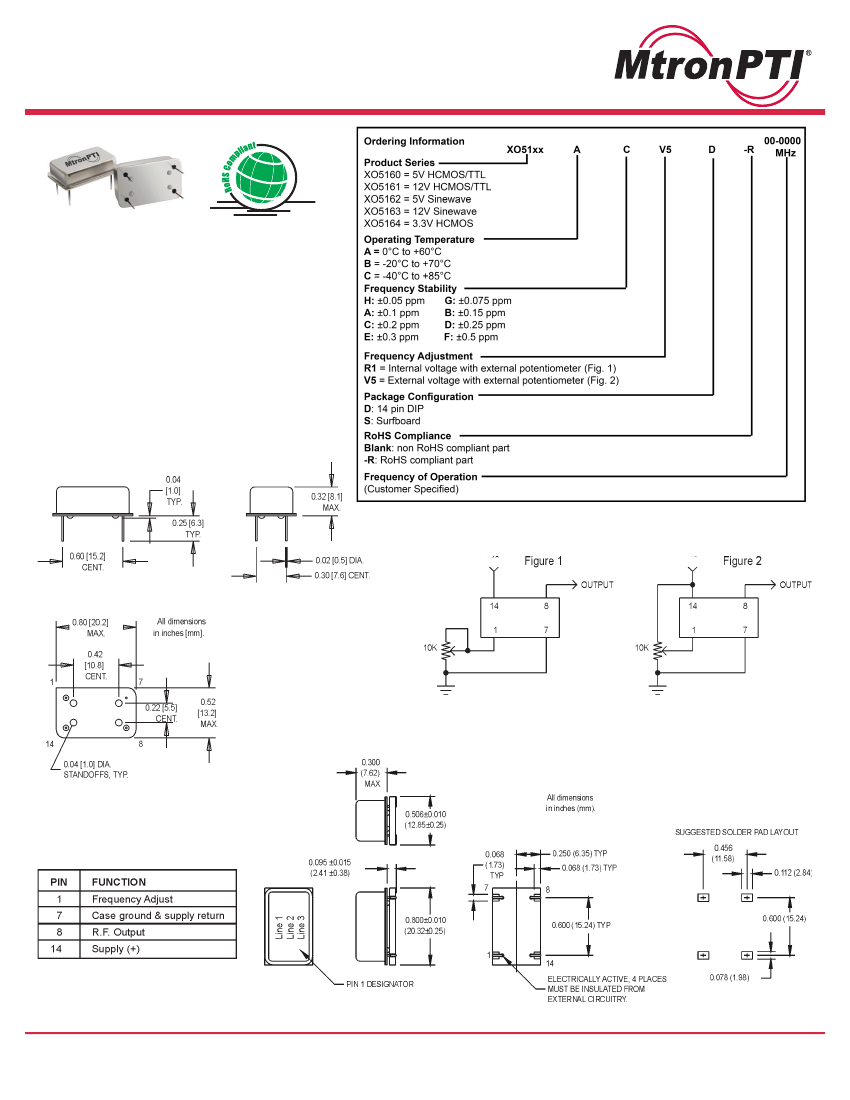

XO5160 - XO5164 Series

14 pin DIP, 3.3, 5.0 or 12.0 Volt, HCMOS/TTL/Sinewave, OCXO

•

Standard DIP/DIL package offering tight

stabilities, fast warm-up, and low current

Ideal for PCS base stations, cellular

base stations, phase locking, and

SAR/SAT applications

SMT Surfboard Option

PTH Package D

M7003Sxxx, M7006Sxxx, M7007Sxxx, M7008Sxxx

& M7009Sxxx - Contact factory for datasheets.

+3.3V, 5V or 12V

SMTPackage S

Pin Connections

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Revision: 2-19-08
