XOSM-533ERFA601M544

Description
XO, Clock, CRYSTAL OSCILLATOR, CLOCK, 1.544 MHz, HCMOS OUTPUT, HALOGEN FREE AND ROHS COMPLIANT, ULTRA MINIATURE PACKAGE-4
CategoryPassive components    oscillator
File Size68KB,3 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

XOSM-533ERFA601M544 Overview

XO, Clock, CRYSTAL OSCILLATOR, CLOCK, 1.544 MHz, HCMOS OUTPUT, HALOGEN FREE AND ROHS COMPLIANT, ULTRA MINIATURE PACKAGE-4

XOSM-533ERFA601M544 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerVishay
Reach Compliance Codeunknown
Other featuresBULK
maximum descent time7 ns
Frequency Adjustment - MechanicalNO
frequency stability25%
JESD-609 codee4
Manufacturer's serial numberXOSM-533
Installation featuresSURFACE MOUNT
Nominal operating frequency1.544 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Oscillator typeHCMOS
Output load15 pF
physical size5.0mm x 3.3mm x 1.3mm
longest rise time7 ns
Maximum supply voltage3.63 V
Minimum supply voltage2.97 V
Nominal supply voltage3.3 V
surface mountYES
maximum symmetry45/55 %
Terminal surfaceGold (Au)

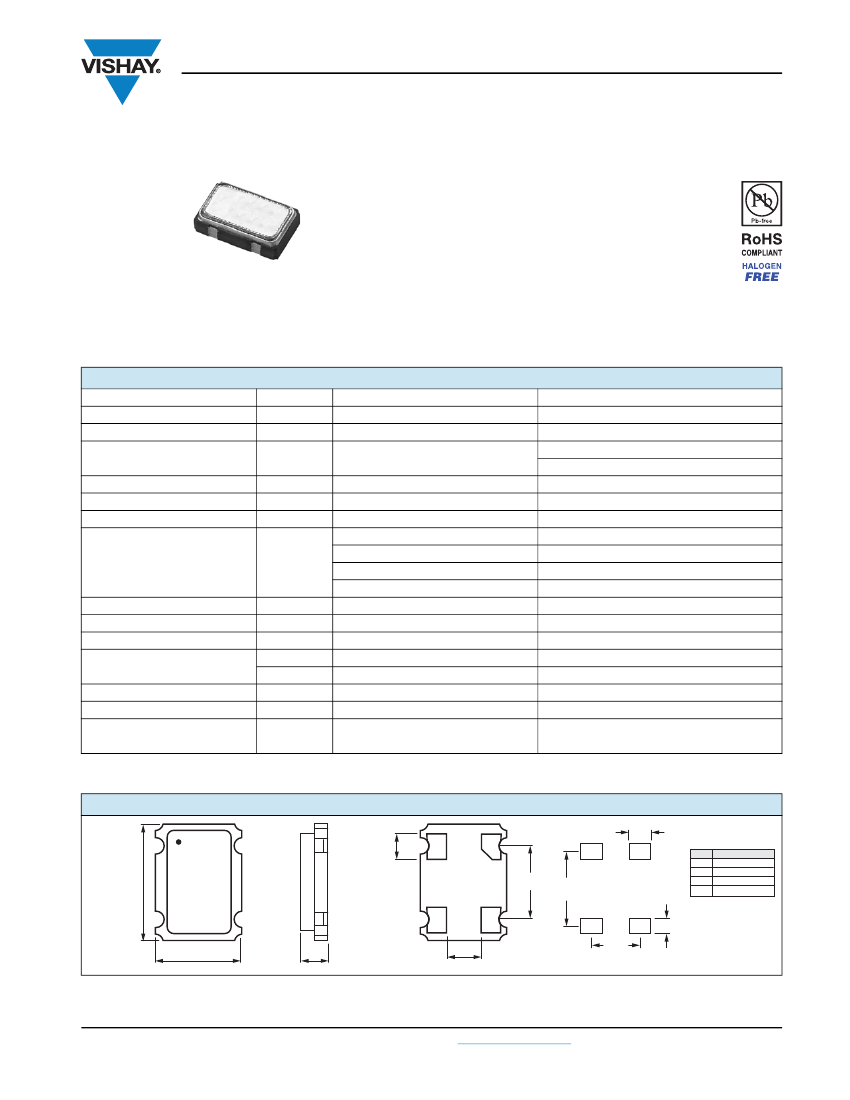

XOSM-533
Vishay Dale
Surface Mount Oscillator
FEATURES
Size: 5.0 x 3.2 x 1.3 (mm)
Miniature package
Tri-state enable/disable
HCMOS compatible
Tape and reel
I
R
re-flow
3.3 V input voltage
Compliant to RoHS Directive 2002/95/EC
Halogen-free according to IEC 61249-2-21 definition
The XOSM-533 series is an ultra miniature package clock
oscillator with dimensions 5.0 mm x 3.2 mm x 1.3 mm. It is
mainly used in portable PC and telecommunication devices
and equipment.
STANDARD ELECTRICAL SPECIFICATIONS
PARAMETER
Frequency range
Frequency stability
(1)
Operating temperature range
Storage temperature range
Power supply voltage
Aging (first year)
T
OPR
T
STG
V
DD
SYMBOL
F
O
CONDITION
-
all conditions
-
-
-
25 ºC ± 3 ºC
1.544 MHz to 9.999 MHz
Supply current
I
DD
10.000 MHz to 34.999 MHz
35.000 MHz to 49.999 MHz
50.000 MHz to 100.000 MHz
Output symmetry
Rise time
Fall time
Output voltage
Output load
Start-up time
Pin 1, tri-state function
Sym
t
r
t
f
V
OH
V
OL
HCMOS load
t
s
at
1
/
2
VALUE
1.544 MHz to 100.000 MHz
± 25 ppm, ± 50 ppm, ± 100 ppm
0 ºC to 70 ºC
- 40 ºC to + 85 ºC (option)
- 55 ºC to + 125 ºC
3.3 V ± 10 %
± 5 ppm
8 mA max.
10 mA max.
25 mA max.
35 mA max.
40 %/60 % (45 %/55 % option)
7 ns max.
7 ns max.
90 % V
DD
min.
10 % V
DD
max.
30 pF max. (15 pF typ.)
10 ms max.
pin 1 = H or open (output active at pin 3)
pin 1 = L (high impedance at pin 3)
V
DD
10 % V
DD
to 90 % V
DD
90 % V
DD
to 10 % V
DD
-
-
-
-
-
Note
(1)
Include: 25 °C tolerance, operating temperature range, input voltage change, aging, load change, shock vibration
DIMENSIONS
in inches [millimeters]
0.047 ± 0.003
[1.20 ± 0.1]
0.197 ± 0.008
[5.0 ± 0.2]
0.047
[1.2]
#4
#1
PIN
#1
#2
#3
#4
CONNECTION
TRI-STATE/NC
GND
OUTPUT
V
DD
0.1 ± 0.003
[2.54 ± 0.1]
0.1
[2.54]
0.055
[1.4]
#3
0.130 ± 0.008
[3.3 ± 0.2]
#2
0.087
[2.2]
0.051 [1.3]
max.
0.047
[1.2]
Note
• A 0.01 μF bypass capacitor should be placed between V
DD
(pin 4) and GND (pin 2) to minimize power supply line noise
Document Number: 35060
Revision: 08-Mar-11
For technical questions, contact:
frequency@vishay.com
www.vishay.com
41
