S Series
www.vishay.com
Vishay BCcomponents

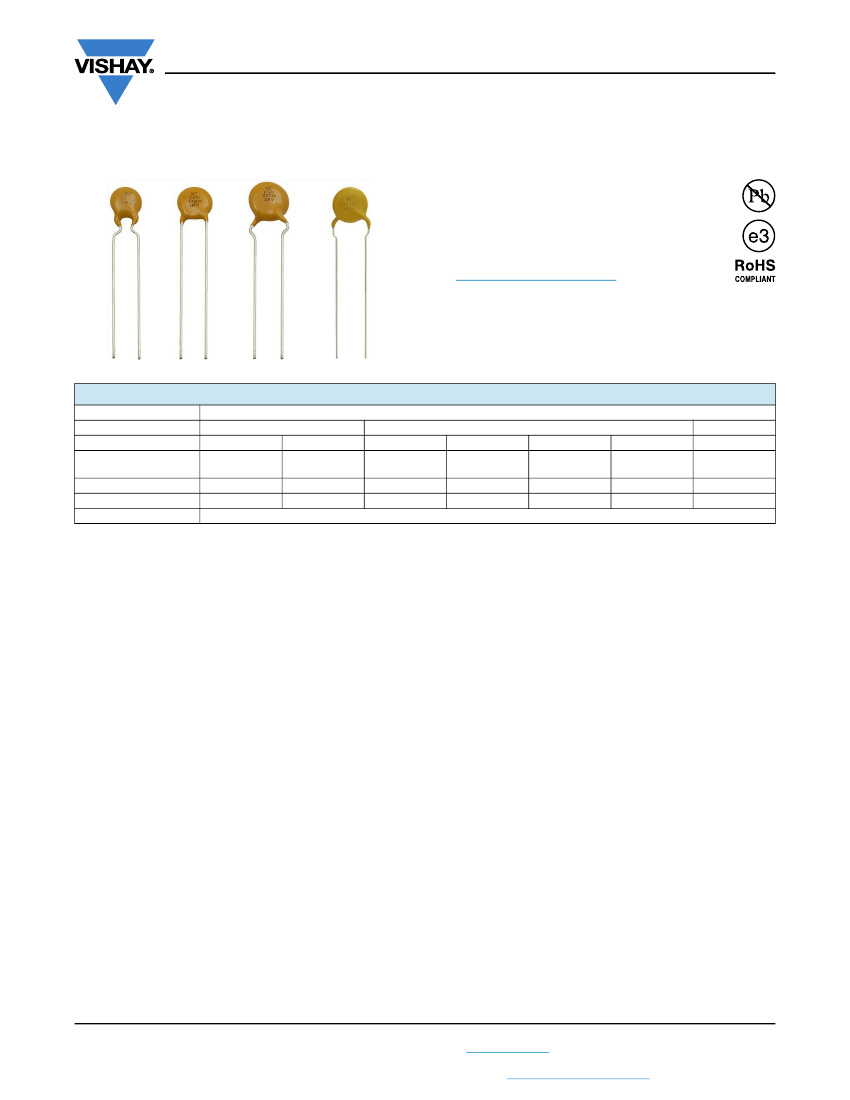

Ceramic Singlelayer DC Disc Capacitors for General Purpose
Class 1, Class 2, and Class 3, 1 kV
DC
, 2 kV
DC
, 3 kV
DC
, 6 kV
DC
FEATURES
•
•
•
•
High capacitance with small size
High stability
Crimp and straight lead styles
Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
APPLICATIONS
• Temperature compensation
• Coupling and decoupling
• Bypassing
QUICK REFERENCE DATA
DESCRIPTION
Ceramic Class
Ceramic Dielectric
Voltage (V
DC
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
VALUE
1
SL0
1000, 2000,
3000, 6000
10
470
S3N
6000
47
150
X7R
1000, 2000,
3000
100
4700
Y5P
1000, 2000,
3000
100
10 000
Radial
2
X5F
1000, 2000
100
4700
Z5U
1000, 2000,
3000, 6000
1000
22 000
3
Y5V
1000, 2000,
3000
1000
33 000
MARKING
Marking indicates capacitance value and tolerance in
accordance with “EIA 198” and voltage marks.
CAPACITANCE RANGE
10 pF to 33 nF
TOLERANCE ON CAPACITANCE
OPERATING TEMPERATURE RANGE
SL0, X7R, X5F: -55 °C to +125 °C
Y5P, Z5U, Z5V, Y5V: -30 °C to +125 °C
± 5 %; ± 10 %; ± 20 %; + 80 % / - 20 %
RATED VOLTAGE
1000 V
DC
, 2000 V
DC
, 3000 V
DC
, 6000 V
DC
TEMPERATURE CHARACTERISTICS
Class 1: SL0, S3N
Class 2: X7R, Y5P, X5F, Z5U
Class 3: Y5V
TEST VOLTAGE
200 % of rated voltage
INSULATION RESISTANCE AT RATED VOLTAGE
10 G min.
SECTIONAL SPECIFICATIONS
Climatic category (according to EN 60058-1)
Class 1 and 2: 55/125/21
Class 3:
30/85/21
DISSIPATION FACTOR
Class 1: 0.1 max. when C
30 pF
(1 MHz, 1 V where C
1000 pF,
and 1 kHz, 1 V where C > 1000 pF)
For C < 30 pF: DF = 100/(400 + 20 °C)
DF = dissipation factor in %;
C = capacitance value in pF
Class 2: 2.5 % max. (1 kHz, 1 V)
Class 3: 5 % max. (1 kHz, 1 V)
APPROVALS
EIA 198
IEC 60384-8
IEC 60384-9
DESIGN
The capacitors consist of a ceramic disc both sides of which
are silver-plated. Connection leads are made of tinned
copper wire, having diameters of 0.6 mm or 0.8 mm.
The capacitors may be supplied with straight or kinked
leads having a lead spacing of 5.0 mm, 7.5 mm and
10.0 mm.
Coating is made of epoxy resin in accordance with
UL 94 V-0.
Revision: 10-Jan-17
Document Number: 28515
1
For technical questions, contact:
cdc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
S Series
www.vishay.com
Vishay BCcomponents
LEAD CONFIGURATION
(in millimeters)
D
D
D
D
T
SH
DR
SH
L
SH
θ
*
K
G
F
L
F
G
G
F
L
F
G
L
J
L
K
K
Note
• Lead-spacing 2.5 mm is available for L lead configuration only.
MARKING
Size 25
Size 29 and above
TTT
XXX
VVVV
BC
TTT
XXXt
VVVV
Note
• Refer to specified part for detail marking.
ORDERING CODE INFORMATION
S
1
102
234
K
5
Capacitance
Tolerance
29
67
Size
Code
Y5P
8 9 10
T.C.
Code
N
11
Rated
Voltage
6
12
Lead
Diameter
6 = 0.60 mm
± 0.05 mm
8 = 0.80 mm
± 0.05 mm
3
13
Packaging /
Lead Length
3 = bulk
T = tape
and reel
U = ammo
J
14
Lead
Style
5
15
Lead
Spacing
R
16
RoHS-
Compliant
R = RoHS-
compliant
G = RoHS-
compliant
and
halogen-free
Product Capacitance
Type
(pF)
S series
The first two
J=±5%
Please
Please N = 1000 V
DC
digits are the
K = ± 10 % refer to
refer to P = 2000 V
DC
significant
M = ± 20 % relevant relevant R = 3000 V
DC
figures of
Z = + 80 % / datasheet datasheet U = 6000 V
DC
capacitance and
- 20 %
the last digit is a
multiplier as
follows:
0=*1
1 = * 10
2 = * 100
3 = * 1000
Please 5 = 5.0 mm
refer to 6 = 6.4 mm
relevant 7 = 7.5 mm
datasheet 0 = 10.0 mm
Revision: 10-Jan-17
Document Number: 28515
2
For technical questions, contact:
cdc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
S Series
www.vishay.com
ORDERING CODES
DIELECTRIC SL0
(1000 V
DC
/ 2000 V
DC
)
CAP.
(pF)
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
1000 V
DC
ORDERING CODE
S100#25SL0N6###R
S120#25SL0N6###R
S150#25SL0N6###R
S180#25SL0N6###R
S220#25SL0N6###R
S270#25SL0N6###R
S330#25SL0N6###R
S390#25SL0N6###R
S470#25SL0N6###R
S560#29SL0N6###R
S680#29SL0N6###R
S820#29SL0N6###R
S101#29SL0N6###R
S121#33SL0N6###R
S151#33SL0N6###R
S181#39SL0N6###R
S221#39SL0N6###R
DIAMETER
(mm max.)
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
7.5
7.5
7.5
7.5
8.5
8.5
10
10
THICKNESS
(mm max.)
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
ORDERING CODE
S100#25SL0P6###R
S120#25SL0P6###R
S150#25SL0P6###R
S180#25SL0P6###R
S220#25SL0P6###R
S270#25SL0P6###R
S330#29SL0P6###R
S390#29SL0P6###R
S470#29SL0P6###R
S560#29SL0P6###R
S680#33SL0P6###R
S820#33SL0P6###R
S101#39SL0P6###R
S121#39SL0P6###R
S151#43SL0P6###R
/
/
2000 V
DC
DIAMETER
(mm max.)
6.5
6.5
6.5
6.5
6.5
6.5
7.5
7.5
7.5
7.5
8.5
8.5
10
10
11
/
/
THICKNESS
(mm max.)
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
/
/
Vishay BCcomponents
DIELECTRIC SL0
(3000 V
DC
/ 6000 V
DC
)
CAP.
(pF)
10
12
15
18
22
27
33
39
47
56
68
3000 V
DC
ORDERING CODE
S100#33SL0R6###R
S120#33SL0R6###R
S150#33SL0R6###R
S180#33SL0R6###R
S220#33SL0R6###R
S270#33SL0R6###R
S330#33SL0R6###R
S390#33SL0R6###R
S470#33SL0R6###R
S560#39SL0R6###R
S680#39SL0R6###R
DIAMETER
(mm max.)
8.5
8.5
8.5
8.5
8.5
8.5
8.5
8.5
8.5
10
10
THICKNESS
(mm max.)
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
ORDERING CODE
S100#39SL0U83L0R
S120#39SL0U83L0R
S150#43SL0U83L0R
S180#43SL0U83L0R
S220#43SL0U83L0R
S270#47SL0U83L0R
S330#53SL0U83L0R
/
/
/
/
6000 V
DC (1)
DIAMETER
(mm max.)
10
10
11
11
11
12
13.5
/
/
/
/
THICKNESS
(mm max.)
8
8
8
8
8
8
8
/
/
/
/
Notes
• Lead diameter is 0.6 mm
• # 5
th
digit is capacitance tolerance code: ± 5 % = J; ± 10 % = K
• # 13
th
digit is packaging code: bulk = 3; reel = T; ammo = U
• # 14
th
digit is lead style code: L; J; K (J is valid for 1 kV only)
• # 15
th
digit is lead spacing code: 5.0 mm = 5; 6.4 mm = 6; 7.5 mm = 7; 10.0 mm = 0
(1)
For 6000 V part, only straight lead configuration (0.8 mm lead diameter) and bulk packaging are available
Revision: 10-Jan-17
Document Number: 28515
3
For technical questions, contact:
cdc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
S Series
www.vishay.com
Vishay BCcomponents
DIELECTRIC Z5U
(1000 V
DC
/ 2000 V
DC
)
CAP.
(pF)
1000
1500
2200
3300
4700
6800
10 000
15 000
22 000
1000 V
DC
ORDERING CODE
S102#25Z5UN6###R
S152#29Z5UN6###R
S222#29Z5UN6###R
S332#33Z5UN6###R
S472#39Z5UN6###R
S682#43Z5UN6###R
S103#47Z5UN6###R
S153#59Z5UN63J7R
S223#75Z5UN83J0R
DIAMETER
(mm max.)
6.5
7.5
7.5
8.5
10
11
12
15
19
THICKNESS
(mm max.)
4
4
4
4
4
4
4
4
4
ORDERING CODE
S102#29Z5UP6###R
S152#29Z5UP6###R
S222#33Z5UP6###R
S332#43Z5UP6###R
S472#47Z5UP6###R
S682#53Z5UP63K7R
S103#69Z5UP63K7R
/
/
2000 V
DC
DIAMETER
(mm max.)
7.5
7.5
8.5
11.0
12.0
13.5
17.5
/
/
THICKNESS
(mm max.)
4.5
4.5
4.5
4.5
4.5
4.5
4.5
/
/
DIELECTRIC Z5U
(3000 V
DC
/ 6000 V
DC
)
CAP.
(pF)
220
330
470
1000
1500
2200
3300
4700
3000 V
DC
ORDERING CODE
/
/
S471#33Z5UR6###R
S102#33Z5UR6###R
S152#39Z5UR6###R
S222#43Z5UR6###R
S332#53Z5UR63K7R
S472#69Z5UR63K7R
DIAMETER
(mm max.)
/
/
8.5
8.5
10.0
11.0
13.5
17.5
THICKNESS
(mm max.)
/
/
5.5
5.5
5.5
5.5
5.5
5.5
ORDERING CODE
S221#39Z5UU83L0R
S331#43Z5UU83L0R
S471#47Z5UU83L0R
S102#59Z5UU83L0R
S152#69Z5UU83L0R
S222M75Z5UU83L0R
/
/
6000 V
DC
DIAMETER
(mm max.)
10
11
12
15
17.5
19
/
/
THICKNESS
(mm max.)
8
8
8
8
8
8
/
/
Notes
• Lead diameter is 0.6 mm
• # 5
th
digit is capacitance tolerance code: ± 20 % = M; + 80 % / - 20 % = Z
• # 13
th
digit is packaging code: bulk = 3; reel = T; ammo = U
• # 14
th
digit is lead style code: L; J; K (J is valid for 1 kV only)
• # 15
th
digit is lead spacing code: 5.0 mm = 5; 6.4 mm = 6; 7.5 mm = 7; 10.0 mm = 0
Revision: 10-Jan-17
Document Number: 28515
4
For technical questions, contact:
cdc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
S Series
www.vishay.com
Vishay BCcomponents
2000 V
DC
THICKNESS
(mm max.)
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
ORDERING CODE
S101#25Y5PP6###R
S121#25Y5PP6###R
S151#25Y5PP6###R
S181#25Y5PP6###R
S221#25Y5PP6###R
S271#25Y5PP6###R
S331#25Y5PP6###R
S471#29Y5PP6###R
S561#29Y5PP6###R
S681#29Y5PP6###R
S821#33Y5PP6###R
S102#33Y5PP6###R
S152#39Y5PP6###R
S182#43Y5PP6###R
S222#43Y5PP6###R
S332#53Y5PP6###R
S472#69Y5PP63K7R
/
/
DIAMETER
(mm max.)
6.5
6.5
6.5
6.5
6.5
6.5
6.5
7.5
7.5
7.5
8.5
8.5
10.0
11.0
11.0
13.5
17.5
/
/
THICKNESS
(mm max.)
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
/
/
DIELECTRIC Y5P
(1000 V
DC
/ 2000 V
DC
)
CAP.
(pF)
100
120
150
180
220
270
330
470
560
680
820
1000
1500
1800
2200
3300
4700
6800
10 000
1000 V
DC
ORDERING CODE
S101#25Y5PN6###R
S121#25Y5PN6###R
S151#25Y5PN6###R
S181#25Y5PN6###R
S221#25Y5PN6###R
S271#25Y5PN6###R
S331#25Y5PN6###R
S471#25Y5PN6###R
S561#29Y5PN6###R
S681#29Y5PN6###R
S821#29Y5PN7###R
S102#29Y5PN6###R
S152#33Y5PN6###R
S182#33Y5PN6###R
S222#39Y5PN6###R
S332#43Y5PN6###R
S472#53Y5PN6###R
S682#59Y5PN63J7R
S103#75Y5PN83J0R
DIAMETER
(mm max.)
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
7.5
7.5
7.5
7.5
8.5
8.5
10.0
11.0
13.5
15.0
19.0
DIELECTRIC Y5P
(3000 V
DC
)
CAP.
(pF)
100
120
150
180
220
270
330
470
560
680
820
1000
1500
1800
2200
3300
3000 V
DC
ORDERING CODE
S101#33Y5PR6###R
S121#33Y5PR6###R
S151#33Y5PR6###R
S181#33Y5PR6###R
S221#33Y5PR6###R
S271#33Y5PR6###R
S331#33Y5PR6###R
S471#33Y5PR6###R
S561#39Y5PR6###R
S681#39Y5PR6###R
S821#39Y5PR6###R
S102#43Y5PR6###R
S152#47Y5PR6###R
S182#47Y5PR6###R
S222#59Y5PR63K7R
S332#75Y5PR83K0R
DIAMETER
(mm max.)
8.5
8.5
8.5
8.5
8.5
8.5
8.5
8.5
10.0
10.0
10.0
11.0
12.0
12.0
15.0
19.0
THICKNESS
(mm max.)
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
Notes
• Lead diameter is 0.6 mm
• # 5
th
digit is capacitance tolerance code: ± 5 % = J; ± 10 % = K
• # 13
th
digit is packaging code: bulk = 3; reel = T; ammo = U
• # 14
th
digit is lead style code: L; J; K (J is valid for 1 kV only)
• # 15
th
digit is lead spacing code: 5.0 mm = 5; 6.4 mm = 6; 7.5 mm = 7; 10.0 mm = 0
Revision: 10-Jan-17
Document Number: 28515
5
For technical questions, contact:
cdc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
51mcu
京公网安备 11010802033920号
EEWORLD
