SG55471F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> SG55471F

SG55471F: DescriptionAnd Gate Based Peripheral Driver, 0.4A, BIPolar; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size105KB，3 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

SG55471F Overview

And Gate Based Peripheral Driver, 0.4A, BIPolar

SG55471F Parametric

Parameter Name	Attribute value
Maker	Microsemi
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Input properties	STANDARD
Interface integrated circuit type	AND GATE BASED PERIPHERAL DRIVER
JESD-30 code	R-CDFP-F
Number of functions	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-COLLECTOR
Output current flow direction	SINK
Nominal output peak current	0.4 A
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
Maximum slew rate	76 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	FLAT
Terminal location	DUAL
Disconnect time	0.055 µs
connection time	0.04 µs

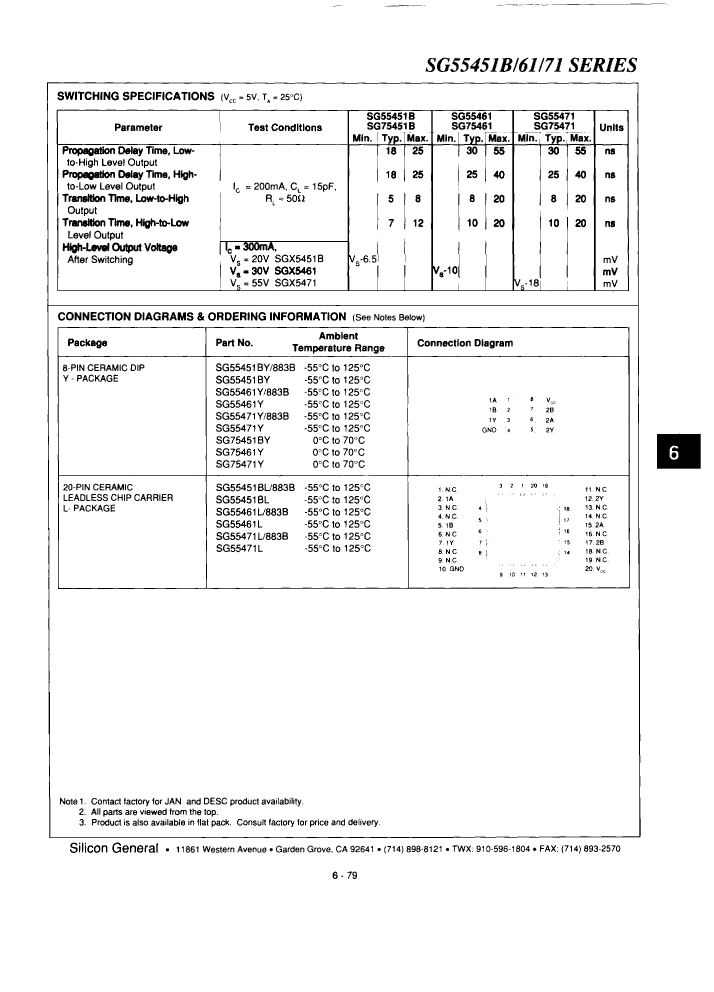

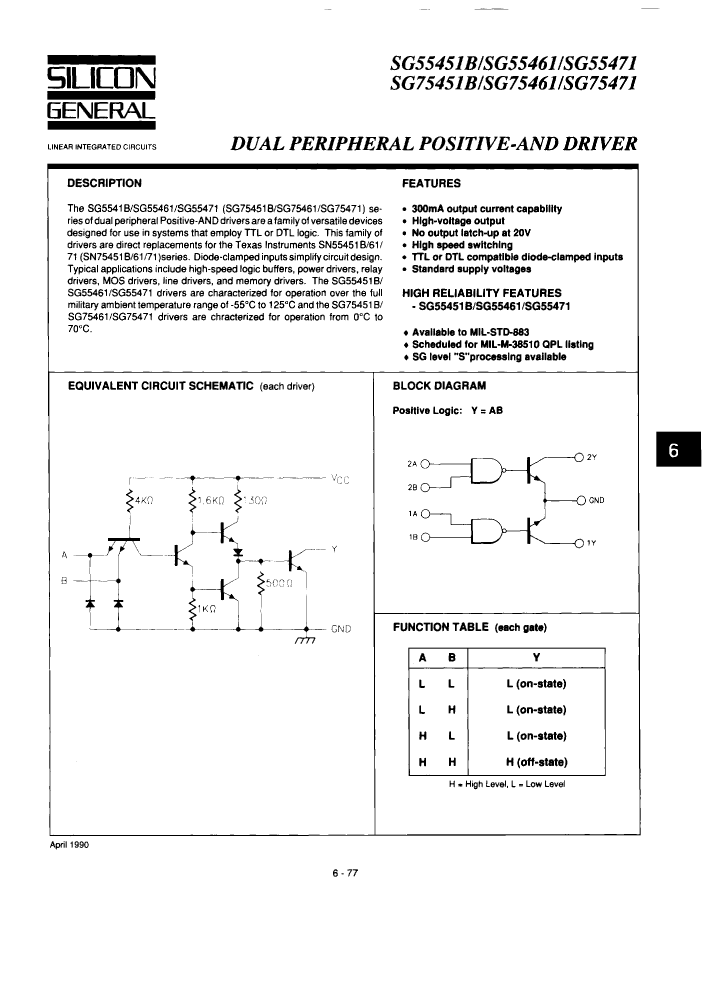

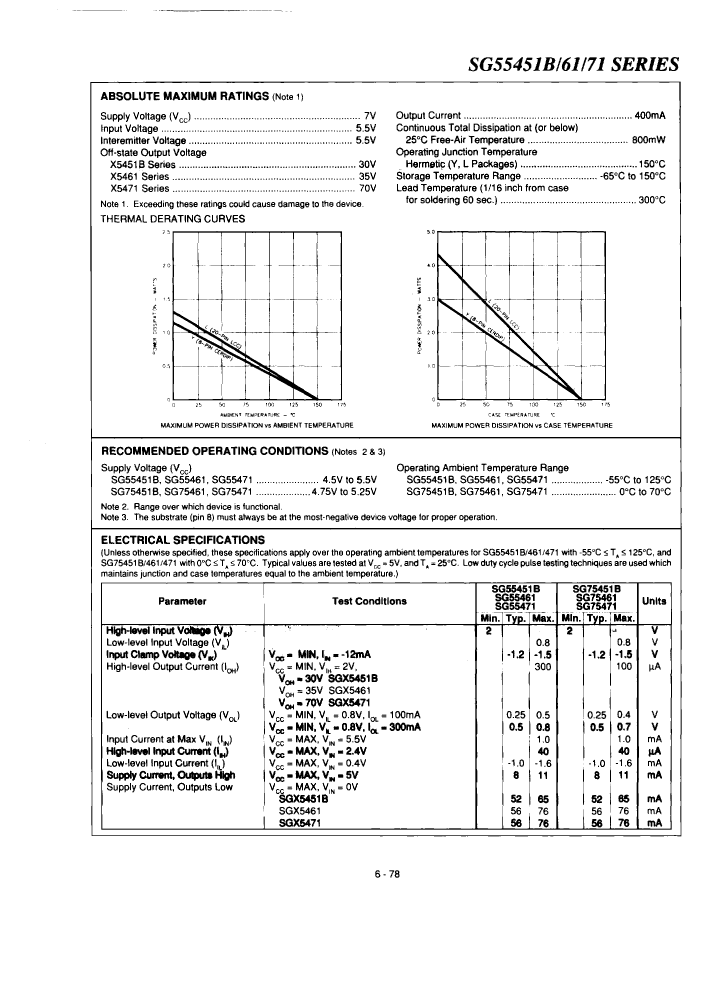

Preview

Download Datasheet

View All

SG55471F Related Products

	SG55471F	SG75471F	SG55461F	SG55461F/883B	SG55451BF	SG55451BF/883B	SG55471F/883B
Description	And Gate Based Peripheral Driver, 0.4A, BIPolar	And Gate Based Peripheral Driver, 0.4A, BIPolar	And Gate Based Peripheral Driver, 0.4A, BIPolar	And Gate Based Peripheral Driver, 0.4A, BIPolar	And Gate Based Peripheral Driver, 0.4A, BIPolar	And Gate Based Peripheral Driver, 0.4A, BIPolar	And Gate Based Peripheral Driver, 0.4A, BIPolar
Maker	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Input properties	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD
Interface integrated circuit type	AND GATE BASED PERIPHERAL DRIVER	AND GATE BASED PERIPHERAL DRIVER	AND GATE BASED PERIPHERAL DRIVER	AND GATE BASED PERIPHERAL DRIVER	AND GATE BASED PERIPHERAL DRIVER	AND GATE BASED PERIPHERAL DRIVER	AND GATE BASED PERIPHERAL DRIVER
JESD-30 code	R-CDFP-F	R-CDFP-F	R-CDFP-F	R-CDFP-F	R-CDFP-F	R-CDFP-F	R-CDFP-F
Number of functions	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	70 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR
Output current flow direction	SINK	SINK	SINK	SINK	SINK	SINK	SINK
Nominal output peak current	0.4 A	0.4 A	0.4 A	0.4 A	0.4 A	0.4 A	0.4 A
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	76 mA	76 mA	76 mA	76 mA	65 mA	65 mA	76 mA
Maximum supply voltage	5.5 V	5.25 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.75 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	COMMERCIAL	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Disconnect time	0.055 µs	0.055 µs	0.055 µs	0.055 µs	0.025 µs	0.025 µs	0.055 µs
connection time	0.04 µs	0.04 µs	0.04 µs	0.04 µs	0.025 µs	0.025 µs	0.04 µs
