SP306MF-L datasheet, PDF - EEWORLD Datasheet

SP306MF-L: DescriptionLine Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, CQFP28, CERAMIC, FP-28; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size115KB，6 Pages; ManufacturerMaxLinear Inc; Environmental Compliance

Download Datasheet Parametric Compare View All

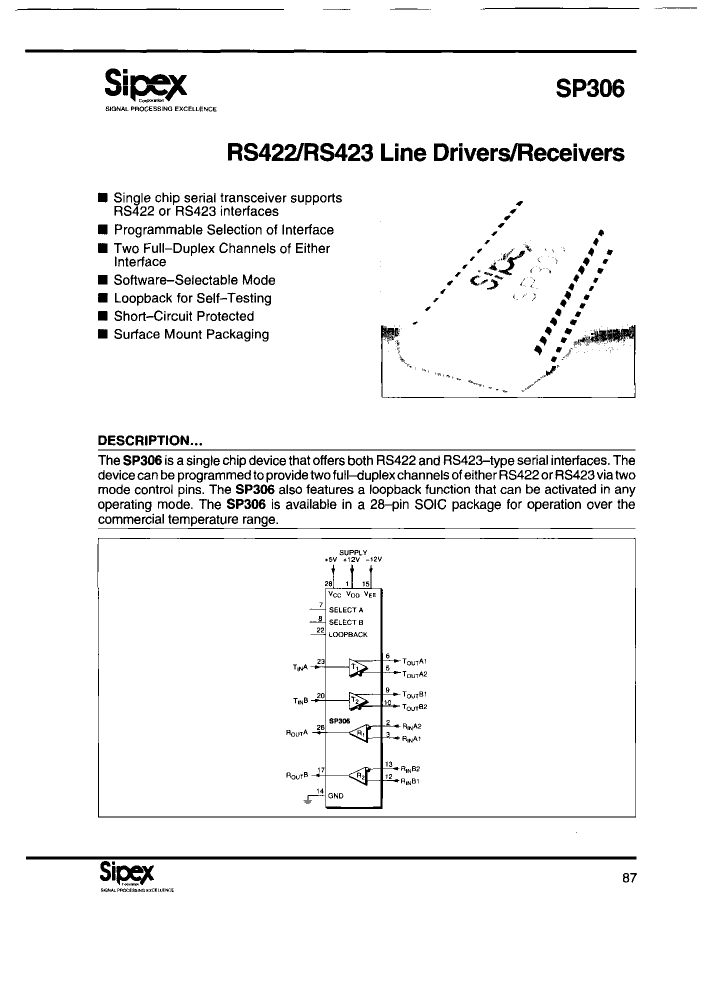

SP306MF-L Overview

Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, CQFP28, CERAMIC, FP-28

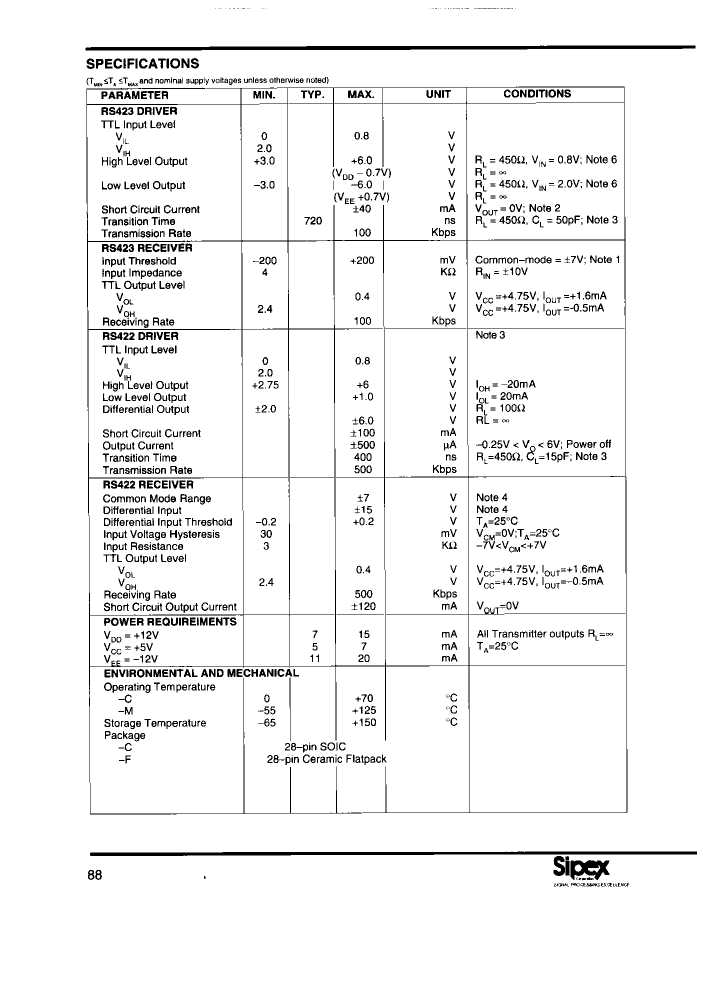

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	MaxLinear Inc
package instruction	QFP,
Reach Compliance Code	compliant
ECCN code	EAR99

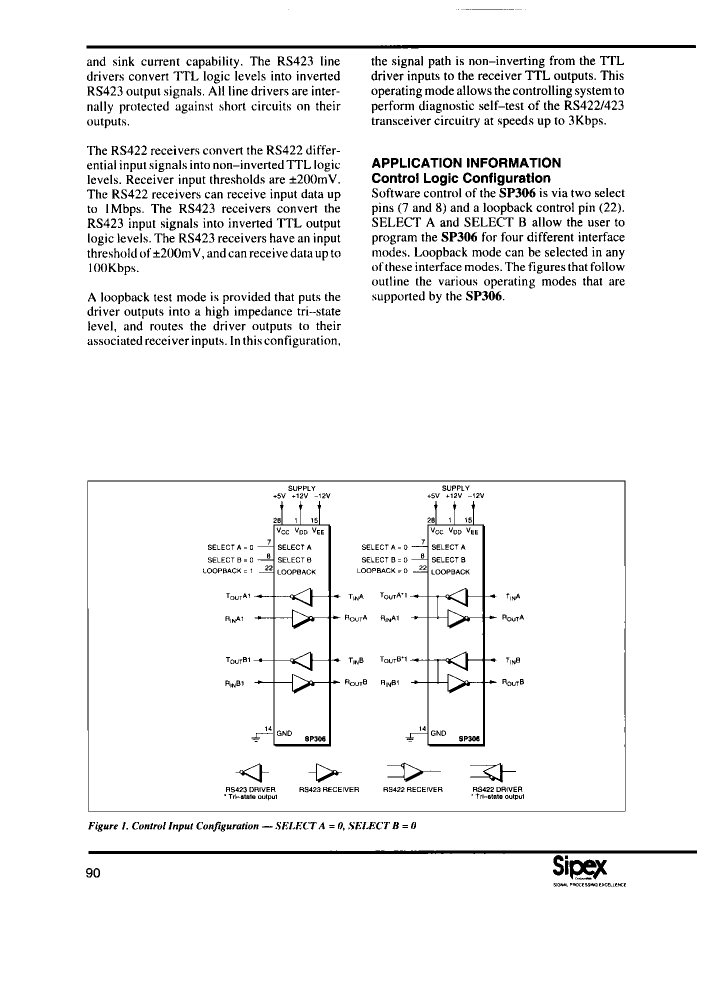

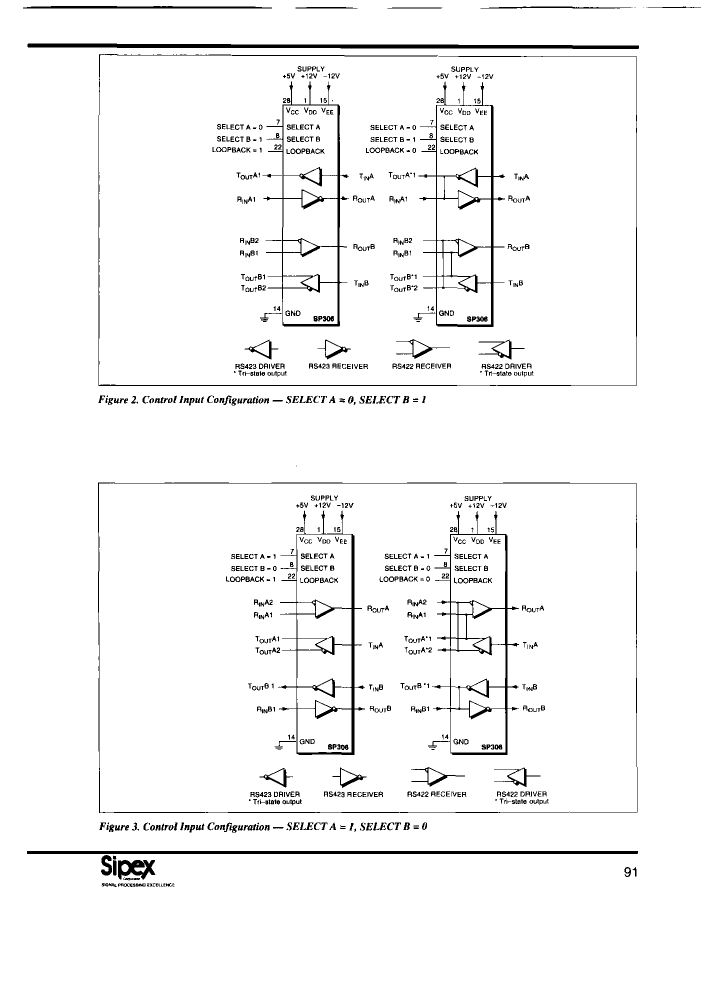

Other features	CONFIGURABLE INTERFACE STANDARDS; LOOP BACK
Differential output	YES
Number of drives	2
Input properties	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER
Interface standards	EIA-422; EIA-423
JESD-30 code	R-CQFP-G28
JESD-609 code	e3
Nominal negative supply voltage	-12 V
Number of functions	1

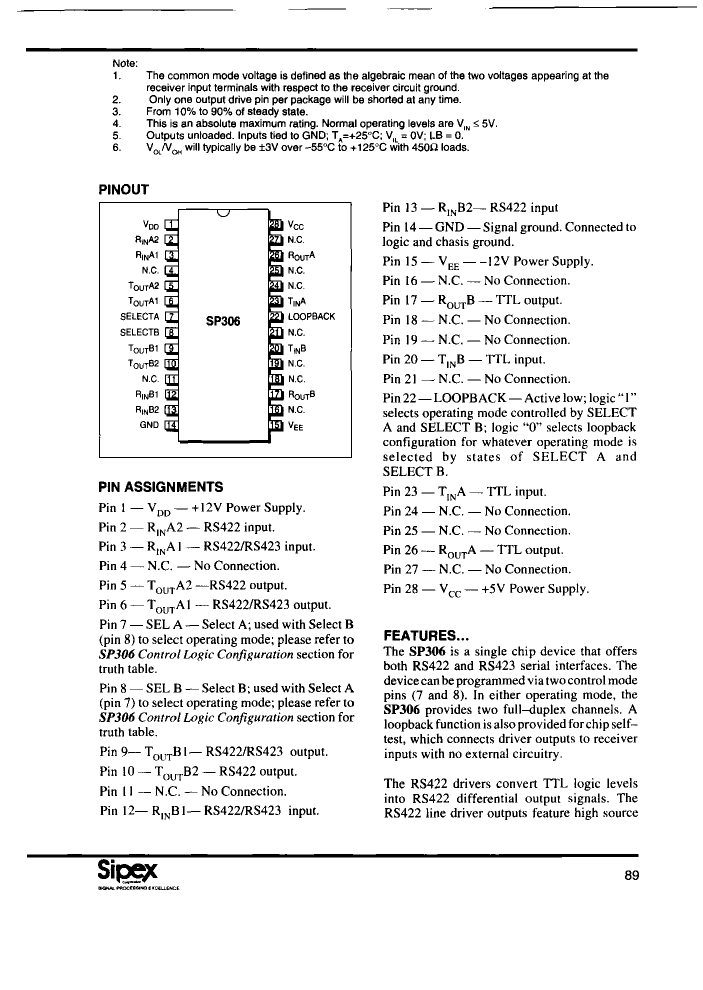

Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QFP
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Number of receiver bits	2
Nominal supply voltage	5 V
Supply voltage1-Nom	12 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED

	SP306MF-L	SP306CT-L
Description	Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, CQFP28, CERAMIC, FP-28	Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, PDSO28, PLASTIC, SOIC-28
Is it Rohs certified?	conform to	conform to
Maker	MaxLinear Inc	MaxLinear Inc
package instruction	QFP,	SOP,
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Other features	CONFIGURABLE INTERFACE STANDARDS; LOOP BACK	CONFIGURABLE INTERFACE STANDARDS; LOOP BACK
Differential output	YES	YES
Number of drives	2	2
Input properties	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER	LINE TRANSCEIVER
Interface standards	EIA-422; EIA-423	EIA-422; EIA-423
JESD-30 code	R-CQFP-G28	R-PDSO-G28
JESD-609 code	e3	e3
Nominal negative supply voltage	-12 V	-12 V
Number of functions	1	1
Number of terminals	28	28
Maximum operating temperature	125 °C	70 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY
encapsulated code	QFP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	260
Certification status	Not Qualified	Not Qualified
Number of receiver bits	2	2
Nominal supply voltage	5 V	5 V
Supply voltage1-Nom	12 V	12 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	MILITARY	COMMERCIAL
Terminal surface	MATTE TIN	MATTE TIN
Terminal form	GULL WING	GULL WING
Terminal location	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	40
