DAC8413BT-883C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> logic> DAC8413BT-883C

DAC8413BT-883C: DescriptionQUAD, PARALLEL, WORD INPUT LOADING, 10 us SETTLING TIME, 12-BIT DAC, PQCC28; Categorysemiconductor logic; File Size486KB，20 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

DAC8413BT-883C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DAC8413BT-883C	-	-	View	Buy Now

DAC8413BT-883C Overview

QUAD, PARALLEL, WORD INPUT LOADING, 10 us SETTLING TIME, 12-BIT DAC, PQCC28

DAC8413BT-883C Parametric

Parameter Name	Attribute value
Number of functions	4
Number of terminals	28
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Rated supply voltage	5 V
Maximum linear error	0.0488 %
Processing package description	ROHS COMPLIANT, plastic, MO-047AB, LCC-28
Lead-free	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	ACTIVE
Craftsmanship	BICMOS
packaging shape	SQUARE
Package Size	ChipCARRIER
surface mount	Yes
Terminal form	J BEND
Terminal spacing	1.27 mm
terminal coating	MATTE Tin
Terminal location	Four
Packaging Materials	Plastic/Epoxy
Temperature level	INDUSTRIAL
Rated negative supply voltage	-5 V
Input format	Parallel, WORD
Type of converter	digital to analog converter
Input bit encoding	binary
Rated settling time	10 us

Preview

Download Datasheet

View All

Data Sheet

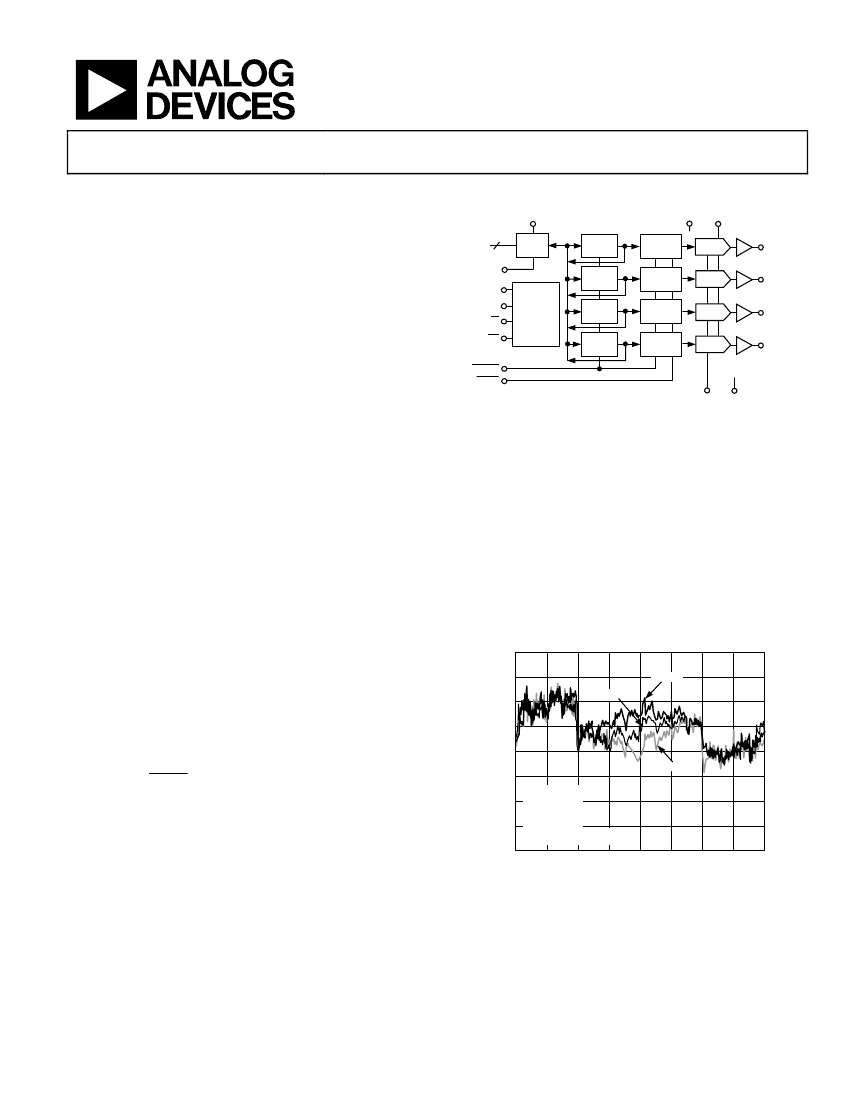

FEATURES

+5 V to ±15 V operation

Unipolar or bipolar operation

True voltage output

Double-buffered inputs

Reset to minimum (DAC8413) or center scale (DAC8412)

Fast bus access time

Readback

Quad, 12-Bit DAC

Voltage Output with Readback

DAC8412/DAC8413

FUNCTIONAL BLOCK DIAGRAM

LOGIC

DATA

I/O

PORT

INPUT

REG A

INPUT

REG B

INPUT

REG C

INPUT

REG D

OUTPUT

REG A

OUTPUT

REG B

OUTPUT

REG C

OUTPUT

REG D

REFH

DAC A

OUTA

DGND

R/W

CONTROL

LOGIC

DAC B

OUTB

DAC C

OUTC

DAC D

APPLICATIONS

Automatic test equipment

Digitally controlled calibration

Servo controls

Process control equipment

OUTD

REFL

Figure 1.

GENERAL DESCRIPTION

The DAC8412/DAC8413 are quad, 12-bit voltage output

DACs with readback capability. Built using a complementary

BiCMOS process, these monolithic DACs offer the user very

high package density.

Output voltage swing is set by the two reference inputs V

REFH

and V

REFL

. By setting the V

REFL

input to 0 V and V

REFH

to a

positive voltage, the DAC provides a unipolar positive output

range. A similar configuration with V

REFH

at 0 V and V

REFL

at a

negative voltage provides a unipolar negative output range.

Bipolar outputs are configured by connecting both V

REFH

and

REFL

to nonzero voltages. This method of setting output voltage

range has advantages over other bipolar offsetting methods

because it is not dependent on internal and external resistors

with different temperature coefficients.

Digital controls allow the user to load or read back data from any

DAC, load any DAC, and transfer data to all DACs at one time.

An active low RESET loads all DAC output registers to midscale

for the DAC8412 and zero scale for the DAC8413.

The DAC8412/DAC8413 are available in 28-lead plastic DIP,

28-lead ceramic DIP, 28-lead PLCC, and 28-lead LCC packages.

They can be operated from a wide variety of supply and reference

voltages with supplies ranging from single +5 V to ±15 V, and

references from +2.5 V to ±10 V. Power dissipation is less than

330 mW with ±15 V supplies and only 60 mW with a +5 V supply.

For MIL-STD-883 applications, contact your local Analog

Devices, Inc. sales office for the DAC8412/DAC8413/883 data

sheet, which specifies operation over the −55°C to +125°C

temperature range. All 883 parts are also available on Standard

Military Drawings 5962-91 76401MXA through 76404M3A.

0.500

0.375

+125°C

+25°C

LINEARITY ERROR (LSB)

0.250

0.125

–55°C

–0.125

–0.250

–0.375

–0.500

512

1024

1536

2046

2548

2560

DIGITAL INPUT CODE (Decimal)

3072

4096

= +15V

= –15V

REFH

= +10V

REFL

= –10V

= –55°C, +25°C, +125°C

00274-002

Figure 2. INL vs. Code Over Temperature

Rev. G

Document Feedback

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

Technical Support

www.analog.com

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

00274-001

RESET

LDAC

DAC8412/DAC8413

TABLE OF CONTENTS

Features .............................................................................................. 1

Applications ....................................................................................... 1

Functional Block Diagram .............................................................. 1

General Description ......................................................................... 1

aRevision History ............................................................................. 2

Specifications..................................................................................... 3

Electrical Characteristics ............................................................. 3

Absolute Maximum Ratings............................................................ 7

Thermal Resistance ...................................................................... 7

ESD Caution .................................................................................. 7

Pin Configuration and Function Descriptions ............................. 8

Typical Performance Characteristics ............................................. 9

Theory of Operation ...................................................................... 14

Data Sheet

Introduction ................................................................................ 14

DACs ............................................................................................ 14

Glitch ............................................................................................ 14

Reference Inputs ......................................................................... 14

Digital I/O ................................................................................... 14

Coding ......................................................................................... 14

Supplies ........................................................................................ 15

Amplifiers .................................................................................... 15

Reference Configurations.......................................................... 16

Single +5 V Supply Operation .................................................. 17

Outline Dimensions ....................................................................... 18

Ordering Guide .......................................................................... 20

REVISION HISTORY

4/13—Rev. F to Rev. G

Changed Reference Low Input Current from 0 mA (min),

2 mA (typ), 2.75 mA (max) to −2.75 mA (min), −2 mA (typ),

0 mA (max); Table 1 ......................................................................... 3

Changes to Reference Configurations Section ........................... 17

9/09—Rev. E to Rev. F

Updated Figure Numbering .............................................. Universal

Removed Figure 7 ............................................................................. 6

Changes to Ordering Guide .......................................................... 20

6/07—Rev. D to Rev. E

Updated Format .................................................................. Universal

Added CERDIP Package .................................................... Universal

Changes to Specifications Section .................................................. 3

Changes to Absolute Maximum Ratings Section ......................... 7

Updated Outline Dimensions ....................................................... 18

Changes to Ordering Guide .......................................................... 20

3/00—Rev. C to Rev. D

Rev. G | Page 2 of 20

DAC8413BT-883C Related Products

	DAC8413BT-883C	DAC8412BTC-883C
Description	QUAD, PARALLEL, WORD INPUT LOADING, 10 us SETTLING TIME, 12-BIT DAC, PQCC28	QUAD, PARALLEL, WORD INPUT LOADING, 10 us SETTLING TIME, 12-BIT DAC, PQCC28
Number of functions	4	4
Number of terminals	28	28
Maximum operating temperature	85 Cel	85 Cel
Minimum operating temperature	-40 Cel	-40 Cel
Rated supply voltage	5 V	5 V
Maximum linear error	0.0488 %	0.0488 %
Processing package description	ROHS COMPLIANT, plastic, MO-047AB, LCC-28	ROHS COMPLIANT, plastic, MO-047AB, LCC-28
Lead-free	Yes	Yes
EU RoHS regulations	Yes	Yes
China RoHS regulations	Yes	Yes
state	ACTIVE	ACTIVE
Craftsmanship	BICMOS	BICMOS
packaging shape	SQUARE	SQUARE
Package Size	ChipCARRIER	ChipCARRIER
surface mount	Yes	Yes
Terminal form	J BEND	J BEND
Terminal spacing	1.27 mm	1.27 mm
terminal coating	MATTE Tin	MATTE Tin
Terminal location	Four	Four
Packaging Materials	Plastic/Epoxy	Plastic/Epoxy
Temperature level	INDUSTRIAL	INDUSTRIAL
Rated negative supply voltage	-5 V	-5 V
Input format	Parallel, WORD	Parallel, WORD
Type of converter	digital to analog converter	digital to analog converter
Input bit encoding	binary	binary
Rated settling time	10 us	10 us
