STX-3500-4N--284C-TR datasheet, PDF

Datasheet> All Categories > The connector> The connector> STX-3500-4N--284C-TR

STX-3500-4N--284C-TR: Description3.5 MM AUDIO CONNECTOR, JACK, ROHS COMPLIANT; CategoryThe connector The connector; File Size2MB，1 Pages; ManufacturerKycon

Download Datasheet Parametric Compare View All

STX-3500-4N--284C-TR Overview

3.5 MM AUDIO CONNECTOR, JACK, ROHS COMPLIANT

STX-3500-4N--284C-TR Parametric

Parameter Name	Attribute value
Maker	Kycon
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	94V-0
audio type	STEREO
Board mount options	PEG
body width	0.197 inch
subject depth	0.669 inch
body length	0.236 inch
Body/casing type	JACK
Configuration	1X1 HORIZONTAL
Connector type	AUDIO/RCA CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	SILVER OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	100 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	5000 Cycles
IEC compliance	NO
maximum insertion force	29.8016 N
Insulation resistance	100000000 Ω
Insulator color	BLUE
insulator material	POLYAMIDE
MIL compliance	NO
Manufacturer's serial number	STX-3500
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of poles	4
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Rated current (signal)	0.3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	SURFACE MOUNT
Evacuation force-minimum value	1.946 N

Preview

Download Datasheet

View All

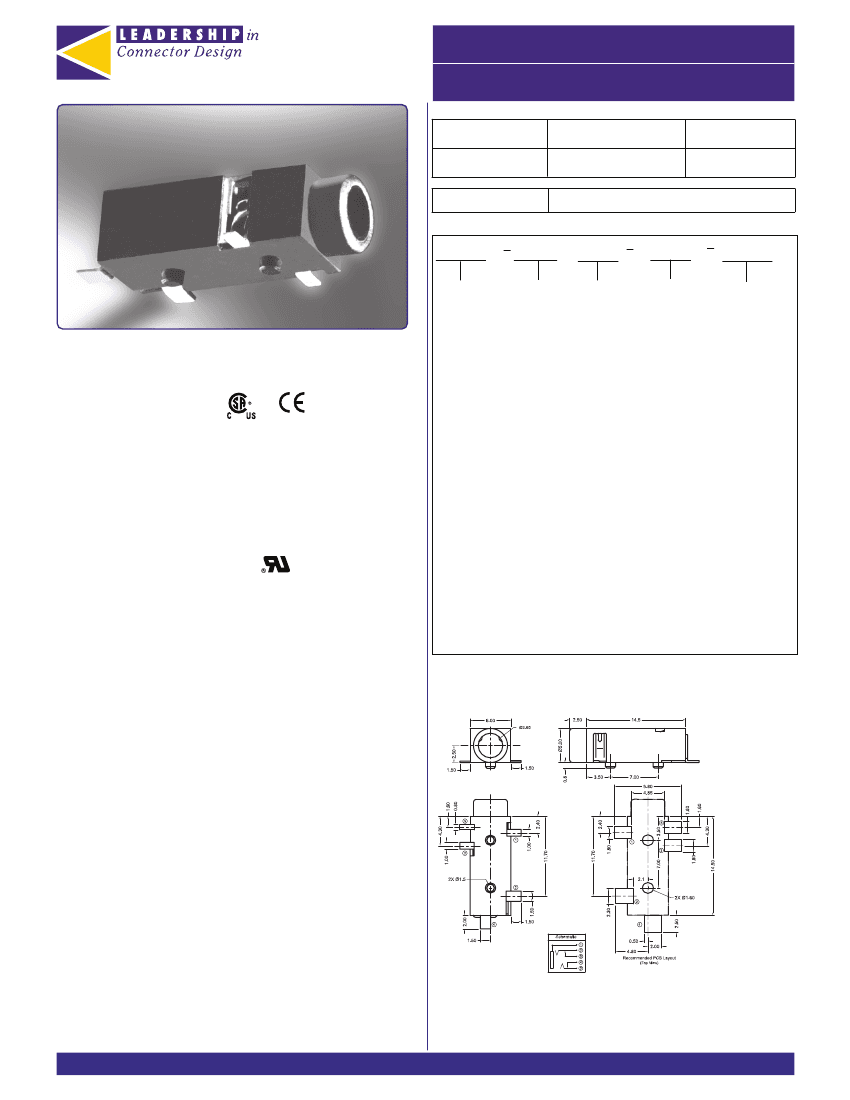

AUDIO JACKS

KYCON

STX-3500 Series

Documentation &

Ordering Information

Drawing

Sample

Stock

CofC

RFQ

RoHS

Kycon Part #

STX-3500-3NTR

Part Number Builder

STX-3500

Series

PC 99

Option

Packaging

Number

Threading

of Pins

Option

STX-3500 Series

Surface Mount 3.5mm Stereo Jack

Features

LR78160

Series

STX-3500 - 3.5mm Surface Mount Audio Jack

STX-3500

Number of Pins

4 Pin

5 Pin

Performance Specifications

Materials and Finish

Housing : High Temperature Thermoplastic, Black Color

UL94V-0 Rated

Terminals : Copper Alloy, Silver over Nickel Plating

•

Audio Applications for Computers and Multimedia

•

Surface Mount Design

•

All Plastic

•

CSA/NRTL Certified File No. LR78160

Threading Option

N - Non-Threaded

PC 99 Color Option

Blank

Blank - Standard

021C

021C - Orange

(available only with 3N Option )

235C - Burgundy

(available only with 3N Option)

235C

284C - Blue

(available only with 3N and 4N Option)

284C

577C - Lime

(available only with 3N and 4N Option)

577C

701C - Pink

(available only with 3N and 4N Option)

701C

Packaging

TR - Tape and Reel

Plating Option

STX-3500-3N-GTR

G - Gold Plating

(available only for part no STX-3500-3N-GTR )

Mechanical Characteristics

Insertion Force : 3.0kg Max.

Extraction Force : 0.2kg Min.

Durability : 5000 Mating Cycles

Contact Resistance

Before Durability Test

50 Milliohms Max.

After Durability Test

100 Milliohms Max.

Electrical Characteristics

STX- 3500 Series Dimensions

Dimensions in mm

STX- 3500-5N

Rated Voltage :

16 V DC

Rated Current :

0.3 A

Insulation Resistance :

100 Megohms Min. at 500V DC

Dielectric Strength :

500V AC RMS for 1 Minute

Operating Temperature :

-25°C to + 85°C

2011

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com

STX-3500-4N--284C-TR Related Products

	STX-3500-4N--284C-TR	STX-3500-3N--GTR	STX-3500-4N-577C-TR	STX-3500-4N--577C-TR	STX-3500-3N--021C-TR	STX-3500-4N-284C-TR	STX-3500-4N--701C-TR	STX-3500-4N-701C-TR	STX-3500-3N-021C-TR
Description	3.5 MM AUDIO CONNECTOR, JACK, ROHS COMPLIANT	3.5 MM AUDIO CONNECTOR, JACK, ROHS COMPLIANT	Audio/RCA Connector, 4 Pole(s), Female, Surface Mount Terminal, Locking, Jack, ROHS COMPLIANT	3.5 MM AUDIO CONNECTOR, JACK, ROHS COMPLIANT	3.5 MM AUDIO CONNECTOR, JACK, ROHS COMPLIANT	Audio/RCA Connector, 4 Pole(s), Female, Surface Mount Terminal, Locking, Jack, ROHS COMPLIANT	3.5 MM AUDIO CONNECTOR, JACK, ROHS COMPLIANT	Audio/RCA Connector, 4 Pole(s), Female, Surface Mount Terminal, Locking, Jack, ROHS COMPLIANT	Audio/RCA Connector, 3 Pole(s), Female, Surface Mount Terminal, Locking, Jack, ROHS COMPLIANT
Maker	Kycon	Kycon	Kycon	Kycon	Kycon	Kycon	Kycon	Kycon	Kycon
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	compliant	unknown	unknown	compli
Other features	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Body/casing type	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK
Configuration	1X1 HORIZONTAL	1X1 HORIZONTAL	1X1 HORIZONTAL	1X1 HORIZONTAL	1X1 HORIZONTAL	1X1 HORIZONTAL	1X1 HORIZONTAL	1X1 HORIZONTAL	1X1 HORIZONTAL
Connector type	AUDIO/RCA CONNECTOR	AUDIO/RCA CONNECTOR	3.5mm AUDIO	AUDIO/RCA CONNECTOR	AUDIO/RCA CONNECTOR	3.5mm AUDIO	AUDIO/RCA CONNECTOR	3.5mm AUDIO	3.5mm AUDIO
Contact to complete cooperation	NOT SPECIFIED	GOLD	SILVER OVER NICKEL	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of poles	4	3	4	4	3	4	4	4	3
Number of ports	1	1	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
audio type	STEREO	-	STEREO	STEREO	STEREO	STEREO	STEREO	STEREO	STEREO
Board mount options	PEG	-	PEG	PEG	PEG	PEG	PEG	PEG	PEG
body width	0.197 inch	-	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch
subject depth	0.669 inch	-	0.669 inch	0.669 inch	0.669 inch	0.669 inch	0.669 inch	0.669 inch	0.669 inch
body length	0.236 inch	-	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch
Contact completed and terminated	SILVER OVER NICKEL	GOLD	Silver (Ag) - with Nickel (Ni) barrier	SILVER OVER NICKEL	SILVER OVER NICKEL	SILVER OVER NICKEL	SILVER OVER NICKEL	Silver (Ag) - with Nickel (Ni) barrier	-
Contact point gender	FEMALE	-	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	-	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	NOT SPECIFIED	NOT SPECIFIED
Contact resistance	100 mΩ	-	100 mΩ	100 mΩ	100 mΩ	100 mΩ	100 mΩ	100 mΩ	100 mΩ
Contact style	RND PIN-SKT	-	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	500VAC V	-	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Durability	5000 Cycles	-	5000 Cycles	5000 Cycles	5000 Cycles	5000 Cycles	5000 Cycles	5000 Cycles	5000 Cycles
maximum insertion force	29.8016 N	-	29.8016 N	29.8016 N	29.8016 N	29.8016 N	29.8016 N	29.8016 N	29.8016 N
Insulation resistance	100000000 Ω	-	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLUE	-	GREEN	GREEN	ORANGE	BLUE	PINK	PINK	ORANGE
insulator material	POLYAMIDE	-	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
Manufacturer's serial number	STX-3500	STX-3500	-	STX-3500	STX-3500	-	STX-3500	-	-
Installation option 1	LOCKING	-	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Number of connectors	ONE	-	ONE	ONE	ONE	ONE	ONE	ONE	ONE
Maximum operating temperature	85 °C	-	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
polarization key	POLARIZED HOUSING	-	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.3 A	-	0.3 A	0.3 A	0.3 A	0.3 A	0.3 A	0.3 A	0.3 A
Guideline	UL, CSA	-	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Evacuation force-minimum value	1.946 N	-	1.946 N	1.946 N	1.946 N	1.946 N	1.946 N	1.946 N	1.946 N
