UMT4403: Description800 mA, 40 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92; CategoryDiscrete semiconductor The transistor; File Size38KB，1 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

UMT4403 Overview

800 mA, 40 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92

UMT4403 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	compli
ECCN code	EAR99
Maximum collector current (IC)	0.6 A
Collector-emitter maximum voltage	40 V
Configuration	SINGLE
Minimum DC current gain (hFE)	20
JESD-30 code	R-PDSO-G3
JESD-609 code	e1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.2 W
Certification status	Not Qualified
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	200 MHz
Maximum off time (toff)	225 ns

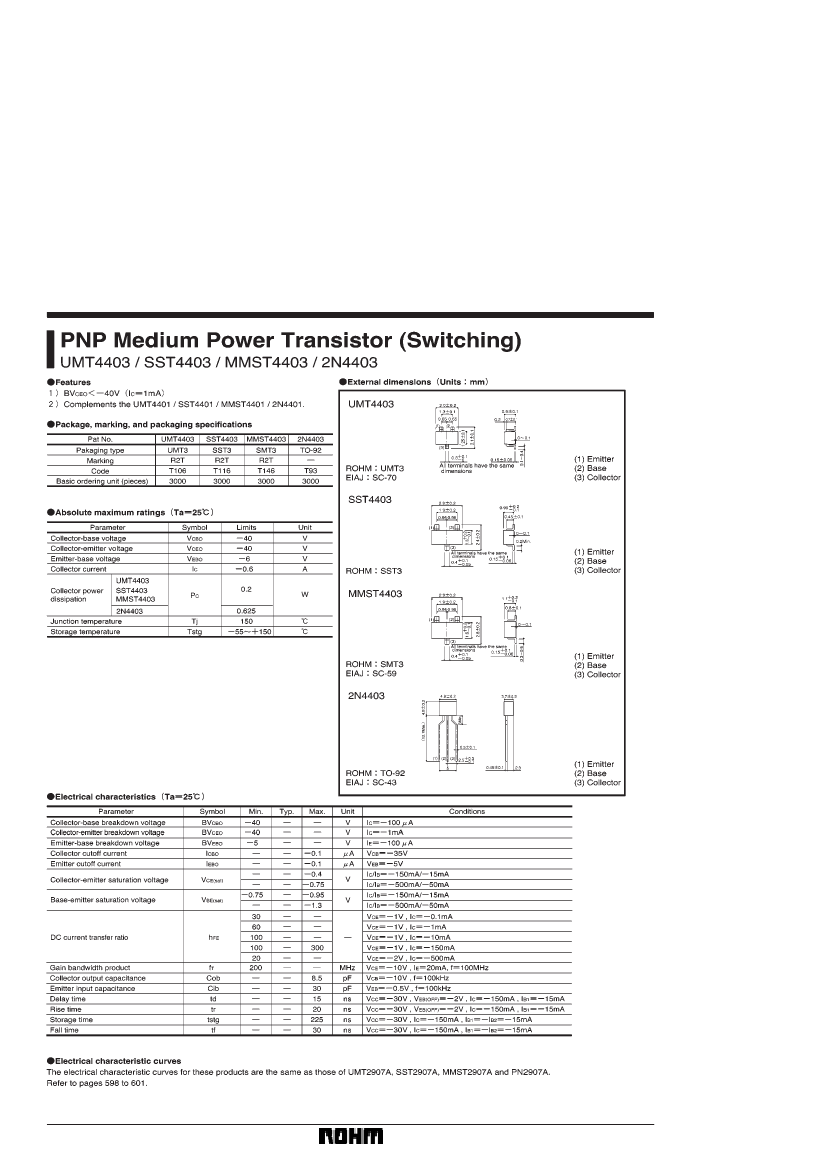

Preview

Download Datasheet

View All

Transistors

UMT4403 / SST4403 / MMST4403 / 2N4403

(SPEC-A31)

602

UMT4403 Related Products

	UMT4403	2N4403	SST4403	MMST4403
Description	800 mA, 40 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92	800 mA, 40 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92	800 mA, 40 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92	800 mA, 40 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	SMALL OUTLINE, R-PDSO-G3	CYLINDRICAL, O-PBCY-T3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	compli	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	0.6 A	0.6 A	0.6 A	0.6 A
Collector-emitter maximum voltage	40 V	40 V	40 V	40 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	20	20	20	20
JESD-30 code	R-PDSO-G3	O-PBCY-T3	R-PDSO-G3	R-PDSO-G3
JESD-609 code	e1	e3/e2	e1	e1
Number of components	1	1	1	1
Number of terminals	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	ROUND	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	CYLINDRICAL	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260
Polarity/channel type	PNP	PNP	PNP	PNP
Maximum power dissipation(Abs)	0.2 W	0.35 W	0.2 W	0.2 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	NO	YES	YES
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)	TIN/TIN COPPER	Tin/Silver/Copper (Sn/Ag/Cu)	TIN/SILVER/COPPER (SN/AG/CU)
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	GULL WING
Terminal location	DUAL	BOTTOM	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	10	10	10
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	200 MHz	200 MHz	200 MHz	200 MHz
Maximum off time (toff)	225 ns	255 ns	255 ns	255 ns
Is it lead-free?	Lead free	-	Lead free	Lead free
Maker	ROHM Semiconductor	-	ROHM Semiconductor	ROHM Semiconductor
