UMP1N: Description0.025 A, 80 V, 4 ELEMENT, SILICON, SIGNAL DIODE; CategoryDiscrete semiconductor diode; File Size61KB，1 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

UMP1N Overview

0.025 A, 80 V, 4 ELEMENT, SILICON, SIGNAL DIODE

UMP1N Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SC-88A
package instruction	R-PDSO-G5
Contacts	5
Reach Compliance Code	compli
ECCN code	EAR99
Other features	HIGH RELIABILITY
Configuration	COMMON ANODE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.9 V
JESD-30 code	R-PDSO-G5
JESD-609 code	e2
Humidity sensitivity level	1
Number of components	4
Number of terminals	5
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	0.025 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Maximum power dissipation	0.15 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	80 V
Maximum reverse current	0.1 µA
Maximum reverse recovery time	0.004 µs
Reverse test voltage	70 V
surface mount	YES
Terminal surface	Tin/Copper (Sn/Cu)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	10

Preview

Download Datasheet

View All

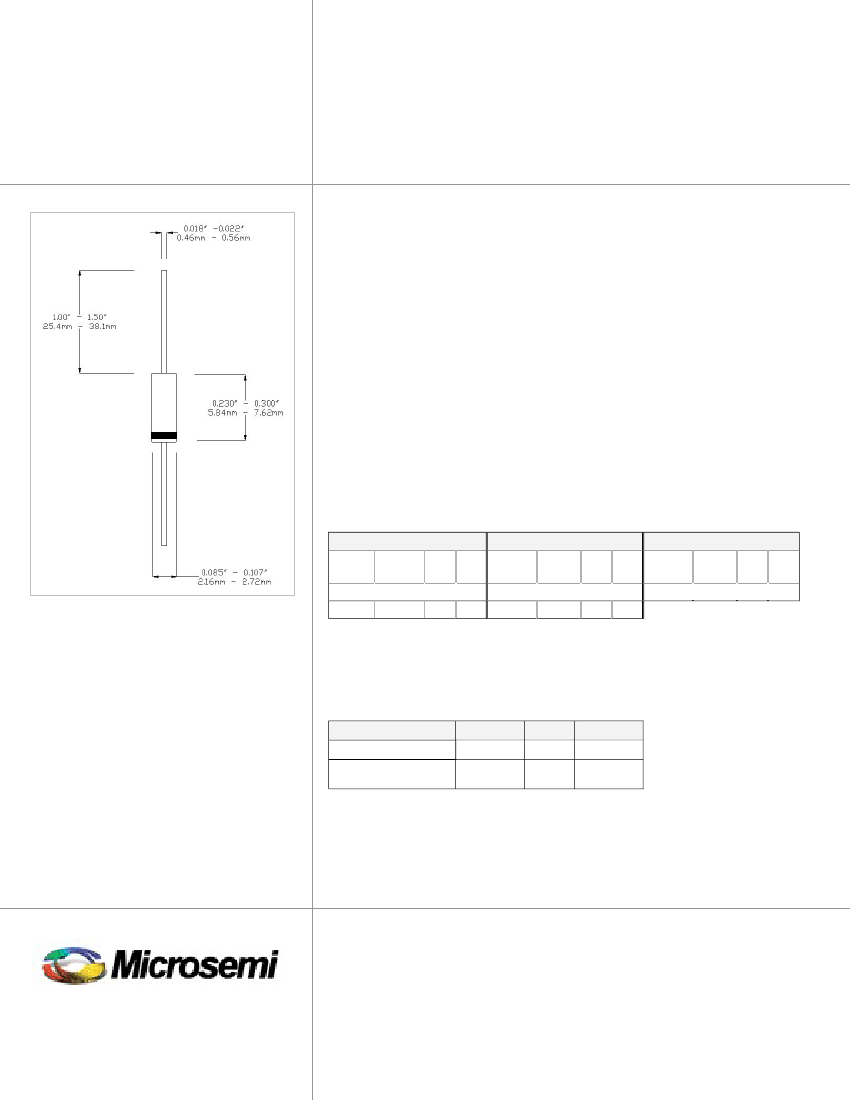

EATURES
