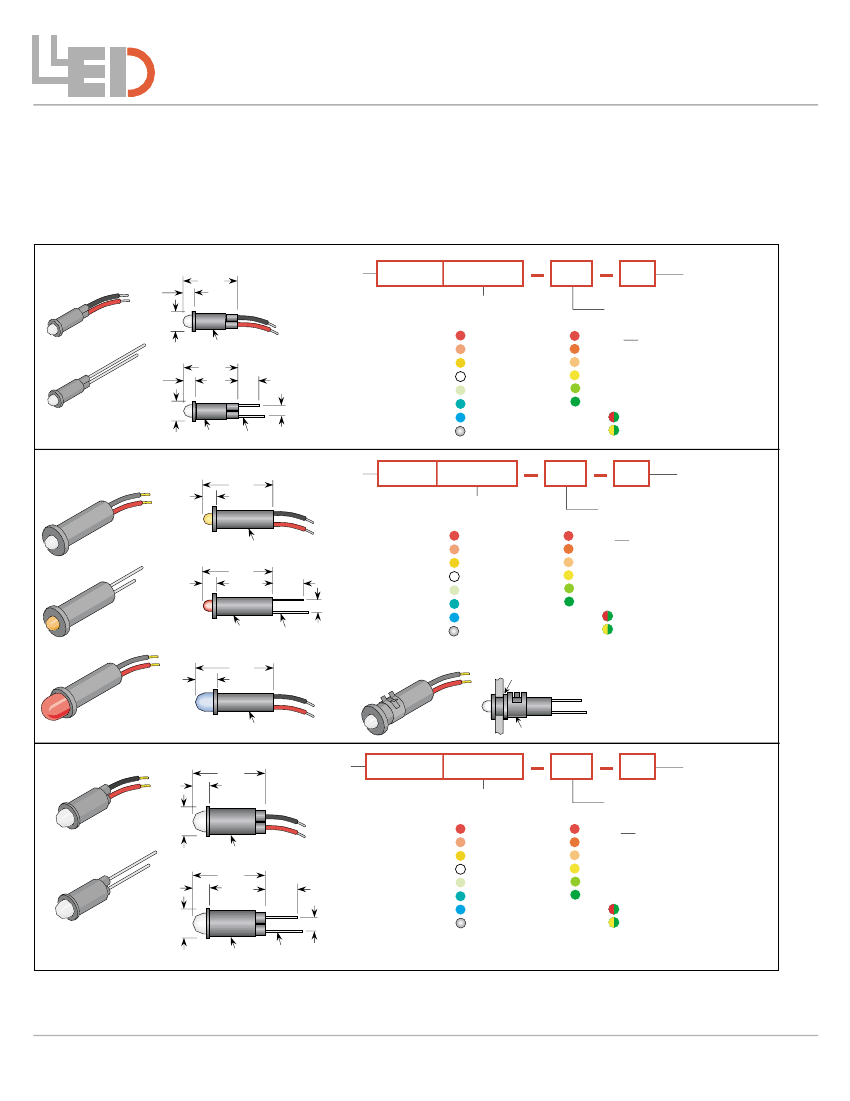

Snap-In Panel Mount LED Lamps
Features
Options
•
Panel Mounting Diameters from
5/32"(4.0mm) to 5/16" (8.0mm)
•
Long Life 100,000+ hrs (10 years)
•
Solid-State, High Shock/Vibration
Resistant
•
Maintenance Free, Easy Installation
•
Low Power Consumption, High
Intensity
•
Diffused or Clear Lens
•
Choice of High-Efficiency or
Sunlight-Visible Super Intensity
•
Built-in Current Limiting Resistor
Series
•
Special Voltages
•
Special Wire Lead Lengths
•
Bi-Colors, Tri-Colors, RGB, IR
•
Flashing / Blinking
•
High Power Infrareds 850/880/940nm
5/32" (4.0mm) Snap-in Panel Mount LEDs
.15 Max
[3.9]
.19
[4.8]
.56 Max
[14.3]
PP156 CWR3K
LED/Lens Type & Color
Water Clear Lens
(Super Intensity)
Diffused Lens
(Std Intensity)
5V
W6
Std. Operating
Voltage
DC
2Vf
3.5Vf
5/6V
12/14V
24V
28V
Options
T = Terminal Type
W6 = 6" Wire Leads
PP156-W
.156 Mtg Dia
[3.96]
.56 Max
[14.3]
CWR3K = SP Red
CWO3K = SP Orange
.20 Min
[5.1]
TR6 = UL Red
TR4/5 = HE Red
TO4/5 = Orange
TY4/5 = Yellow
TG4/5 = HE Green
TPG4/5 = P. Green
TWRG4 = BiColor Red/Green
TWYG4 = BiColor Yel/Green
.15 Max
[3.9]
.19
[4.8]
CWY3K = SP Yellow
CW900 = C. White
CWG1K = UL. Green
CWAG6K = A. Green
CWB1K = SP. Blue
CIR881 = 880nm IR
PP156-T
+
.156 Mtg Dia
[3.96]
.020" Sq.
[.50]
.10
[2.6]
3/16" (4.8mm) Panel Mount LEDs
with Mtg. Clip
.70 Max
.15 Max
[3.8]
[17.8]
Series
P181 = 3mm
P187 = 5mm
P181 CWR3K
LED/Lens Type & Color
Diffused Lens
(Std Intensity)
5V
W6
Std. Operating
Voltage
DC
2Vf
3.5Vf
5/6V
12/14V
24V
28V
Options
T = Terminal Type
W6 = 6" Wire Leads
Water Clear Lens
(Super Intensity)
P181-W
.187 Mtg Dia
[4.7]
.70 Max
[17.8]
CWR3K = SP Red
CWO3K = SP Orange
CWY3K = SP Yellow
CW1K = C. White
CWG1K = UL. Green
CWAG6K = A. Green
CWB1K = SP. Blue
CIR881 = 880nm IR
TR6 = UL Red
TR4/5 = HE Red
TO4/5 = Orange
TY4/5 = Yellow
TG4/5 = HE Green
TPG4/5 = P. Green
TWRG4 = BiColor Red/Green
TWYG4 = BiColor Yel/Green
.15 Max
[3.8]
.30 Min
[7.6]
+
P181-T
.187 Mtg Dia
[4.7]
.020" Sq.
[.50]
.125
[3.2]
Mounting Clip/Washer
.23 Max
[5.9]
.80 Max
[20.4]
Part No.
MC187/MW187
MW187 Neoprene Washer
P187-W
.187 Mtg Dia
[4.7]
MC187 Steel Mounting Clip
1/4" (6.4mm) Snap-in Panel Mount LEDs
.72 Max
[18.3]
.16 Max
[4.1]
Series
PPS251 CWR3K
LED/Lens Type & Color
Water Clear Lens
(Super Intensity)
Diffused Lens
(Std Intensity)
5V
W6
Std. Operating
Voltage
DC
2Vf
3.5Vf
5/6V
12/14V
24V
28V
Options
T = Terminal Type
W6 = 6" Wire Leads
.28
[7.2]
PPS251-W
.250 Mtg Dia
[6.35]
.72 Max
[18.3]
.16 Max
[4.1]
.30 Min
[7.7]
CWR3K = SP Red
CWO3K = SP Orange
CWY3K = SP Yellow
CW1K = C. White
CWG1K = UL.Green
CWAG6K = A. Green
CWB1K = SP. Blue
.125
[3.2]
TR6 = UL Red
TR4/5 = HE Red
TO4/5 = Orange
TY4/5 = Yellow
TG4/5 = HE Green
TPG4/5 = P. Green
TWRG4 = BiColor Red/Green
TWYG4 = BiColor Yel/Green
PPS251-T
.28
[7.2]
CIR881 = 880nm IR
+
.250 Mtg Dia
[6.35]
.020" Sq.
[.50]
Notes:
Super Intensity Diffused LEDs Available for Special Applications
LEDTRONICS,
INC.
THE FUTURE OF LIGHT
ISO 9001
REGISTERED
Phone: (310) 534-1505
Fax: (310) 534-1424
Website: http://www.ledtronics.com
Log # 115A Rev 09-2000
