2509K datasheet, PDF - EEWORLD Datasheet

2509K: DescriptionSerial In Serial Out, 50-Bit, Right Direction, True Output, PMOS, MBCY10; Categorylogic logic; File Size163KB，7 Pages; ManufacturerSignetics

Download Datasheet Parametric Compare View All

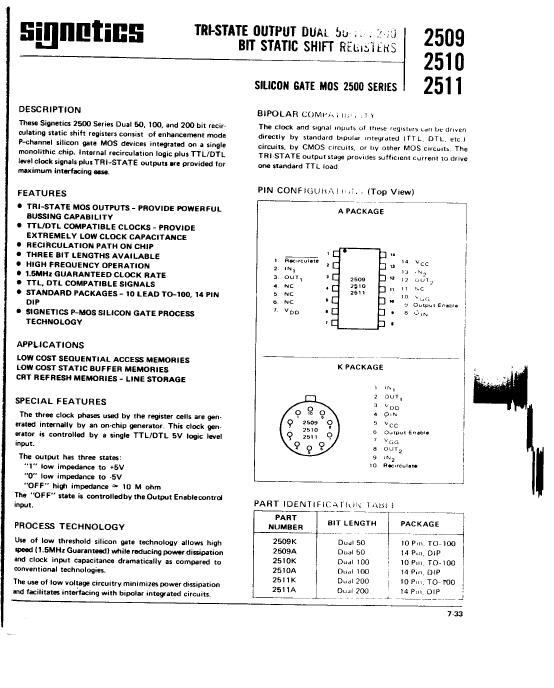

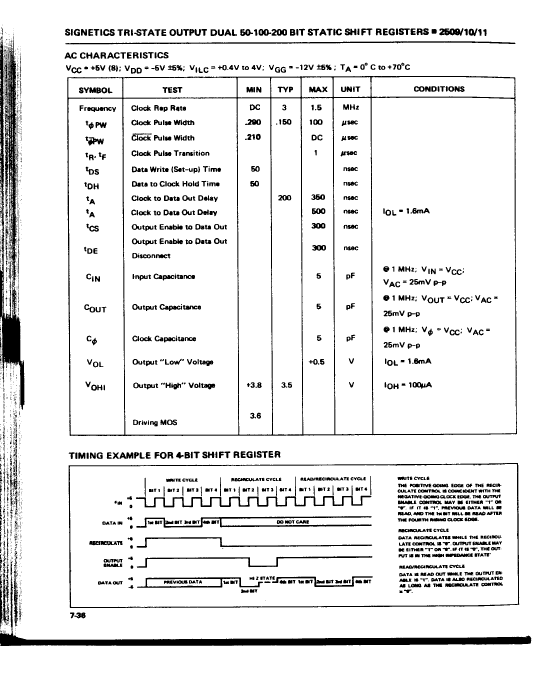

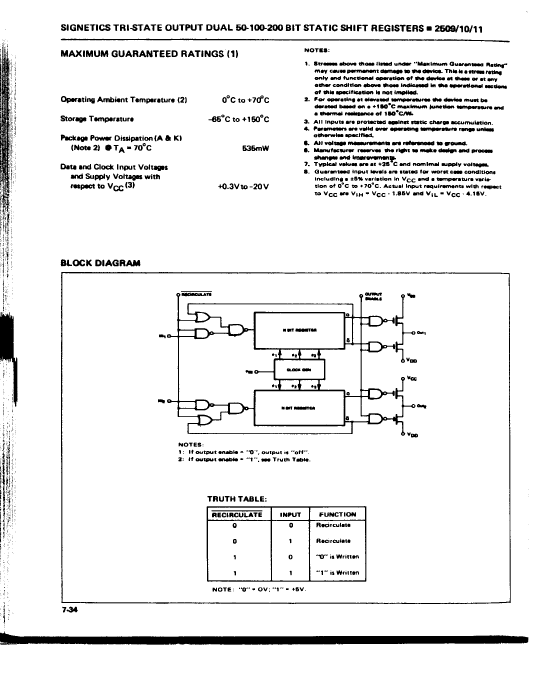

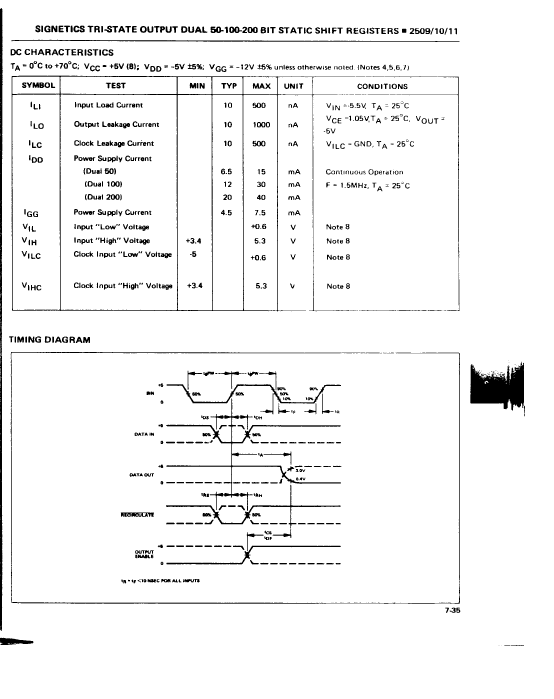

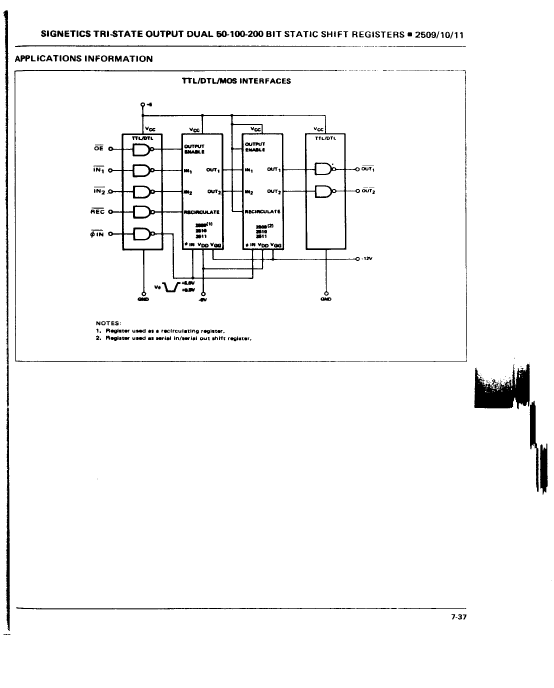

2509K Overview

Serial In Serial Out, 50-Bit, Right Direction, True Output, PMOS, MBCY10

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknow
Counting direction	RIGHT
JESD-30 code	O-MBCY-W10
Logic integrated circuit type	SERIAL IN SERIAL OUT
Number of digits	50
Number of functions	2
Number of terminals	10
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
propagation delay (tpd)	350 ns
Certification status	Not Qualified
surface mount	NO
technology	PMOS
Terminal form	WIRE
Terminal location	BOTTOM
minfmax	1.5 MHz
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer

	2509K	2509A	2510A	2511A
Description	Serial In Serial Out, 50-Bit, Right Direction, True Output, PMOS, MBCY10	Serial In Serial Out, 50-Bit, Right Direction, True Output, PMOS, PDIP14	Serial In Serial Out, 100-Bit, Right Direction, True Output, PMOS, PDIP14	Serial In Serial Out, 200-Bit, Right Direction, True Output, PMOS, PDIP14
Reach Compliance Code	unknow	unknow	unknow	unknow
Counting direction	RIGHT	RIGHT	RIGHT	RIGHT
JESD-30 code	O-MBCY-W10	R-PDIP-T14	R-PDIP-T14	R-PDIP-T14
Logic integrated circuit type	SERIAL IN SERIAL OUT	SERIAL IN SERIAL OUT	SERIAL IN SERIAL OUT	SERIAL IN SERIAL OUT
Number of digits	50	50	100	200
Number of functions	2	2	2	2
Number of terminals	10	14	14	14
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE
Package body material	METAL	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CYLINDRICAL	IN-LINE	IN-LINE	IN-LINE
propagation delay (tpd)	350 ns	350 ns	350 ns	350 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO
technology	PMOS	PMOS	PMOS	PMOS
Terminal form	WIRE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	DUAL	DUAL	DUAL
minfmax	1.5 MHz	1.5 MHz	1.5 MHz	1.5 MHz
