2SC4037TL2/P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SC4037TL2/P

2SC4037TL2/P: Description500mA, 32V, NPN, Si, SMALL SIGNAL TRANSISTOR; CategoryDiscrete semiconductor The transistor; File Size137KB，5 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

2SC4037TL2/P Overview

500mA, 32V, NPN, Si, SMALL SIGNAL TRANSISTOR

2SC4037TL2/P Parametric

Parameter Name	Attribute value
package instruction	IN-LINE, R-PSIP-T3
Reach Compliance Code	unknow
Maximum collector current (IC)	0.5 A
Collector-emitter maximum voltage	32 V
Configuration	SINGLE
Minimum DC current gain (hFE)	82
JESD-30 code	R-PSIP-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	250 MHz
VCEsat-Max	0.6 V
Base Number Matches	1

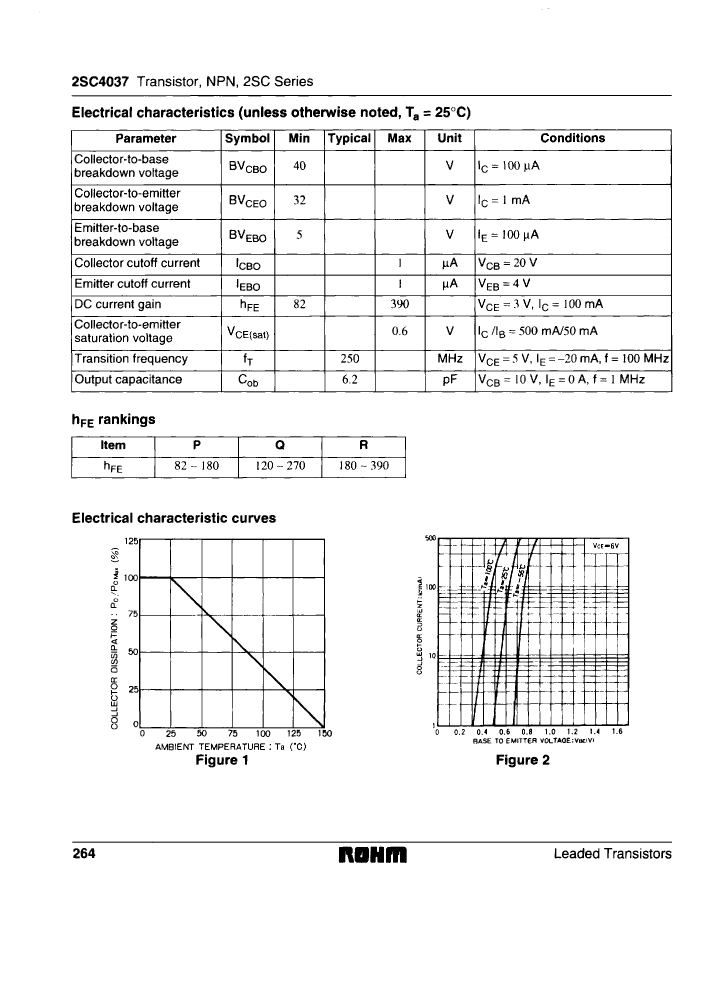

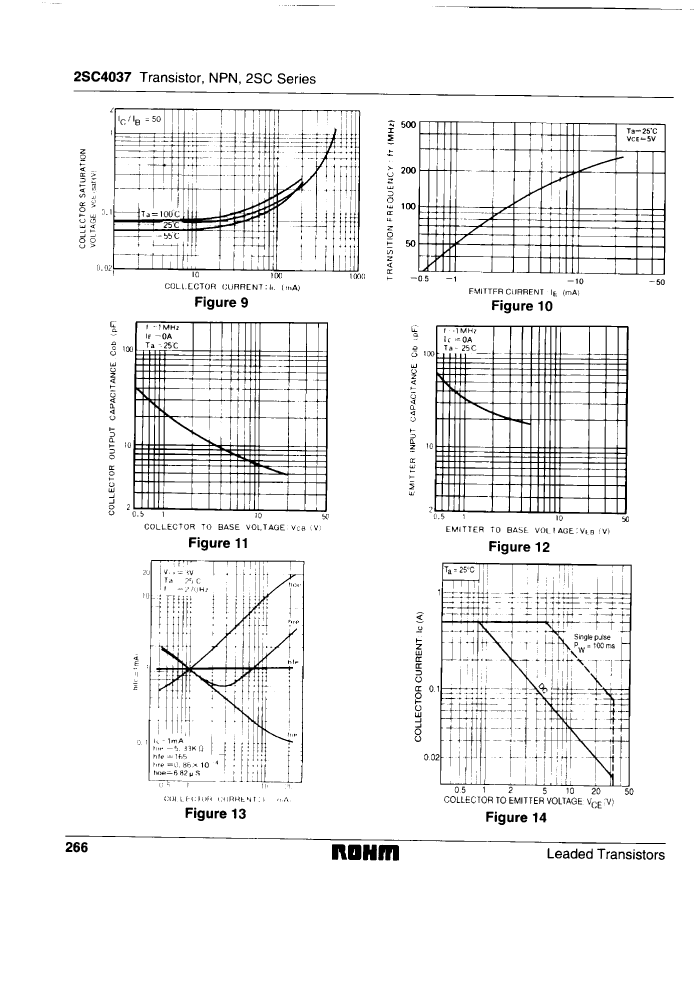

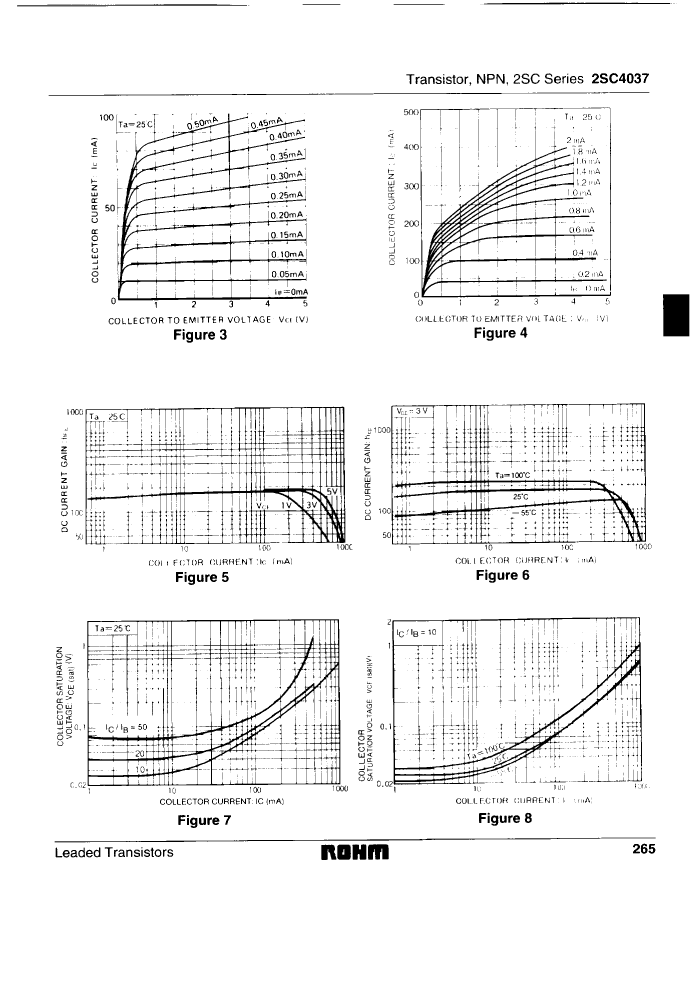

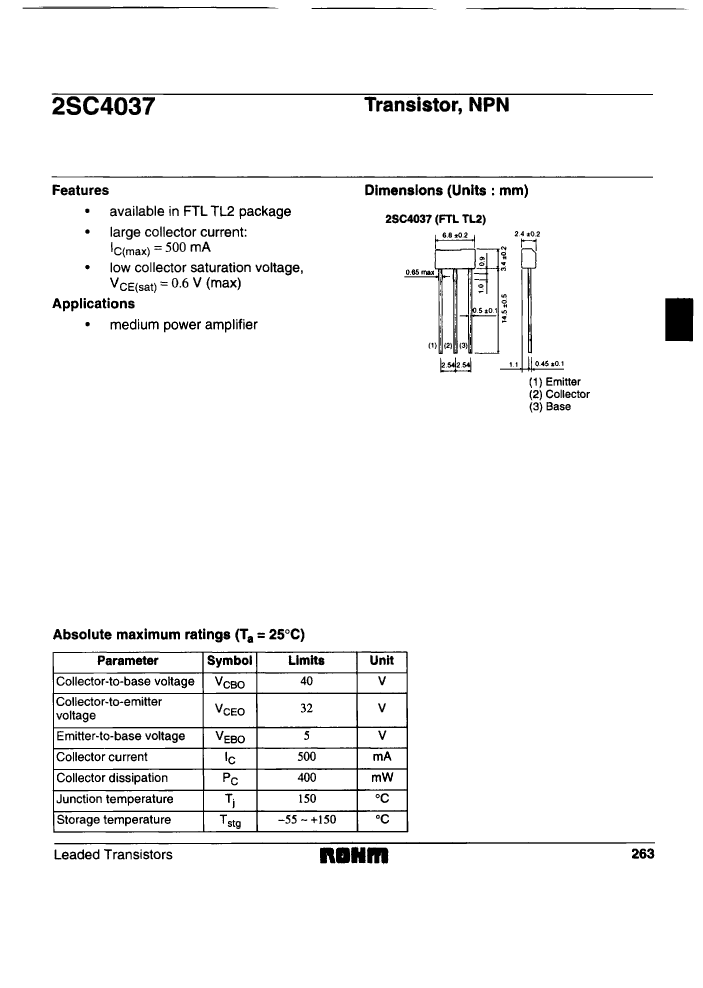

Preview

Download Datasheet

View All

2SC4037TL2/P Related Products

	2SC4037TL2/P	2SC4037TL2P	2SC4037TL2R	2SC4037TL2/R	2SC4037TL2Q	2SC4037TL2	2SC4037TL2/Q
Description	500mA, 32V, NPN, Si, SMALL SIGNAL TRANSISTOR	Small Signal Bipolar Transistor, 0.5A I(C), 32V V(BR)CEO, 1-Element, NPN, Silicon	Small Signal Bipolar Transistor, 0.5A I(C), 32V V(BR)CEO, 1-Element, NPN, Silicon	500mA, 32V, NPN, Si, SMALL SIGNAL TRANSISTOR	Small Signal Bipolar Transistor, 0.5A I(C), 32V V(BR)CEO, 1-Element, NPN, Silicon	Small Signal Bipolar Transistor, 0.5A I(C), 32V V(BR)CEO, 1-Element, NPN, Silicon	500mA, 32V, NPN, Si, SMALL SIGNAL TRANSISTOR
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow
Maximum collector current (IC)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Collector-emitter maximum voltage	32 V	32 V	32 V	32 V	32 V	32 V	32 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	82	82	180	180	120	82	120
JESD-30 code	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3
Number of components	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
transistor applications	SWITCHING	AMPLIFIER	AMPLIFIER	SWITCHING	AMPLIFIER	AMPLIFIER	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	250 MHz	250 MHz	250 MHz	250 MHz	250 MHz	250 MHz	250 MHz
Base Number Matches	1	1	1	1	1	1	1
package instruction	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	-
ECCN code	-	EAR99	EAR99	-	EAR99	EAR99	-
