PWR-82342-100 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Other integrated circuit (IC)> The signal circuit> PWR-82342-100

PWR-82342-100: DescriptionBrushless DC Motor Controller, 50A, Hybrid, 2.25 X 2.1 INCH, 0.39 INCH HEIGHT, PACKAGE-18; CategoryOther integrated circuit (IC) The signal circuit; File Size956KB，16 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric View All

PWR-82342-100 Overview

Brushless DC Motor Controller, 50A, Hybrid, 2.25 X 2.1 INCH, 0.39 INCH HEIGHT, PACKAGE-18

PWR-82342-100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	MODULE
package instruction	, FLNG,1.86X2 H.S
Contacts	18
Reach Compliance Code	compli
ECCN code	EAR99
Other features	DRIVE BRUSH OR BRUSHLESS DC MOTORS
Analog Integrated Circuits - Other Types	BRUSHLESS DC MOTOR CONTROLLER
JESD-30 code	R-XUFM-P18
JESD-609 code	e0
Number of functions	1
Number of terminals	18
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	50 A
Package body material	UNSPECIFIED
Encapsulate equivalent code	FLNG,1.86X2 H.S
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	15/50 V
Certification status	Not Qualified
Maximum supply current (Isup)	35 mA
Maximum supply voltage (Vsup)	500 V
Minimum supply voltage (Vsup)	15 V
Nominal supply voltage (Vsup)	270 V
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

PWR-82340 and PWR-82342

Make sure the next

Card you purchase

has...

SMART POWER H-BRIDGE

MOTOR DRIVES

FEATURES

•

Small Size (2.25” x 2.1” x 0.39”)

•

200 V and 500 V Capability

•

30 A Current Capability

•

High-Efficiency MOSFET or IGBT Drive

Stage

•

Direct Drive from PWM

•

Drives Brushless DC or Brush Motors

•

Four Quadrant Operation

•

0.85 °C/W

j-c Max

•

Military Processing Available

DESCRIPTION

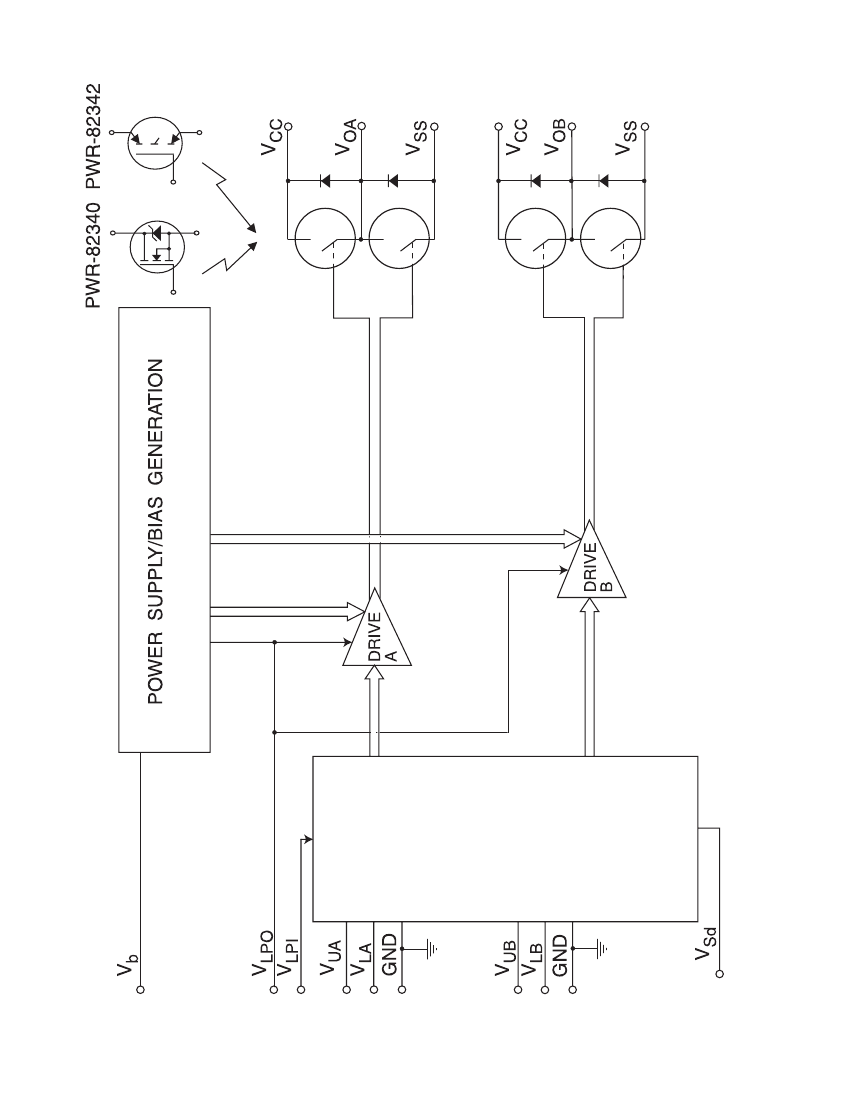

The PWR-82340 and PWR-82342 are 30 A H-bridge motor drive hybrids. The

PWR-82340 has a 200 V rating and uses MOSFETs in the output stage while

the PWR-82342 has a 500 V rating and an IGBT output stage. Both types

have individual fast recovery diodes internally connected across the output

drive transistors to clamp inductive flyback. This new series of Smart Power

Motor Drives has CMOS Schmitt Trigger inputs for high noise immunity. High-

and low-side input logic signals are XOR'd in each phase to prevent simulta-

neous turn-on of in-line transistors, thus eliminating a shoot-thru condition.

The internal logic controls the high- and low-side gate drives for each phase

and can operate from +5 to +15 V logic levels. The internal power supply

provides a constant voltage source to the floating high side gate drives. This

provides constant output performance for switching frequencies from DC to

50 kHz.

APPLICATIONS

Packaged in small cases, these hybrids are an excellent choice for high per-

formance, high reliability motor drives for military and aerospace servo-amps

and speed controls. Among the many applications are robotics; electro-

mechanical valve assemblies; actuator systems for flight control surfaces on

military and commercial aircraft; antenna and radar positioning; fan and

blower motors for environmental conditioning; thrust and vector position con-

trol of mini subs, drones, and RPV's; compressor motors for cryogenic cool-

ers; and high-power inverters. The PWR-82340/342 hybrids are ideal for

harsh military environments where shock, vibration, and temperature

extremes are evident, such as missile applications where fin actuator sys-

tems control missile direction. The PWR-82340 and PWR-82342 operate

over the -55°C to +125°C temperature range and are available with military

processing.

FOR MORE INFORMATION CONTACT:

Data Device Corporation

105 Wilbur Place

Bohemia, New York 11716

631-567-5600 Fax: 631-567-7358

www.ddc-web.com

Technical Support:

1-800-DDC-5757 ext. 7771

All trademarks are the property of their respective owners.

1991, 1999 Data Device Corporation
