C-13-002-TB-SLCHI-O-GR datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Optical fiber> C-13-002-TB-SLCHI-O-GR

C-13-002-TB-SLCHI-O-GR: DescriptionFIBER OPTIC LASER DIODE MODULE EMITTER, 1290-1330nm, 2500Mbps, THROUGH HOLE MOUNT, LC/PC CONNECTOR, ROHS COMPLIANT, HEREMATICAL SEALED PACKAGE-4; CategoryWireless rf/communication Optical fiber; File Size655KB，7 Pages; ManufacturerSource Photonics; Environmental Compliance

Download Datasheet Parametric View All

C-13-002-TB-SLCHI-O-GR Overview

FIBER OPTIC LASER DIODE MODULE EMITTER, 1290-1330nm, 2500Mbps, THROUGH HOLE MOUNT, LC/PC CONNECTOR, ROHS COMPLIANT, HEREMATICAL SEALED PACKAGE-4

C-13-002-TB-SLCHI-O-GR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Source Photonics
Reach Compliance Code	unknown
body height	20.1 mm
Body length or diameter	5.7 mm
Built-in features	ISOLATOR, MONITOR PHOTODIODE
Communication standards	GR-468
Connection Type	LC/PC CONNECTOR
data rate	2500 Mbps
maximum descent time	0.15 ns
Fiber optic equipment types	LASER DIODE MODULE EMITTER
Fiber type	9/125, SMF
Installation features	THROUGH HOLE MOUNT
Number of channels	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum operating wavelength	1330 nm
Minimum operating wavelength	1290 nm
Nominal operating wavelength	1310 nm
Rise Time	0.15 ns
Spectral width	3 nm
Maximum supply voltage	1.5 V
Nominal supply voltage	1.2 V
surface mount	NO
Minimum threshold current	10 mA
Transmission type	DIGITAL

Preview

Download Datasheet

View All

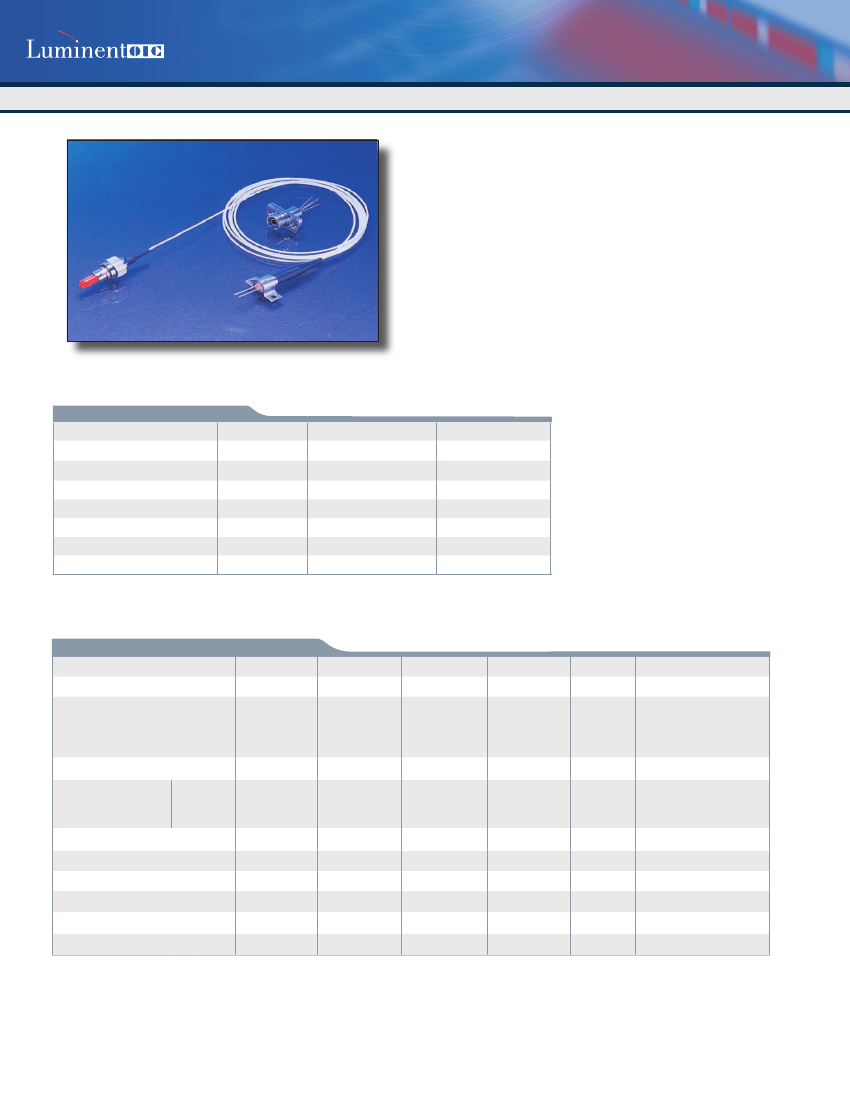

1310nm 2.5G Laser Diode Module

C-13-002-XX-SXXXX/XXX-X-XX

Features

• Laser diode with multi-quantum-well structure

• Un-cooled operation at -40~+85ºC

• High temperature operation without active cooling

• Built-in InGaAs monitor photodiode

• Hermetically sealed active component

• Complies with Telcordia Technologies GR-468-CORE

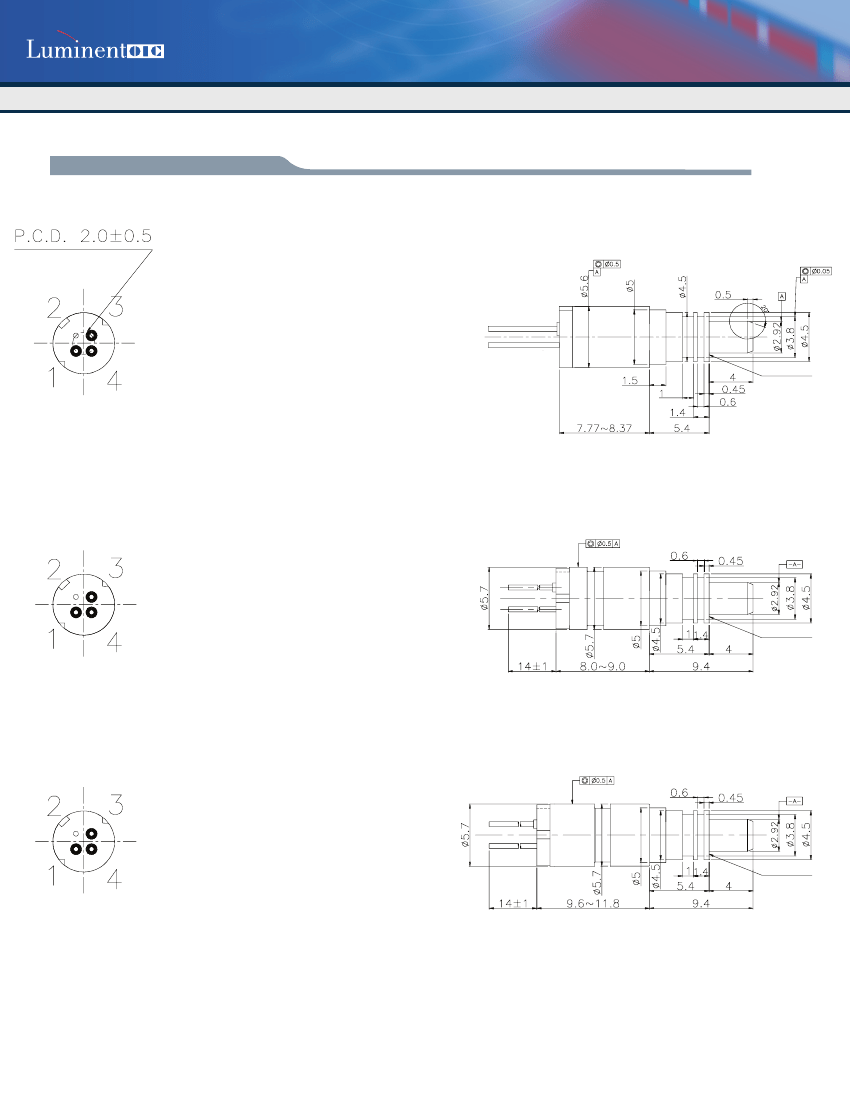

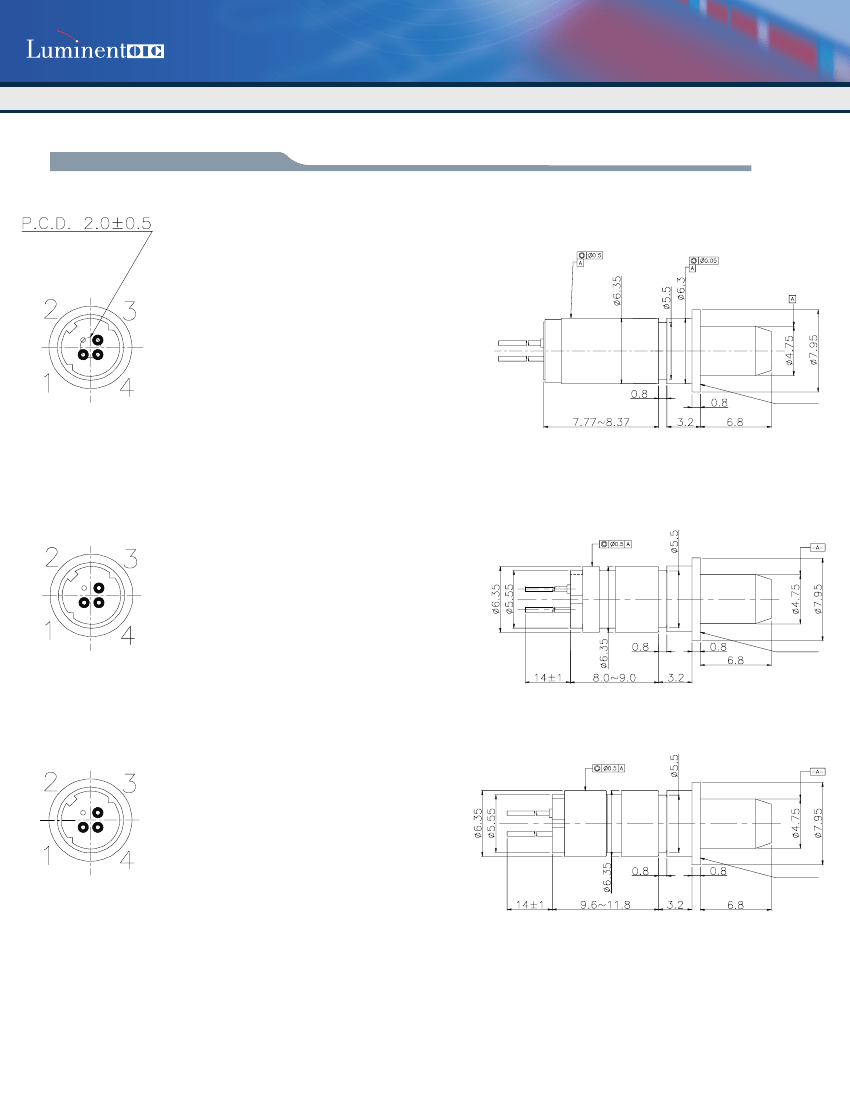

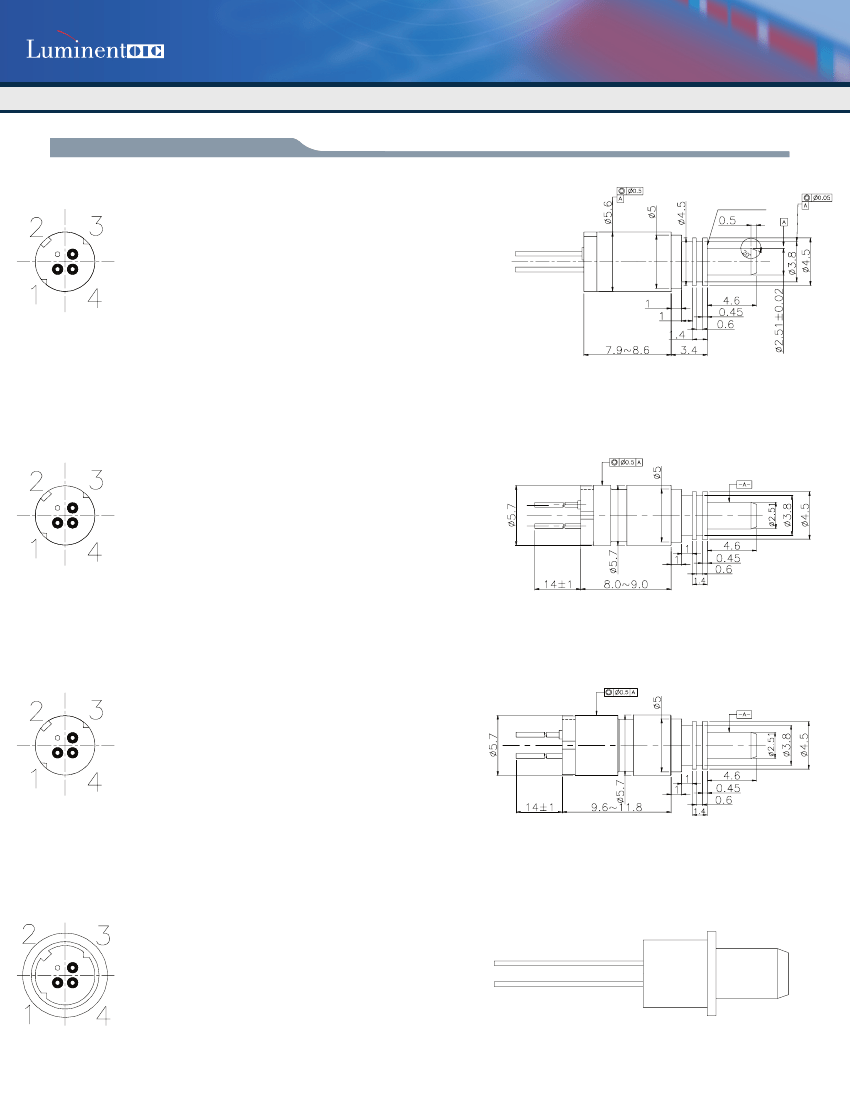

• TOSA

• FC/ST/SC receptacle package with 2-hole ﬂange

• Fiber pigtailed with optional FC/ST/SC/MU/LC connector

• Design for 2.5G high speed optic networks

• RoHS Compliant available

Absolute Maximum Ratings (Tc=25ºC)

Parameter

Fiber Output Power L/M/H/2

Reverse Voltage

PD Reverse Voltage

PD Forward Current

Operating Temperature

Storage Temperature

Soldering Temperature (<10sec)

Symbol

RLD

RPD

FPD

opr

stg

Stamp

Rating

1(L) / 1.5(M) / 2.5(H) / 3(2)

2.0

-40 ~+85

-40 ~ +85

260

Unit

ºC

(All optical data refer to a coupled 9/125µm SM ﬁber)

Optical and Electrical Characteristics (Tc=25ºC)

Parameter

Threshold Current

Fiber Output Power

Symbol

Receptacle

TOSA

Pigtail

∆λ

/ t

∆P

dark

Min

0.2

0.5

1290

Typ

1.6

2.5

1310

1.2

Max

0.5

1.0

1330

1.5

150

1.5

0.1

Unit

Test Conditions

CW,I

+20mA, kink free

Peak Wavelength

Spectrum Width

(RMS)

Forward Voltage

Rise Time/Fall Time

Tracking Error

PD Monitor Current

PD Dark Current

PD Capacitance

µA

CW,P

(Min)

CW, P

(Min)

CW, P

(Min)

bias

,10~90%

APC, -40~+85ºC

CW, P

(Min), V

RPD

=2V

RPD

=5V

RPD

=5V, f=1MHz

-1.5

100

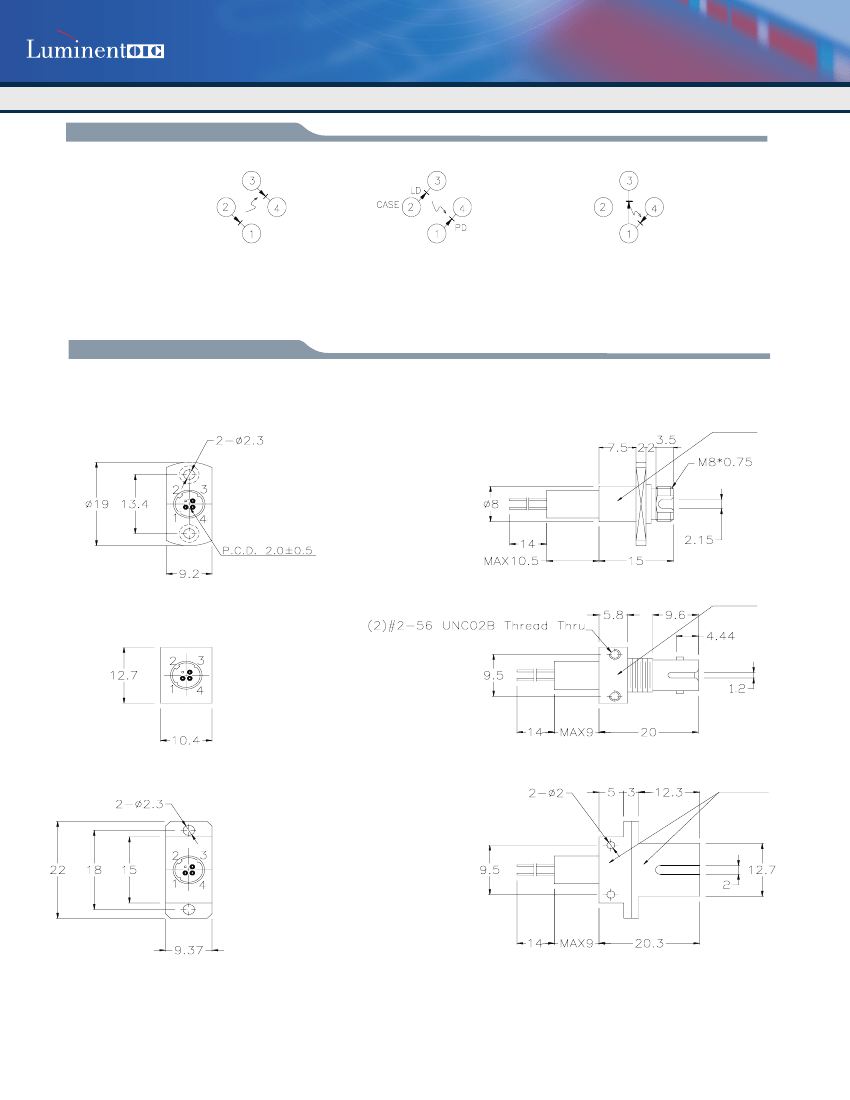

Note: 1.Pin assignment can be customized.

2.Speciﬁcations subject to change without notice.

LUMINENTOIC.COM

20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486

9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213

LUMNDS527-JAN2606

rev. A.1
