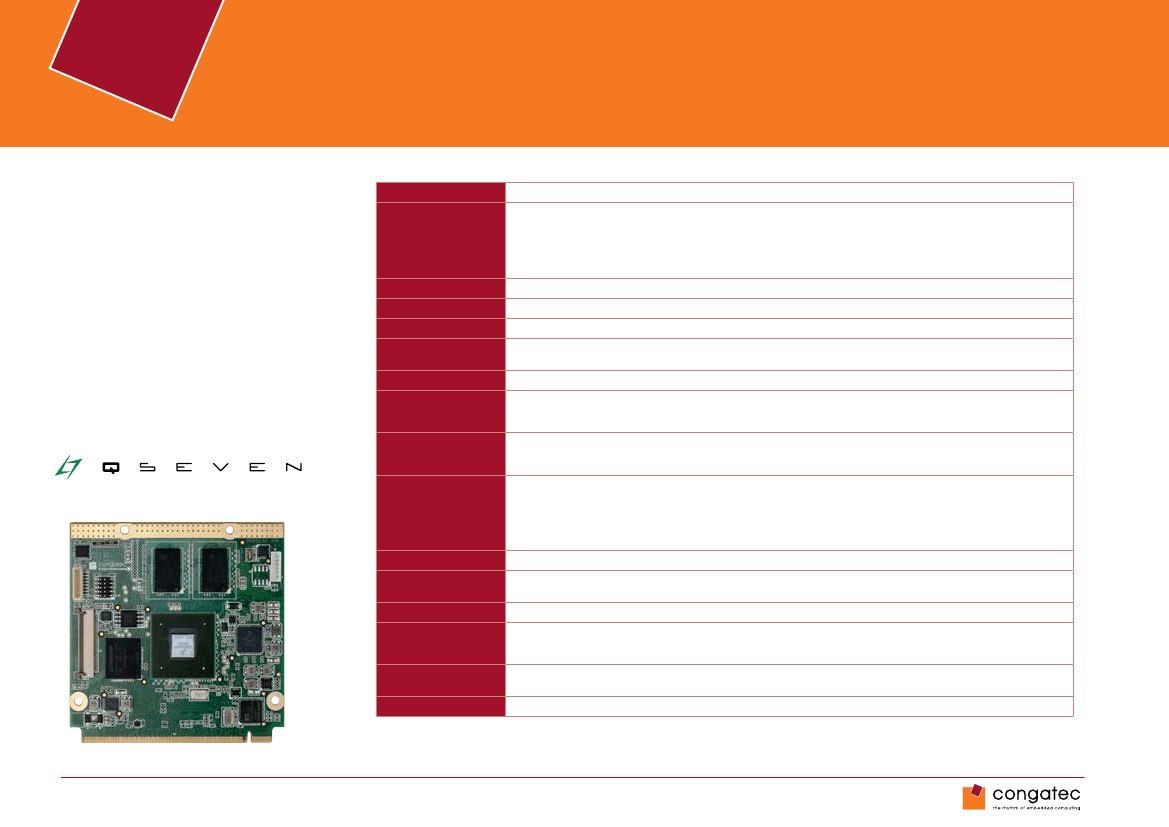

Qseven
®
Module
based on Freescale
®
i.MX6 ARM Processor
conga-QMX6
Up to Freescale i.MX6 Quad ARM Cortex A9 with 1.0 GHz
Multimedia Performance with HDMI & LVDS interface
Extended longevity, up to 10 years
Extended temperature
DRAM
Ethernet
I/O Interfaces
Mass Storage
Sound
Graphics
Formfactor
CPU
Qseven Rev. 2.0, 70x70 mm
Freescale
®
i.MX6 Solo ARM Cortex A9 up to 1.0 GHz, 512B L2 cache
Freescale
®
i.MX6 Dual Lite ARM Cortex A9 up to 1.0 GHz, 512KB L2 cache
Freescale
®
i.MX6 Dual ARM Cortex A9 up to 1.0GHz, 1MB L2 cache
Freescale
®
i.MX6 Quad ARM Cortex A9 up to 1.0GHz, 1MB L2 cache
Core Frequency: 1.0 Ghz for commercial grade | 800 Mhz for industrial grade
Up to 2 GByte onboard DDR3 memory, 1066 MT/s
1x 1 Gbit Ethernet
5x USB 2.0 (shared with 1x USB OTG client), 1x SATA II (optional), 1x SDIO, 1x PCIe 2.0, I²C Bus, CAN Bus, SPI
Onboard Solid State Drive (eMMC) up to 16 GByte (optional)
Onboard MicroSD socket
I²S, AC97
Integrated in Freescale i.MX6 Series
Video (VPU), 2D Graphics (GPU2D) and 3D Graphics (GPU3D), 3D graphics with 4 shaders up to 200MT/s, dual stream 1080p/720p decoder/en-
coder. OpenGL, OpenCL and OpenVG 1.1
HDMI v1.4 support supported by Qseven specification.
2x LVDS (2x 24 bit) / 1x LVDS (1x 24 bit) up to WUXGA resolution. 1920x1200 pixel and HD1080.
Supports 18bit and 24bit dual channel up to WUXGA 1920x1200.
Watchdog Timer
I²C bus (fast mode, 400 kHz, multi-master)
JTAG debug interface
CAN interface
Camera Interface MIPI CSI-2 on flat foil connector
High Precision Real Time Clock
U-Boot boot loader
Android, Windows Embedded Compact 7, Linux
BSPs with OS drivers and tools.
Typ. application ~3-5 Watt @ 5V
Operating:
Storage:
Humidity
Size
Operating:
Storage:
0 to +60°C commercial grade
-40 to +85°C industrial grade
-40 to +85°C
10 to 90% r. H. non cond.
5 to 95% r. H. non cond.
Video Interfaces
Features
Embedded Software Features
Operating Systems
Power Consumption
Temperature Range
70 x 70 mm (2¾" x 2¾")
congatec AG, Auwiesenstraße 5, 94469 Deggendorf, Germany
Phone +49 (991) 2700-0, Fax +49 (991) 2700-111, info@congatec.com
w w w.congatec.com

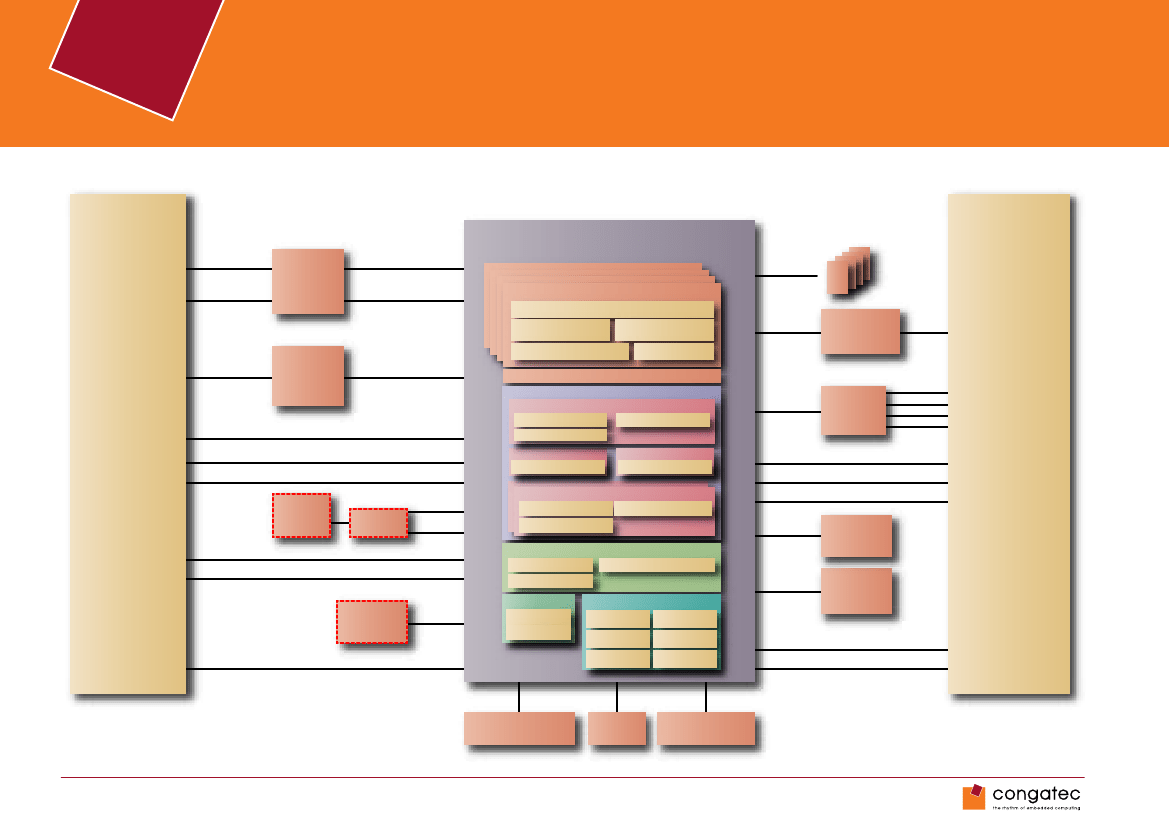

conga-QMX6 - Block diagram
Qseven
Connector
230 pin
goldfinger
PMIC
Power
BATT
Freescale
PFUZE100
freescale i.MX6 Cortex A9
Power Rail
Control I2C2/3
CPU
Platform
ARM
®
Cortex™ -A9 Core
32 KB I-Cache
per Core
32 KB D-Cache
per Core
PTM per Core
DDR3 onboard Memory
(2G DDR3L SDRAM 256MX16)
Qseven
Connector
230 pin
goldfinger
DDR3
JTAG/TRACE
JTAG/TRACE
Debug Port
onboard
JTAG
MFG_NC0...4
Gigabit Ethernet
10/100/1G Eth
Gigabit
Transceiver
Micrel
KSZ9031
NEON per Core
RGMII
256 KB–1 MB L2-Cache
Multimedia
Hardware Graphics Accelerators
3D
Vector Graphics
2D
Video Codecs
1080p30 Enc/Dec
Audio
ASRC
USB H1
USB-Hub
SMSC
USB2514
HDMI
UART0
SPI
HDMI
UART3
USB Port 0
USB Port 2
USB Port 3
USB Port 4
USB Port 1 / Client
LVDS
SDIO
USB OTG
LVDS single/dual channel
SD4 8bit
SD3 8bit
RS232
Debug Port
onboard
UART1
MAXIM
MAX3232
Imaging Processing Unit
Resizing and Blending
Image Enhancement
Inversion/Rotation
Display and Camera Interface
Dual 24-bit LVDS
HDMI and PHY
MIPI CSI2
UART2
eMMC
max. 16GB BGA
onboard
I2C Bus
I2S Audio
I2C1
I2S / SPDIF
SD2 4bit
Security
RNG
TrustZone
Ciphers
Security Cntrl.
Secure RTC
eFuses
Micro SD
socket
onboard
3-axis ACC
freescale
MMA8450Q
Int. Memory
I2C2
ROM
RAM
FlexCAN
SATA
PCIE0
PCIe
CAN-Bus
SATA Port 0
NOTE
The RS232 and the 3-axis ACC interfaces are optional
Feature Connector
MIPI / CMOS camera
onboard
SPI Flash
Android
Buttons
onboard connector
congatec AG, Auwiesenstraße 5, 94469 Deggendorf, Germany
Phone +49 (991) 2700-0, Fax +49 (991) 2700-111, info@congatec.com
w w w.congatec.com
conga-QMX6 - Order information
Article
conga-QMX6/SC-1G eMMC4
conga-QMX6/DCL-1G eMMC4
conga-QMX6/DC-1G eMMC4
conga-QMX6/QC-1G eMMC4
conga-QMX6/QC-2G eMMC4
conga-QMX6/iSC-1G eMMC4
conga-QMX6/iDCL-1G eMMC4
conga-QMX6/iDC-1G eMMC4
conga-QMX6/iQC-1G eMMC4
conga-QMX6/HSP1
conga-QMX6/HSP2
conga-QMX6/HSP3
PN
016100
016101
016102
016103
016104
016110
016111
016112
016113
016160
016161
016162
Cores
1
2
2
4
4
1
2
2
4
Clock speed
L2 Cache
512 KB
3D Graphics
1 shader
1 shader
4 shader
4 shader
4 shader
1 shader
1 shader
4 shader
4 shader
2D Graphics
1 engine
1 engine
2 engines
2 engines
2 engines
1 engine
1 engine
2 engines
2 engines
RAM
1 GByte DDR3 400 Mhz
1 GByte DDR3 400 Mhz
1 GByte DDR3 533 Mhz
1 GByte DDR3 533MHz
2 GByte DDR3 533MHz
1 GByte DDR3 400MHz
1 GByte DDR3 400MHz
1 GByte DDR3 533MHz
1 GByte DDR3 533MHz
SATA
-
-
SATA II
SATA II
SATA II
1 GHz
(commercial tempe-
rature)
512 KB
1 MB
1 MB
1 MB
512 KB
800 MHz (industrial
temperature)
512 KB
1 MB
1 MB
-
SATA II
SATA II
Standard heatspreader with 1mm gap pad for Qseven module conga-QMX6 for processors with LIDDED FCBGA package.
Standard heatspreader with 2mm gap pad for Qseven module conga-QMX6 for processors with plastic MAP BGA package.
Standard heatspreader with heat stack solution for Qseven module conga-QMX6 for processors with open silicon FCBGA package.
Engineering Tools / Accessories for Qseven
conga-HDMI/ADD2 Card
conga-LDVI/EPI
conga-QKIT/ARM
500025
011115
077500
The conga-HDMI ADD2 Card is used to connect a HDMI Display directly to the SDVO ADD2-N Slot of the QEVAL
LVDS to DVI converter board for digital flat panels with onboard EEPROM
Starterkit for Qseven evaluation arrier boards, including conga-QEVAL/ARM
© 2013 congatec AG. All rights reserved. All data is for information purposes only. Although all the information contained within this document is carefully checked, no guarantee of correctness is implied or expressed. The products may include
software. Use of the software is subject to the terms and conditions set out in the respective owner‘s license agreements, which are avaialable at www.congatec.com and/or upon request. Product names, logos, brands, and other trademarks featured or
referred to within this datasheet, or the congatec website, are the property of their respective trademark holders. These trademark holders are not affiliated with congatec AG, our products, or our website.
Rev. September 25, 2013 MD
congatec AG, Auwiesenstraße 5, 94469 Deggendorf, Germany
Phone +49 (991) 2700-0, Fax +49 (991) 2700-111, info@congatec.com
w w w.congatec.com
