BX4053 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> BX4053

BX4053: DescriptionTelecom Filter, 2 Function(s), SMT, 8 PIN; CategoryAnalog mixed-signal IC filter; File Size140KB，1 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric View All

BX4053 Overview

Telecom Filter, 2 Function(s), SMT, 8 PIN

BX4053 Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
package instruction	SMT, 8 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	COMMON MODE CHOKE
filter type	TELECOM FILTER
high	7.49 mm
length	10.41 mm
Manufacturer's serial number	BX4053
Installation type	SURFACE MOUNT
Number of functions	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TUBE
physical size	L10.41XB8.38XH7.49 (mm)/L0.41XB0.33XH0.295 (inch)
width	8.38 mm

Preview

Download Datasheet

View All

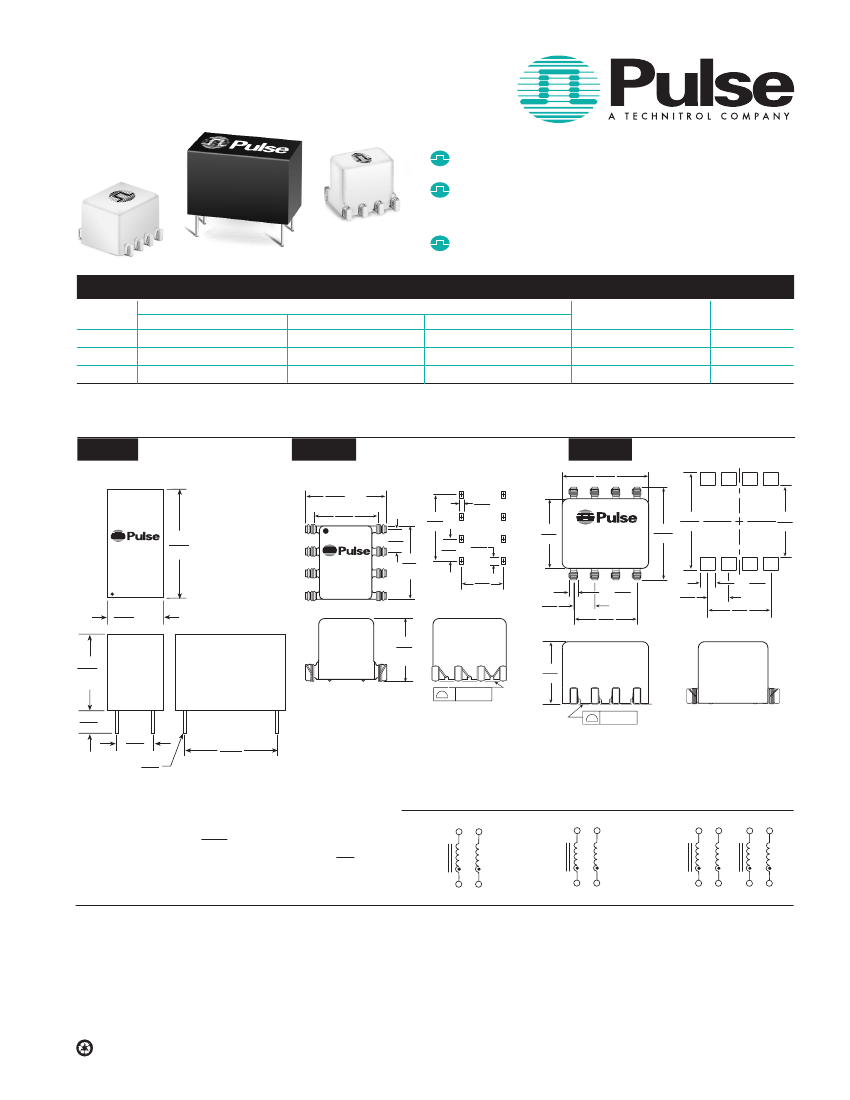

COMMON MODE CHOKE

FOR ADSL AND VDSL

For use in XDSL interfaces

Effective reduction of C. M. noise caused

by AM broadcast or ham radio

Isolation 1500V line to line

Electrical Specifications @ 25°C — Operating Temperature -40°C to 85°C

Part

Number

B4001

B4003

BX4053

(dB TYP @ 500 KHz)

C. M. Attenuation

(dB TYP @ 1 MHz)

(dB TYP @ 10 MHz)

Isolation Voltage

(Vrms)

1500

Mounting

THT

SMT

NOTE:

Surge Voltage Capability — Metallic: 800 Vpeak 10/560 µsec. Long.: 2400 Vpeak 10/700 µsec.

BX4053

is a dual choke.

Mechanicals

B4001

B4003

.345

MAX

8,76

.285

7,24

BX4053

.410

10,41

.050

1,27

B4001

Date Code

Ctry Origin

.605 MAX

15,37

.100

.300

7,62

.100

2,54

.355

9,02

MAX

.070

1.78

.330

8,38

Date Code

Country of Origin

BX4053

.440

11,18

.465

11,81

.340

8,64

Date Code

Country of Origin

B4003

.270

6,86

SUGGESTED PAD LAYOUT

.305 MAX

7,75

.100

2,54

.040

1,02

.100

2,54

.070

1,78

.300

7,62

.300

7,62

SUGGESTED PAD LAYOUT

.410

10,41

MAX

.130

3,30

.300

7,62

MAX

.295

7,49

.004/0,10

8 Surfaces

.005/0,13

8 Surfaces

.200

5,08

4X Ø .020

0,51

.500

12,70

Weight

. . . . . . . . . . . . . .1.0 grams

Tape & Reel

. . . . . . . . . . . .425/reel

Tube

. . . . . . . . . . . . . . . . . .50/tube

Weight

. . . . . . . . . . . . . .2.1 grams

Tape & Reel

. . . . . . . . . . . .400/reel

Tube

. . . . . . . . . . . . . . . . . .50/tube

Weight

. . . . . . . . . . . . . .2.2 grams

Tube

. . . . . . . . . . . . . . . . . .60/tube

Schematics

Dimensions:

Inches

Unless otherwise specified, all tolerances are ± .010

0,25

B4001

B4003

BX4053
