ECCM2RA08-29.999999MTR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ECCM2RA08-29.999999MTR

ECCM2RA08-29.999999MTR: DescriptionQUARTZ CRYSTAL RESONATOR, 29.999999 MHz, ROHS COMPLIANT, MINIATURE, CERAMIC PACKAGE-4; CategoryPassive components Crystal/resonator; File Size99KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

ECCM2RA08-29.999999MTR Overview

QUARTZ CRYSTAL RESONATOR, 29.999999 MHz, ROHS COMPLIANT, MINIATURE, CERAMIC PACKAGE-4

ECCM2RA08-29.999999MTR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ECLIPTEK
package instruction	ROHS COMPLIANT, MINIATURE, CERAMIC PACKAGE-4
Reach Compliance Code	unknown
Other features	AT-CUT CRYSTAL; TAPE AND REEL
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.001%
frequency tolerance	10 ppm
JESD-609 code	e4
load capacitance	8 pF
Manufacturer's serial number	ECCM2
Installation features	SURFACE MOUNT
Nominal operating frequency	29.999999 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L2.5XB2.0XH0.55 (mm)/L0.098XB0.079XH0.022 (inch)
Series resistance	80 Ω
surface mount	YES
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

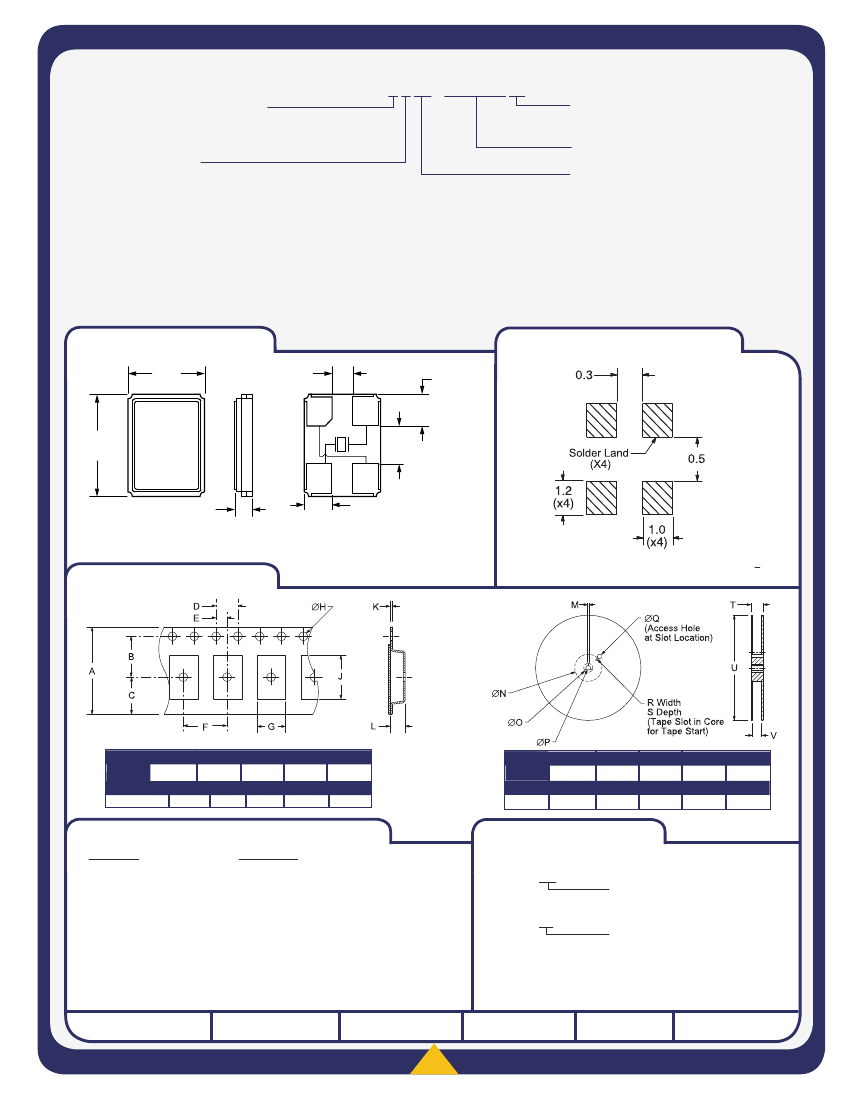

ECCM2

Series

• RoHS Compliant (Pb-Free)

• Miniature four pad ceramic

surface mount package

• Standard frequencies up to 50.000MHz

• AT Cut

• Tape and reel available

NOTES

ECCM2

0.55

2.50

2.00

CRYSTAL

_____________________________________________________________________________________________________________________________________________________________________________________________

ELECTRICAL SPECIFICATIONS

Nominal Frequency (MHz)

Frequency Tolerance / Stability

Over Operating Temperature Range

Operating Temperature Range

Load Capacitance (C

)

Shunt Capacitance

Mode of Operation

Crystal Cut

Aging (at 25°C)

Drive Level

Storage Temperature Range

Insulation Resistance

Spurious Response

Equivalent Series Resistance

±10ppm / ±10ppm or ±10ppm / ±15ppm

-10°C to +60°C or -30°C to +85°C

8pF Parallel Resonant

12pF Parallel Resonant

5pF Maximum

Fundamental

AT-Cut

±3ppm / year Maximum

100 µWatts Maximum

-40°C to 90°C

500 Megaohms Minimum at 100V

-3dB Minimum; F

to F

+5000ppm

100 Ohms Maximum from 16.000MHz to 19.999999MHz

80 Ohms Maximum from 20.000MHz to 29.999999MHz

60 Ohms Maximum from 30.000MHz to 39.999999MHz

50 Ohms Maximum from 40.000MHz to 50.000MHz
