PI5C32200D
32-Bit Bus Switch with GTL Termination
for Slotted CPU Applications
Features
•
•
•
•
•
R
ON
is 56Ω typical connected to 1.5V VBIAS
Low Power......50µW
Switching Speed......7.5ns max.
Channel On Capacitance: 8pF
V
CC
Operating Range: +5V ± 5%
Product Description
Pericoms PI5C32200D is a 32-bit bus switch that features very low
power, and low I/O capacitance. When the bus switch is enabled
(ENx = 0), it is terminated internally through a series resistor to an
external VBIAS. The on-resistance of the switch along with the
series resistor provides a 56Ω nominal termination to VBIAS.
Applications
Provides GTL termination for busses in a Pentium II/Slot 1 two
processor environment with an empty slot.
•
ESD > 2000V......Human Body Model
•
Packages available: 56-pin TSSOP (A)
ENX
L
H
Switch
On
O ff
Notes:
When Enabled:
Ports Ax connect to VBIAS..A
Ports Ay connect to VBIAS..B
Where:
X = 0-3, 8-11, 16-19, 24-27
Y = 4-7, 12-15, 20-23, 28-31

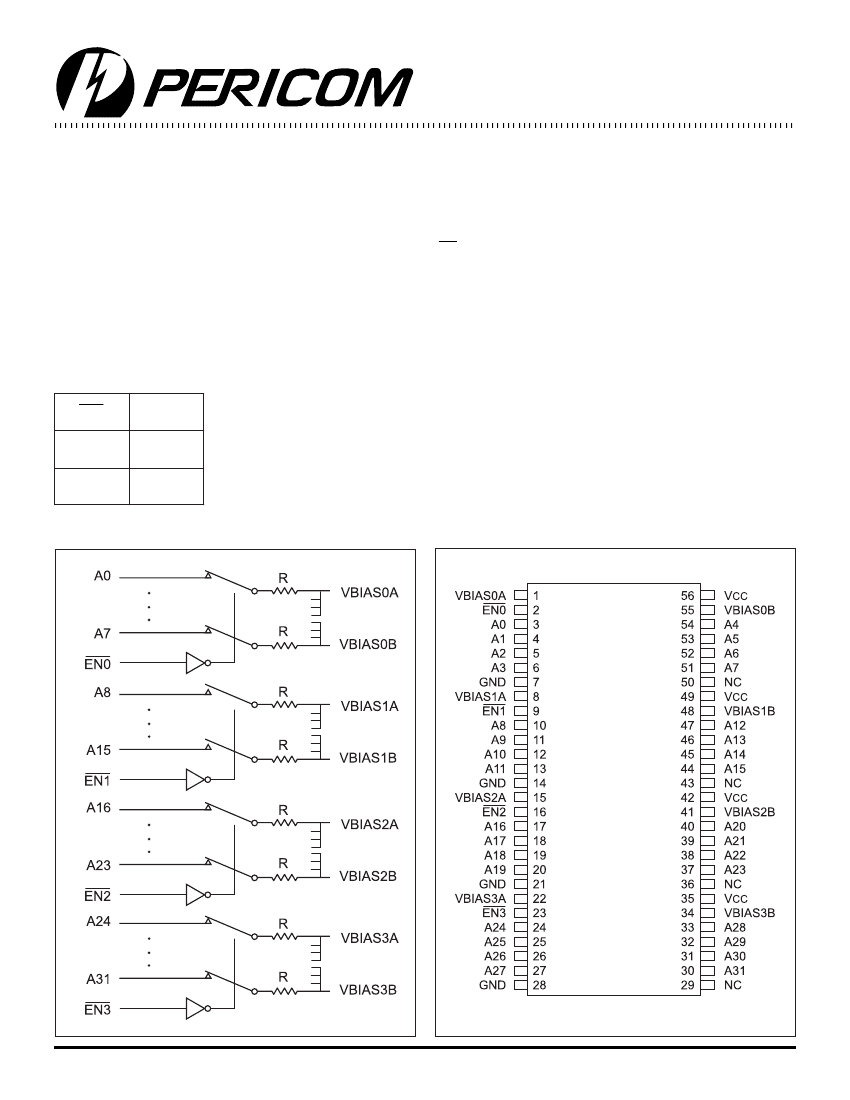

Logic Block Diagram
Product Pin Configuration
56-Pin
A
1
PS8473A
05/04/00
21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321
21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321
PI5C32200D
32-Bit Bus Switch with GTL Termination
for Slotted CPU Applications
Maximum Ratings
Storage Temperature
(Above which the useful life may be impaired. For user guidelines, not tested)
65ºC to +150ºC
40ºC to +70ºC
0.5V to +7.0V
0.5V to +7.0V
Ambient Temperature with Power Applied
Supply Voltage to Ground Potentials (Inputs
& V
C C
O nly)
DC Input Voltage
Note:
Stresses greater than those listed under MAXIMUM RATINGS
may cause permanent damage to the device. This is a stress rating
only and functional operation of the device at these or any condi-
tions above those indicated in the operational sections of this
specification is not implied. Exposure to absolute maximum rating
conditions for extended periods of time may affect reliability.
DC Electrical Characteristics
(V
CC
= 5V ± 5%, T
A
= 0ºC to +70ºC)
Parame te r
V
IH
V
IL
I
IH
I
IL
R
O N
C
IN
C
O N
I
C C
D e s cription
TTL Input HIGH Voltage
TTL Input LO W Voltage
TTL Input HIGH Current
TTL Input LO W Current
Switch O n Resistance
Input Capacitance
Input Capacitance, Switch O n
Power Supply Q uiescent
V
C C
= Min., V
IN
= 0.0V,
VBIAS = 1.5V
V
IN
= 0V
Enable
Te s t Conditions
M in.
2.0
0.5
47.5
Typ.
(1)
56
4
8
M ax.
0.8
1
1
64.5
10
Units
V
µA
Ω
pF
µA
AC Electrical Characteristics
(V
CC
= 5V ± 5%, T
A
= 0ºC to +70ºC)
Parame te r
t
PE
t
PD
De s cription
Bus Enable
Bus Disable
Te s t Conditions
C
L
= 20pF,
R
L
= 500
Ω
M in.
1
M ax.
5
Units
ns
2
PS8473A
05/04/00
21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321
21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321
PI5C32200D
32-Bit Bus Switch with GTL Termination
for Slotted CPU Applications
56-Pin TSSOP (A) Package
56
.236
.244
6.0
6.2
1
.547
.555
13.9
14.1
1.20
.047
Max.
SEATING PLANE
.004 0.09
.008 0.20
0.45 .018
0.75 .030
.0197
BSC
0.50
.07
.011
0.17
0.27
.002
.006
0.05
0.15
.319 BSC
8.1
X.XX DENOTES DIMENSIONS
X.XX IN MILLIMETERS
Ordering Information
Part
PI5C32200DA
Pin-Package
56- TSSO P
Width
240- mil
Pericom Semiconductor Corporation
2380 Bering Drive · San Jose, California 95131 · 1-800-435-2336 · Fax (408) 435-1100 · http://www.pericom.com
3
