2SD1676RF datasheet, PDF - EEWORLD Datasheet

2SD1676RF: Description600mA, 20V, NPN, Si, SMALL SIGNAL TRANSISTOR, SPAK-3; CategoryDiscrete semiconductor The transistor; File Size79KB，4 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

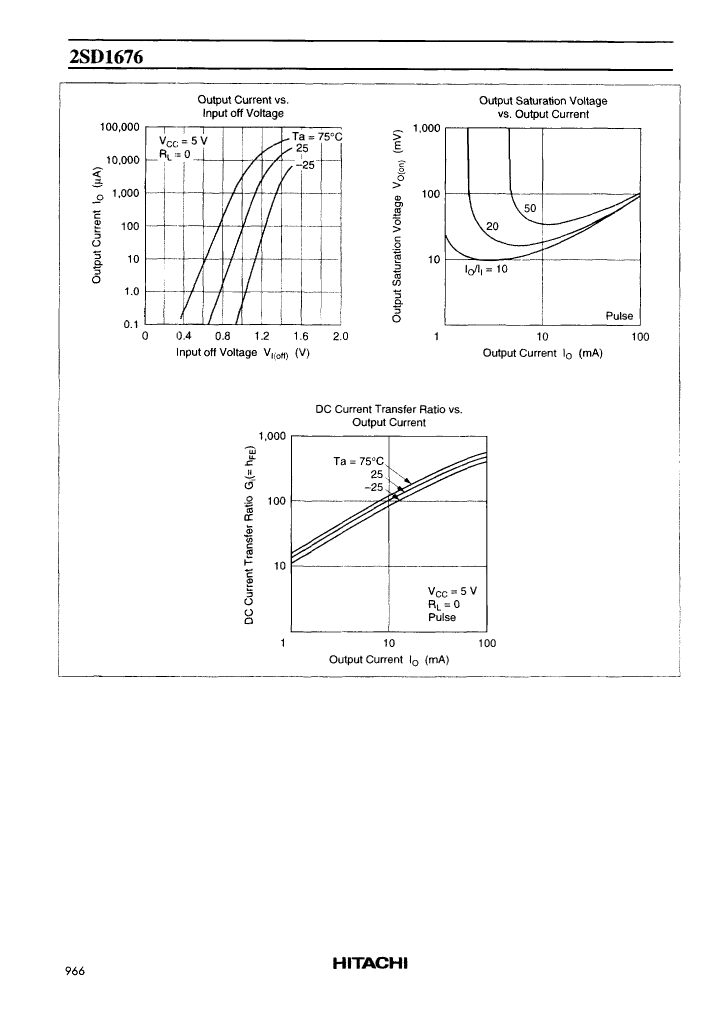

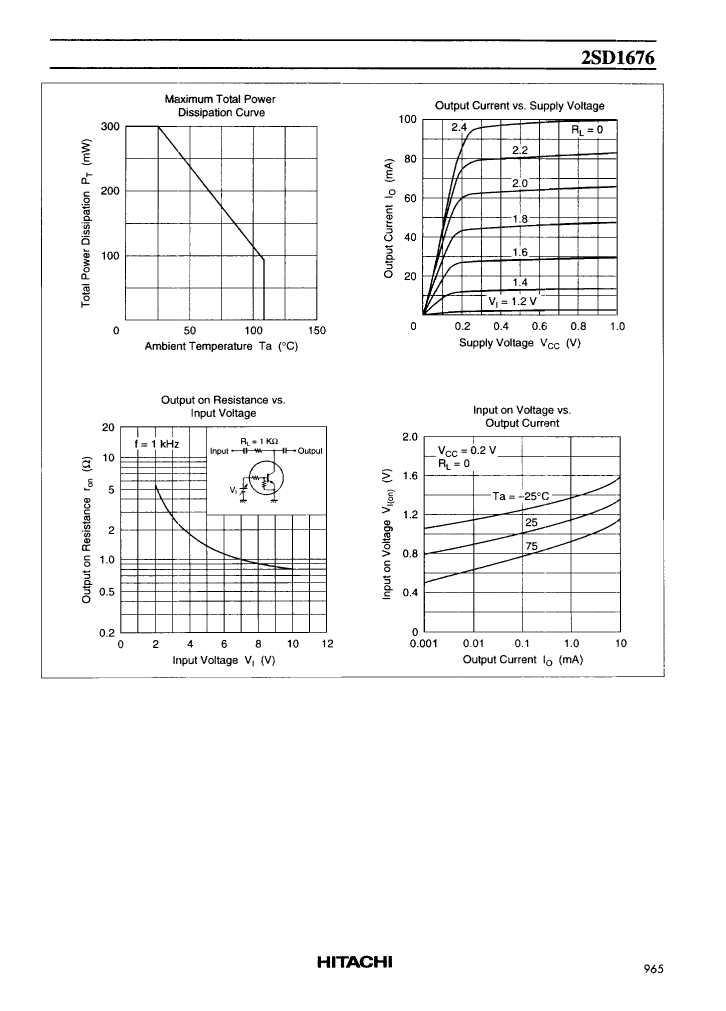

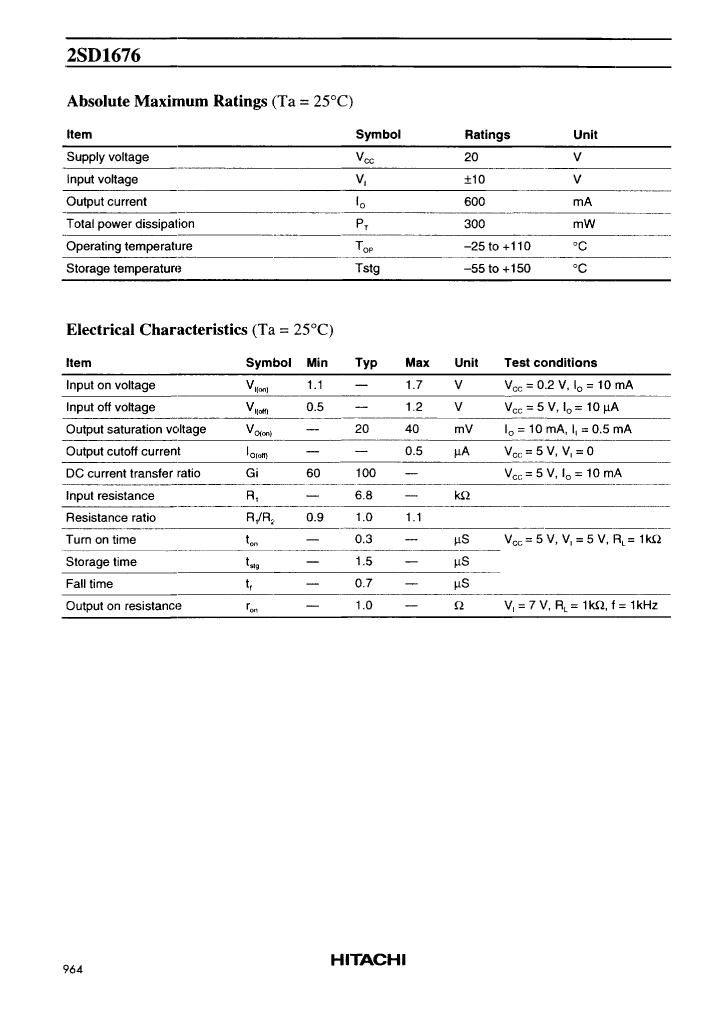

2SD1676RF Overview

600mA, 20V, NPN, Si, SMALL SIGNAL TRANSISTOR, SPAK-3

Parameter Name	Attribute value
package instruction	IN-LINE, R-PSIP-T3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	BUILT IN BIAS RESISTOR RATIO IS 1
Maximum collector current (IC)	0.6 A
Collector-emitter maximum voltage	20 V
Configuration	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	60
JESD-30 code	R-PSIP-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1

	2SD1676RF	2SD1676TZ	2SD1676RR
Description	600mA, 20V, NPN, Si, SMALL SIGNAL TRANSISTOR, SPAK-3	600 mA, 20 V, NPN, Si, SMALL SIGNAL TRANSISTOR, SPAK-3	600mA, 20V, NPN, Si, SMALL SIGNAL TRANSISTOR, SPAK-3
package instruction	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3
Contacts	3	3	3
Reach Compliance Code	unknow	unknow	compli
ECCN code	EAR99	EAR99	EAR99
Other features	BUILT IN BIAS RESISTOR RATIO IS 1	BUILT IN BIAS RESISTOR RATIO IS 1	BUILT IN BIAS RESISTOR RATIO IS 1
Maximum collector current (IC)	0.6 A	0.6 A	0.6 A
Collector-emitter maximum voltage	20 V	20 V	20 V
Configuration	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	60	60	60
JESD-30 code	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3
Number of components	1	1	1
Number of terminals	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Polarity/channel type	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON
Base Number Matches	1	1	1
