Z10-120B-H datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> Z10-120B-H

Preview

Z10-120B-H: DescriptionZener Diode, 120V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41,; CategoryDiscrete semiconductor diode; File Size525KB，3 Pages; ManufacturerFRONTIER; Websitehttp://www.frontierusa.com/; Environmental Compliance

Download Datasheet Parametric View All

Z10-120B-H Overview

Zener Diode, 120V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41,

Z10-120B-H Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	FRONTIER
Reach Compliance Code	unknown
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JEDEC-95 code	DO-41
JESD-30 code	O-PALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	1 W
Nominal reference voltage	120 V
surface mount	NO
technology	ZENER
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	5%
Working test current	5 mA

Preview

Download Datasheet

View All

Z10-100B THRU Z10-330B SPECIFICATION

1W AXIAL LEAD ZENER DIODES, 100V – 330V

PRODUCT FEATURES

1.

2.

3.

4.

5.

6.

7.

8.

9.

10

Rev. A

FLAMMABILITY CLASSIFICATION 94V-0

GLASS PASSIVATED CHIP CONSTRUCTION

WIDE ZENER VOLTAGE RANGE FROM 100V TO 330V

LOW ZENER IMPEDANCE, BUILT-IN STRAIN RELIEF

POLARITY: INDICATED BY CATHODE BAND

MOLDED PLASTIC CASE DO-41

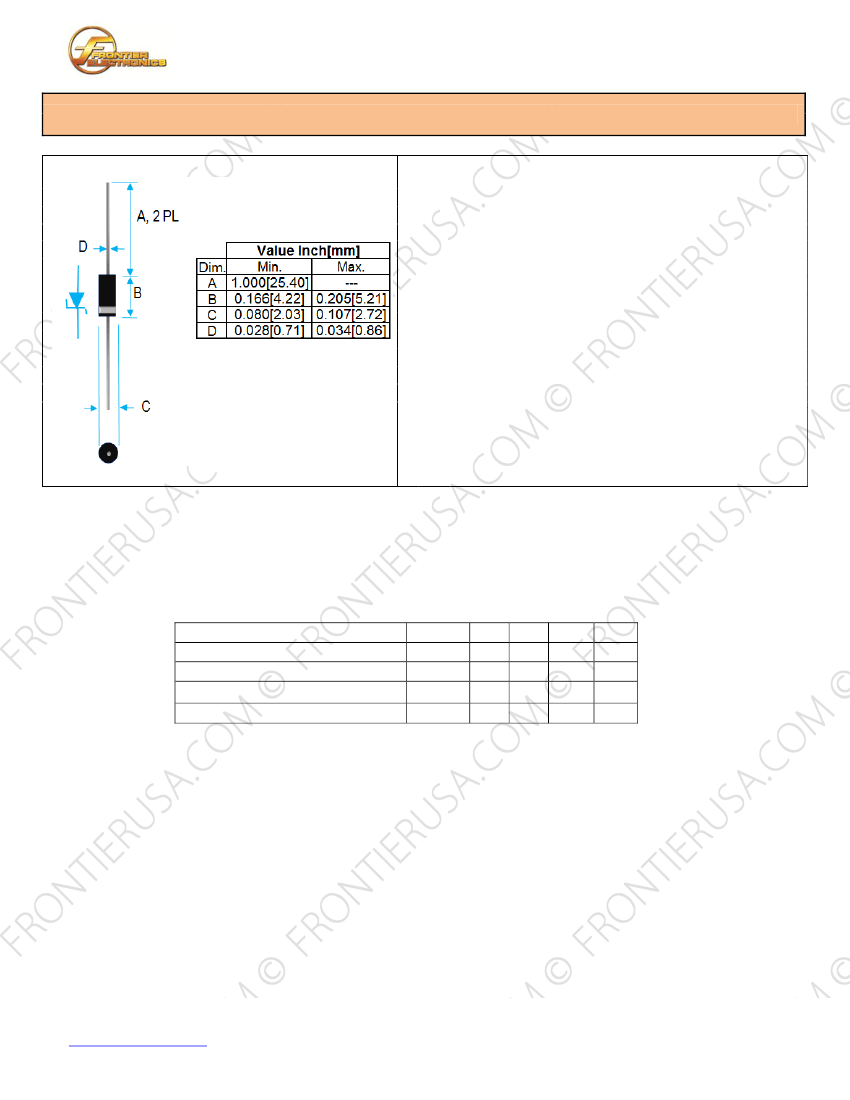

DIMENSIONS IN INCHES AND (MILLIMETERS)

LEADS: SOLDERABILITY PER MIL-STD-202 METHOD 208

WEIGHT: 0.33 GRAMS

RoHS COMPLIANT. ADD SUFFIX “-H” FOR HALOGEN

FREE PART. i.e. Z10-100B-H.

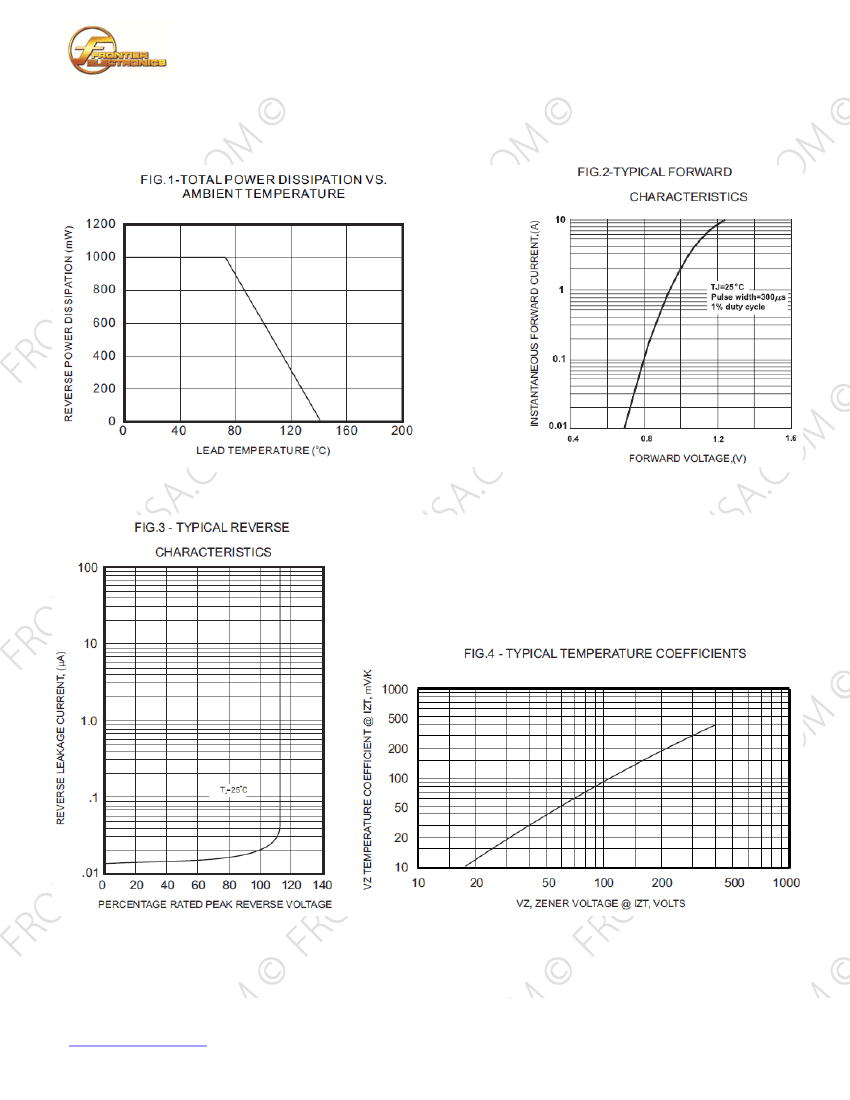

ELECTRICAL CHARACTERISTICS

MAXIMUM RATINGS (T

A

=25°C UNLESS OTHERWISE NOTED )

PARAMETER

FORWARD VOLTAGE @ I

F

= 200mA

POWER DISSIPATION

OPERATING TEMPERATURE

STORAGE TEMPERATURE

SYMBOL MIN. TYP MAX.

.

V

F

P

D

T

J

T

STG

-55

-65

1.20

1.0

+150

+175

UNIT

V

W

°C

Frontier Electronics Corp.

®

http://www.frontierusa.com

Page

1

of

3

667 E. Cochran St., Simi Valley, CA 93065

Phone: 1-805-522-9998, Fax: 1-805-522-9989
