ES52F3B50N-44.736M datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ES52F3B50N-44.736M

ES52F3B50N-44.736M: DescriptionTCXO, CLIPPED SINE OUTPUT, 44.736MHz, METAL, DIP-14/4; CategoryPassive components oscillator; File Size132KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com

Download Datasheet Parametric View All

ES52F3B50N-44.736M Overview

TCXO, CLIPPED SINE OUTPUT, 44.736MHz, METAL, DIP-14/4

ES52F3B50N-44.736M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ECLIPTEK
Reach Compliance Code	unknown
Ageing	1 PPM/YEAR
Frequency Adjustment - Mechanical	YES
frequency stability	5%
JESD-609 code	e3
Manufacturer's serial number	ES52F3
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	44.736 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	CLIPPED SINE
Output impedance	10000 Ω
Output level	0.7 V
physical size	18.3mm x 11.7mm x 4.8mm
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	NO
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

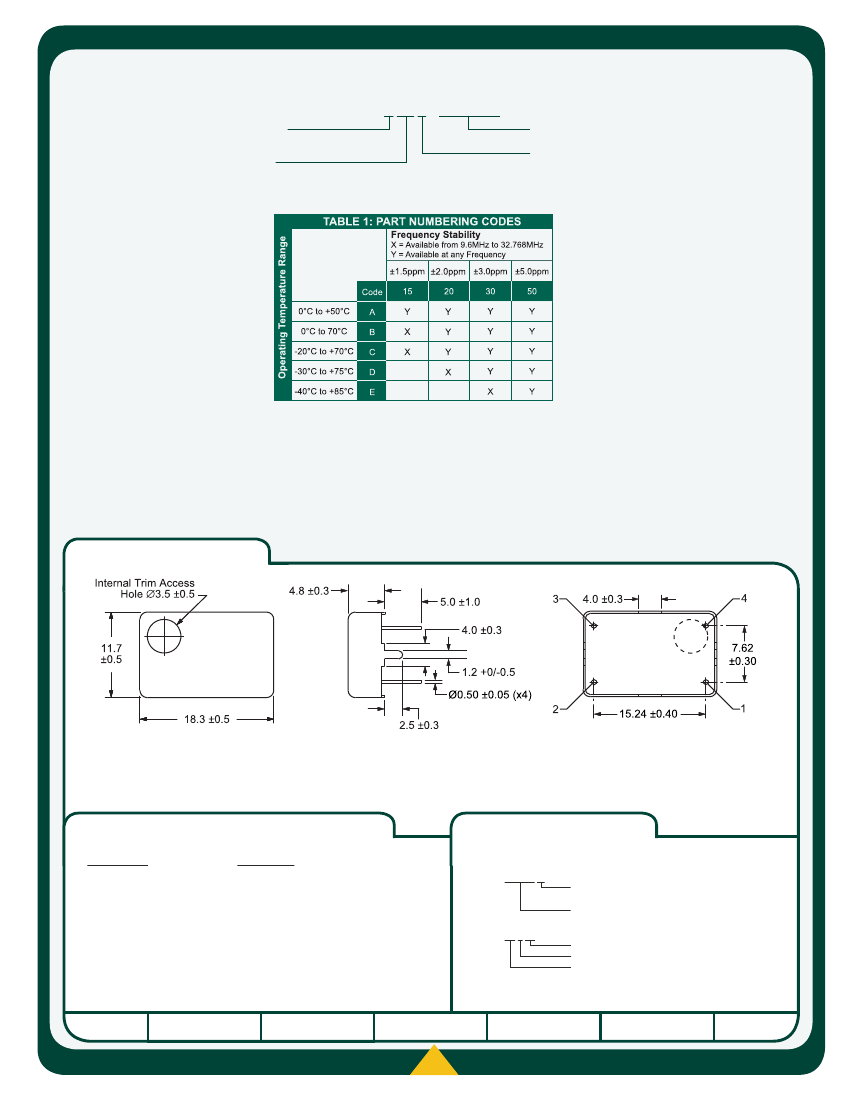

ES52F3

Series

• Temperature Compensated

Crystal Oscillators (TCXO)

• Clipped Sinewave Output

• +3.3V Supply Voltage

• Internal Mechanical Trim Function

• External Voltage Control Option

• 14 pin DIP Metal Package

NOTES

ES52F3

H 4.8

L 18.3

W 11.7

OSCILLATOR

__________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________

ELECTRICAL SPECIFICATIONS

Frequency Range

Operating Temperature Range

Storage Temperature Range

Supply Voltage (V

)

Input Current

9.600MHz to 44.736MHz

See Table 1

-40°C to 85°C

3.3V

±5%

1.5mA Maximum

2.0mA Maximum

3.0mA Maximum

See Table 1

±0.3ppm Maximum

±0.2ppm Maximum

±1ppm / year Maximum

0.7V

p-p

Minimum

10kOhms//10pF

±3ppm Minimum

1.65V

±1.35V

, Positive Transfer Characteristic

±7ppm Minimum, ±20ppm Maximum

10kOhms Typical

10kHz Minimum

-70dBc/Hz

-100dBc/Hz

-130dBc/Hz

-140dBc/Hz

-145dBc/Hz

VOLTAGE

CLASS

REV

DATE

Frequency Stability

9.600MHz to 20.000MHz

20.001MHz to 29.999MHz

30.000MHz to 44.736MHz

vs. Operating Temperature Range

vs. Input Voltage (V

±5%)

vs. Load (±2kΩ // ±2pF)

Aging (at 25°C)

Output Voltage

Load Drive Capability

Internal Trim (Top of Can)

Control Voltage (External)

Frequency Deviation

Input Impedance

Modulation Bandwidth

Typical Phase Noise

Referenced to F

at V

= 1.65V

; V

= 3.3V

Measured at -3dB, V

= 3.3V

at 10Hz Offset

at 100Hz Offset

at 1kHz Offset

at 10kHz Offset

at 100kHz Offset

SERIES

PACKAGE

MANUFACTURER
