REVISION Z
DO NOT
SCALE FROM
THIS PRINT
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. ASSEMBLE GOLD PLATED END AS SHOWN.
3. TERMINAL PUSHOUT FORCE: 2 LBS BEFORE HEAT.
4. TERMINALS TO BE FLUSH TO .010[.25] BELOW TOP
OF SHROUD.
5. MATES ONLY WITH SSW, SSQ, SSM, BCS, ESW, ESQ.
No OF POSITIONS
-02 THRU -36
(PER ROW)
HTSS-1XX-01-XX-DV-X-XX-X-XX
-TR: TAPE & REEL
(POSITIONS -02 THRU -25 ONLY)
-P: PICK & PLACE PAD
(USE PPP-22)
POLARIZATION OPTION
-XX: INDICATES POSITION OMITTED
-A: ALIGNMENT PIN (* ASO OPTION)
(FIG 3 SHT 2)
ROW SPECIFICATION
-DV: DOUBLE VERTICAL
(USE HTSS-XX-D)
LEAD STYLE
-01: SURFACE MOUNT
(USE T-1S6-08-XX-2)
PLATING SPECIFICATION
-T: MATTE TIN ON CONTACT AND TAIL
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-L: 10µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-H: 30µ" HEAVY GOLD IN CONTACT AREA, 3µ" ON TAIL
-TM: MATTE TIN ON CONTACT AREA AND TAIL
-SM: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-LM: 10µ" LIGHT SELECTIVE IN CONTACT AREA,
MATTE TIN ON TAIL
-SS: 30µ" STRIP SELECTIVE ON CONTACT, MATTE TIN
ON TAIL (SEE NOTE 5).
.100 2.54 REF
02
04
{(No. OF POS. x .100[2.54] + .150[3.81] REF}
{(No. OF POS. x .100[.2.54] + .050[1.27] REF
"A"
.365 9.27
REF
01
03
.250 6.35 REF
"A"
2° MAX SWAY
(EITHER DIRECTION)
.075 1.91 REF
.100 2.54 REF
2 MAX SWAY
(EITHER DIRECTION)
FIRST POSITION
INDICATOR
.200 5.08 REF
HTSS-XX-D
C
SEE NOTE 4
90°
- 2°
.250 6.35
REF
+4°
.165 4.19 REF
(SEE NOTE 2)
.350 8.89
REF
.400±.010 10.16±0.25
SEE TABLE 1
C
T-1S6-08-XX-2
.025 0.64 SQ REF (TYP)
IN-PROCESS 1
FIG 1
IN-PROCESS 2
HTSS-120-01-X-DV SHOWN
C
.015 0.38
REF
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
.170 4.32 REF
.440±.010 11.18±0.25
SECTION "A"-"A"
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
C
90°
- 0°
.530 13.46
REF
.635 16.13
C
+5°
.500 12.70
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.666667

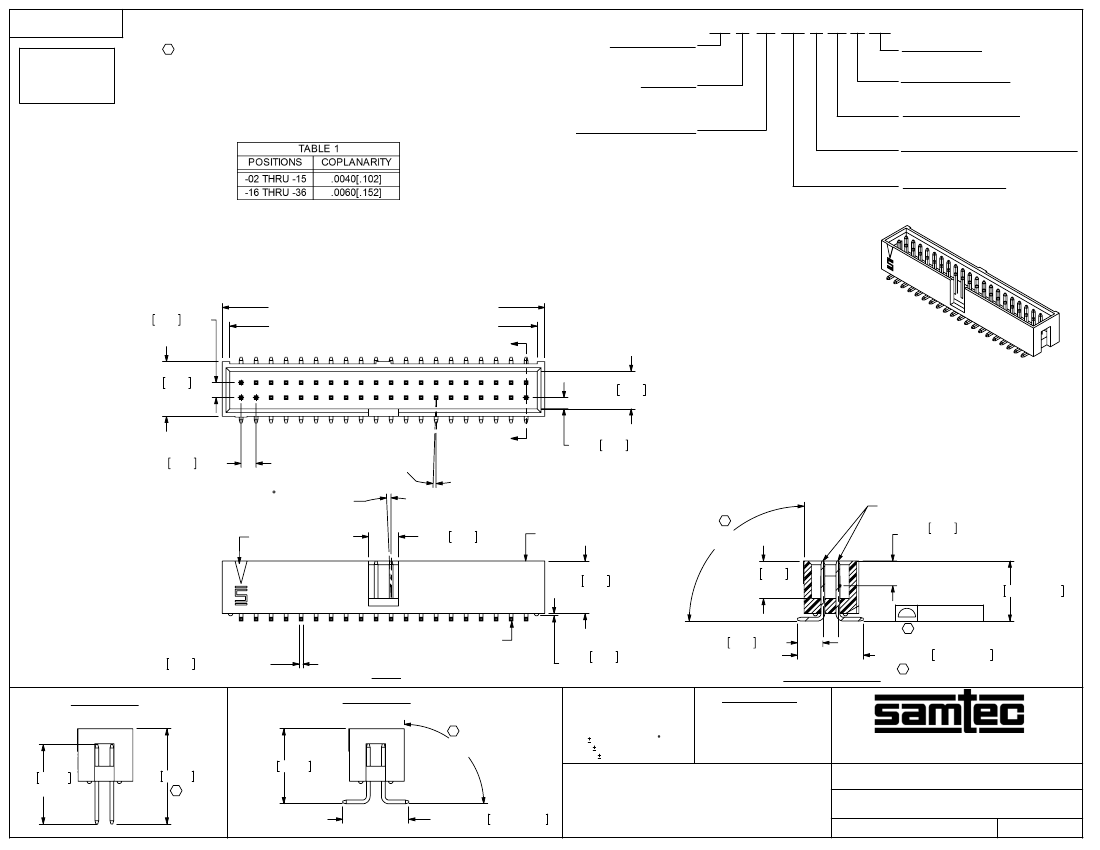

DESCRIPTION:
INSULATOR:
LCP, UL 94 VO
COLOR: NATURAL
HIGH TEMP TOP SHROUD
07/14/2001
SHEET
1
OF
2
DWG. NO.
.440±.010 11.18±0.25
TERMINAL: PHOS BRONZE
F:\DWG\MISC\MKTG\HTSS-1XX-01-XX-DV-X-XX-X-XX-MKT.SLDDRW
HTSS-1XX-01-XX-DV-X-XX-X-XX
BY:
T. WERNE
REVISION Z
(((NO POS X .100) +.150) - .375)/2
+/- .020
.375 9.53
REF
.390 9.91
REF
.420 10.67
REF
-P: PICK & PLACE PAD OPTION
(SAME AS FIG. 1 UNLESS OTHERWISE STATED)
FIG 2
.050 1.27 REF
.100 2.54 REF
.060 1.52 DIA REF
(NO OF POS. x .100 [2.54]) -.200 [5.08]
PACKAGING VIEW
TUBE: PT-1-24-02-08
PLUG: TP-13
-A: ALIGNMENT PIN OPTION
(SAME AS FIG. 1 UNLESS OTHERWISE STATED)
FIG 3
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
HIGH TEMP TOP SHROUD
HTSS-1XX-01-XX-DV-X-XX-X-XX
07/14/2001
SHEET
2
OF
2
F:\DWG\MISC\MKTG\HTSS-1XX-01-XX-DV-X-XX-X-XX-MKT.SLDDRW
BY:
T. WERNE
