Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.81 mm (0.150 inch) | Plug connectors,
solder connection, pitch 3.81 | SC 3.81/90 | SC 3.81/90F
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Fitted to PCB
Outgoing elbow
Pitch
Pitch in inch
No. of poles
Solder pin length
Can be coded
No. of rows
No. of solder pins per pole
Dia. of fitting hole
Fitting hole tolerance
L1 in mm
L1 in inch
Insulation resistance
Electric shock protection to DIN VDE 0470
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
1793420000
SC 3.81/2/90F3.2SN GN

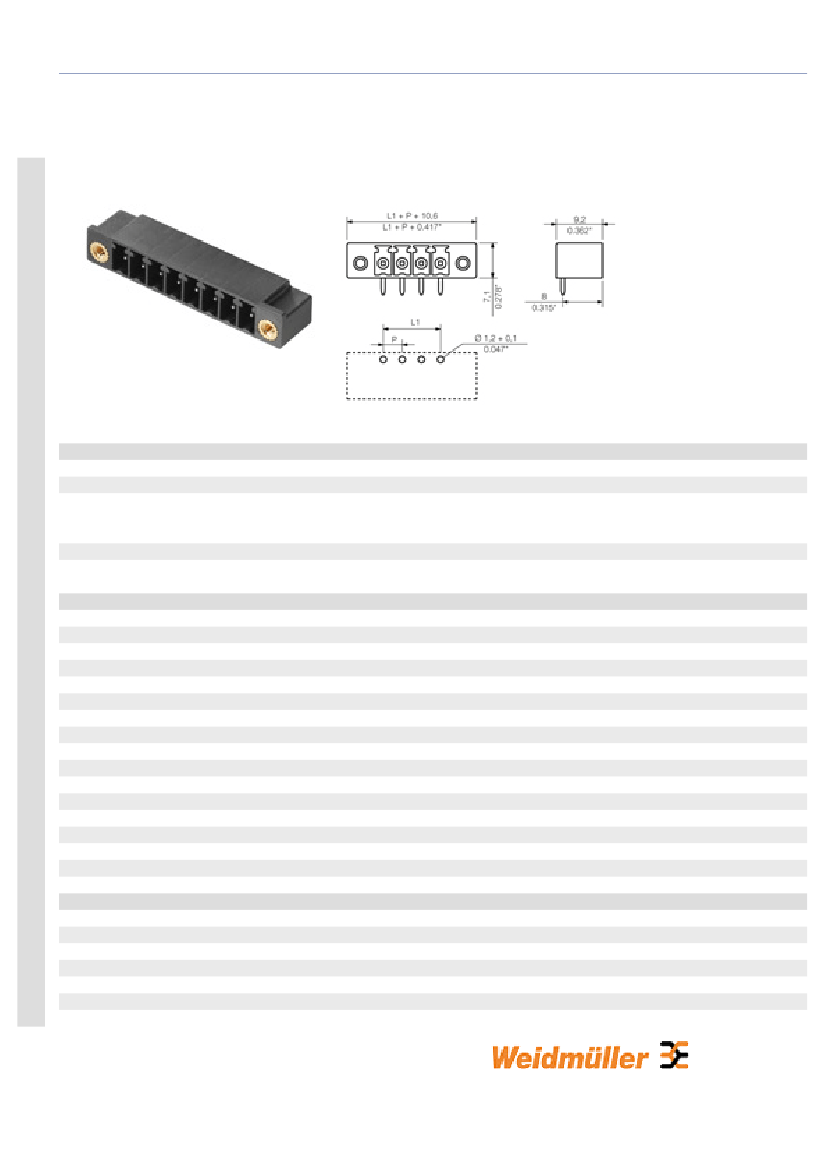

PCB plug-in connector, Male connectors, Soldered
connection, Pitch: 3.81 mm, No. of poles: 2, 90°,
Box
4032248228492
50 pc(s).
Soldered connection
90°
3.81 mm
0.15 inch
2
3.2 mm
Yes
1
1
1.2 mm
+ 0.1 mm
3.81 mm
0.15 inch
1,000 MΩ
IP 20
Safe from finger touch
PA GF
Pale green
Similar to RAL 6021
II
V-0
>= 475
Copper alloy
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.81 mm (0.150 inch) | Plug connectors,
solder connection, pitch 3.81 | SC 3.81/90 | SC 3.81/90F
Material data
Contact surface
Constant operating temp., min.
Constant operating temp., max.
Storage temperature, min.
Storage temperature, max.
Max. relative humidity during storage
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Rated voltage for overvoltage class/pollution
severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated voltage for overvoltage class/pollution
severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
Approvals
Approvals institutes
tinned
-25 °C
120 °C
-25 °C
55 °C
93 %
17.5 A
17.5 A
160 V
2.5 kV
160 V
2.5 kV
320 V
2.5 kV
3 x 1s with 76 A
300 V
10 A
300 V
10 A
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
NK
EC001284
27-26-07-01
27-26-07-01
27-26-07-04
Similar products
Order No.
Part designation
Version
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.81 mm (0.150 inch) | Plug connectors,
solder connection, pitch 3.81 | SC 3.81/90 | SC 3.81/90F
1942450000
1793330000
1942460000
1793340000
1793430000
1942470000
1793350000
1793440000
1942480000
1793360000
1793450000
1942490000
1793370000
1793460000
1942500000
1942740000
1942640000
1942510000
1793380000
1793470000
1942520000
1942750000
1942650000
1942530000
1793390000
1793480000
SC 3.81/2/90F3.2SN OR
SC 3.81/2/90F3.2SN SW
SC 3.81/3/90F3.2SN OR
SC 3.81/3/90F3.2SN SW
SC 3.81/3/90F3.2SN GN
SC 3.81/4/90F3.2SN OR
SC 3.81/4/90F3.2SN SW
SC 3.81/4/90F3.2SN GN
SC 3.81/5/90F3.2SN OR
SC 3.81/5/90F3.2SN SW
SC 3.81/5/90F3.2SN GN
SC 3.81/6/90F3.2SN OR
SC 3.81/6/90F3.2SN SW
SC 3.81/6/90F3.2SN GN
SC 3.81/7/90F3.2SN OR
SC 3.81/7/90F3.2SN SW
SC 3.81/7/90F3.2SN GN
SC 3.81/8/90F3.2SN OR
SC 3.81/8/90F3.2SN SW
SC 3.81/8/90F3.2SN GN
SC 3.81/9/90F3.2SN OR
SC 3.81/9/90F3.2SN SW
SC 3.81/9/90F3.2SN GN
SC 3.81/10/90F3.2SN OR
SC 3.81/10/90F3.2SN SW
SC 3.81/10/90F3.2SN GN
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 2, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 2, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 3, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 3, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 3, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 4, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 4, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 4, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 5, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 5, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 5, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 6, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 6, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 6, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 7, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 7, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 7, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 8, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 8, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 8, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 9, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 9, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 9, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 10, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 10, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 10, 90°, Box
-3-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.81 mm (0.150 inch) | Plug connectors,
solder connection, pitch 3.81 | SC 3.81/90 | SC 3.81/90F
1942540000
1942760000
1942660000
1942550000
1793400000
1793490000
1942560000
1942770000
1942670000
1942570000
1942780000
1942680000
1942580000
1942790000
1942690000
1942590000
1793410000
1793500000
1942600000
1942800000
1942700000
1942610000
1942810000
1942710000
1942620000
1942820000
SC 3.81/11/90F3.2SN OR
SC 3.81/11/90F3.2SN SW
SC 3.81/11/90F3.2SN GN
SC 3.81/12/90F3.2SN OR
SC 3.81/12/90F3.2SN SW
SC 3.81/12/90F3.2SN GN
SC 3.81/13/90F3.2SN OR
SC 3.81/13/90F3.2SN SW
SC 3.81/13/90F3.2SN GN
SC 3.81/14/90F3.2SN OR
SC 3.81/14/90F3.2SN SW
SC 3.81/14/90F3.2SN GN
SC 3.81/15/90F3.2SN OR
SC 3.81/15/90F3.2SN SW
SC 3.81/15/90F3.2SN GN
SC 3.81/16/90F3.2SN OR
SC 3.81/16/90F3.2SN SW
SC 3.81/16/90F3.2SN GN
SC 3.81/17/90F3.2SN OR
SC 3.81/17/90F3.2SN SW
SC 3.81/17/90F3.2SN GN
SC 3.81/18/90F3.2SN OR
SC 3.81/18/90F3.2SN SW
SC 3.81/18/90F3.2SN GN
SC 3.81/19/90F3.2SN OR
SC 3.81/19/90F3.2SN SW
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 11, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 11, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 11, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 12, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 12, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 12, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 13, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 13, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 13, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 14, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 14, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 14, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 15, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 15, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 15, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 16, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 16, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 16, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 17, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 17, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 17, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 18, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 18, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 18, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 19, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 19, 90°, Box
-4-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.81 mm (0.150 inch) | Plug connectors,
solder connection, pitch 3.81 | SC 3.81/90 | SC 3.81/90F
1942720000
1942630000
1942830000
1942730000
SC 3.81/19/90F3.2SN GN
SC 3.81/20/90F3.2SN OR
SC 3.81/20/90F3.2SN SW
SC 3.81/20/90F3.2SN GN
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 19, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 20, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 20, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 20, 90°, Box
