W-P0852#51

Description
Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Guide Slot, Natural Insulator, Plug,
CategoryThe connector    The connector
File Size40KB，1 Pages
ManufacturerSMK
Websitehttps://www.smk.co.jp/
Download Datasheet Parametric View All

W-P0852#51 Overview

Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Guide Slot, Natural Insulator, Plug,

W-P0852#51 Parametric

Parameter NameAttribute value
MakerSMK
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresNONE
body width0.197 inch
subject depth0.339 inch
body length0.236 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedTIN
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage500VAC V
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorNATURAL
insulator materialPOLYAMIDE
MIL complianceNO
Manufacturer's serial numberMP-2
Plug contact pitch0.079 inch
Plug informationW-A2202-1N#51
Mixed contactsNO
Installation option 1GUIDE SLOT
Installation option 2LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
polarization keyPOLARIZED HOUSING
Rated current (signal)1 A
reliabilityCOMMERCIAL
Terminal length0.13 inch
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts2
UL Flammability Code94V-0

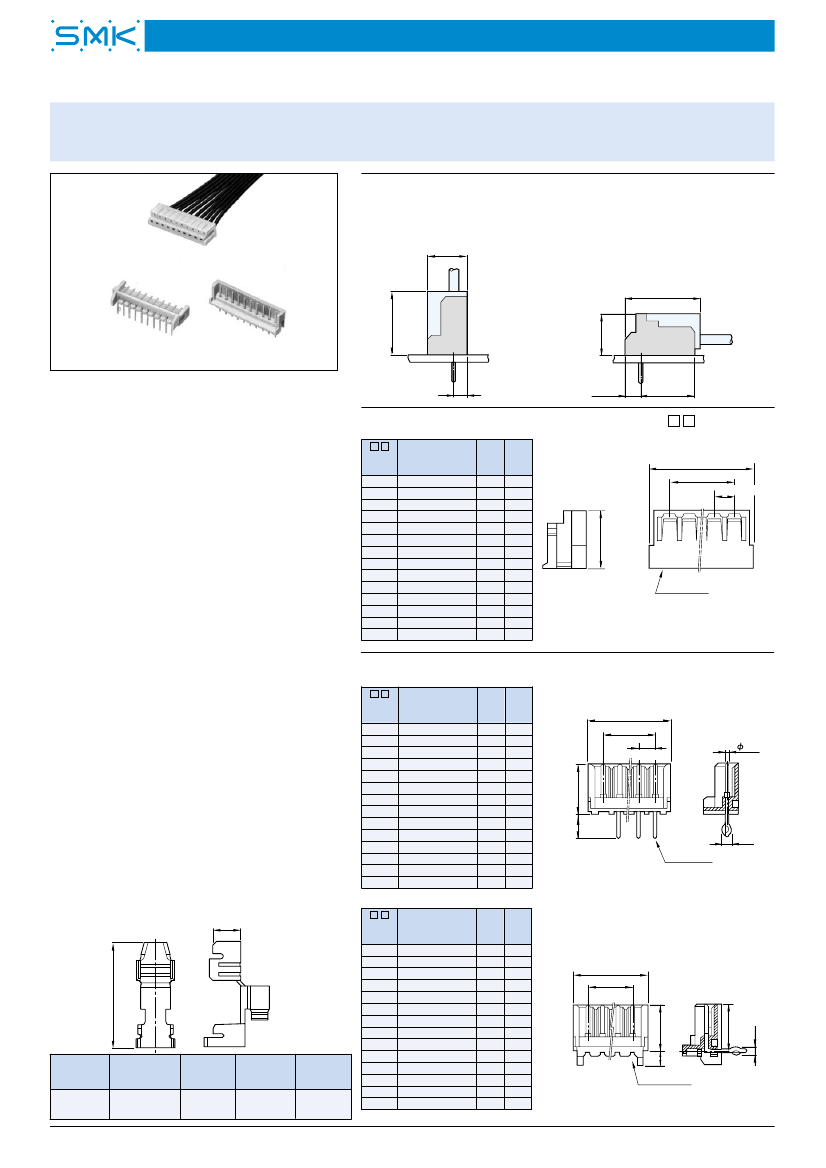

Preview

Download Datasheet
Crimp Connector
MP-2
Series
2.0mm Spacing
s
Connection Diagram
嵌合図
Straight Type
ストレートタイプ
4.5
Right-Angle Type
ライトアングルタイプ
8.6
6.9
s
Features
1. Socket and plug connections for this model
measure only 6.9mm high and 4.5mm thick.
2. A lock mechanism is utilized for the socket and
plug housing to ensure firm connection and to
prevent improper plug insertion.
●
Housing
No. of
Pins
2
3
4
5
6
7
8
9
10
11
12
13
14
15
5.0
2.25
1.5
6.35
ハウジング
A
2.0
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
B
5.8
7.8
9.8
11.8
13.8
15.8
17.8
19.8
21.8
23.8
25.8
27.8
29.8
31.8
W-A 22
-IN#51
B
A
2.0(Spacing)
Part No.
W-A2202-1N#51
W-A2203-1N#51
W-A2204-1N#51
W-A2205-1N#51
W-A2206-1N#51
W-A2207-1N#51
W-A2208-1N#51
W-A2209-1N#51
W-A2210-1N#51
W-A2211-1N#51
W-A2212-1N#51
W-A2213-1N#51
W-A2214-1N#51
W-A2215-1N#51
s
Specifications
1. Rating : 1A 125V AC/DC
2. Contact Resistance : 20mΩ max
3. Insulation Resistance : 1000MΩmin. at 500V DC
4. Withstanding Voltage : 500V AC for one minute
5. Operating Temperature Range : –25˚C to +85˚C
6. Applicable Wire Size : AWG22 to 30
(Sheath dia. ø0.8 to ø1.5mm)
7. Applicable PC Board Thickness : 1.6mm
6.1
1
Pin No.1
s
Material and Plating
●
Housing : Polyamide (Natural Color)
94V-0
●
Plug
No. of
Pins
2
3
4
5
6
7
8
9
10
11
12
13
14
15
プラグ
A
2.0
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
B
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
32.0
s
Note
Contact the company if additional specifications
are desired.
Straight Type
ストレートタイプ
B
A
2.0
(Spacing)
6.5
0.5
Straight Type
W-P0802#51
W-P0803#51
W-P0804#51
W-P0805#51
W-P0806#51
W-P0807#51
W-P0808#51
W-P0809#51
W-P0810#51
W-P0811#51
W-P0812#51
W-P0813#51
W-P0814#51
W-P0815#51
■ 特  長
1. ½ケットとプラグの結合高さ6.9mm、厚さ
4.5mmの小型タイプです。
2. プラグと½ケットはロック機構が有り、確実な
ロックと誤挿入防止構造です。
■ 特  記
掲載以外の仕様につきましては別途御相談下さい。
●
Terminal
3.3
1.1
Pin No.1
ターミナル (W-T0213-11#01)
15
No. of
Right-Angle Type
Pins
2
3
4
5
6
7
8
9
10
11
12
13
14
15
W-P0852#51
W-P0853#51
W-P0854#51
W-P0855#51
W-P0856#51
W-P0857#51
W-P0858#51
W-P0859#51
W-P0860#51
W-P0861#51
W-P0862#51
W-P0863#51
W-P0864#51
W-P0865#51
A
2.0
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
B
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
32.0
Right-Angle Type
ライトアングルタイプ
B
A
5.5
6.35
(2.1)
6.5
Applicable
Electrical Wire Electrical Wire
Size (AWG) Sheath Dia. (mm)
22∼30
φ1.5∼0.8
Material
Plating
No. of
Terminal/
Reel
15000
Pin No.1
Phosphor Tinned (Reflow
Bronze
Treatment)
1.1

Recommended Resources

Use NE555 to make a single-button touch light switch
