Packaging Information
www.vishay.com
Vishay General Semiconductor
Packaging Information
PACKAGING ORDERING CODE
PREFERRED
ANTI-STATIC
PACKAGE CODE PACKAGE CODE
51
52, 52T
P
2D
P
2E
2M
2N
53
54
P
5A, 5AT
P
5B, 5BT
P
5CA
P
57, 57T
P
6A
P
6B
P
9A, 9AT
P
61, 61T
P
67A
P
72
P
73
77
P
80
P
81
P
8A
P
8W
P
83
P
84A
P
85A
P
86A
P
87A
P
38
89A
P
90
91
92
93
45
P
4W
P
96
P
97
P
98
P
100
H
I
TR
TR3
P
P
P
P
PACKAGING DESCRIPTION
Bulk
DO-214AA (SMB)/DO-215AA (SMBG), 12 mm tape, 7" diameter plastic reel
DO-218AB (SM5-8A), 24 mm tape, 13" diameter plastic reel, anode towards sprocket hole
DO-218AB (SM5-8A), 24 mm tape, 13" diameter plastic reel, cathode towards sprocket hole
Tube packaging for 5KP/6KA type lead formed components
DO-218AB, 24 mm tape, 13 "diameter plastic reel with dry packaging, anode towards sprocket hole
26 mm horizontal taping and ammo box packaging
52.4 mm horizontal tape, 13" diameter paper reel
DO-214AC (SMA), 12 mm tape, 13" diameter plastic reel
DO-214AA (SMB)/DO-215AA (SMBG), 12 mm tape, 13" diameter plastic reel
DO-214BA (GF1), 12 mm tape, 13" diameter plastic reel
DO-214AB (SMC)/DO-215AB (SMCG), 16 mm tape, 7" diameter plastic reel
DO-221AC (SlimSMA), 12 mm tape, 7"diameter plastic reel
DO-221AC (SlimSMA), 12 mm tape, 13"diameter plastic reel
DO-214AB (SMC)/DO-215AB (SMCG), 16 mm tape, 13" diameter plastic reel
DO-214AC (SMA), 12 mm tape, 7" diameter plastic reel
DO-214BA (GF1), 12 mm tape, 7" diameter plastic reel
Bulk pack for bridge and special axial-leaded formed devices
52.4 mm horizontal tape and ammo box packaging
DFS bridge, 16 mm tape, 13" diameter paper reel
TO-269AA (MB-S) bridge, 12 mm tape, 13" diameter paper reel
TO-263AB 24 mm tape, 13" diameter reinforced hub plastic reel
SMPD, 24 mm tape, 13" diameter plastic reel
TO-263AB (wire bond) 24 mm tape, 13" diameter reinforced hub plastic reel
DO-213AA (GL34) 8 mm tape, 13" diameter plastic reel
DO-220AA (SMP) 12 mm tape, 7" diameter plastic reel
DO-220AA (SMP) 12 mm tape, 13" diameter plastic reel
TO-277A (SMPC), 12 mm tape, 7" diameter plastic reel
TO-277A (SMPC), 12 mm tape, 13" diameter plastic reel
Lead forming bulk packaging in anti-static bags
MicroSMP, 8 mm tape, 7" diameter plastic reel
Euroform, reel, cathode first off reel, lead coated
Euroform, ammo pack, cathode first out of ammo pack, lead coated
Euroform, reel, cathode last off reel, lead coated
Euroform, ammo pack, cathode last out of ammo pack, lead coated
Anti-static tube packaging for Bridge and Power Pack
Anti-static tube packaging for wire bond TO-220, ITO-220, TO-262 and TO-263
DO-213AB (GL41), 12 mm tape, 7" diameter plastic reel
DO-213AB (GL41), 12 mm tape, 13" diameter plastic reel
DO-213AA (GL34), 8 mm tape, 7" diameter plastic reel
MPG06 pseudo radial tape, cathode first out of ammo pack
Tape in 7" diameter plastic reel
Tape in 13" diameter plastic reel
DO-214AC (SMA), 12 mm tape, 7" diameter plastic reel
(1)
DO-214AC (SMA), 12 mm tape, 13" diameter plastic reel
(1)
Notes
(1)
Formerly sold by Vishay Telefunken
®
(Telefunken
®
is a registered trademark of Electro Holding GmbH).
• “P” and bold letter denotes preferred package code.
• A “T” suffix added to the packaging codes for SMA, SMB and SMC products indicates that the patented folded-frame construction is used.
This does not apply to TR and TR3 codes or T
RANS
Z
ORB®
TVS in SMA and SMB.
Revision: 01-Feb-13
Document Number: 88869
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Packaging Information
www.vishay.com
Vishay General Semiconductor
BULK PACKAGING
CASE TYPES
DF-M, DF-S, DFL-S
GSIB-3S
GSIB-5S, PB
GBU, BU
GBL
KBPM
TO-220AB/AC, ITO-220AC/AB, TO-262AA
TO-247AD
TO-269AA (MB-S)
KBPM
GBL
GBPC12-35W
GBPC1, GBPC6
KBL
GBPC12-35
KBU4, 6, 8
WOG, 2WOG
GBU, /BU
KBPM
PREFERRED
PACKAGE
CODE
45
45
45
45
45
45
45, 4W
45
45
51
51
51
51
51
51
51
51
51
72
BOX SIZE
PACKAGING
INCHES
Anti-static plastic tubes
Anti-static plastic tubes
Anti-static plastic tubes
Anti-static plastic tubes
Anti-static plastic tubes
Anti-static plastic tubes
Anti-static plastic tubes
Anti-static plastic tubes
Anti-static plastic tubes
Anti-static PVC tray
Anti-static PVC tray
Paper box
Paper box
Anti-static PVC tray
Paper box
Anti-static PVC tray
Plastic bags
Paper tray
Paper box
17.4 length
25.1 length
24.2 length
18.5 length
17.5 length
18.5 length
21.0 length
20.0 length
20.3 x 0.41
12.5 x 6.5 x 1.25
12.5 x 6.1 x 1.0
12.5 x 12.5 x 1.7
7.5 x 7.5 x 1.43
12.2 x 6.1 x 1.5
12.5 x 12.5 x 1.7
12.2 x 6.1 x 1.5
-
13.1 x 6.6 x 1.2
7.4 x 7.4 x 1.5
cm
44.1 length
63.9 length
61.5 length
47 length
44.5 length
47 length
53.7 length
50.8 length
51.5 x 1.04
31.7 x 16.5 x 3.17
30.9 x 15.5 x 2.5
31.7 x 31.7 x 4.3
19.0 x 19.0 x 3.6
30.9 x 15.5 x 3.8
31.7 x 31.7 x 4.3
30.9 x 15.5 x 3.8
-
33.2 x 17.2 x 3.0
18.8 x 18.8 x 3.8
EA.
50
20
20
20
20
30
50
30
100
600
400
100
100
300
100
250
100
250
200
QUANTITY
Revision: 01-Feb-13
Document Number: 88869
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Packaging Information
www.vishay.com

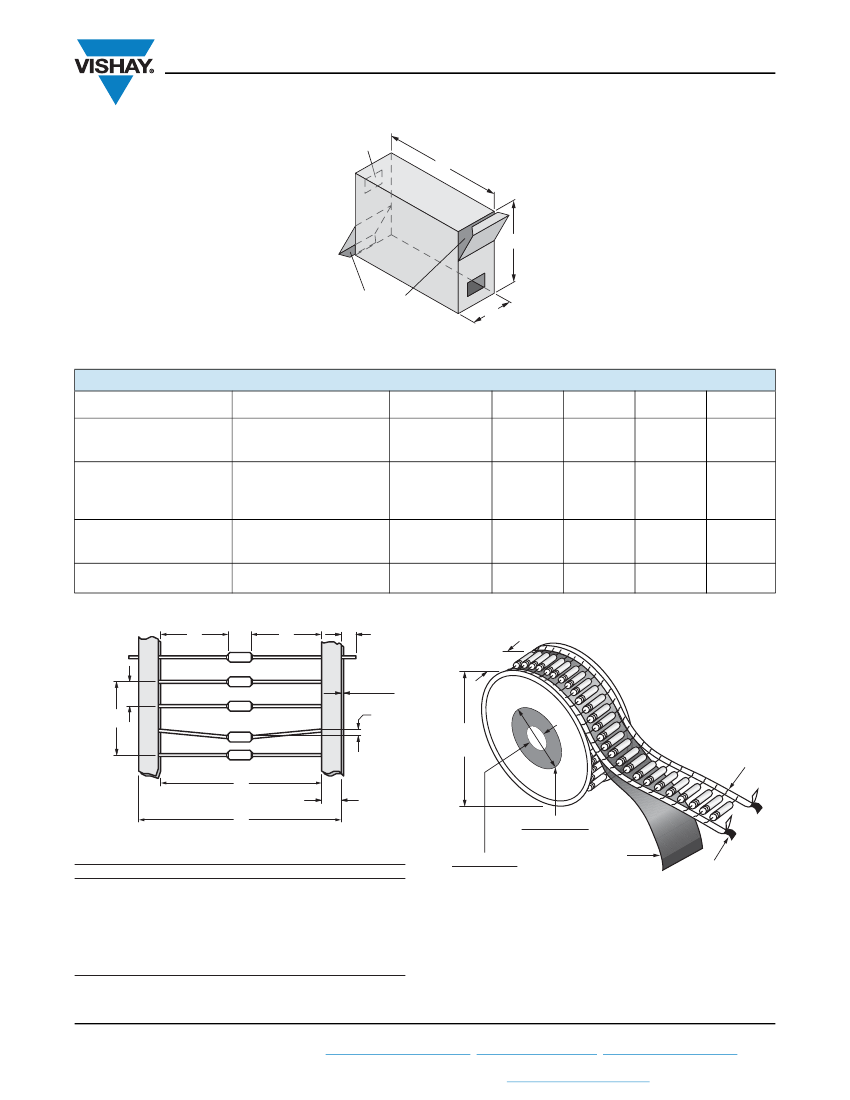

AXIAL-LEADED TAPE AND REEL PACKAGING
Inspection Hole
(Both Sides)
A
Vishay General Semiconductor
C
Ammo Pack can be Opened on Either Side,
Depending on Desired Device Polarity
B
All axial-leaded devices are packed in accordance with EIA standard RS-296-E. The diagrams given below refer to these
specifications.
TABLE 1 - AMMO PACK PACKAGING
PACKAGING
26 mm horizontal tape,
ammo pack
AVAILABLE PRODUCT
OUTLINES
DO-204AL (DO-41), MPG06
DO-204AC
P300
DO-204AL, MPG06
DO-204AC
DO201AD, GP20
P600
GP10-E, RGP10-E,
GP10-E, RGP10-E
MPG06
PREFERRED
PACKAGE CODE
53
53
53
73
73
73
73
91, 93
100
DIMENSION DIMENSION DIMENSION
A
B
C
9.7"
(247 mm)
1.7"
(44 mm)
3.7"
(95 mm)
QUANTITY
BOX
3.0K
1.5K
0.75K
3.0K
2.0K
1.0K
0.3K
2.0K
2.5K
2.0K
2.0K
52 mm horizontal tape,
ammo pack
Radial
(avisert, panasert, euroform)
vertical tape
Pseudo/radial tape,
ammo pack
10.0"
(255 mm)
3.15"
(80 mm)
4.53"
(115 mm)
13.4"
(340 mm)
13.4"
(340 mm)
1.8"
(47 mm)
1.8"
(47 mm)
7.9"
(200 mm)
7.9"
(200 mm)
|D
1
- D
2
| = 1.4 (0.055) Max. 0.8 (0.031) Max. Typ. 0.0
D
1
D
2
K
C
A
P
S
0.8 (0.031)
Max.
E
E
B
6.0 ± 0.4
T
(0.236 ± 0.0157)
W
Dimensions A, M, K, P, S and T apply to both sides
D Dia.
(Table 2)
Anode Lead
White Tape
91.9 (3.62) Dia.
50.8 (2.00) Dia.
38.1 (1.50) Dia.
14.3 (0.56) Dia.
Kraft
Paper
Cathode Lead
Colored Tape
Dimensions in millimeters (inches)
Description
Symbol
Component Pitch
A
2, 3
Inside Tape Spacing
B
2, 3
Lead to Lead Eccentricity
|D1 - D2|
-
Lead Extension
K
-
Lead Bending
E
2
Cumulative Pitch
P
3
Exposed Adhesive
S
-
Tape Width
T
-
All polarized components shall be oriented in the same direction
Fig. 1
Revision: 01-Feb-13
The “C” dimension of Fig. 2 is between flanges of the component
reel and shall be 1.5 mm (0.059") to 8.00 mm (0.315") greater than
the overall taped component width “W” (Fig. 1). Where “W”
dimension is 68.2 mm (2.68") max.
Fig. 2
Document Number: 88869
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Packaging Information
www.vishay.com

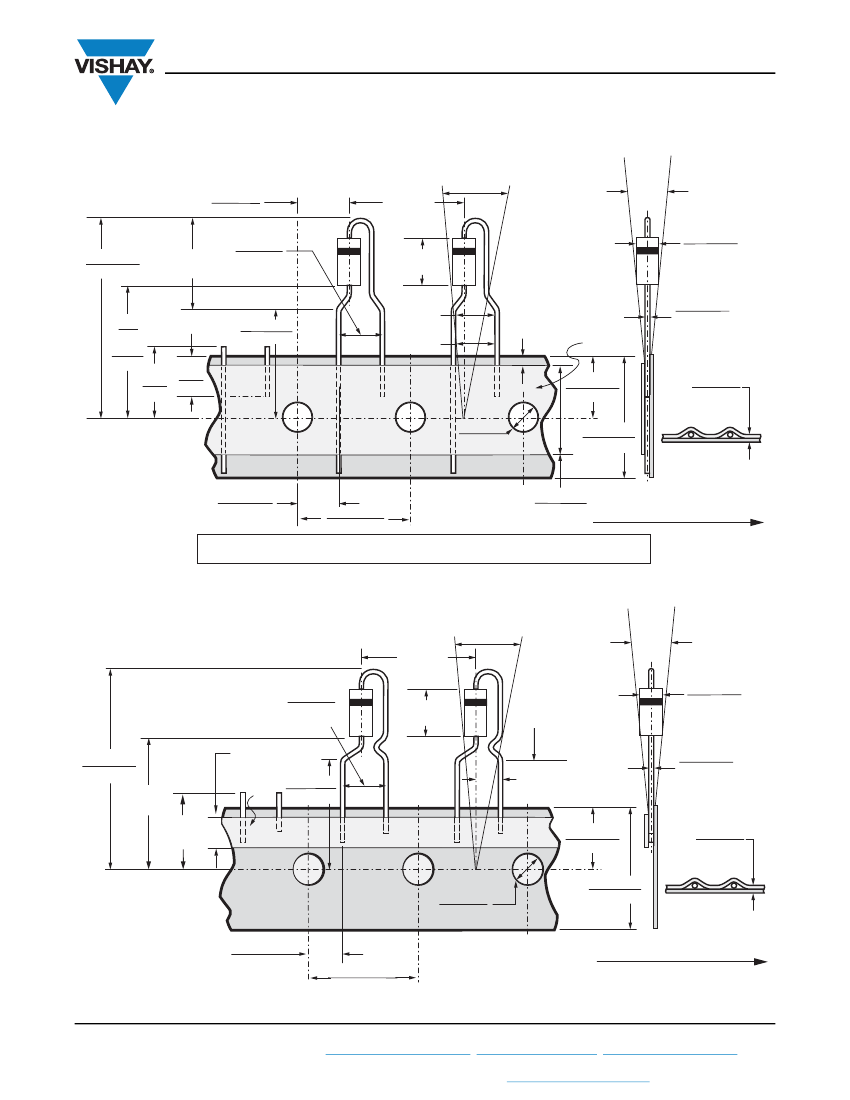

AXIAL-LEADED TAPE AND REEL PACKAGING
TABLE 2 - REEL AND AMMO PACK TAPING SPECIFICATIONS
COMPONENT
CASE TYPE
1.5KA (PAR)
DO-204AC
DO-201AD
DO-204AL
DFS Surface Mount
DO-214BA (GF1)
DO-213AA (GL34)
DO-213AB (GL41)
GP10E Radial
GP10E
GP20/1.5KE
MPG06
P600
DO-220AA (SMP)
SMPD
MicroSMP
TO-277A (SMPC)
DO-214AC (SMA)
PREFERRED
PACKAGE
CODE
54
54
54
54
77
67A/5CA
98/83
96/97
Fig. 7 and Fig. 8
54
54
100
54
84A/85A
8A
89A
86A/87A
61, 61T, TR/5A,
5AT, TR3
UNITS
PER REEL
EA.
1400
4000
1400
5500
1500
1500/6500
2500/9000
1500/5000
2500
5500
1400
5500
800
3000/10 000
2000
4500
1500/6500
1800/7500
750/3200
850/3500
750
800
3000
3500/14 000
Fig. 13
0.500
0.200
0.395
0.200
0.395
12.7
5.0
10.0
5.0
10.0
Fig. 13
COMPONENT
PITCH
“A” Fig. 1
INCHES
0.395
0.200
0.395
0.200
mm
10.0
5.0
10.0
5.0
INSIDE TAPE
SPACING “B”
Fig. 1
INCHES
2.06
2.06
2.06
2.06
-
-
-
-
-
2.06
2.06
2.06
2.06
-
-
-
-
-
-
-
-
-
-
-
mm
52.4
52.4
52.4
52.4
-
-
-
-
-
52.4
52.4
52.4
52.4
-
-
-
-
-
-
-
-
-
-
-
REEL DIMENSION
“D” Fig. 2
INCHES
13.0
13.0
13.0
13.0
13.0
7.0/13.0
7.0/13.0
7.0/13.0
13.0
13.0
13.0
13.0
13.0
7.0/13.0
13.0
7.0
7.0/13.0
7.0/13.0
7.0/13.0
7.0/13.0
13.0
13.0
13.0
7.0/13.0
mm
330
330
330
330
330
178/330
178/330
178/330
330
330
330
330
330
178/330
330
178
178/330
178/330
178/330
178/330
330
330
330
178/330
LEAD BENDING
“E” Fig. 1
INCHES
0.047
0.047
0.047
0.047
Fig. 13
Fig. 13
Fig. 13
Fig. 13
0.079
0.047
0.047
0.047
0.047
Fig. 13
Fig. 13
Fig. 13
Fig. 13
Fig. 13
Fig. 13
Fig. 13
Fig. 13
Fig. 13
Fig. 13
Fig. 13
mm
1.2
1.2
1.2
1.2
-
-
-
-
2.0
1.2
1.2
1.2
1.2
-
-
-
-
-
-
-
-
-
-
-
Vishay General Semiconductor
DO-214AA (SMB)/
52, 52T/5B, 5BT
DO-215AA (SMBG)
DO-214AB (SMC)/
57T/9AT
DO-215AB (SMCG)
DO-218AB
TO-263AB
TO-269AA (MB-S)
DO-221AC
(SlimSMA)
2D
81, 8W
80
6A/6B
Note
• Package codes, 61/5A, 52/5B are matrix-frame constructions for T
RANS
Z
ORB®
TVS in SMA and SMB only.
TABLE 3 - COMPONENT AND INSIDE HORIZONTAL TAPE SPACING
COMPONENT
BODY DIAMETER
0 mm to 5 mm
(0.0" to 0.197")
0 mm to 5 mm
(0.0" to 0.197")
5.01 mm to 10 mm
(0.197" to 0.394")
COMPONENTS SPACING
A (LEAD TO LEAD)
5.0 mm ± 0.5 mm
(0.197" ± 0.020")
5.0 mm ± 0.5 mm
(0.197" ± 0.020")
10 mm ± 0.5 mm
(0.394" ± 0.020")
INSIDE TAPE
SPACING "B"
26 mm + 1.5 mm/- 0.0 mm
(1.024" + 0.059"/- 0.0")
52.4 mm + 1.5 mm/- 0.4 mm
(2.062" + 0.059"/- 0.016")
52.4 mm + 1.5 mm/- 0.4 mm
(2.062" + 0.059"/- 0.016")
Not to exceed 1.5 mm (0.059")
over 6 consecutive components
CUMULATIVE
PITCH TOLERANCE
Revision: 01-Feb-13
Document Number: 88869
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Analog electronics
京公网安备 11010802033920号
EEWORLD
