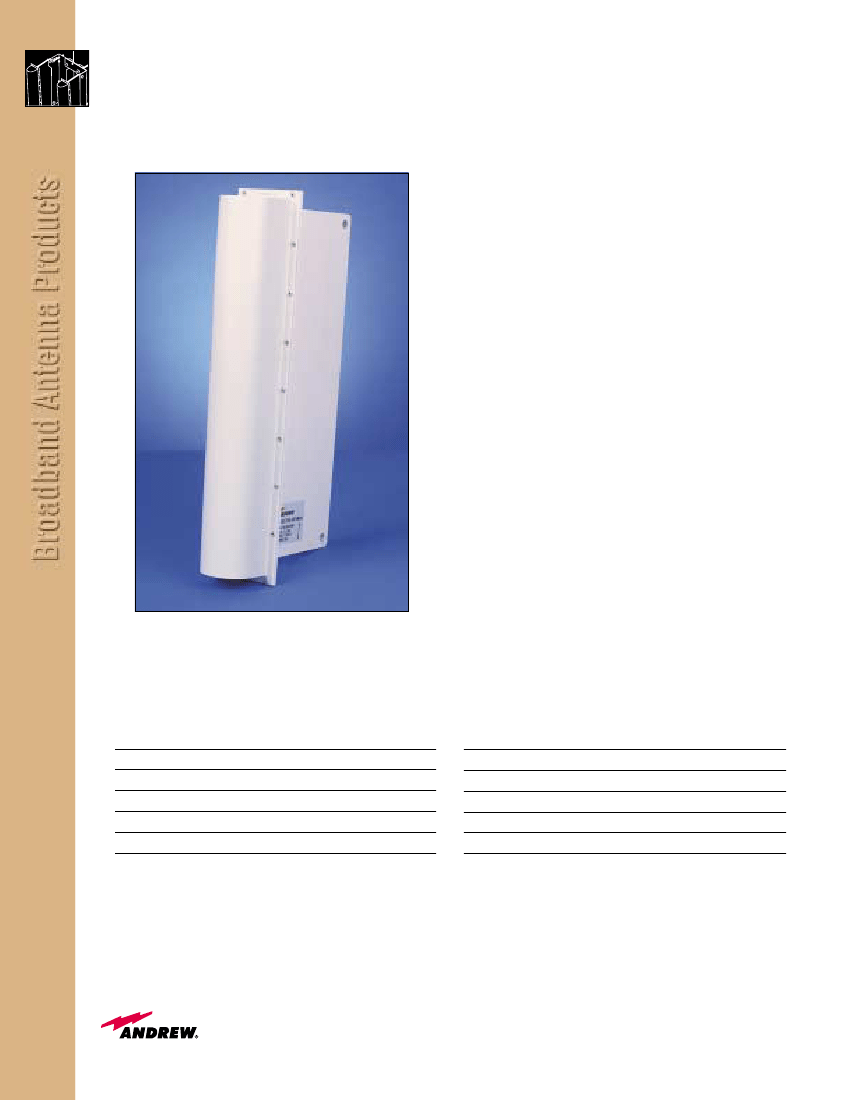

BCA Mark II High Gain Sector Antennas
Introducing the newest member of the Andrew BCA series
family, the Mark II high gain sector antennas. These
antennas incorporate new technology that significantly
improves pattern performance over previous designs.
They are available in a 90° sector size for 28 and 38 GHz
applications. Other sector sizes are available on request.
Product Features
•
High gain performance - 21 dBi @ 90°
•
Improved null fill for optimized coverage
•
Improved azimuth patterns for higher sector-to-sector
and transmit/receive isolation
•
Equivalent pattern performance in both horizontal and
vertical polarizations
•
Broadband performance, 27.35 - 28.5 GHz or
37 - 40 GHz
•
Low VSWR across frequency band
•
Excellent intermodulation (IM) performance
•
Side entry waveguide for easy integration
•
Optional mount available with elevation vernier for
downtilt adjustment of up to ±5°
Electrical Specifications
Polarization (specify at time of order)
Polarization discrimination, dB
Input power rating, watts
VSWR max. (R.L., dB)
Input connector
Horizontal or Vertical
>30
50
1.5 (14)
WR28 cover flange
Mechanical Specifications
Survival wind velocity, mph (km/h)
Operating temperature °F (°C)
Size, approx. H x W x D, in (mm)
Color
Weight, lb (kg)
125 (200)
-40 to +140 (-40 to +60)
See outline drawing
Gray per PMS420
7.4 (3.4)
710
Customer Service Center - Call toll-free from: •
U.S.A., Canada and Mexico 1-800-255-1479
BCA Mark II High Gain Sector Antennas
45° and 90° Sector Antennas
Top View
-45
Azimuth Pattern (90° Sector)
-15
-30
00
-4
15
30
45
Relative Power, dB
-8
-12
-16
-20
-24
-28
-32
-36
75
60
3.5 in
(89 mm)
-75
-60
Side View
0.5 in
(13 mm)
4.3 in
(109 mm)
0.75 in
(19 mm)
-90
90
-105
105
-120
120
-135
-150
-165
-180
165
150
0.5 in
(13 mm)
135
Relative Power, dB
Antenna Gain
Antenna Type
Number
BCAH090A-285(*)-(**)
BCAH090A-385(*)-(**)
Frequency
Band, GHz
27.25 - 28.5
37.0 - 40.0
Sector Size
Degrees (HPBW)
90
90
Gain, dBi,
Nominal
21
24
Waveguide
Type
WR28
WR28
* Specify H for horizontal polarization or V for vertical polarization
** Specify Ø - for no mount. S - for single mount. D - for dual mount.
•
U.K. 0800-250055
•
Australia 1800-803 219
•
New Zealand 0800-441-747
16.5 in
(419 mm)
18 in
(457 mm)
0
-2
-4
-6
-8
-10
-12
-14
-16
-18
-20
-22
-24
-26
-28
-30
-32
-34
-36
-38
-40
60
65
Elevation Pattern (90° Sector)
15.5 in
(394 mm)
8.9 in
(226 mm)
70
75
80
85
90
95
100
105
110
115
120
Elevation Angle (degrees)
Visit us at:
www.andrew.com
711
