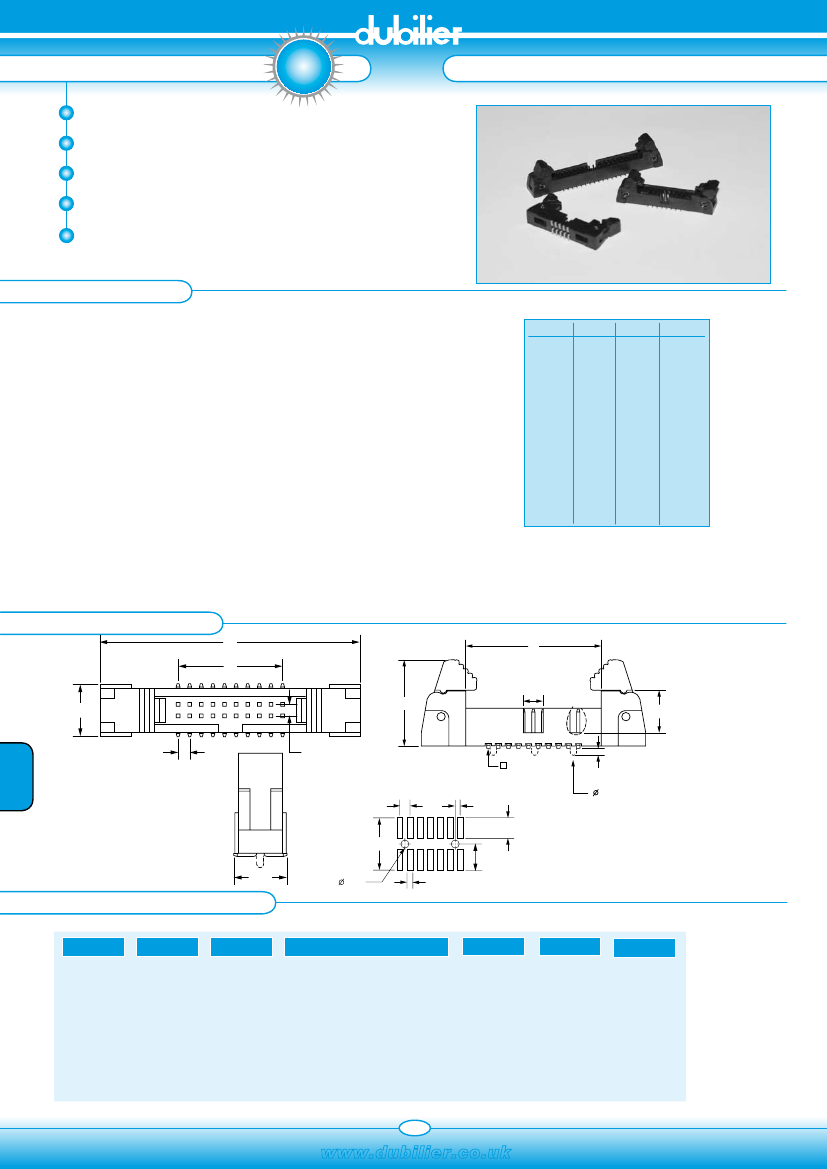

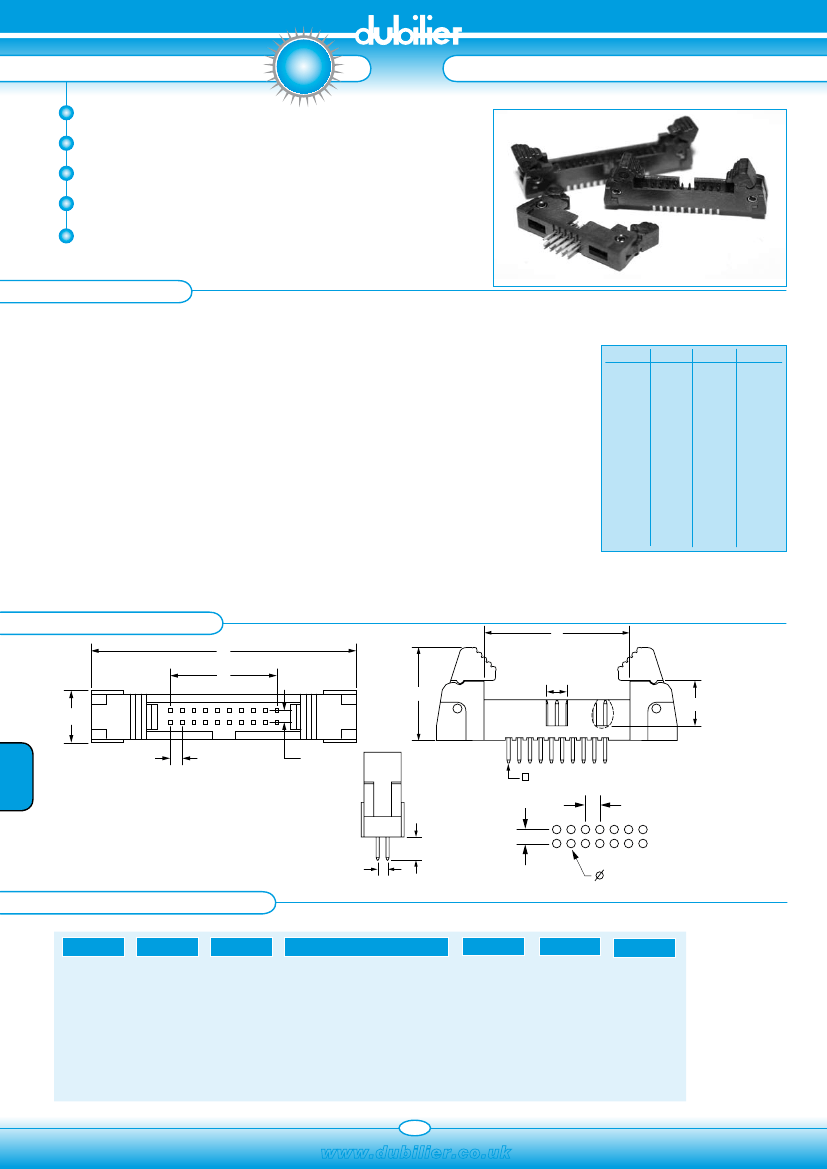

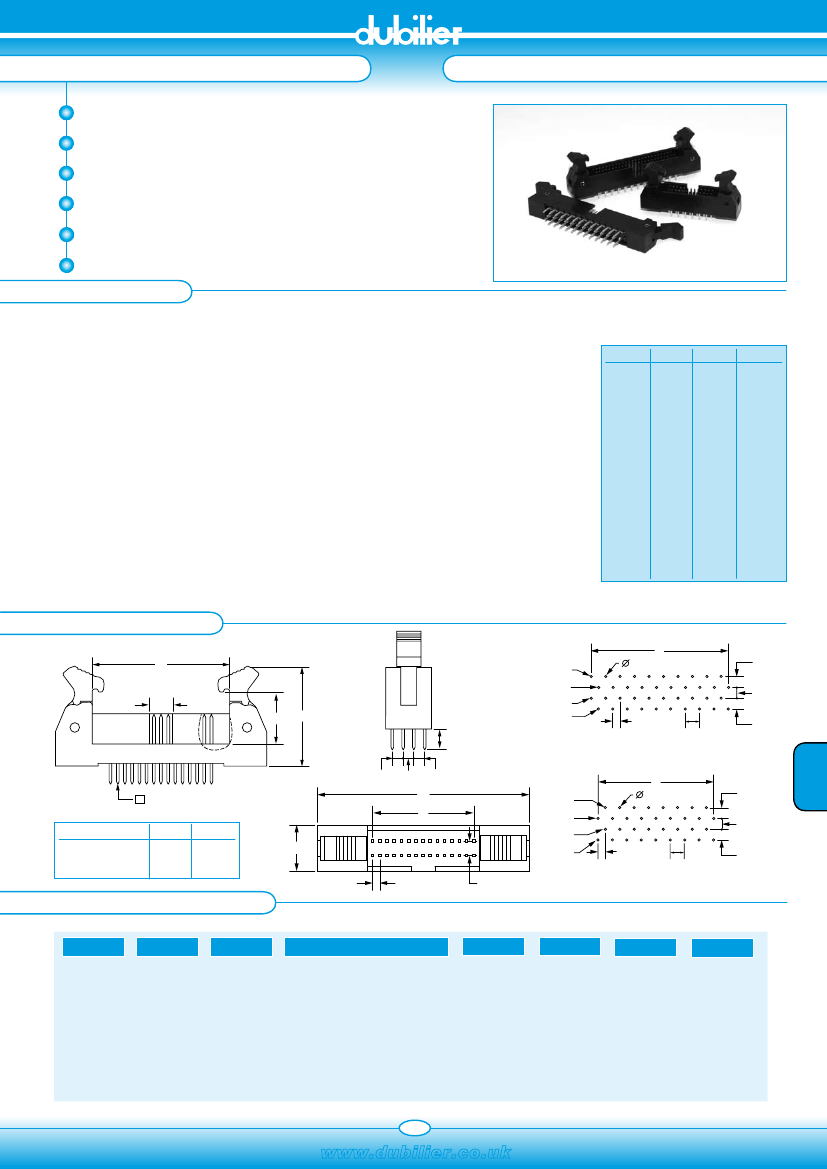

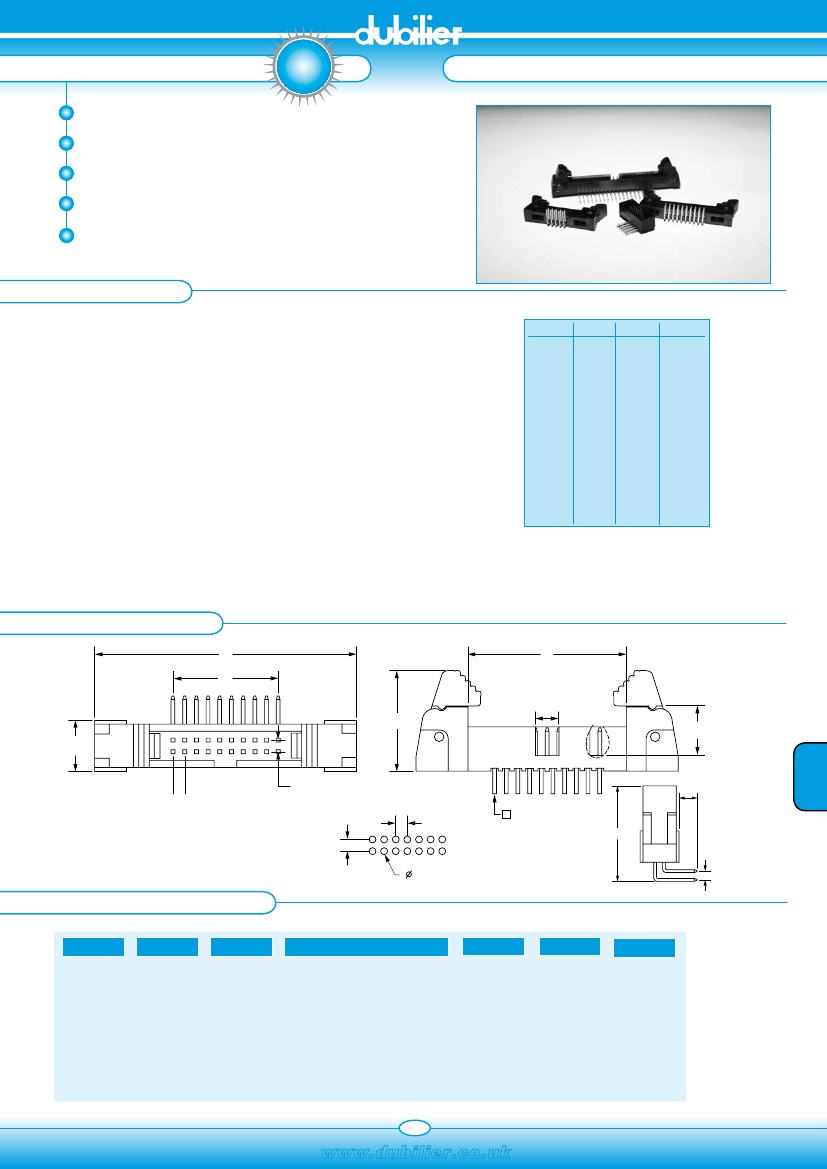

DBCIDCC42A22BG1: DescriptionIDC SHROUDED LATCHED HEADER STRAIGHT 1.27mm; File Size285KB，4 Pages; ManufacturerDUBILIER; Websitehttp://www.dubilier.co.uk/

Download Datasheet View All

DBCIDCC42A22BG1 Overview

IDC SHROUDED LATCHED HEADER STRAIGHT 1.27mm

Preview

Download Datasheet

View All

IDC

Industry compatible

Competitively priced

Various Plating contacts available

1.27 mm pitch

Long or Short Latch

2.54mm row spacing

SHROUDED LATCHED HEADER STRAIGHT 1.27mm

SPECIFICATION

Material & Finish

Contact Material:

Insulator Material:

Current Rating:

Contact Resistance:

Insulator Resistance:

Dielectric Withstanding

Voltage:

Operating Temperature:

250V AC for One Minute

-40°C to + 105°C

Phosphor Bronze

PBT, Glass Reinforced, rated UL-94V-0

1 Amp

30M Ω Max.

1000M Ω Min.

Position

100

24.50

30.85

34.66

37.20

39.74

43.55

49.90

56.25

61.33

62.60

68.95

75.30

81.65

5.08

11.43

15.24

17.78

20.32

24.13

30.48

36.83

41.91

43.18

49.53

55.88

62.23

11.46

17.81

21.62

24.16

26.70

30.51

36.86

43.21

48.29

49.56

55.91

62.26

68.61

OUTLINE DRAWING

4.1

3.2

1.9 1.9

0.46*0.46

ACCESSORIES

Long Latch

Shor t Latch

19.0

17.5

10.65

8.0

8.1

1.27

2.54

1.9

1.27

2.54

0.81+ 0.05

1.9

1.27

2.54

1.9

P.C.BOARD LAYOUT FOR

20,40,60,68,80,100

0.81+ 0.05

1.9

SECTION 15

P.C.BOARD LAYOUT FOR

10,26,30,34,50,70,90

ORDERING INFORMATION

DBC

Dubilier

Connectors

IDC

Connector

C7B

Series

10=10way

20=20way

26=26way

30=30way

34=34way

40=40way

50=50way

Nº of Ways

60=60way

68=68way

70=70way

80=80way

90=90way

100=100way

Contact Material

B=Phosphor

Bronze

Contact Plating

G= Gold Flash

S=Selective

*=Other Plating

available

Features

A=Long Latch

b=Short Latch

Colour

1=Black

339

www.dubilier.co.uk
