Small Signal Bipolar Transistor, 0.1A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, SOT-23, 3 PIN

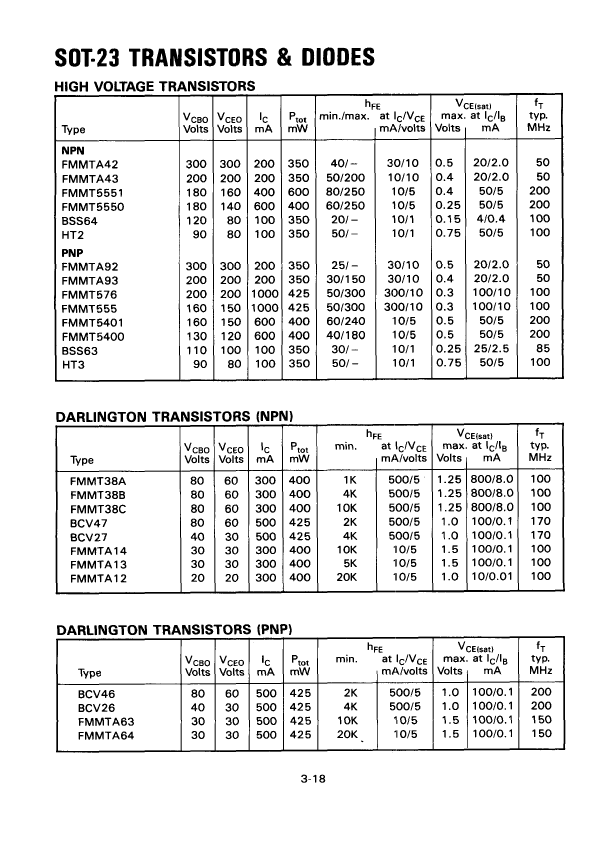

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Zetex Semiconductors |
| package instruction | SMALL OUTLINE, R-PDSO-G3 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Maximum collector current (IC) | 0.1 A |
| Collector-emitter maximum voltage | 80 V |
| Configuration | SINGLE |
| Minimum DC current gain (hFE) | 30 |
| JESD-30 code | R-PDSO-G3 |
| JESD-609 code | e0 |
| Humidity sensitivity level | 1 |
| Number of components | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 175 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Polarity/channel type | PNP |
| Maximum power dissipation(Abs) | 0.3 W |
| Certification status | Not Qualified |
| surface mount | YES |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal location | DUAL |
| Transistor component materials | SILICON |
| Nominal transition frequency (fT) | 50 MHz |
| Maximum off time (toff) | 1000 ns |
| Maximum opening time (tons) | 500 ns |
| HT3 | FMMT38A | FMMTA63 | FMMTA14 | FMMT576 | HT2 | |
|---|---|---|---|---|---|---|
| Description | Small Signal Bipolar Transistor, 0.1A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, SOT-23, 3 PIN | Small Signal Bipolar Transistor, 0.3A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, SOT-23, 3 PIN | Small Signal Bipolar Transistor, 0.5A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon, SOT-23, 3 PIN | Small Signal Bipolar Transistor, 0.3A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, SOT-23, 3 PIN | Small Signal Bipolar Transistor, 1A I(C), 200V V(BR)CEO, 1-Element, PNP, Silicon | Small Signal Bipolar Transistor, 0.1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, SOT-23, 3 PIN |
| Is it Rohs certified? | incompatible | conform to | incompatible | conform to | incompatible | incompatible |
| package instruction | SMALL OUTLINE, R-PDSO-G3 | SMALL OUTLINE, R-PDSO-G3 | SMALL OUTLINE, R-PDSO-G3 | SMALL OUTLINE, R-PDSO-G3 | SMALL OUTLINE, R-PDSO-G3 | SMALL OUTLINE, R-PDSO-G3 |
| Reach Compliance Code | unknown | compliant | unknown | compliant | unknown | unknow |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Maximum collector current (IC) | 0.1 A | 0.3 A | 0.5 A | 0.3 A | 1 A | 0.1 A |
| Collector-emitter maximum voltage | 80 V | 60 V | 30 V | 30 V | 200 V | 80 V |
| Configuration | SINGLE | DARLINGTON | DARLINGTON | DARLINGTON | SINGLE | SINGLE |
| Minimum DC current gain (hFE) | 30 | 1000 | 10000 | 20000 | 50 | 30 |
| JESD-30 code | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 |
| JESD-609 code | e0 | e3 | e0 | e3 | e0 | e0 |
| Humidity sensitivity level | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 | 3 |
| Maximum operating temperature | 175 °C | 150 °C | 150 °C | 150 °C | 150 °C | 175 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Polarity/channel type | PNP | NPN | PNP | NPN | PNP | NPN |
| Maximum power dissipation(Abs) | 0.3 W | 0.35 W | 0.33 W | 0.33 W | 0.5 W | 0.3 W |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | YES | YES | YES | YES | YES | YES |
| Terminal surface | Tin/Lead (Sn/Pb) | Matte Tin (Sn) | Tin/Lead (Sn/Pb) | Matte Tin (Sn) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Nominal transition frequency (fT) | 50 MHz | 100 MHz | 125 MHz | 100 MHz | 100 MHz | 60 MHz |
| Maker | Zetex Semiconductors | Zetex Semiconductors | - | Zetex Semiconductors | Zetex Semiconductors | Zetex Semiconductors |
| transistor applications | - | SWITCHING | SWITCHING | SWITCHING | SWITCHING | - |
| VCEsat-Max | - | 1.25 V | 1.5 V | 1.5 V | 0.3 V | - |
