BU8241F-E2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> BU8241F-E2

BU8241F-E2: DescriptionSupport Circuit, PDSO24, SOP-24; CategoryWireless rf/communication Telecom circuit; File Size225KB，12 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BU8241F-E2 Overview

Support Circuit, PDSO24, SOP-24

BU8241F-E2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	SOP-24
Contacts	24
Reach Compliance Code	compliant
JESD-30 code	R-PDSO-G24
JESD-609 code	e3/e2
length	15 mm
Number of functions	1
Number of terminals	24
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.9 mm
Nominal supply voltage	5 V
surface mount	YES
Telecom integrated circuit types	CORDLESS TELEPHONE SUPPORT CIRCUIT
Temperature level	COMMERCIAL EXTENDED
Terminal surface	TIN/TIN COPPER
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	5.4 mm

Preview

Download Datasheet

View All

Communication ICs

Cross point mixer for telephones

BU8241F / BU8241FS / BU8242F / BU8244F

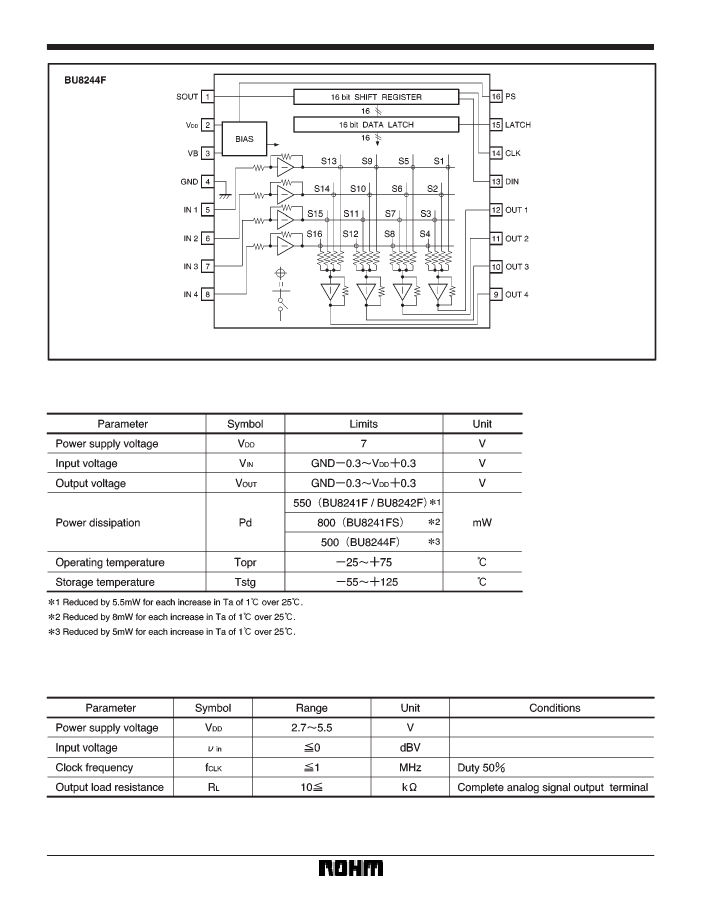

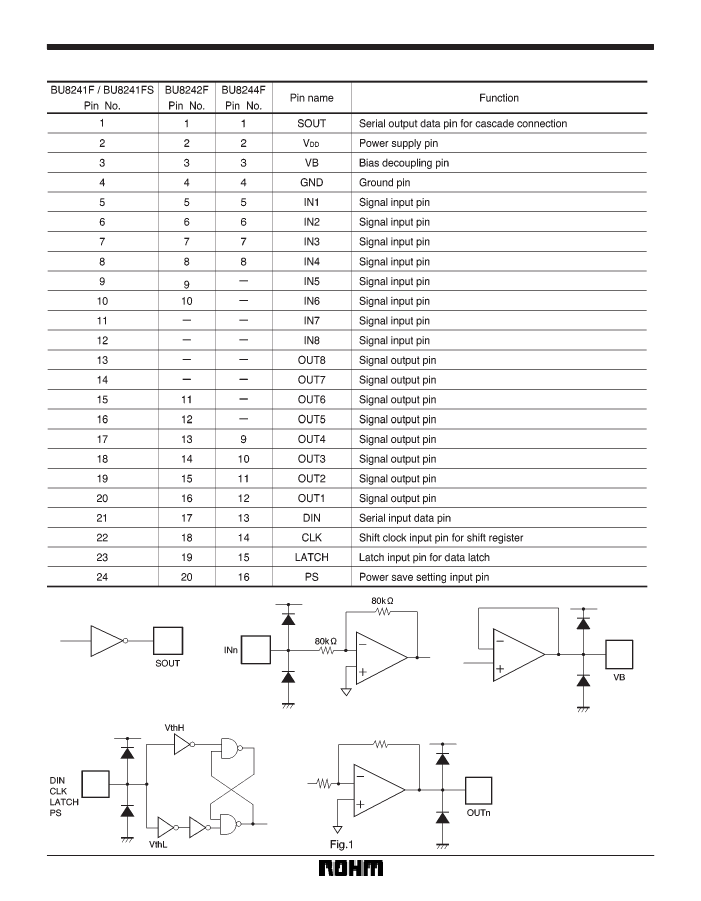

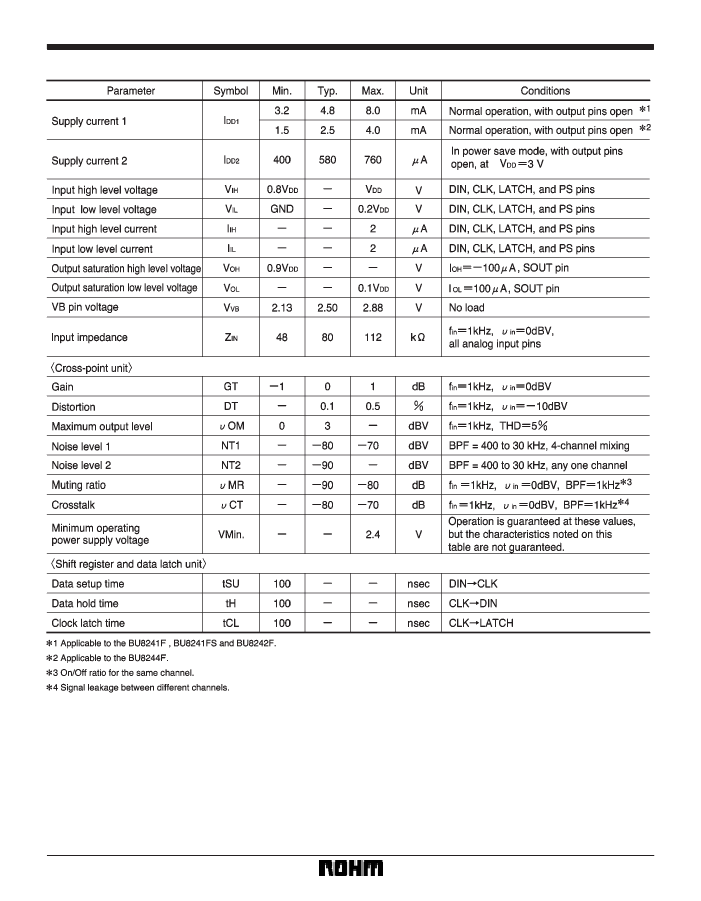

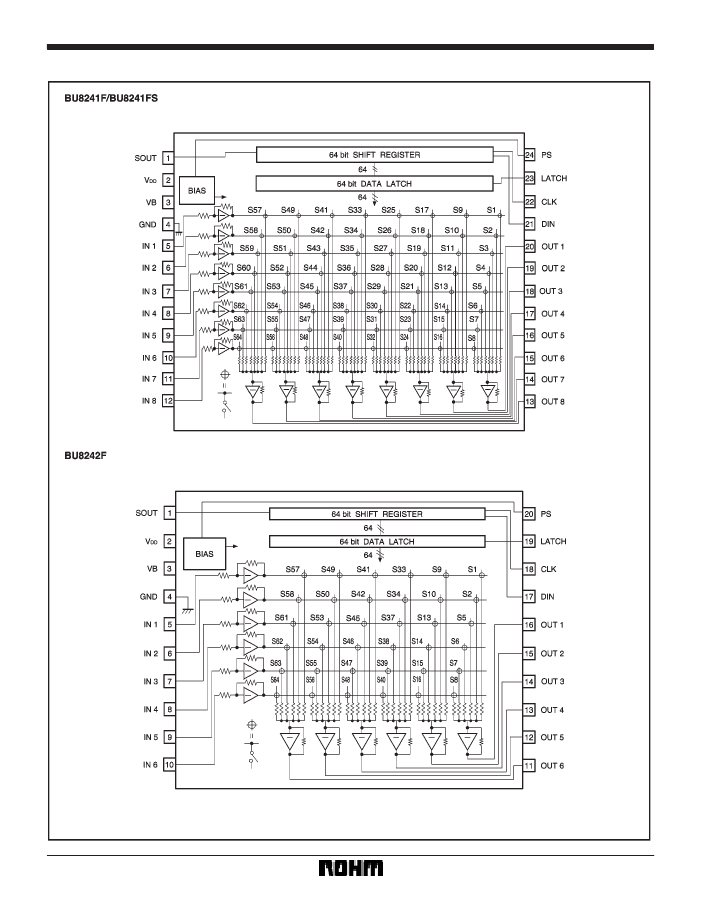

The BU8241F, BU8241FS, BU8242F, and BU8244F are ICs developed for use with cordless telephones, and are

equipped with switching and mixing functions. In addition, these ICs are provided with an internal power save function

which enables the circuit to be run on line current if the power supply fails, by connecting a switch between the circuit

and a new handset, reducing line current consumption. A series of these ICs is also under development, based on the

number of circuits.

FApplications

Telephones, telephone answering machines, cordless

telephones

FFeatures

1) Eight input signals are selected and mixed by a

cross-point, and output to eight pins (BU8241F /

BU8241FS).

2) A power save mode enables the circuit to run on line

current if the power supply fails.

1. Line current consumption reduced

DD2

= 580µA)

2. IN1

OUT1 and IN2

OUT2 only are on

3) Serial binary data input.

4) Low voltage and current consumption.

266

BU8241F-E2 Related Products

	BU8241F-E2	BU8244FE2	BU8242FE2	BU8241FS-E2	BU8241FSE2	BU8241FE2
Description	Support Circuit, PDSO24, SOP-24	TELECOM, CORDLESS, SUPPORT CIRCUIT, PDSO16, SOP-16	TELECOM, CORDLESS, SUPPORT CIRCUIT, PDSO20, SOP-20	Support Circuit, PDSO24, SSOP-24	TELECOM, CORDLESS, SUPPORT CIRCUIT, PDSO24, SSOP-24	TELECOM, CORDLESS, SUPPORT CIRCUIT, PDSO24, SOP-24
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
Parts packaging code	SOIC	SOIC	SOIC	SSOP	SSOP	SOIC
package instruction	SOP-24	LSOP,	SOP,	SSOP,	SSOP,	SOP,
Contacts	24	16	20	24	24	24
Reach Compliance Code	compliant	unknown	unknown	compliant	unknown	unknown
JESD-30 code	R-PDSO-G24	R-PDSO-G16	R-PDSO-G20	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24
JESD-609 code	e3/e2	e3/e2	e3/e2	e3/e2	e3/e2	e3/e2
length	15 mm	10 mm	12.5 mm	10 mm	10 mm	15 mm
Number of functions	1	1	1	1	1	1
Number of terminals	24	16	20	24	24	24
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	LSOP	SOP	SSOP	SSOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.9 mm	1.6 mm	1.9 mm	1.9 mm	2.01 mm	2.01 mm
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
Telecom integrated circuit types	CORDLESS TELEPHONE SUPPORT CIRCUIT	SUPPORT CIRCUIT	SUPPORT CIRCUIT	CORDLESS TELEPHONE SUPPORT CIRCUIT	SUPPORT CIRCUIT	SUPPORT CIRCUIT
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal surface	TIN/TIN COPPER	TIN/TIN COPPER	TIN/TIN COPPER	TIN/TIN COPPER	TIN/TIN COPPER	TIN/TIN COPPER
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	0.8 mm	0.8 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	10	10	10	10	10	10
width	5.4 mm	4.4 mm	5.4 mm	5.4 mm	5.4 mm	5.4 mm
