ME62XBA155.520MHZ datasheet, PDF

ME62XBA155.520MHZ: DescriptionQuartz Crystal; CategoryPassive components oscillator; File Size90KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

ME62XBA155.520MHZ Overview

Quartz Crystal

Parameter Name	Attribute value
Maker	MtronPTI
package instruction	DIP-14/4
Reach Compliance Code	unknown
Other features	ECL OUTPUT ALSO AVAILABLE
maximum descent time	2.5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	500%
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	155.52 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	PECL 10KH
physical size	20.83mm x 13.21mm x 5.08mm
longest rise time	2.5 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	60/40 %

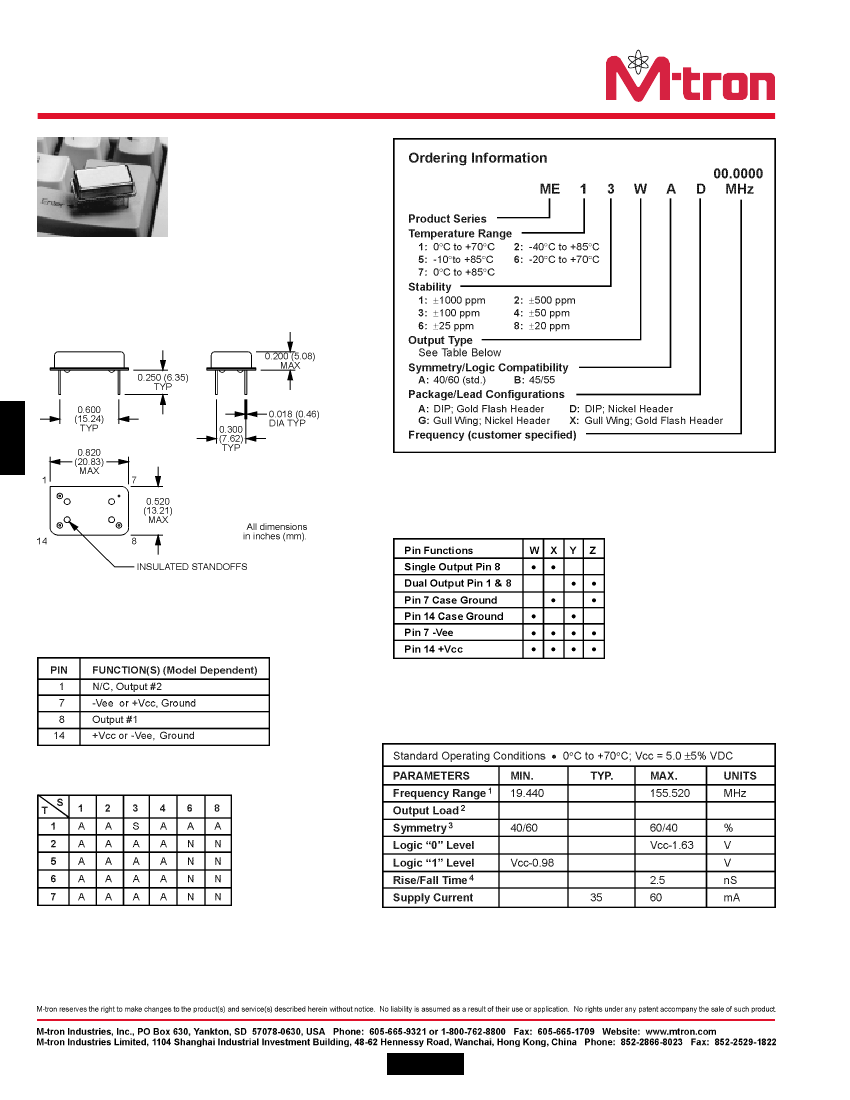

ME Series ECL/PECL Oscillators

ME - ECL/PECL Clock Oscillators, 10 KH

Compatible with Optional Complementary

Outputs

ME ECL/PECL Output Type

See page 135 for gull wing configuration.

Pin Connections

Electrical Specifications

*Available Stabilities vs. Temperature

* Contact factory for other temperature and stability combinations.

A = Available

N - Not Available

S = Standard

Higher frequencies available by special order. Contact factory.

Internally terminated outputs. See load circuit diagram #4 on page 137.

3

Symmetry is measured at Vcc-1.3 V level.

4

Rise/Fall times are measured between Vcc-0.98 and Vcc-1.63.

See page 136 for suggested soldering conditions.

1

2
