VC71N-FREQ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> VC71N-FREQ

VC71N-FREQ: DescriptionTTL Output Clock Oscillator, 1MHz Min, 30MHz Max; CategoryPassive components oscillator; File Size27KB，2 Pages; ManufacturerRaltron; Websitehttp://www.raltron.com/

Download Datasheet Parametric View All

VC71N-FREQ Overview

TTL Output Clock Oscillator, 1MHz Min, 30MHz Max

VC71N-FREQ Parametric

Parameter Name	Attribute value
Maker	Raltron
Reach Compliance Code	compliant
Other features	40/60 MINIMUM SYMMERTY AVAILABLE; NOMINAL SUPPLY VOLTAGE 3.3V ALSO AVAILABLE
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	50 ppm
frequency stability	30%
linearity	10%
Manufacturer's serial number	VC71
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	30 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	TTL
Output load	3 TTL
physical size	20.8mm x 13.2mm x 7.62mm
longest rise time	10 ns
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

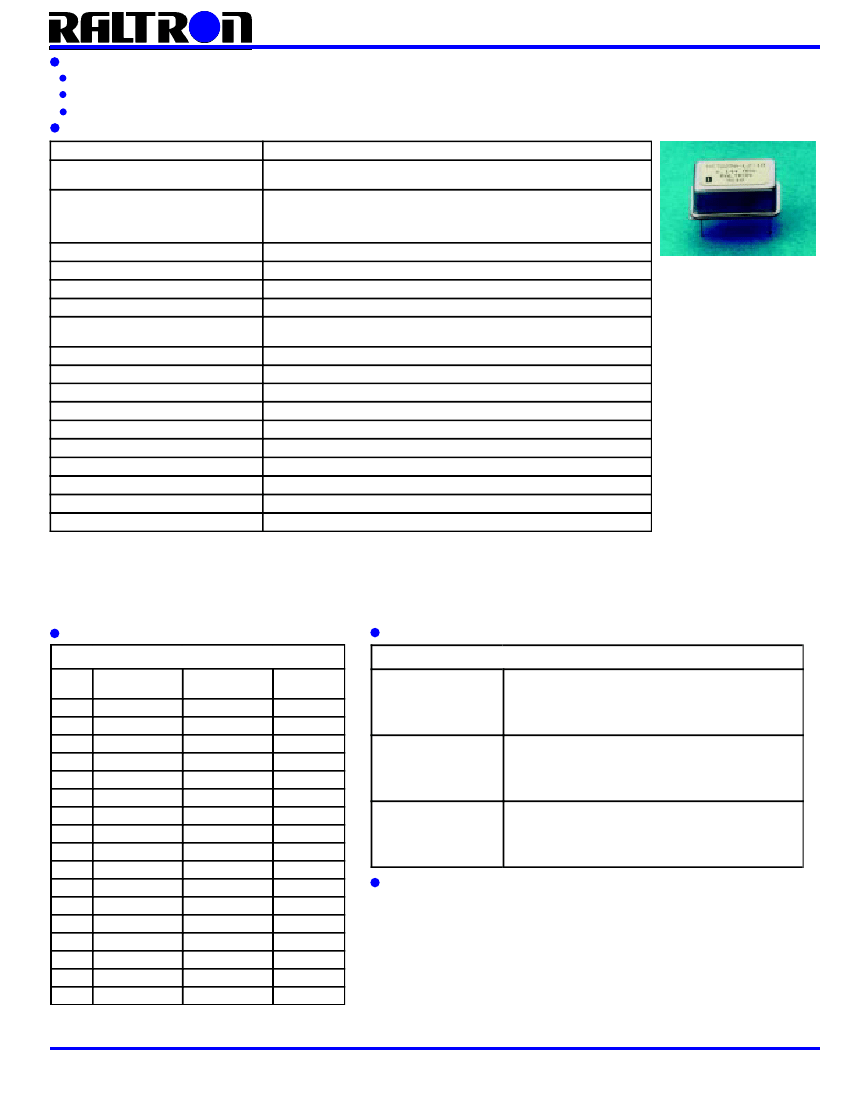

VOLTAGE CONTROLLED CRYSTAL OSCILLATORS

FEATURES

STANDARD 14 PIN DIP PACKAGE

TOLERANCE AND STABILITY TO

10 PPM

CUSTOM SPECIFICATIONS

SPECIFICATIONS

FREQUENCY RANGE

FREQUENCY STABILITY OVER

TEMPERATURE RANGE (REF.TO 25°C)

1.00 MHz TO 30.00 MHz

±10 PPM TO ±50 PPM MAX AT VC = +2.5 VDC AND VCC = +5.0 VDC (SEE TABLE 1)

0°C TO +50°C

0°C TO +70°C

-40°C TO +85°C

AT VC = +2.5 VDC AND VCC = +5.0VDC AND STANDARD LOAD

-40°C TO +85°C

TTL, HCMOS, AND ACMOS (SEE TABLE 2)

+5 VDC ±5% (3.3 VDC AVAILABLE)

35 mA MAX AT VC = +2.5 VDC, VCC = +5.0 VDC AND STANDARD LOAD AT 25°C

±50 PPM TO ±100 PPM MIN OVER CONTROL VOLTAGE RANGE

AT VCC = +5.0 V AND STANDARD LOAD AT 25°C

+2.5 VDC

+2.5 VDC ±0.5 VDC

+0.5 TO +4.5 VDC

±10% MAX OF BEST STRAIGHT LINE FIT

NORMAL: 40/60% TIGHT: 45/55% (OPTION)

POSITIVE

10 KHz (-3dB) MIN

10 KOHM MIN

-0.5 TO +7.0 VDC FOR VCC AND VC (NON DESTRUCTIVE)

SEE GRAPH OF PHASE NOISE CHARACTERISTICS

SERIES VC71, VC72, AND VC73

TTL / HCMOS / ACMOS

OPERATING TEMPERATURE RANGE

STORAGE TEMPERATURE RANGE

OUTPUT WAVEFORM OPTIONS

SUPPLY VOLTAGE

SUPPLY CURRENT

ABSOLUTE PULLING RANGE (APR)

NOMINAL CONTROL VOLTAGE (VC)

SETTABILITY AT Vfo †

CONTROL VOLTAGE RANGE

LINEARITY

SYMMETRY

SLOPE

MODULATION FREQUENCY BANDWIDTH

INPUT IMPEDANCE

ABSOLUTE VOLTAGE RANGE

PHASE NOISE (TYPICAL)

† Vfo IS THE CONTROL VOLTAGE AT WHICH THE OUTPUT FREQUENCY IS EQUAL TO THE NOMINAL FREQUENCY (Fo)

AT +25 °C ±1 °C

ABSOLUTE PULLING RANGE (APR) IS THE MINIMUM GUARANTEED FREQUENCY SHIFT FROM Fo OVER VARIATIONS IN

TEMPERATURE, AGING, POWER SUPPLY, AND LOAD.

TEMPERATURE RANGE DESIGNATIONS

TABLE 1

CODE

TEMPERATURE

RANGE

0°C TO +50°C

0°C TO +70°C

-40°C TO +85°C

TEMPERATURE

STABILITY

± 10 PPM

± 15 PPM

± 20 PPM

± 25 PPM

± 35 PPM

± 10 PPM

± 20 PPM

± 25 PPM

± 35 PPM

± 50 PPM

± 20 PPM

± 30 PPM

± 25 PPM

± 35 PPM

± 50 PPM

APR (MIN)

± 50 PPM

± 75 PPM

± 100PPM

± 50 PPM

± 75 PPM

± 100 PPM

± 50 PPM

± 75 PPM

± 100 PPM

OUTPUT AND LOAD CHARACTERISTICS

TABLE 2

TTL/HCMOS COMPATIBLE

SYMMETRY: 40/60% TO 60/40% AT +1.4 VDC

VOH: +2.4 VDC MIN

VOL: +0.4 VDC MAX

RISE/FALL TIME: 10 ns WITH STANDARD LOAD (20% TO 80%)

TTL/HCMOS COMPATIBLE

SYMMETRY: 40/60% TO 60/40% AT 50% LEVEL

VOH: +4.5 VDC MIN

VOL: +0.5 VDC MAX

RISE/FALL TIME: 5 ns WITH STANDARD LOAD (20% TO 80%)

ACMOS TO DRIVE 3 GATES AT TTL LEVELS

SYMMETRY: 40/60% TO 60/40% AT 50% LEVEL

VOH: +4.5 VDC MIN

VOL: +0.5 VDC MAX

RISE/FALL TIME: 5 ns WITH 30 pF LOAD (20% TO 80%)

TTL - 3 GATES (VC71)

HCMOS - 15 pF (VC72)

ACMOS - 30 pF (VC73)

AVAILABLE OPTIONS

ENABLE / DISABLE WITH 5 PIN BASE

5.08 mm / .200 in MAXIMUM HEIGHT WITH OPEN BLANK DESIGN

CONSULT RALTRON FOR SPECIFICATIONS

Raltron Electronics Corporation 10651 NW 19th St. Miami, Florida 33172 U.S.A.

Tel: 305-593-6033 Fax: 305-594-3973 e-mail: sales@raltron.com Internet: http://www.raltron.com
