ZFDC-20-5-N+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZFDC-20-5-N+

ZFDC-20-5-N+: DescriptionDirectional Coupler, 0.1MHz Min, 2000MHz Max, 2.3dB Insertion Loss-Max, ROHS COMPLIANT, CASE K18; CategoryWireless rf/communication Radio frequency and microwave; File Size247KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

ZFDC-20-5-N+ Overview

Directional Coupler, 0.1MHz Min, 2000MHz Max, 2.3dB Insertion Loss-Max, ROHS COMPLIANT, CASE K18

ZFDC-20-5-N+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mini-Circuits
package instruction	ROHS COMPLIANT, CASE K18
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	N
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
Maximum insertion loss	2.3 dB
Maximum operating frequency	2000 MHz
Minimum operating frequency	0.1 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DIRECTIONAL COUPLER
Maximum voltage standing wave ratio	1.2

Preview

Download Datasheet

View All

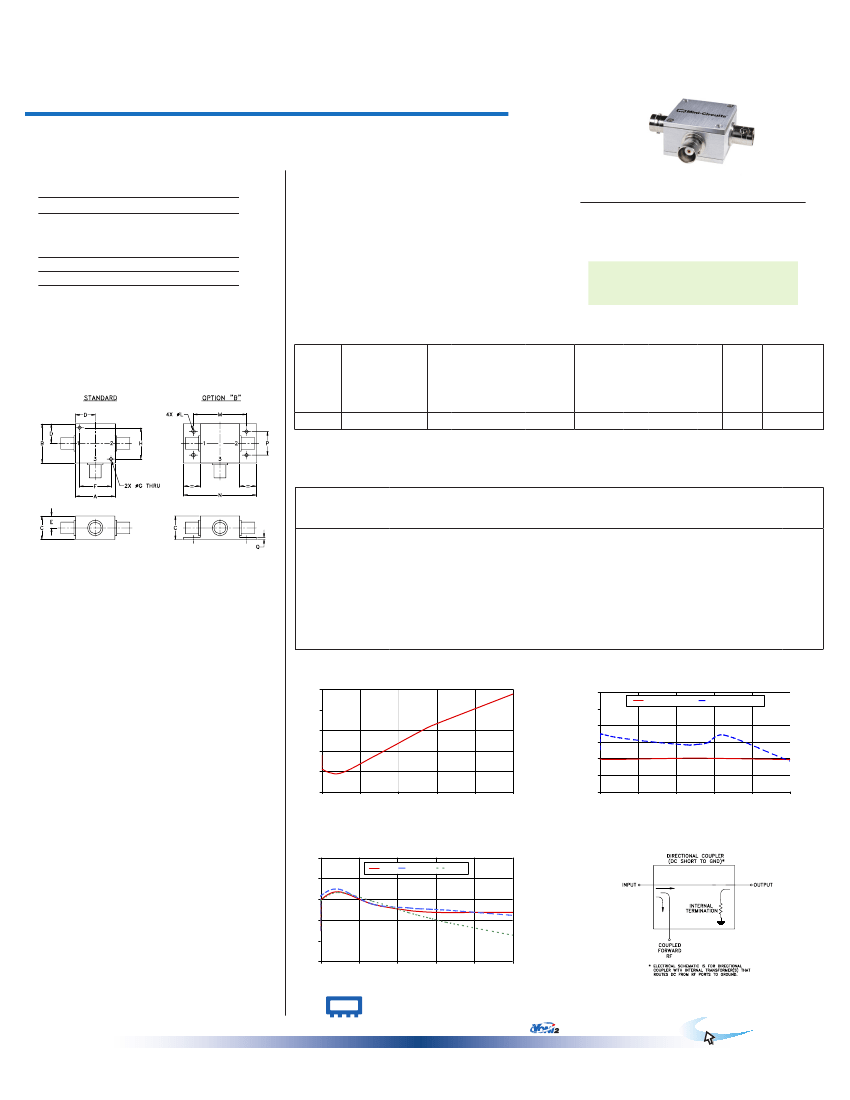

Directional Coupler

50Ω

Maximum Ratings

Operating Temperature

Storage Temperature

-55°C to 100°C

Permanent damage may occur if any of these limits are exceeded.

Coaxial

ZFDC-20-5+

BNC version shown

0.1 to 2000 MHz

Features

• very wideband, 0.1 to 2000 MHz

• excellent directivity, 27 dB typ.

• excellent mainline loss, 0.7 dB typ.

• rugged shielded case

CASE STYLE: K18

Connectors Model

Price

BNC

ZFDC-20-5+

$84.95

SMA

ZFDC-20-5-S+

$89.95

N-TYPE

ZFDC-20-5-N+

$89.95

BRACKET (OPTION"B")

$5.00

Qty.

(1-9)

(1+)

Coaxial Connections

INPUT

OUTPUT

COUPLED

Applications

• cellular

• instrumentation

• communication receivers & transmitters

+RoHS Compliant

The +Suffix identifies RoHS Compliance. See our web site

for RoHS Compliance methodologies and qualifications

Directional Coupler Electrical Specifications

Outline Drawing

FREQ.

RANGE

(MHz)

-f

0.1-2000

COUPLING*

(dB)

Nom.

19.5±0.5

Flatness

±0.5

MAINLINE LOSS

(dB)

DIRECTIVITY

(dB)

Min.

Typ.

Min.

Typ.

Min.

VSWR

(:1)

POWER

INPUT

(W)

Max.

2.0

Max.

0.5

Typ. Max. Typ. Max. Typ. Max. Typ.

0.3

1.0

0.7

1.4

1.5

2.3

Typ.

1.2

L = low range [f

to 10 f

]

M = mid range [10 f

to f

/2]

U= upper range [f

/2 to f

]

1. Mainline loss includes theoretical power loss at coupled port.

* Above 1000 MHz, coupling flatness ±1 dB.

Typical Performance Data

Frequency

(MHz)

0.10

0.50

0.90

188.00

544.00

1.000

25.40

Mainline Loss

(dB)

In-Out

0.71

0.49

0.44

0.36

0.69

1.07

1.17

1.28

1.41

1.91

ZFDC-20-5+

MAINLINE LOSS

Coupling

(dB)

In-Cpl

19.79

19.57

19.52

19.46

19.85

20.18

20.13

19.96

19.34

Directivity

(dB)

25.09

33.79

34.79

32.56

30.03

28.13

28.46

29.48

34.06

18.40

11.79

21.84

23.69

26.83

22.02

19.60

19.23

18.96

18.82

18.91

Return Loss

(dB)

Out

11.84

22.89

25.23

27.83

22.00

20.58

20.30

20.07

19.75

17.73

Cpl

12.78

21.74

23.40

26.54

23.17

18.75

17.73

16.64

15.02

10.05

Outline Dimensions (

inch

)

1.25

31.75

1.25

31.75

.75

19.05

.125

3.18

.63

16.00

1.688

42.88

.38

9.65

2.18

55.37

1.00

25.40

.75

19.05

.125

3.18

.07 grams

1.78

70.0

920.00

1020.00

1136.00

1310.00

2000.00

2.0

MAINLINE LOSS (dB)

1.6

1.2

0.8

0.4

0.0

at RF level of -10 dBm

ZFDC-20-5+

COUPLING & DIRECTIVITY

(dB)

at RF level of -10 dBm

COUPLING

DIRECTIVITY

400

800

1200

FREQUENCY (MHz)

1600

2000

400

800

1200

FREQUENCY (MHz)

1600

2000

ZFDC-20-5+

RETURN LOSS

RETURN LOSS (dB)

400

800

1200

FREQUENCY (MHz)

1600

2000

at RF level of -10 dBm

Electrical Schematic

CPL

OUT

ISO 9001 ISO 14001 AS 9100

CERTIFIED

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

The Design Engineers Search Engine

IF/RF MICROWAVE COMPONENTS

Mini-Circuits

For detailed performance specs

& shopping online see web site

Provides ACTUAL Data Instantly at

minicircuits.com

Notes: 1.

Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.

Electrical specifications

and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.

The parts covered by this specification sheet are subject to

Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard

Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.

REV. B

M119986

ZFDC-20-5+

WZ/TD/CP/AM

120927
