0-1393304-5

Description
POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.08A (COIL), 24VDC (COIL), 2100mW (COIL), 30A (CONTACT), 24VDC (CONTACT), PANEL MOUNT
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size322KB,4 Pages
ManufacturerMACOM
Websitehttp://www.macom.com
Download Datasheet Parametric View All

0-1393304-5 Overview

POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.08A (COIL), 24VDC (COIL), 2100mW (COIL), 30A (CONTACT), 24VDC (CONTACT), PANEL MOUNT

0-1393304-5 Parametric

Parameter NameAttribute value
Minimum operating temperature-40 Cel
Maximum operating temperature125 Cel
Processing package descriptionROHS COMPLIANT
stateActive
Relay typePOWER/SIGNAL RELAY
width25.9 mm
high24.9 mm
length or diameter25.9 mm
Maximum DC coil current0.0800 A
coil_input_supply_typeDC
DC coil operating voltage16 V
coil_power__mw_2100
DC coil release voltage4 V
Coil resistance268 ohm
Maximum DC coil voltage24 V
Maximum DC contact current30 A
contact_dc_max_rating_r_load30A@24VDC
contact_output_supply_typeDC
Maximum DC contact voltage24 V
Electrical life100000 Cycle(s)
Manufacturer Series1393304
Installation featuresPANEL MOUNT
operating hours7 ms
cking_methodBOX
Dimensions25.9mm X 25.9mm X 24.9mm
eference_standardUL
Relay actionMOMENTARY
Relay functionSPST
release time2 ms
sealIP54; IP67; RT1; RT3
Terminal typeQUICK CONNECT

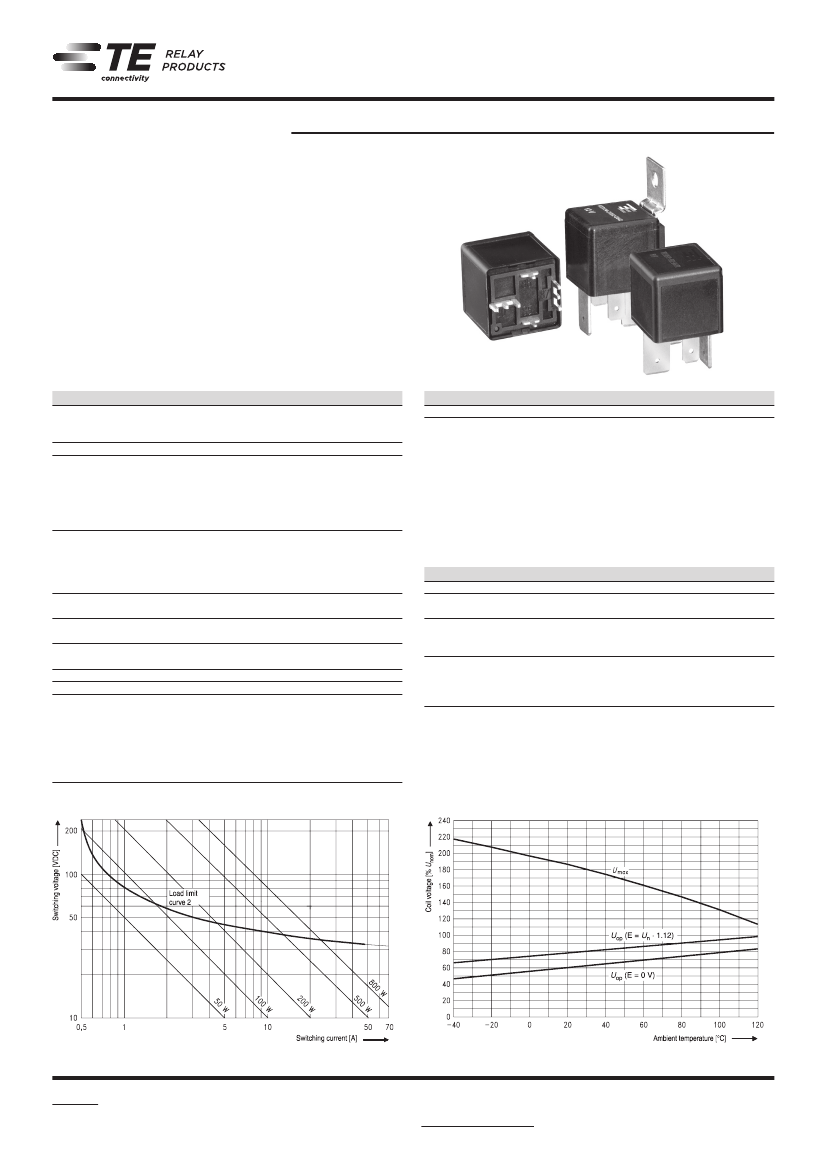

Plug-in Maxi ISO Relays
Power Relay F7
n
n
Pin assignment similar to ISO 7588 part 1
Customized versions on request
– 24VDC versions with contact gap >0.8mm
– Integrated components (e.g. resistor, diode)
– Customized marking/color
– Special covers (e.g. notches, release features, brackets)
Typical applications
Cross carline up to 70A for example: ABS control, cooling fan, energy
management, engine control, glow plug, heated front screen, ignition,
lamps: front, rear, fog light, main switch/supply relay.
F134J_a_bw
Contact Data
Contact arrangement
Contact gap
Rated voltage
Limiting continuous current
23°C
85°C
125°C
Limiting making current
2)
Limiting breaking current
Limiting short-time current
overload current, ISO 8820-3
3)
1 form A,
1 NO
-
12VDC
70A
50A
30A
240A
70A
1 form A,
1 NO
-
24VDC
70A
50A
30A
240A
25A
1 form A,
1 NO
>0.8mm
24VDC
1)
70A
50A
30A
240A
40A
Contact Data
(continued)
Mechanical endurance
>1x10
7
ops.
Jump start test, ISO 16750-1
Contact material
Min. recommended contact load
4)
Initial voltage drop,
form A (NO) contact at 10A, typ./max.
10/300mV
Frequency of operation at nominal load
6 ops./min (0.1Hz)
Operate/release time typ.
7/2ms
5)
Electrical endurance
resistive load at 14VDC
>1x10
5
ops.
-
-
70A
>2x10
5
ops.
-
-
50A
resistive load at 28VDC
-
>1x10
5
ops. >1x10
5
ops.
25A
50A
Max. DC load breaking capacity
ECR0629-N
1.35 x 50A, 1800s
2.00 x 50A, 5s
3.50 x 50A, 0.5s
6.00 x 50A, 0.2s
24VDC for 5min,
conducting nominal current at 23°C
Silver based
1A at 5VDC
1) Special high performance 24VDC version with contact gap >0.8mm, part number
V23134-A0056-X408 (see part number table).
2) The values apply to a resistive or inductive load with suitable spark suppression and
at maximum 14VDC for 12VDC or 28VDC for 24VDC load voltages. For a load current
duration of maximum 3s for a make/break ratio of 1:10.
3) Current and time are compatible with circuit protection by a typical automotive fuse.
Relay will make, carry and break the specified current.
4) See chapter Diagnostics of Relays in our Application Notes or consult the internet at
http://relays.te.com/appnotes/
5) For unsuppressed relay coil. A low resistive suppression device in parallel to the relay
coil increases the release time and reduces the lifetime caused by increased erosion
and/or higher risk of contact tack welding.
Coil Data
Rated coil voltage
Coil versions, DC coil
Coil
Rated
Operate
code
voltage
voltage
VDC
VDC
052
12
7.2
053
24
14.4
056
24
16.0
065
24
14.4
12VDC, 24VDC
Release
voltage
VDC
1.6
3.2
4.0
2.4
Coil
resistance
6)
Ω±10%
90
324
268
288
Rated coil
power
6)
W
1.6
1.8
2.1
2.0
6) Without components in parallel.
All figures are given for coil without pre-energization, at ambient temperature +23°C.
Coil operating range
TEVF4_OVR1
Does not tak
the temperat
the contact c
E = pre-ener
Load limit curve: safe shutdown, no stationary arc/make contact.
Load limit curve measured with low inductive resistors verified for 1000 switching events.
Does not take into account the temperature rise due to the contact current
E = pre-energization.
04-2013, Rev. 0413
www.te.com
© 2013 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Catalog and product specification according
to IEC 61810-1 and to be used only together
with the ‘Definitions’ section.
Catalog and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Catalog, product data, ‘Definitions’ section,
application notes and all specifications are
subject to change.
