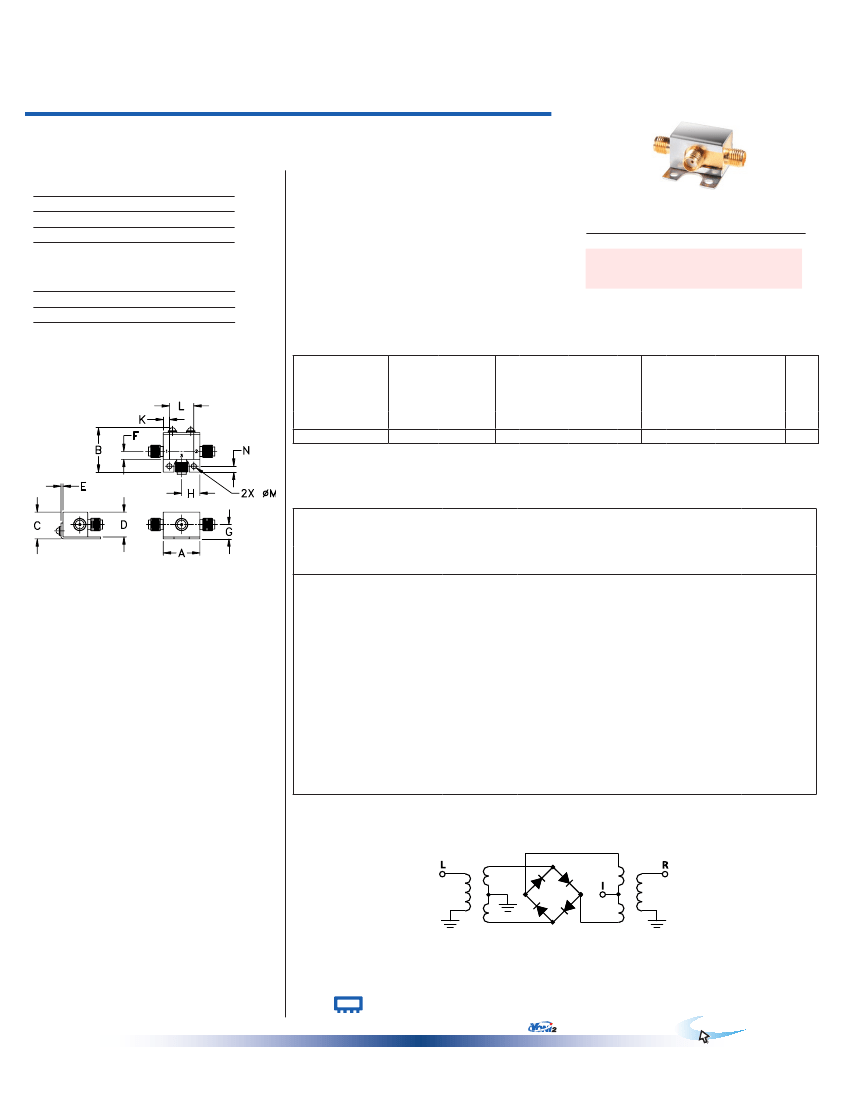

Coaxial
Frequency Mixer
Level 3 (LO Power +3 dBm)
Maximum Ratings
Operating Temperature
Storage Temperature
RF Power
IF Current
-40°C to 85°C
-55°C to 100°C
50mW
40mA
ZX05-1L+
2 to 500 MHz
Features
• rugged construction
• small size
• low conversion loss
• high L-R isolation
• protected by US Patents 6,133,525 & 6,790,049
CASE STYLE: FL905
Connectors
SMA
Model
ZX05-1L-S+
Price
Qty.
$37.95 ea. (1-24)
Permanent damage may occur if any of these limits are exceeded.
Coaxial Connections
LO
RF
IF
Applications
1
2
3
• cellular
• PCS
• instrumentation
• satellite communication
+ RoHS compliant in accordance
with EU Directive (2002/95/EC)
The +Suffix has been added in order to identify RoHS
Compliance. See our web site for RoHS Compliance
methodologies and qualifications.
Electrical Specifications (T
AMB
=25°C)
Outline Drawing
FREQUENCY
(MHz)
LO/RF
f
L
-f
U
2-500
DC-500
1 dB COMP.: 0 dBm typ.
CONVERSION LOSS
(dB)
Mid-Band
m
—
X
5.2
σ
0.1
Total
Range
Max. Max.
7.2
8.0
L
Typ.
68
LO-RF ISOLATION
(dB)
M
Min.
50
Typ.
55
Min.
30
Typ.
44
U
Min.
30
Typ.
55
L
LO-IF ISOLATION
(dB)
M
Min.
40
Typ.
45
Min.
30
Typ.
35
U
Min.
25
IP3
at
center
band
(dBm)
Typ.
16
IF
L = low range [f
L
to 10 f
L
]
m= mid band [2f
L
to f
U
/2]
M = mid range [10 f
L
to f
U
/2]
U = upper range [f
U
/2 to f
U
]
Typical Performance Data
Frequency
(MHz)
Conversion
Loss
(dB)
LO
32.10
50.10
80.10
40.10
64.10
76.10
112.10
136.10
160.10
184.10
208.10
240.10
270.77
301.43
332.10
362.77
393.43
424.10
454.77
470.10
LO
+3dBm
6.13
5.57
5.64
5.66
5.70
5.68
5.64
5.66
5.62
5.61
5.61
5.67
5.68
5.72
5.71
5.79
5.77
5.84
5.90
5.95
Isolation
L-R
(dB)
LO
+3dBm
73.59
69.92
63.85
60.54
57.76
56.42
53.59
52.14
50.86
49.33
48.62
47.30
45.64
44.35
43.39
44.69
44.08
44.03
43.22
42.81
Isolation
L-I
(dB)
LO
+3dBm
76.66
58.59
50.98
48.03
45.29
44.32
41.90
40.76
39.83
38.88
37.96
37.31
36.86
36.25
35.39
34.15
33.62
32.86
31.69
31.23
VSWR
RF Port
(:1)
LO
+3dBm
1.27
1.14
1.13
1.13
1.13
1.12
1.12
1.12
1.12
1.11
1.12
1.13
1.14
1.15
1.17
1.19
1.22
1.23
1.24
1.24
VSWR
LO Port
(:1)
LO
+3dBm
1.63
1.54
1.54
1.52
1.52
1.52
1.52
1.54
1.55
1.57
1.59
1.61
1.64
1.67
1.68
1.75
1.79
1.77
1.83
1.85
RF
2.10
20.10
50.10
70.10
94.10
Outline Dimensions (
inch
)
mm
A
.74
18.80
H
.37
9.40
B
.90
22.86
J
--
--
C
.54
13.72
K
.122
3.10
D
.50
12.70
L
.496
12.60
E
.04
1.02
M
.106
2.69
F
.16
4.06
G
.29
7.37
106.10
142.10
166.10
190.10
214.10
238.10
270.10
300.77
331.43
362.10
392.77
423.43
454.10
484.77
500.10
N
wt
.122 grams
3.10
20.0
Electrical Schematic
ISO 9001 ISO 14001 AS 9100
CERTIFIED
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
The Design Engineers Search Engine
IF/RF MICROWAVE COMPONENTS
Mini-Circuits
®
For detailed performance specs
& shopping online see web site
®
Provides ACTUAL Data Instantly at
minicircuits.com
Notes: 1.
Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.
2.
Electrical specifications
and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
3.
The parts covered by this specification sheet are subject to
Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard
Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.
REV. D
M108294
ZX05-1L+
RVN/TD/CP/AM
091007
Page 1 of 2

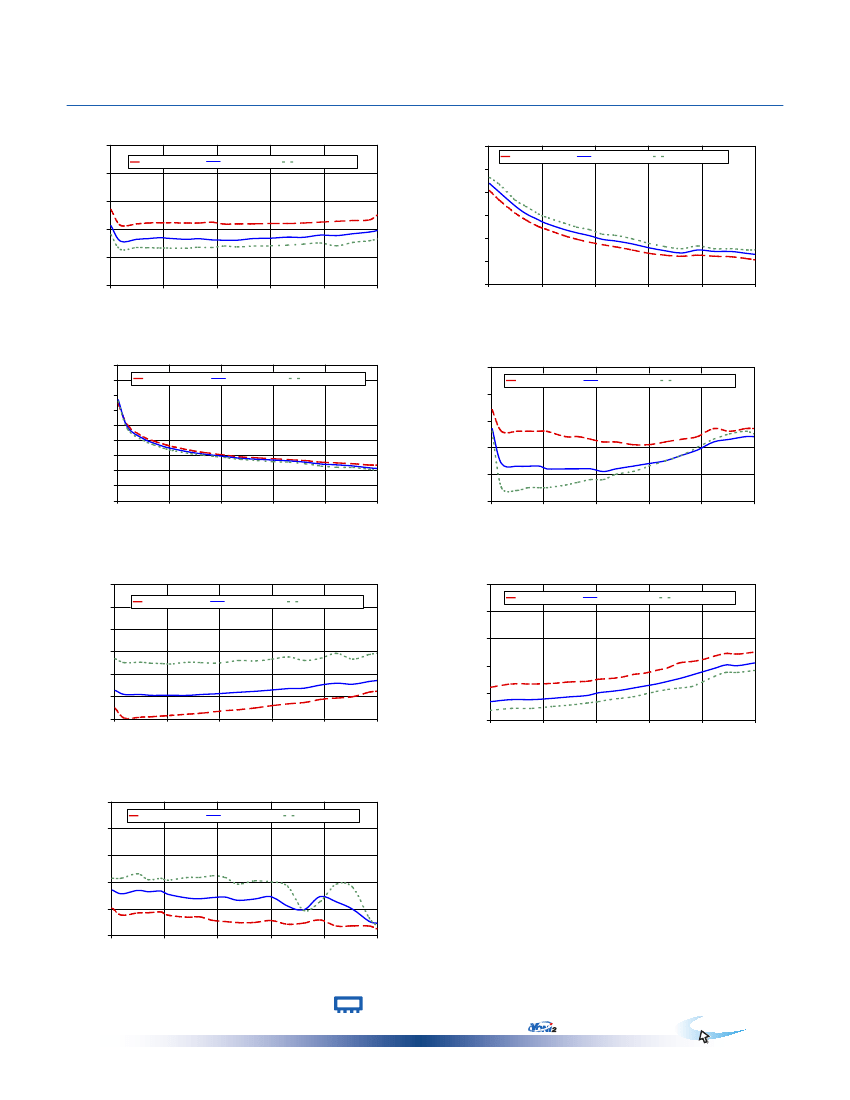

Performance Charts
9.0
at IF Freq of 30 MHz
ZX05-1L+
90
LO=+6 dBm
ZX05-1L+
CONVERSION LOSS
LO=+3 dBm
ZX05-1L+
L-R ISOLATION
LO=+0 dBm
LO=+3 dBm
LO=+6 dBm
CONVERSION LOSS (dB)
ISOLATION (dB)
8.0
7.0
6.0
5.0
4.0
0
LO=+0 dBm
80
70
60
50
40
30
100
200
300
FREQUENCY (MHz)
400
500
0
100
200
300
FREQUENCY (MHz)
400
500
100
90
80
70
50
40
30
20
10
0
100
ZX05-1L+
L-I ISOLATION
1.5
ZX05-1L+
RF VSWR
LO=+0 dBm
LO=+3 dBm
LO=+6 dBm
1.4
LO=+0 dBm
LO=+3 dBm
LO=+6 dBm
ISOLATION (dB)
VSWR
200
300
FREQUENCY (MHz)
ZX05-1L+
LO VSWR
60
1.3
1.2
1.1
1.0
400
500
0
100
200
300
FREQUENCY (MHz)
ZX05-1L+
IF VSWR
400
500
4.0
3.5
3.0
LO=+0 dBm
LO=+3 dBm
LO=+6 dBm
3.0
LO=+0 dBm
2.6
LO=+3 dBm
LO=+6 dBm
VSWR
2.5
2.0
1.5
1.0
0
100
200
300
FREQUENCY (MHz)
ZX05-1L+
IP3
30
LO=+0 dBm
26
LO=+3 dBm
LO=+6 dBm
400
500
VSWR
2.2
1.8
1.4
1.0
0
100
200
300
FREQUENCY (MHz)
400
500
IP3 (dBm)
22
18
14
10
0
100
200
300
FREQUENCY (MHz)
400
500
ISO 9001 ISO 14001 AS 9100
CERTIFIED
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
The Design Engineers Search Engine
IF/RF MICROWAVE COMPONENTS
Mini-Circuits
®
For detailed performance specs
& shopping online see web site
®
Provides ACTUAL Data Instantly at
minicircuits.com
Notes: 1.
Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.
2.
Electrical specifications
and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
3.
The parts covered by this specification sheet are subject to
Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard
Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.
Page 2 of 2
