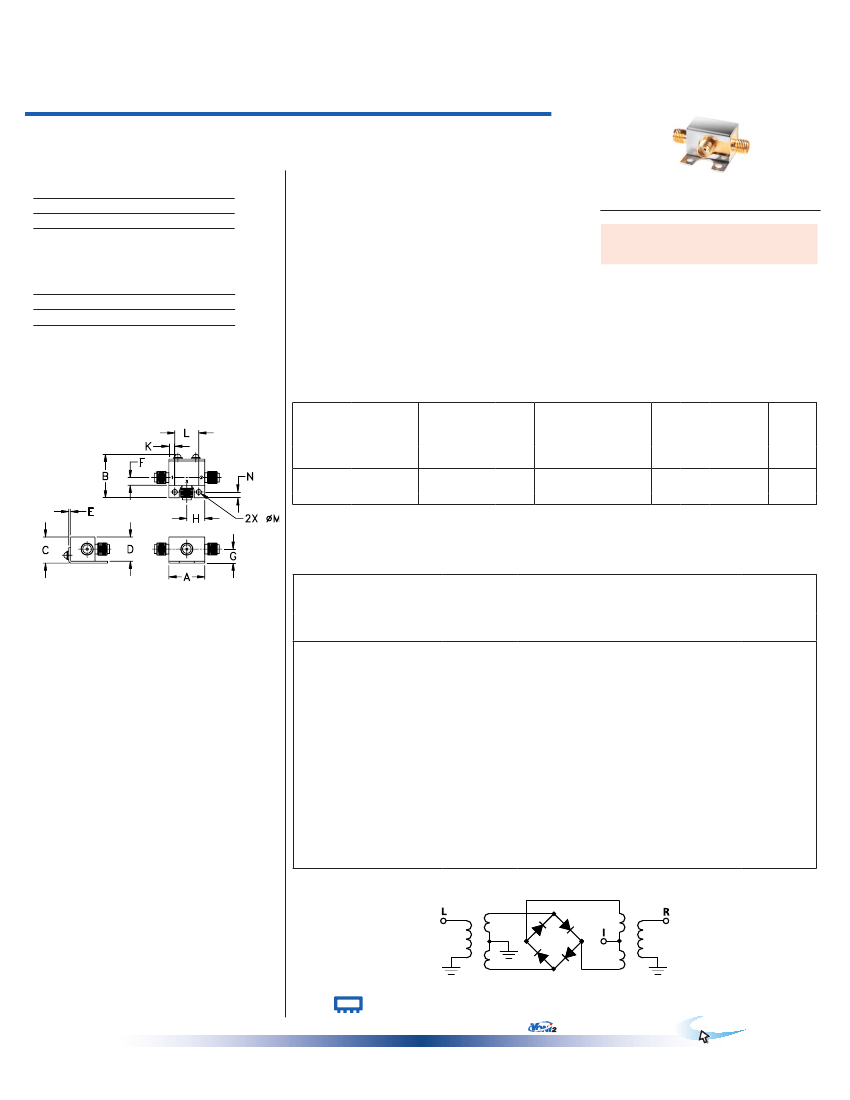

Frequency Mixer
wide band
Level 10 (LO Power +10 dBm) 3700 to 10000 MHz
Maximum Ratings
Operating Temperature
Storage Temperature
RF Power
-40°C to 85°C
-55°C to 100°C
50mW
Coaxial
ZX05-14LH+
Features
Permanent damage may occur if any of these limits are exceeded.
Coaxial Connections
LO
RF
IF
2
3
1
• wide bandwidth, 3700 to 10000 MHz
• low conversion loss, 6.7 dB typ.
• high L-R isolation, 38 dB typ.
• excellent IF BW, DC to 4000 MHz
• rugged construction
• small size
• useable as up and down converter
• protected by US patents 6,790,049; 7,027,795
CASE STYLE: FL905
Connectors
SMA
Model
ZX05-14LH-S+
Price
$47.95
Qty.
(1-24)
+ RoHS compliant in accordance
with EU Directive (2002/95/EC)
The +Suffix has been added in order to identify RoHS
Compliance. See our web site for RoHS Compliance
methodologies and qualifications.
Applications
• satellite up and down converters
• defense radar and communications
• line of sight links
• federal fixed service
• WIFI
• blue tooth
• VSAT
• ISM
FREQUENCY
(MHz)
LO/RF
f
L
-f
U
3700-10000
3700-6200
6200-10000
Outline Drawing
Electrical Specifications
LO-RF ISOLATION
(dB)
LO-IF ISOLATION
(dB)
IP3
at center
band
(dBm)
Typ.
16
14
CONVERSION LOSS*
(dB)
IF
DC-4000
Typ.
6.7
6.7
σ
0.3
0.2
Max.
8.3
9.5
Typ.
38
35
Min.
30
25
Typ.
17
17
Min.
11
9
1 dB COMPR.: +5 dBm typ.
* Conversion loss at 30 MHz IF.
σ
is a measure of repeatability from unit to unit.
Typical Performance Data
Frequency
(MHz)
Conversion
Loss
(dB)
LO
3730.10
4130.10
4530.10
4930.10
5330.10
5730.10
6130.10
6230.10
6630.10
7030.10
7430.10
7830.10
8230.10
8630.10
9030.10
9430.10
9730.10
9830.10
9930.10
10030.10
LO
+10dBm
6.39
6.13
5.86
6.09
6.57
6.38
6.03
6.00
6.07
6.00
5.64
5.52
5.45
6.13
6.88
7.72
8.26
8.32
8.56
8.63
Isolation
L-R
(dB)
LO
+10dBm
48.11
39.12
41.21
38.80
36.16
34.89
37.29
36.21
36.65
37.63
35.86
32.87
31.01
35.65
32.71
27.89
27.01
27.11
27.59
28.21
Isolation
L-I
(dB)
LO
+10dBm
18.94
18.68
16.16
14.56
13.89
14.71
16.01
16.24
16.84
16.76
14.97
13.26
13.24
16.37
21.25
19.20
17.18
16.78
16.67
16.67
VSWR
RF Port
(:1)
LO
+10dBm
3.12
3.09
2.56
2.77
3.74
3.39
2.95
2.84
2.64
2.13
1.68
1.56
1.84
2.58
3.48
4.01
4.80
4.93
5.04
5.14
VSWR
LO Port
(:1)
LO
+10dBm
8.31
5.19
3.25
2.19
1.41
1.73
2.49
2.73
3.60
3.91
3.92
3.35
2.18
1.81
1.85
2.05
2.13
2.06
1.94
1.81
Outline Dimensions (
A
.74
18.80
H
.37
9.40
B
.90
22.86
J
--
--
C
.54
13.72
K
.122
3.10
D
.50
12.70
L
.496
12.60
E
.04
1.02
M
.106
2.69
inch
mm
)
G
.29
7.37
RF
3700.10
4100.10
4500.10
4900.10
5300.10
5700.10
6100.10
6200.10
6600.10
7000.10
7400.10
7800.10
8200.10
8600.10
9000.10
9400.10
9700.10
9800.10
9900.10
10000.10
F
.16
4.06
N
wt
.122 grams
3.10
20.0
Electrical Schematic
ISO 9001 ISO 14001 AS 9100
CERTIFIED
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
The Design Engineers Search Engine
IF/RF MICROWAVE COMPONENTS
Mini-Circuits
®
For detailed performance specs
& shopping online see web site
®
Provides ACTUAL Data Instantly at
minicircuits.com
Notes: 1.
Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.
2.
Electrical specifications
and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
3.
The parts covered by this specification sheet are subject to
Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard
Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.
REV. OR
M111660
ZX05-14LH+
ED-12902/2
DJ/TD/QL
091007
Page 1 of 2

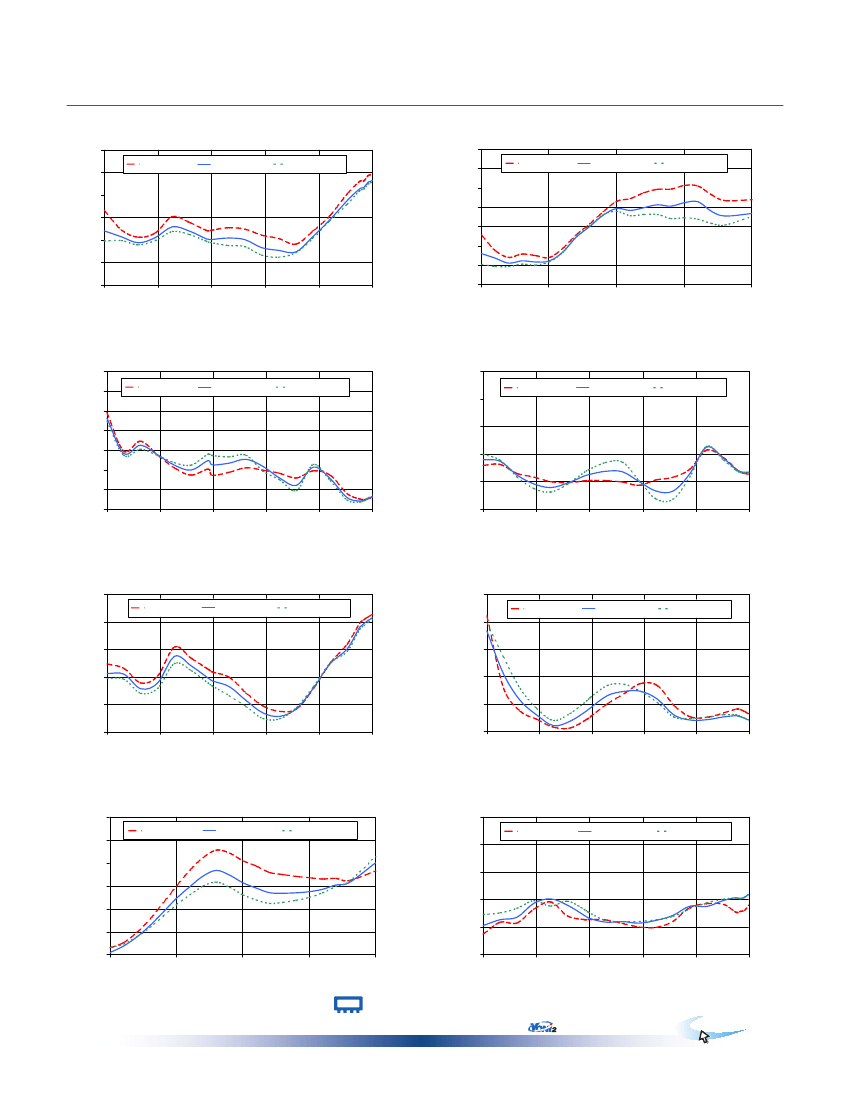

Performance Charts
10
CONVERSION LOSS (dB)
at IF= 30 MHz
ZX05-14LH+
12
CONVERSION LOSS (dB)
RF= 3690 MHz
ZX05-14LH+
CONVERSION LOSS
LO=+10dBm
LO=+13dBm
ZX05-14LH+
CONVERSION LOSS VARIABLE IF
LO=+10dBm
LO=+13dBm
9
8
7
6
5
4
3700
LO=+7dBm
11
10
9
8
7
6
5
0
LO=+7dBm
4960
6220
7480
FREQUENCY (MHz)
8740
10000
1000
2000
3000
IF FREQUENCY (MHz)
ZX05-14LH+
L-I ISOLATION
4000
ZX05-14LH+
L-R ISOLATION
60
55
ISOLATION (dB)
50
45
40
35
30
25
3700
4960
6220
7480
FREQUENCY (MHz)
ZX05-14LH+
RF VSWR
6.0
LO=+7dBm
LO=+10dBm
LO=+13dBm
35
LO=+7dBm
LO=+10dBm
LO=+13dBm
ISOLATION (dB)
30
25
20
15
10
3700
LO=+7dBm
LO=+10dBm
LO=+13dBm
8740
10000
4960
6220
7480
FREQUENCY (MHz)
ZX05-14LH+
LO VSWR
8740
10000
11.0
LO=+7dBm
LO=+10dBm
LO=+13dBm
5.0
VSWR
VSWR
4.0
3.0
2.0
1.0
3700
9.0
7.0
5.0
3.0
1.0
3700
4960
6220
7480
FREQUENCY (MHz)
8740
10000
4960
6220
7480
FREQUENCY (MHz)
8740
10000
ZX05-14LH+
IF VSWR
4.0
3.5
3.0
VSWR
2.5
2.0
1.5
1.0
0
1000
2000
3000
IF FREQUENCY (MHz)
4000
LO=+7dBm
LO=+10dBm
LO=+13dBm
50
40
IP3 (dBm)
30
20
10
at IF= 30 MHz
ZX05-14LH+
IP3
LO=+10dBm
LO=+13dBm
LO=+7dBm
0
3700
®
4960
6220
7480
FREQUENCY (MHz)
8740
10000
ISO 9001 ISO 14001 AS 9100
CERTIFIED
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
The Design Engineers Search Engine
IF/RF MICROWAVE COMPONENTS
Mini-Circuits
For detailed performance specs
& shopping online see web site
®
Provides ACTUAL Data Instantly at
minicircuits.com
Notes: 1.
Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.
2.
Electrical specifications
and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
3.
The parts covered by this specification sheet are subject to
Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard
Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.
Page 2 of 2
