High Speed Backplane Connectors
MULTIGIG RT Connector Products
Product Facts
I
Customizable impedance
matched printed circuit
wafer interface
Available for stacking
applications
Inverse sex backplane
connector system with
“pinless” interface
Superior crosstalk
performance
Optimized footprints for
signal integrity and ease of
board design
Utilizes a 0.56 [.022]
diameter via for backplane
connector for lower cost
board fabrication
Three levels of signal
contact sequencing
Available in modular style
Available for 20.30 [.800]
or 25.40 [1.00] card pitch
systems
Durability rated for 200
cycles
Fully compatible with MP
based fiber optic array
interconnects
Complete connector family
includes
I
Power Modules = >
Maximize Amps/inch
density, voltages in pairs
I
Guidance Modules
I
Die cast for strength
I
Optional ESD contact
I
Three sequence levels
I
Press fit or hardware
mounted
I
Backplane drill pattern
enabled keying
I
Cable assembly
proposals available
MULTIGIG RT connector
products are fully
compatible with 2mm HM
equipment practices
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I

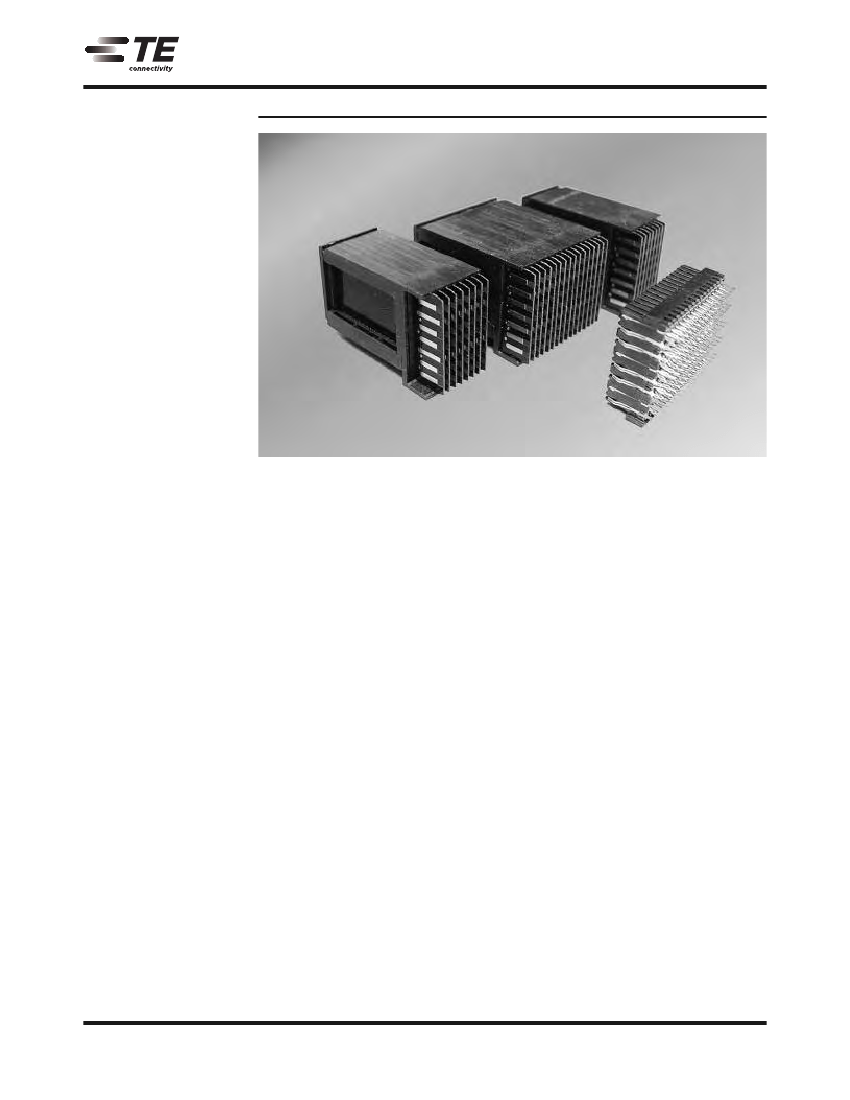

The MULTIGIG RT product
line is a backplane intercon-
nect family that offers flexi-
bility and customization.
This printed circuit based,
pinless, interconnect family
is comprised of modular
components which can be
used in a variety of combi-
nations. The connectors in
this innovatively flexible
platform can be combined
to provide the density, data
throughput, and signal
integrity required for appli-
cations in today’s computer,
military, medical, or indus-
trial control industries. The
use of printed circuit wafers
in this connector system
allows for cost effective
sequencing and electrical
customization of the con-
nector. Wafers can be man-
ufactured specifically for
differential or signal ended
performance and the
impedance, propagation
delay, and crosstalk of the
connector can be altered
per customer requirements.
This scalable board to
backplane connector family
is a robust, “pinless” design
which eliminates the pin
field on backplane boards
and reduces the end user’s
exposure to field failure in
card cage systems. The
MULTIGIG RT connector
family is designed specifi-
cally for 20.30 [.800] or
25.40 [1.00] card pitch
systems.
I
MULTIGIG RT 1
connector
—
141 signals/inch, data
rates up to 3.125 Gb/s
MULTIGIG RT 2
connector
—
113 signals/inch, data
rates of 3.125 Gb/s to
6.4 Gb/s and has been
demonstrated to support
10 Gb/s
I
www.multigigrt.com
Applications
I
Technical Documents
Application Specifications
114-13062 Power Modules
114-13056 Signal Connectors
Product Specifications
108-2062 Power Modules
108-2072 Signal Connectors
Qualification Test Reports
501-538 Power Connectors
501-544 Signal Connectors
Engineering Report
502-1130 Power Connectors
Routing Guide RT 2 on te.com
I
Telecommunications
Equipment
I
Metro Optical Networking
equipment
I
SONET switched platforms
I
Aggregation switches
Midrange Servers
High End Servers
High speed custom platforms
Mass data storage
Rugged, mission-critical
applications
138
Catalog 1773095
Revised 4-12
www.te.com
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
Dimensions are in millimeters
and inches unless otherwise
specified.
USA: +1 (800) 522-6752
Canada: +1 (905) 475-6222
Mexico/C. Am.: +52 (0) 55-1106-0800
Latin/S. Am.: +54 (0) 11-4733-2200
Germany: +49 (0) 6251-133-1999
UK: +44 (0) 800-267666
France: +33 (0) 1-3420-8686
Netherlands: +31 (0) 73-6246-999
China: +86 (0) 400-820-6015
High Speed Backplane Connectors
MULTIGIG RT Connector Products
(Continued)
MULTIGIG RT Connector
Sequencing Chart
20.75 mm
Key on Guide Pin
Fully-Mated Wipe Length
18.25 mm
11.25 mm
9.75 mm
8.25 mm
5.5 mm
4.0 mm
2.5 mm
Signal Level 1
Power Level 3
ESD Contact on
Guide Pin
Power Level 2
Power Level 1
Signal Level 3
Ground Level
Signal Level 2
5
6
9
12
15
18
21
0
3
MULTIGIG RT Connector
139
Catalog 1773095
Revised 4-12
www.te.com
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
Dimensions are in millimeters
and inches unless otherwise
specified.
USA: +1 (800) 522-6752
Canada: +1 (905) 475-6222
Mexico/C. Am.: +52 (0) 55-1106-0800
Latin/S. Am.: +54 (0) 11-4733-2200
Germany: +49 (0) 6251-133-1999
UK: +44 (0) 800-267666
France: +33 (0) 1-3420-8686
Netherlands: +31 (0) 73-6246-999
China: +86 (0) 400-820-6015
High Speed Backplane Connectors
MULTIGIG RT Connector Products
(Continued)
MULTIGIG RT Connector
Mating Sequence Chart
which shows the relation-
ship of MULTIGIG RT
Connector products with
other TE products
Fully Mated
Reliable Mate
Product
Family
Z-PACK HM-Zd
Product
Z-PACK HM-Zd
Guide
Hardware
Z-PACK TinMan
Product
Z-PACK 2mm HM
Product
Dim. C
Dim. A
Fully
Mated
12.50
.492
12.50
.492
12.50
.492
12.50
.492
Contact
Ground Shield
Signal Level 2
Signal Level 1
24.0 mm Pin
22.2 mm Pin
Key Blocking Point
Ground Pins
Signal Level 2
Signal Level 1
Signal Level 3
Signal Level 2
Signal Level 1
Ground
Signal Level 3
Signal Level 2
Signal Level 1
Ground
Signal Level 3
Signal Level 2
Signal Level 1
Power Level 3
Power Level 2
Power Level 1
Guide Pin Key
Guide ESD Contact
Ground
Signal Level 2
Signal Level 1
Power Level 3
Power Level 2
Power Level 1
Guide Pin Key
Keyed Guide Pin
Keyed Guide Pin
PreMate Power —
Level 1
PostMate Power —
Level 2
PreMate Signal —
Level 2
PostMate Signal —
Level 3
PreMate Power —
Level 1
PostMate Power —
Level 2
PreMate Signal —
Level 2
PostMate Signal —
Level 3
1.50
.059
3.00
.118
1.50
.059
1.50
.059
MULTIGIG RT
T1
Product
2.50
.098
12.50
.492
MULTIGIG RT
T2
Product
MULTIGIG RT
Power
Module
MULTIGIG RT
Guide
Hardware
Z-PACK HS3
Product
2.25
.089
12.50
.492
5.50
.217
N/A
1.50
.059
3.50
.138
5.75
.226
12.50
.492
12.50
.492
12.50
.492
12.50
.492
12.50
.492
Dim B.
Reliable
First Mate
Mate
Last Break
16.78
[.661]
17.55
[.691]
15.41
[.607]
15.85
[.624]
13.91
[.548]
14.35
[.565]
27.50
[1.083]
33.40
[1.315]
25.70
[1.012]
31.60
[1.244]
N/A
22.03
[.867]
16.44
[.647]
17.13
[.674]
14.94
[.588]
15.63
[.615]
N/A
N/A
18.27
[.719]
18.84
[.742]
16.77
[.660]
17.34
[.683]
15.27
[.601]
15.84
[.624]
18.00
[.709]
—
18.00
[.709]
—
16.50
[.650]
—
15.00
[.591]
—
18.00
[.709]
—
18.00
[.709]
—
16.50
[.650]
—
15.00
[.591]
—
23.75
[.935]
—
22.25
[.876]
—
20.75
[.817]
—
33.25
[1.309]
30.75
[1.211]
17.08
[.672]
16.05
[.632]
14.55
[.573]
20.25
[.797]
18.65
[.734]
17.03
[.670]
31.39
[1.236]
31.39
[1.236]
35.23
[1.387]
—
—
—
—
—
—
—
—
N/A
—
17.60
[.693]
16.47
[.648]
14.97
[.589]
20.95
[.825]
19.35
[.762]
17.73
[.698]
36.16
[1.424]
36.16
[1.424]
40.00
[1.575]
16.84
[.663]
17.81
[.701]
18.26
[.719]
19.53
[.769]
15.32
[.603]
16.28
[.641]
16.74
[.659]
18.01
[.709]
Fully Mated
Wipe Length
4.28
[.169]
2.91
[.115]
1.41
[.056]
N/A
N/A
N/A
3.94
[.155]
2.44
[.096]
N/A
5.77
[.227]
4.27
[.168]
2.77
[.109]
5.50
[.217]
5.50
[.217]
4.00
[.157]
2.50
[.098]
5.50
[.217]
5.50
[.217]
4.00
[.157]
2.50
[.098]
11.25
[.443]
9.75
[.384]
8.25
[.325]
20.75
[.817]
18.25
[.719]
4.78
[.188]
3.75
[.148]
2.25
[.089]
8.10
[.319]
6.50
[.256]
4.88
[.192]
N/A
N/A
N/A
5.61
[.221]
Min.
4.34
[.171]
Min.
3.81
[.150]
Min.
2.54
[.100]
Min.
5.61
[.221]
Min.
4.34
[.171]
Min.
3.81
[.150]
Min.
2.54
[.100]
Min.
UPM
UPM
Guide
Hardware
MULTI-BEAM XL
Right Angle
Header to
Vertical
Receptacle
5.08
.200
14.73
.580
MULTI-BEAM XL
Right Angle
Receptacle
to Vertical
Header
3.81
.150
13.21
.520
140
Catalog 1773095
Revised 4-12
www.te.com
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
Dimensions are in millimeters
and inches unless otherwise
specified.
USA: +1 (800) 522-6752
Canada: +1 (905) 475-6222
Mexico/C. Am.: +52 (0) 55-1106-0800
Latin/S. Am.: +54 (0) 11-4733-2200
Germany: +49 (0) 6251-133-1999
UK: +44 (0) 800-267666
France: +33 (0) 1-3420-8686
Netherlands: +31 (0) 73-6246-999
China: +86 (0) 400-820-6015
High Speed Backplane Connectors
MULTIGIG RT Connector Products
(Continued)
Product Selection Guide
MULTIGIG RT connectors
consist of interlocking left
end and right end signal
modules (half or full), center
signal modules, and stand
alone modules available in
vertical receptacles (back-
plane application) and right
angle plugs (daughtercard
application), and comple-
mentary mechanical guide
assemblies (available in size
10.80 [.425], 9.00 [.354] or
7.20 [.283]. The guide
assembly provides blind
mating and misalignment
for the connectors. The
10.80 [.425] and 9.00 [.354]
guide assembly also
provides keying and is
available with or without
an internal contact for
electrostatic discharge
(ESD) protection.
The modules are capable
of being stacked in any
configuration within the limi-
tations given in this catalog
to a maximum length of 120
between guide assemblies.
These connectors perform
at two separate density
levels: Tier 1 and Tier 2.
The connectors are placed
on the pc board by
manually-operated or
automatic machines.
The modules have 6, 8, or
10 rows of signal contacts
with 20.30 [.800], 25.40
[1.000], or 9.00 [.354]
centerline spacing (profile
size). A right angle plug
module having 7 rows with
20.30 [.800] spacing is also
available for Tier 2 only to
accommodate special
applications used by the
VMEbus International Trade
Association (VITA). The
signal contacts, along with
the ground contacts (in Tier
1 modules only) and ESD
contacts (if using the 10.80
[.425] guide assembly
with ESD contact) provide
sequencing for each
group
of modules.
When corresponding with
personnel, use the terminol-
ogy provided to facilitate
your inquiries for information.
Basic terms and features of
this product are provided in
the art below and on the fol-
lowing page.

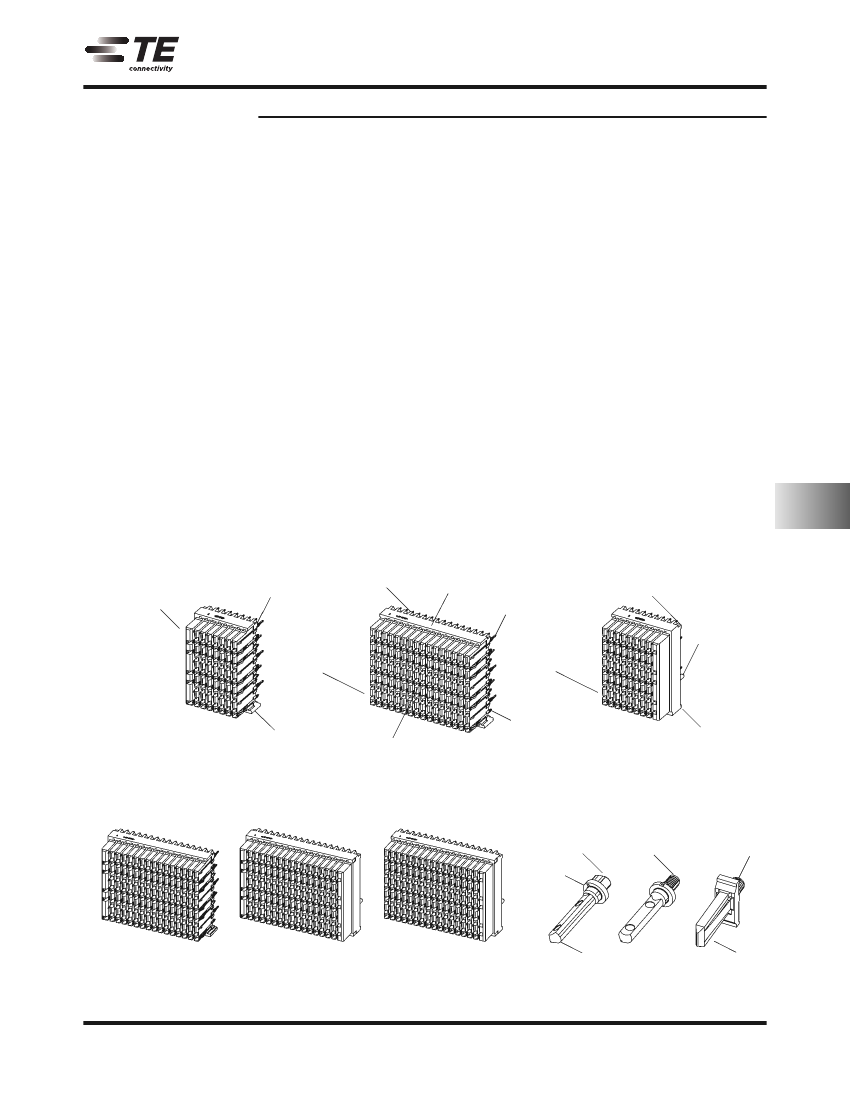

Vertical Receptacle
(Backplane) Connector
Half
Left End Module
Standoff
Polarization Post
5
MULTIGIG RT Connector
Center Module
Standoff
Housing
Ground Contact
(In Tier 1 Only)
Polarization Post
Polarization Slot
Half
Right End Module
Standoff
Polarization Slot
Polarization Rib
Contact Cavities
Eye-of-Needle
Compliant Pin
Signal Contact
Standoff
Full
Left End Module
Stand Alone
Module
Full
Right End Module
10.8 mm
Guide Pins
Mounting Post
With Screw Hole
Mounting Post
With Threads
7.2 mm
Guide Pin
Mounting
Post
Collar
Key
No Key
VITA, VMEbus, VPX, and VXS are
trademarks of VITA.
141
Catalog 1773095
Revised 4-12
www.te.com
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
Dimensions are in millimeters
and inches unless otherwise
specified.
USA: +1 (800) 522-6752
Canada: +1 (905) 475-6222
Mexico/C. Am.: +52 (0) 55-1106-0800
Latin/S. Am.: +54 (0) 11-4733-2200
Germany: +49 (0) 6251-133-1999
UK: +44 (0) 800-267666
France: +33 (0) 1-3420-8686
Netherlands: +31 (0) 73-6246-999
China: +86 (0) 400-820-6015
京公网安备 11010802033920号
EEWORLD
