Datasheet> All Categories > Analog mixed-signal IC> Trigger device> SKIW1700/14

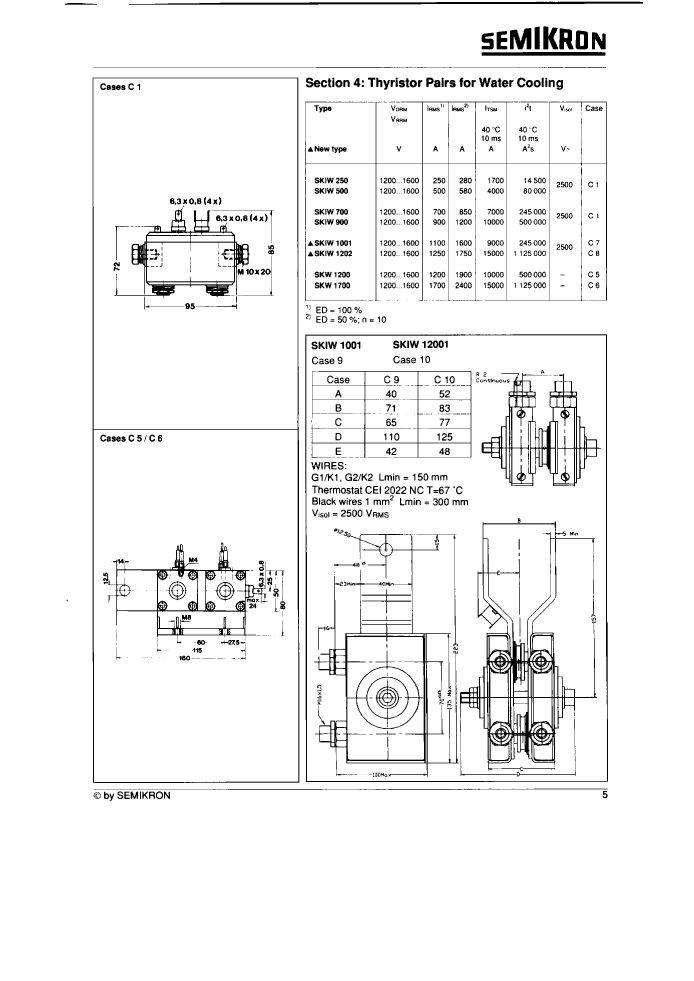

Preview

SKIW1700/14: DescriptionSilicon Controlled Rectifier, 1400V V(DRM), 1400V V(RRM), 2 Element; CategoryAnalog mixed-signal IC Trigger device; File Size29KB，1 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com

Download Datasheet Parametric Compare View All

SKIW1700/14 Overview

Silicon Controlled Rectifier, 1400V V(DRM), 1400V V(RRM), 2 Element

SKIW1700/14 Parametric

Parameter Name	Attribute value
Maker	SEMIKRON
package instruction	SPECIAL SHAPE, R-XXSS-X6
Reach Compliance Code	unknown
Configuration	ANTI-PARALLEL, 2 ELEMENTS
JESD-30 code	R-XXSS-X6
Number of components	2
Number of terminals	6
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	SPECIAL SHAPE
Certification status	Not Qualified
Off-state repetitive peak voltage	1400 V
Repeated peak reverse voltage	1400 V
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Trigger device type	SCR

Preview

Download Datasheet

View All

SKIW1700/14 Related Products

	SKIW1700/14	SKIW1202/12	SKIW1202/14	SKIW1202/16	SKIW1700/16	SKIW1700/12	SKIW1200/12	SKIW1200/14
Description	Silicon Controlled Rectifier, 1400V V(DRM), 1400V V(RRM), 2 Element	Silicon Controlled Rectifier, 1200V V(DRM), 1200V V(RRM), 2 Element	Silicon Controlled Rectifier, 1400V V(DRM), 1400V V(RRM), 2 Element	Silicon Controlled Rectifier, 1600V V(DRM), 1600V V(RRM), 2 Element	Silicon Controlled Rectifier, 1600V V(DRM), 1600V V(RRM), 2 Element	Silicon Controlled Rectifier, 1200V V(DRM), 1200V V(RRM), 2 Element	Silicon Controlled Rectifier, 1800000mA I(T), 1200V V(DRM), 1200V V(RRM), 2 Element	Silicon Controlled Rectifier, 1800000mA I(T), 1400V V(DRM), 1400V V(RRM), 2 Element
Maker	SEMIKRON	SEMIKRON	SEMIKRON	SEMIKRON	SEMIKRON	SEMIKRON	SEMIKRON	SEMIKRON
package instruction	SPECIAL SHAPE, R-XXSS-X6	SPECIAL SHAPE, R-XXSS-X6	SPECIAL SHAPE, R-XXSS-X6	SPECIAL SHAPE, R-XXSS-X6	SPECIAL SHAPE, R-XXSS-X6	SPECIAL SHAPE, R-XXSS-X6	SPECIAL SHAPE, R-XXSS-X6	SPECIAL SHAPE, R-XXSS-X6
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Configuration	ANTI-PARALLEL, 2 ELEMENTS	ANTI-PARALLEL, 2 ELEMENTS	ANTI-PARALLEL, 2 ELEMENTS	ANTI-PARALLEL, 2 ELEMENTS	ANTI-PARALLEL, 2 ELEMENTS	ANTI-PARALLEL, 2 ELEMENTS	ANTI-PARALLEL, 2 ELEMENTS	ANTI-PARALLEL, 2 ELEMENTS
JESD-30 code	R-XXSS-X6	R-XXSS-X6	R-XXSS-X6	R-XXSS-X6	R-XXSS-X6	R-XXSS-X6	R-XXSS-X6	R-XXSS-X6
Number of components	2	2	2	2	2	2	2	2
Number of terminals	6	6	6	6	6	6	6	6
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SPECIAL SHAPE	SPECIAL SHAPE	SPECIAL SHAPE	SPECIAL SHAPE	SPECIAL SHAPE	SPECIAL SHAPE	SPECIAL SHAPE	SPECIAL SHAPE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Off-state repetitive peak voltage	1400 V	1200 V	1400 V	1600 V	1600 V	1200 V	1200 V	1400 V
Repeated peak reverse voltage	1400 V	1200 V	1400 V	1600 V	1600 V	1200 V	1200 V	1400 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR
