1. INTRODUCTION
This instruction sheet provides instructions on product
application, and maintenance and inspection
procedures for SOLISTRAND Crimping Dies which
are used in Crimping Heads 69097 and 69099. See
Figure 1.
These dies are used to crimp SOLISTRAND
Terminals and Splices onto solid or stranded copper
wire in AWG sizes of 8--4/0.
Basic instructions on the use of the dies, die insertion
and removal, etc., are provided in Section 2,
INSTRUCTIONS. Section 3, CRIMP INSPECTION
features a terminal and splice crimp inspection
procedure. Section 4, MAINTENANCE AND
INSPECTION, will enable you to establish and
maintain a die certification program.
The dies are coated with a preservative to prevent
rust and corrosion. Wipe this preservative from the
dies, particularly from the crimping areas.
For further instructions relative to the hydraulic power
unit and hydraulic crimping heads, refer to the
E2011
Tyco Electronics Corporation, a TE Connectivity Ltd. Company
All Rights Reserved
*Trademark
instructions packaged with the tools or contact the
Tooling Assistance Center number at the bottom of
this page.
NOTE
Dimensions in this instruction sheet are in
millimeters [with inches in brackets]. Figures are
for reference only, and are not drawn to scale.
i
Reasons for reissue of this instruction sheet are
provided in Section 6, REVISION SUMMARY.
2. INSTRUCTIONS
2.1. Die Insertion
DANGER
Avoid personal injury. Disconnect power unit from
power supply when changing dies.

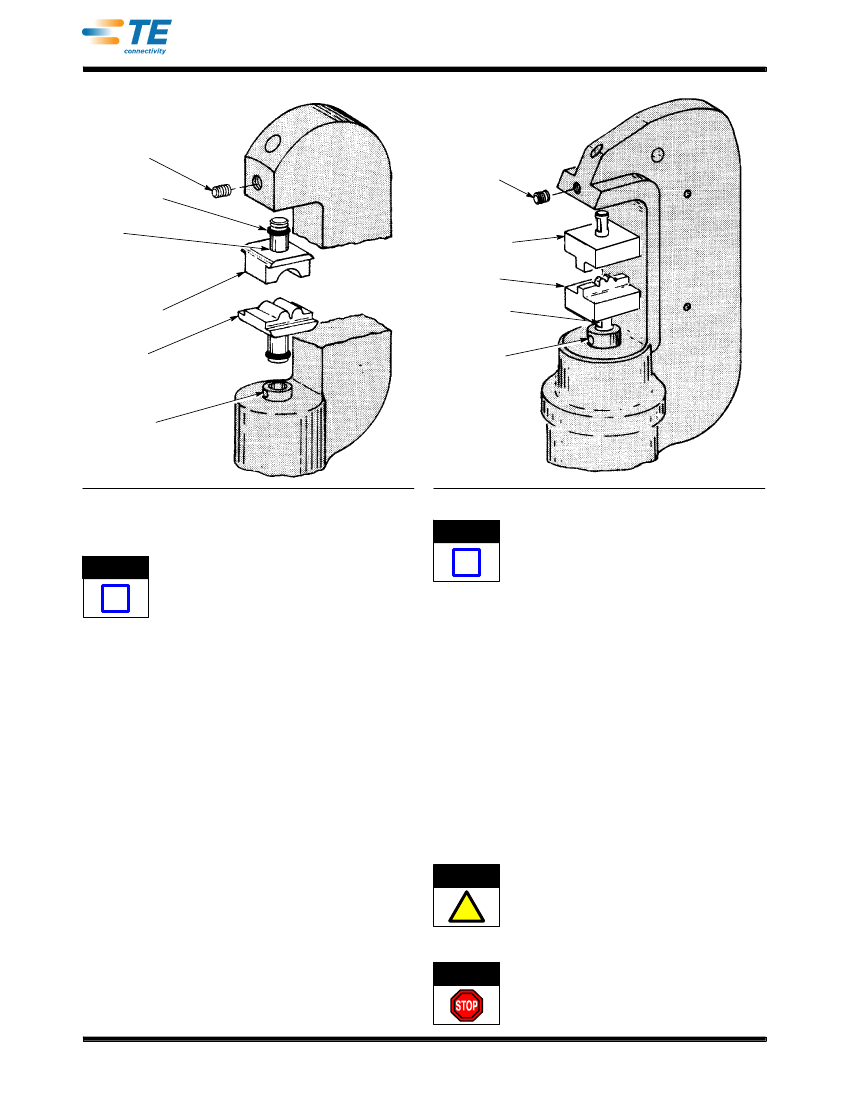

A. Crimping Head 69097
1. Loosen the lock screw in the top section of the
crimping head. See Figure 2.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at
www.te.com
TOOLING ASSISTANCE CENTER 1--800--722--1111
PRODUCT INFORMATION 1--800--522--6752
1
of 8
LOC B
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product and/or Company names may be trademarks of their respective owners.
ORIGINAL INSTRUCTIONS
“B”
408- 1697
Crimping Head 69097
Crimping Head 69099
(Die Set 69218 Shown)
Lock Screw
Retaining Ring
Shank
Lock Screw
Stationary Die
Moving Die
Stationary Die
Moving Die
Flat on Shank
Faces Lock Screw
Ram Locking
Screw
Ram Locking
Screw
Figure 2
Figure 3
NOTE
NOTE
Lock screws in the top section of the crimping
head and in the ram are not used when installing
dies with retaining rings on shanks.
i
Ensure that the dies are inserted “fully” and that
the “flats” on the shanks are facing the lock
screws.
i
3. Loosen the ram lock screw and insert the shank
of the moving die into the ram well. Tighten the
lock screw. See Figure 3.
2. Insert the shank of the stationary die into the top
section of the crimping head. See Figure 2. The
retaining clip will hold the die in place.
3. Activate the power unit to advance the ram until
the lock screw is visible.
4. Loosen the lock screw and insert the shank of
the moving die into the ram well. See Figure 2. The
retaining ring will hold the die in place.
5. Activate the power unit to complete the cycle
and allow the ram to return to the “DOWN”
position.
2.2. Die Removal
In crimping head 69097, insert the screwdriver blade
under the base of the stationary and moving dies.
Apply a prying action to loosen and remove the dies.
In crimping head 69099, loosen the lock screws in the
top section of the crimping head and ram and remove
the dies.
2.3. Wire Stripping and Crimping Procedures
A. Wire Stripping Procedure

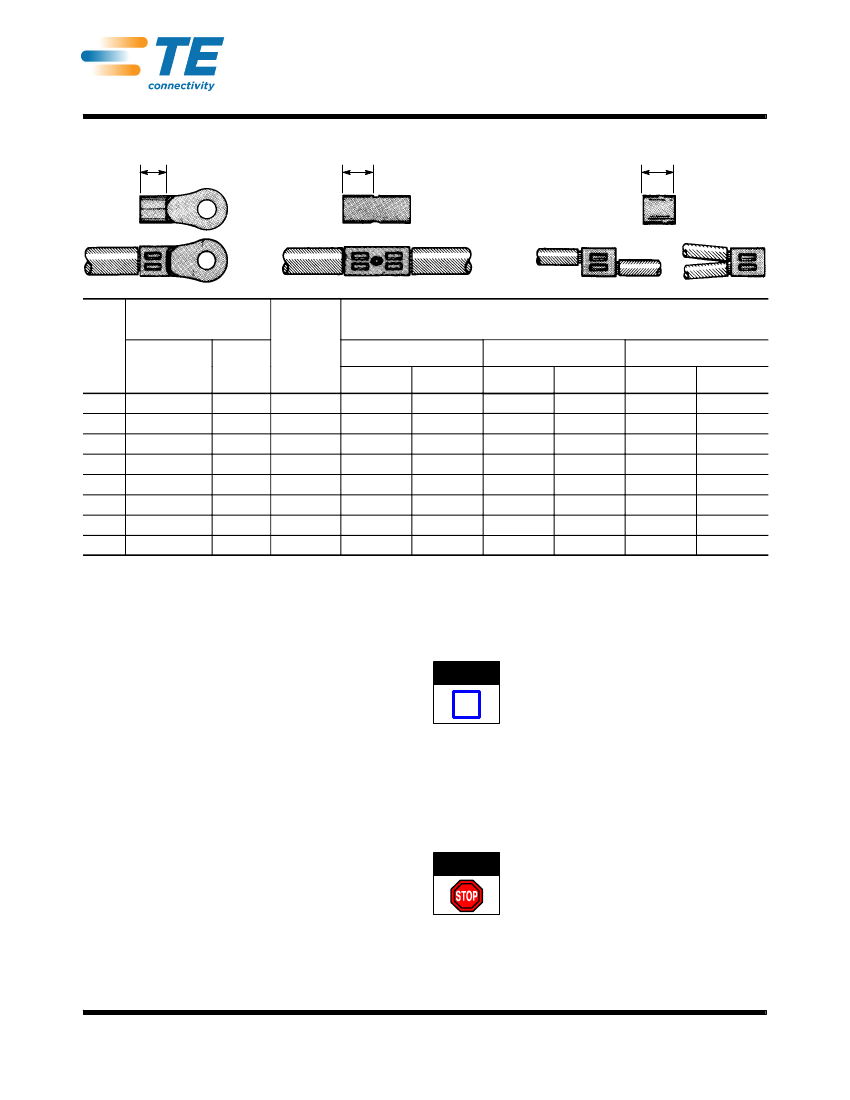

Strip the wire to the dimensions shown in the table
in Figure 1.
CAUTION
Do not nick or cut the conductor strands.
B. Crimping Head 69099
1. Loosen the lock screw in the top section of the
crimping head. See Figure 3.
2. Insert the shank of the stationary die into the top
section of the crimping head and tighten the lock
screw. See Figure 3.
!
B. Crimping Procedure
DANGER
Avoid personal injury. When operating the power
unit, exercise caution while holding terminals,
splices, or wire near the crimping area.
2
of 8
Rev C
408- 1697
Terminals
End of Conductor is Flush
or Extended Slightly Beyond
End of Wire Barrel
Center Terminal
Barrel in
Stationary Die
Butt Splices
Center Half of
Butt Splice in
Stationary Die
End of Conductor Butts
Against Splice Wire Stop
Brazed Seam Faces Moving Die
Figure 5
Figure 4
Brazed Seam
Faces Moving
Die

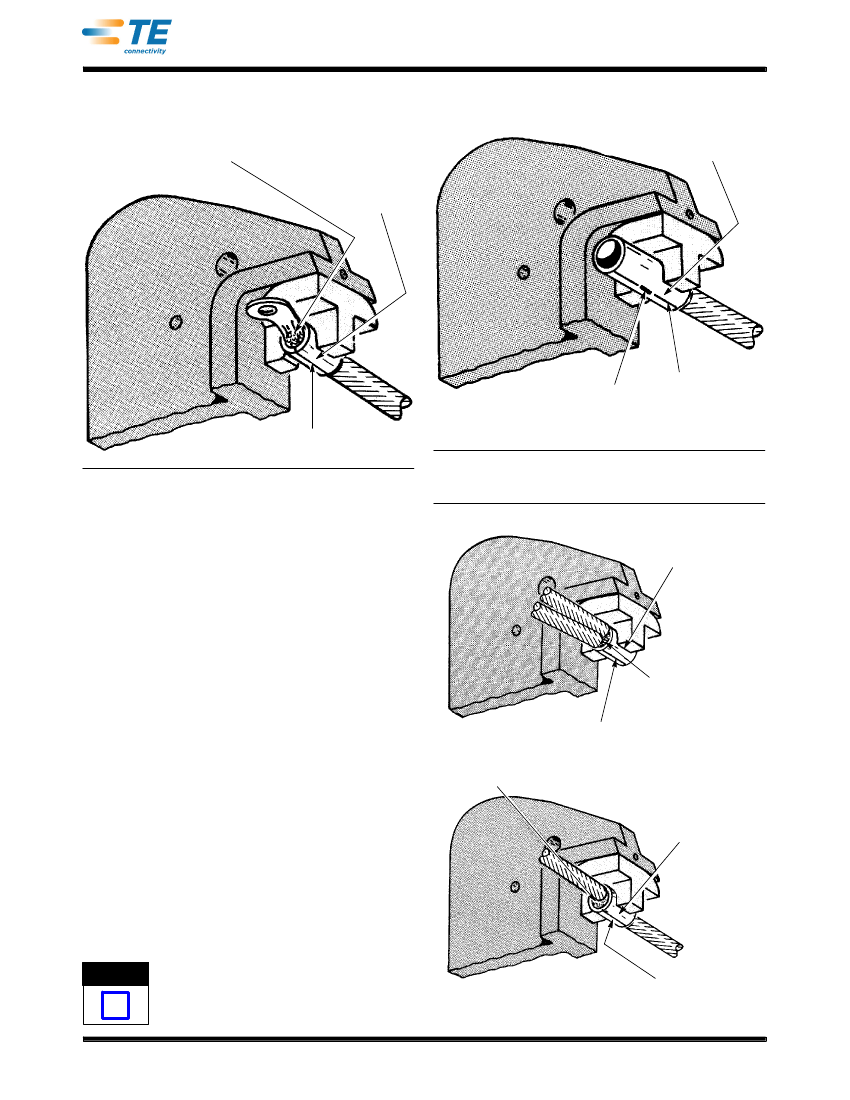

Ensure that the wire size stamped on the terminal
or splice corresponds with the wire size stamped
on the stationary die. Crimping head 69099 is
shown in Figures 3 thru 6. The crimping procedure
is identical when using crimping head 69097.
1. Place the terminal or splice in the stationary die
as shown in Figures 4, 5, or 6. For best results,
position the terminal or splice so that the brazed
seam faces the moving die.
2. Activate the power unit so that the crimping die
advances and holds the terminal or splice in place.
Do not deform the terminal or splice barrel.
3. Insert the stripped wire all the way into the
terminal or splice barrel.
4. Activate the power unit to complete the crimp.
5. To crimp the other half of the butt splice, remove
and reposition the uncrimped half in the stationary
die. Insert the wire and crimp the splice.
6. Refer to Section 3, CRIMP INSPECTION and
Figure 7 for crimp inspection information.
NOTE
If SOLISTRAND terminals or splices stick in the
die after crimping, apply a rocking motion to
remove them from the die.
A
Parallel Splices
Center Parallel Splice
Barrel in Stationary Die
End of Conductor is
Flush or Extended
Slightly Beyond
End of Wire Barrel
Brazed Seam Faces Moving Die
End of Conductor is Flush
or Extended Slightly Beyond
End of Wire Barrel
Center Parallel
Splice Barrel in
Stationary Die
B
i
Rev C
Figure 6
Brazed Seam
Faces Moving Die
3
of 8
408- 1697
3. CRIMP INSPECTION

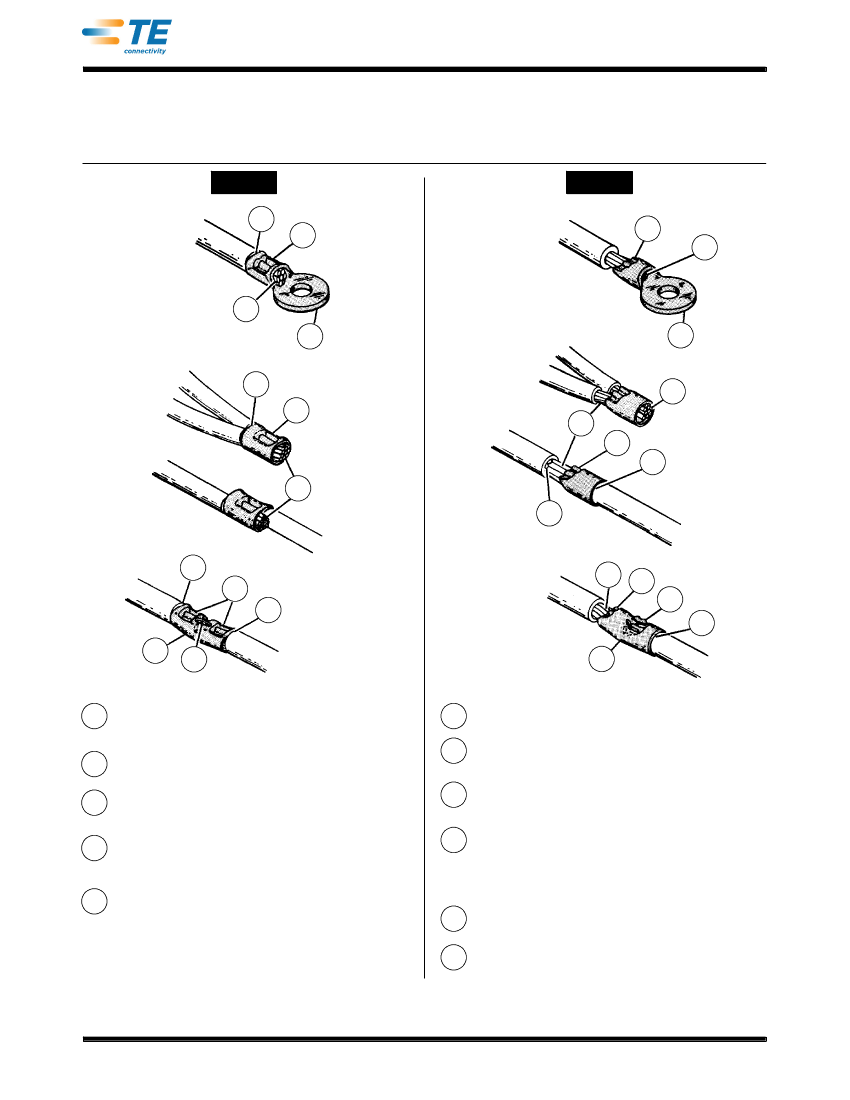

Inspect crimped terminals and splices by checking the
features described in Figure 7. Use only the terminals
and splices that meed the conditions shown in the
ACCEPT
3
“ACCEPT” column. “REJECT” terminals and splices
can be avoided through careful use of instructions in
Section 2, INSTRUCTIONS, and by performing
regular die maintenance as instructed in Section 4,
MAINTENANCE AND INSPECTION PROCEDURES.
REJECT
1
4
1
4
2
3
1
4
1
3
5
6
2
4
3
1
3
2
4
2
4
1
5
3
1
2
3
4
Crimps centered. Crimps may be off center, BUT NOT
OFF END OF WIRE BARREL.
AWG wire size being used matches wire size
stamped on terminal or splice and crimping dies.
Wire insulation does not enter wire barrel.
Wire is visible through inspection hole or butt splices.
Wire is flush with or extends slightly beyond end of
terminal wire barrel.
On parallel splices, bare wire ends must be flush with
or extend slightly beyond end of barrel.
1
2
3
4
Crimped off end of splice or terminal wire barrel.
AWG wire size being used does not match wire size
stamped on terminal or splice crimping dies.
Wire insulation entered barrel of terminal or splice.
CHECK FOR INCORRECT STRIP LENGTH.
Wire not inserted far enough in terminal or splice. End
of wire must be visible through inspection hole of butt
splices, and be flush with or extend slightly beyond
end of terminal wire barrel or parallel splice.
Excessive “flash” on terminal or splice indicates wrong
combination of wire, terminal, splice, or tooling.
Nicked or missing conductor strands.
5
5
6
Figure 7
4
of 8
Rev C
408- 1697
4. MAINTENANCE AND INSPECTION PROCEDURES
TE Connectivity recommends that a maintenance and
inspection program be performed periodically to
ensure dependable and uniform terminations. Dies
should be inspected at least once a month.
Frequency of inspection may be adjusted to suit your
requirements through experience. Frequency of
inspection is dependent upon:
Dies for the 69099 Tool
1. Clean oil and dirt from the die closure surfaces
and plug gage members.
2. Assemble and adjust the dies to meet the “gage
dimension” indicated in Figure 10, Detail “A”.
3. With the crimping dies assembled as described
in steps 1 and 2, check the wire barrel crimp die
closure using the proper plug gage. Hold gage in
straight alignment with the die closure and carefully
try to inset them without forcing the GO member
as shown in Figure 10, Detail “A”. The GO member
must pass completely through the die closure as
shown in Figure 10, Detail “B”.
4. Try to insert the NO--GO member. The NO--GO
member may enter partially, but must not pass
completely through the die closure. See Figure 10,
Detail “B”.
5. If the dies meet the GO NO--GO gage
conditions, the dies may be considered
dimensionally correct. If you find that the dies no
not conform with the GO NO--GO gage conditions,
contact your local TE Field Representative.
S
The care, amount of use, and handling of the
S
S
S
S
dies.
The type and size of the products crimped.
The degree of operator skill.
The presence of abnormal amount of dust and
dirt.
Your own established standards.
Since there is a possibility of die damage in shipment,
new dies should be inspected in accordance with the
following instructions when received in your plant.
4.1. Cleaning
Do not allow deposits of dirt, grease, and foreign
matter to accumulate in the die closure surfaces and
on the bottoming surfaces of the dies. These deposits
may prevent the dies from bottoming fully and may
also cause excessive wear in the die closure
surfaces, thereby affecting the quality of the crimp.
The dies should be wiped clean frequently with a
clean cloth.
4.2. Visual Inspection
Visually inspect the die closure surfaces for broken,
pitted, or chipped areas. Although dies may gage
within possible limits, worn or damaged die closure
surfaces are objectionable and can affect the quality
of the crimp. Examples of possible damaged die

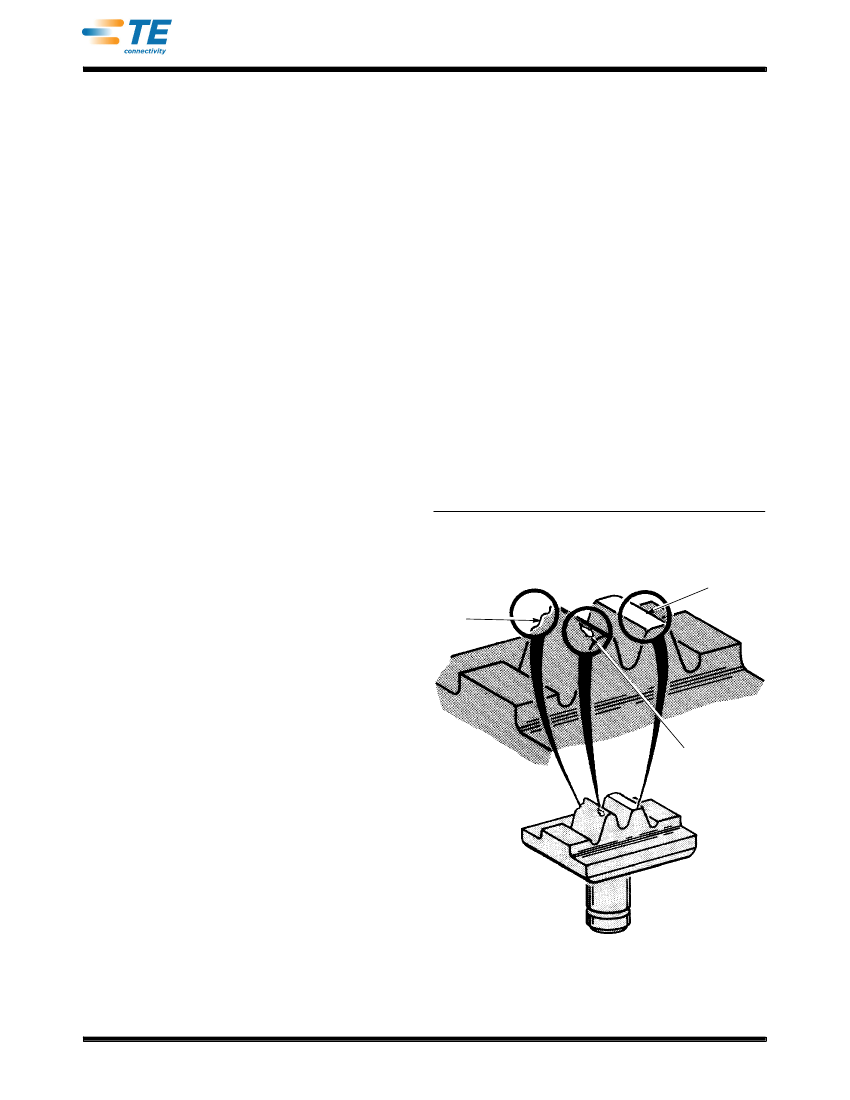

closure surfaces are shown in Figure 8.
Chipped
Area
Flattened
Area
4.3. Die Closure Inspection
Every die set is inspected for proper die closure
before packaging. An inspection should be performed
periodically to check the die closure for excessive
wear. The die closure inspection is accomplished
using the GO NO--GO plug gage. TE neither
manufactures nor sells plug gages. A suggested plug
gage design and the GO NO--GO dimensions of the
plug gage members are listed in Figure 9. The
following procedure is recommended for inspecting
the die closure.
Pitted Area
Dies for the 69097 Tool
1. Clean oil and dirt from the die closure surfaces
and plug gage members.
2. Assemble the dies so that they are bottomed
but not under pressure. See Figure 10, Detail “A”.
The rapid development of my country's automobile industry has brought unprecedented opportunities to the battery industry. In the past 10 years, the average growth rate of total battery production has...
The courier called me early in the morning. I was wondering why I hadn't bought anything recently. Then I was relieved. It must be a prize from EE. I went downstairs and got it. It looks very beautifu...
There is an option "Wait for DLL Lock" in ISE , the purpose of which is to set whether the FPGA waits for the "lock" signal of the DCM.The default setting is nowait.
I want to set it to standby mode, ...
How can I use AVR Studio4 to simulate C language? I wrote a C language program with Winavr and compiled it successfully to generate a file with the suffix cof. When I opened the file with the suffix c...
It's like this, I have to erase the FLASH sectors multiple times in one function, it takes 2-3S to erase a sector, and after erasing the sector, the function has to complete other logics.I want to use...
Just looking at the title, you may not understand what it means. Then take a closer look at the rules here, it’s actually very simple!Rules:One person per floorOne floor grows one yearYou can imagine ...
Dual-mode inverters can operate both in conjunction with the grid and independently. These inverters can inject excess energy from renewable energy and storage devices into the grid, and withdraw p...[Details]
The jammer is a signal blocker, mainly composed of a chip and a radio transmitter. When the car owner presses the remote control lock button, the jammer interferes with the electronic lock receivin...[Details]
The mass production process of the new generation of cockpit platform has started, and the smart cockpit market has entered a new bonus cycle of technology iteration and platform upgrade.
...[Details]
Ever since the Tesla fire incident, electric cars, already known for their poor reputation, have been subjected to even more scathing criticism. Despite this, many people are still willing to buy t...[Details]
Today's security industry has entered the era of massive networking. Many enterprises, especially financial institutions, have established multi-level video surveillance networking platforms. Lever...[Details]
summary
There are multiple approaches to making industrial systems more intelligent, including applying artificial intelligence (AI) technology at the edge and in the cloud to sensor...[Details]
In the summer of 2025, BlueOval SK, a joint venture between Ford and SK On, officially started production at its first battery factory in Kentucky.
According to the original plan, this w...[Details]
The automotive industry in 2025 is undergoing a thorough intelligent reshuffle.
Geely wants to make changes in the field of AI cockpits: in the future, there will be no traditional smart...[Details]
The practice of warming up a car originated with gasoline-powered vehicles. Warming up the engine allows it to enter a better working state and ensures good lubrication. This has become a habit for...[Details]
According to foreign media reports, Ford Motor has applied to the U.S. Patent and Social Security Office (USPTO) for a patent for a door anti-collision system that may be used in future Ford vehicl...[Details]
A tubular motor is an electric motor that is typically used to control the movement of machines and equipment. Tubular motors are generally divided into two categories: linear tubular motors and ro...[Details]
Preface
Low-voltage motors are widely used in nonferrous metallurgical plants. Their abnormal operation not only impacts normal production but can also threaten human life. Therefore, providin...[Details]
A scale, a large, ground-mounted scale, is typically used to measure the tonnage of truck cargo. It's the primary weighing device used in factories, mines, and businesses for bulk cargo measurement...[Details]
The composition of the water heater
The water heater itself is divided into the following parts:
1. Water tank.
This is where the water heater is filled with water and where the wate...[Details]
introduction
The OMAP-L138 dual-core processor is a new generation of low-power single-chip systems (SoCs) from TI. It is widely used in communications, industrial, medical diagnostic, and aud...[Details]
Automotive Electronics
京公网安备 11010802033920号
EEWORLD
