PM-1MHFREQ8 Overview

QUARTZ CRYSTAL RESONATOR, 90 MHz - 150 MHz

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	MtronPTI
Reach Compliance Code	compliant
Other features	AT CUT CRYSTAL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - 5TH OVERTONE
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	25 ppm
JESD-609 code	e4
load capacitance	18 pF
Manufacturer's serial number	PM
Installation features	SURFACE MOUNT
Maximum operating frequency	150 MHz
Minimum operating frequency	90 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
physical size	L7XB5XH1.3 (mm)/L0.276XB0.197XH0.051 (inch)
surface mount	YES
Terminal surface	NICKEL GOLD

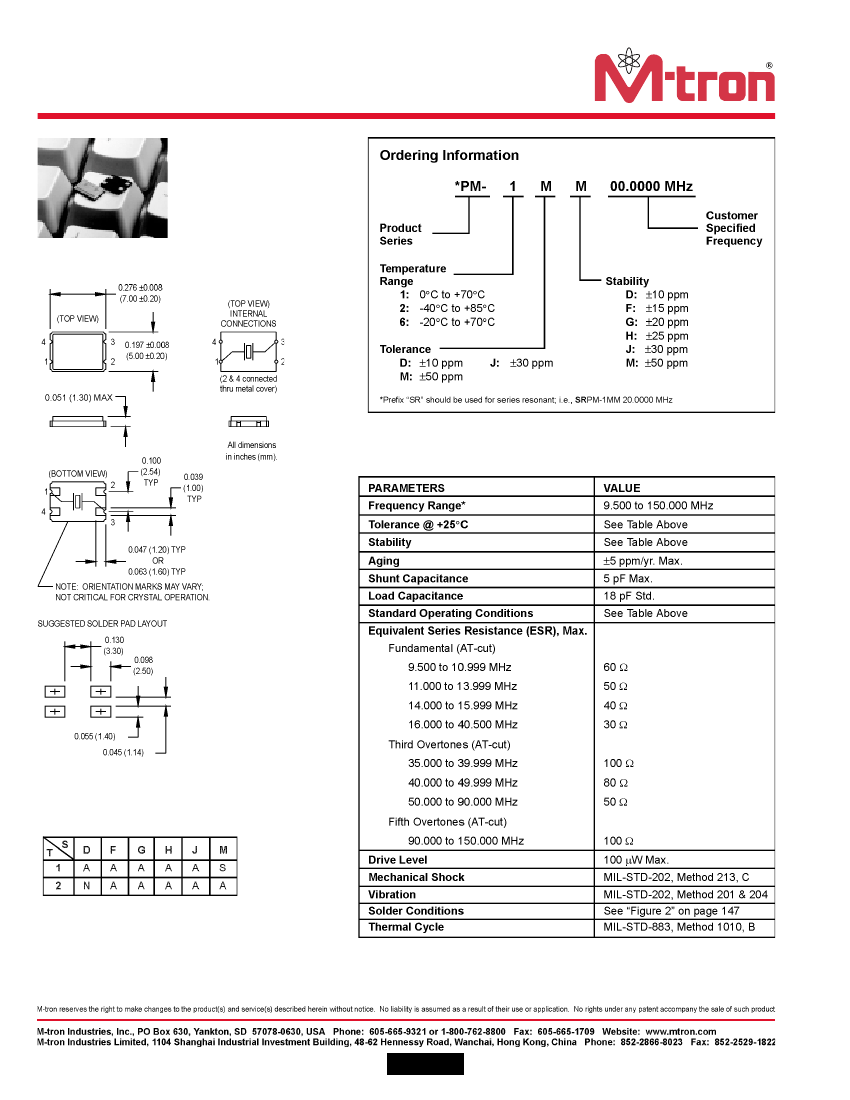

PM Surface Mount Crystals

5.0 x 7.0 x 1.3 mm

Electrical/Environmental Specifications

Available Stabilities vs. Temperature

A = Available

N = Not Available

S = Standard

* Because this product is based on AT-strip technology, not all frequencies in the range stated are

available. Contact the factory for availability of specific frequencies.

138
