Document 102-1
Chip Inductors – 1008CT (2520)
The 0.055″ profile makes these parts ideal for low clear-
ance applications. Their simple construction ensures
high reliability and stability, and they feature much higher
Part number
1
1008CT-040XJL_
1008CT-080X_L_
1008CT-100XJL_
1008CT-150X_L_
1008CT-200X_L_
1008CT-300X_L_
1008CT-400X_L_
1008CT-500X_L_
1008CT-600X_L_
1008CT-700X_L_
1008CT-800X_L_
1008CT-900X_L_
1008CT-101X_L_
Inductance
2
(nH)
4.7 @ 50 MHz
8.2 @ 50 MHz
10 @ 50 MHz
15 @ 50 MHz
20 @ 50 MHz
30 @ 50 MHz
40 @ 50 MHz
50 @ 50 MHz
60 @ 50 MHz
70 @ 50 MHz
80 @ 50 MHz
90 @ 50 MHz
100 @ 50 MHz
Percent
3
tolerance
5
5,2
5
5,2
5,2
5,2
5,2
5,2
5,2,1
5,2,1
5,2,1
5,2
5,2
SRF values than ferrite alternatives. For free evaluation
samples, visit
www.coilcraft.com
or contact Coilcraft.
Q min
4
28 @ 500 MHz
40 @ 500 MHz
40 @ 500 MHz
40 @ 500 MHz
50 @ 500 MHz
50 @ 500 MHz
60 @ 500 MHz
60 @ 500 MHz
60 @ 500 MHz
60 @ 500 MHz
60 @ 500 MHz
65 @ 500 MHz
60 @ 500 MHz
SRF min
5
(MHz)
7500
5000
2700
3000
2400
2400
2000
1900
1800
1700
1400
1400
1000
DCR max
6
(Ohms)
0.15
0.22
0.25
0.22
0.33
0.38
0.43
0.48
0.52
0.55
0.56
0.61
0.63
Irms
7
(mA)
600
600
600
600
600
600
600
600
600
510
510
500
480
1. When ordering, specify
tolerance, termination
and
packaging
codes:
1008CT-101XJLC
Tolerance: F
= 1%
G
= 2%
J
= 5%
(Table shows stock tolerances in bold.)
Termination: L
= RoHS compliant silver-palladium-platinum-glass frit.
E
= Halogen free component. RoHS compliant silver-
palladium-platinum-glass frit terminations.
Special order:
T
= RoHS tin-silver-copper (95.5/4/0.5)
or
S
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape (2000 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape (7500 parts per full reel).
2. Inductance measured using a Coilcraft SMD-A fixture in an Agilent/HP
4286A impedance analyzer with Coilcraft-provided correlation pieces.
3. Tolerances in bold are stocked for immediate shipment.
4. Q measured at using an Agilent/HP 4291A with an Agilent/HP 16193
test fixture.
5. SRF measured using an Agilent/HP 8720D network analyzer and a
Coilcraft SMD-D test fixture.
6. DCR measured on a Cambridge Technology micro-ohmmeter and a
Coilcraft CCF840 test fixture.
7. Current that causes a 15°C temperature rise from 25°C ambient.
8. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Core material
Ceramic
Environmental
RoHS compliant, halogen free optional
Terminations
RoHS compliant silver-palladium-platinum-glass frit.
Other terminations available at additional cost.
Weight
17.8 – 17.8 mg
Ambient temperature
–40°C to +125°C with
Irms
current, +125°C
to +140°C with derated current
Storage temperature
Component: –40°C to +140°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+25 to +125 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
One per billion hours / one billion hours, calculated per Telcordia SR-332
Packaging
2000/7″reel; 7500/13″ reel Plastic tape: 8 mm wide,
0.3 mm thick, 4 mm pocket spacing, 1.6 mm pocket depth
PCB washing
Tested with pure water or alcohol only. For other solvents,
see Doc787_PCB_Washing.pdf
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 102-1
Revised 01/18/12
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.

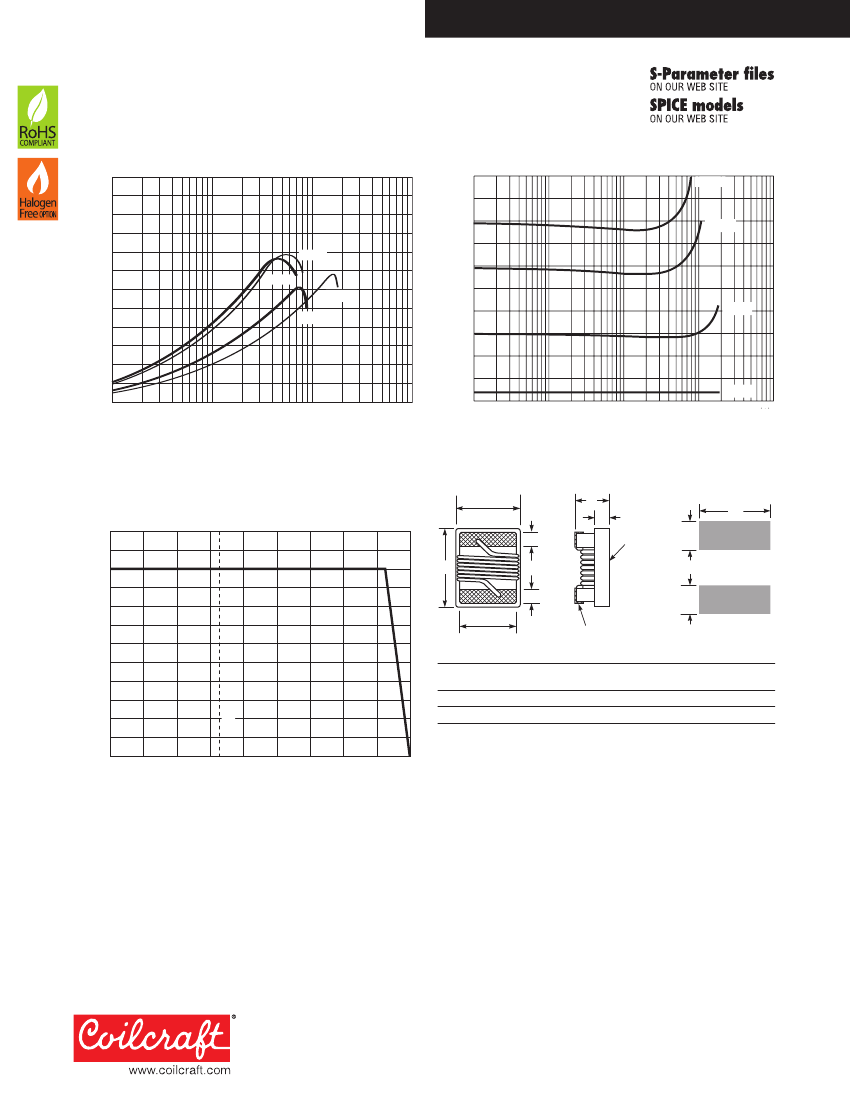

Document 102-2
1008CT Series (2520)
Typical Q vs Frequency
120
100
100
90
80
60 nH
80 nH
4.7 nH
Typical L vs Frequency
100
90
80
60 nH
80 nH
Inductance (nH)
70
60
50
40
30
20
10
0
4.7 nH
1
10
100
1000
10000
30 nH
Q Factor
70
60
50
40
30
20
10
0
10
100
30 nH
1000
10000
Frequency (MHz)
Frequency (MHz)
Irms Derating
120
110
100
A
B
overall
F
G
F
E
terminal
C
D
Pick and
place
material
I
J
I
Terminal wraparound:
approx 0.010/0,25 both ends
H
Percent of rated
I
rms
90
80
70
60
50
40
30
Recommended
Land Pattern
I
1,02
J
1,27 mm
A
max
25°C
B
max
2,79
C
max
1,27
D
ref
0,51
E
2,03
F
0,51
G
1,52
H
2,54
0.115 0.110 0.050 0.020 0.080 0.020 0.060 0.100 0.040 0.050 inches
2,92
20
10
0
-40
-20
0
20
Note:
Height dimension (C) is before optional solder application. For maximum
height dimension including solder, add 0.006 in / 0,152 mm.
40
60
80
100
120 140
Ambient temperature (°C)
