ZMD31050
Advanced Differential Sensor Signal Conditioner
Datasheet
Features
•
•
•
•
•
Digital compensation of sensor offset, sensitivity,
temperature drift and non-linearity
Accommodates nearly all bridge sensor types
(signal spans from 1 up to 275mV/V processable)
Digital one-shot calibration: quick and precise
Selectable compensation temperature T1 source:
bridge, thermistor, internal diode or external diode
Output options: voltage (0V to 5V),
2
current (4mA to 20mA), PWM, I C, SPI,
TM
ZACwire (one-wire-interface), alarm
Adjustable output resolution (up to 15 bits) versus
sampling rate (up to 3.9kHz)
Selectable bridge excitation: ratiometric voltage,
constant voltage or constant current
Input channel for separate temperature sensor
Sensor connection and common mode check
(Sensor aging detection)
Operation temperature -40 to +125°C (-40 to
+150°C derated, depending on product version)
Supply voltage +2.7V to +5.5V
Available in SSOP16 or as die
Brief Description
ZMD31050 is a CMOS integrated circuit for highly-
accurate amplification and sensor-specific correction
of bridge sensor signals. The device provides digital
compensation of sensor offset, sensitivity, temperature
drift and non-linearity by a 16-bit RISC micro controller
running a correction algorithm with correction
coefficients stored in non-volatile EEPROM.
The ZMD31050 accommodates virtually any bridge
sensor (e.g. piezo-resistive, ceramic-thick film or steel
membrane based). In addition, the IC can interface a
separate temperature sensor.
The bi-directional digital interfaces (I C, SPI,
TM
ZACwire ) can be used for a simple PC-controlled
one-shot calibration procedure, in order to program a
set of calibration coefficients into an on-chip
EEPROM. Thus a specific sensor and a ZMD31050
are mated digitally: fast, precise and without the cost
overhead associated with laser trimming, or
mechanical potentiometer methods.
Application kit available (SSOP16 samples,
calibration PCB, calibration software, technical
documentation)
Support for industrial mass calibration
available
Quick circuit customization possible for large
production volumes
2
•
•
•
•
•
•
•
Benefits
•
•
•
No external trimming components required
PC-controlled configuration and calibration via
digital bus interface - simple, low cost
High accuracy (±0.1% FSO @ -25°C to 85°C;
±0.25% FSO @ -40°C to 125°C)
Application Circuit (Examples)
VDDA = 5V
ZD
7.5 V
0.1µF
0.1µF
9
FBN
10
OUT
11
FBP
12
IR_TEMP
13
VBR
14
VINP
15
VSS
16
VINN
VDD
8
SDA
7
SCL
6
IO2
5
IO1
4
VGATE
3
IN3
2
VDDA
1
+7V to +40 V
V
SUPP
(Current
Loop +)
Serial
Interface
Flexible
I/Os
R
e
150Ω
R
sens
50Ω
Ground
(Current
Loop -)
4 to 20mA

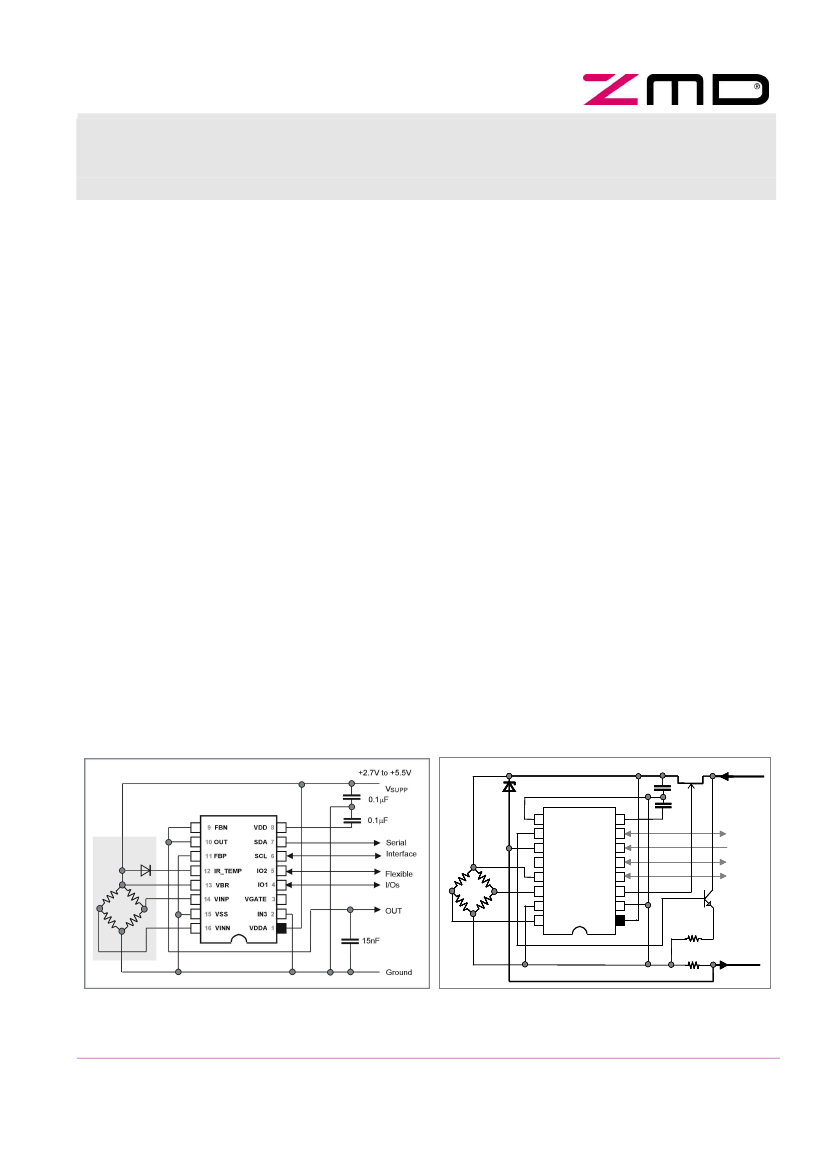

Fig.1:
Ratiometric measurement with voltage output,
temperature compensation via external diode
Fig.2:
Two-wire-(4 to 20) mA configuration [(7 to 40) V],
temperature compensation via internal diode
Refer also chapter 2 for additional application circuits and details.
Datasheet, Rev. 1.03, September 04, 2008
Page 1 of 1
© ZMD AG, 2006
All rights reserved. The material contained herein may not be reproduced, adapted, merged, translated, stored, or used without the prior
written consent of the copyright owner. The Information furnished in this publication is preliminary and subject to changes without notice.
ZMD31050
Advanced Differential Sensor Signal Conditioner
Datasheet
Contents
1.
CIRCUIT DESCRIPTION ........................................................................................................... 3
1.1 S
IGNAL
F
LOW
........................................................................................................................... 3
1.2 A
PPLICATION
M
ODES
................................................................................................................ 4
1.3 A
NALOG
F
RONT
E
ND
(AFE)....................................................................................................... 5
1.3.1. Programmable Gain Amplifier........................................................................................... 5
1.3.2. Extended
Zero
Point
Compensation
(XZC) ...................................................................... 5
1.3.3. Measurement Cycle realized by Multiplexer...................................................................... 6
1.3.4. Analog-to-Digital Converter .............................................................................................. 7
1.4 S
YSTEM
C
ONTROL
.................................................................................................................... 8
1.5 O
UTPUT
S
TAGE
........................................................................................................................ 9
1.5.1. Analog Output ................................................................................................................ 10
1.5.2. Comparator Module (ALARM Output)............................................................................. 10
1.5.3. Serial Digital Interface .................................................................................................... 10
1.6 V
OLTAGE
R
EGULATOR
............................................................................................................ 11
1.7 W
ATCHDOG AND
E
RROR
D
ETECTION
....................................................................................... 11
2.
3.
4.
5.
5.1
5.2
5.3
5.4
5.5
6.
7.
8.
APPLICATION CIRCUIT EXAMPLES ..................................................................................... 12
ESD/LATCH-UP-PROTECTION .............................................................................................. 13
PIN CONFIGURATION AND PACKAGE ................................................................................. 13
IC CHARACTERISTICS........................................................................................................... 14
A
BSOLUTE
M
AXIMUM
R
ATINGS
................................................................................................. 14
O
PERATING
C
ONDITIONS
(V
OLTAGES RELATED TO
VSS) ...................................................... 14
B
UILD
I
N
C
HARACTERISTICS
.................................................................................................... 15
E
LECTRICAL
P
ARAMETERS
4
(V
OLTAGES RELATED TO
VSS) .................................................. 17
I
NTERFACE
C
HARACTERISTICS
................................................................................................. 18
RELIABILITY ........................................................................................................................... 19
CUSTOMIZATION ................................................................................................................... 19
RELATED DOCUMENTS......................................................................................................... 19
Datasheet, Rev. 1.03, September 04, 2008
Page
2 of 2
© ZMD AG, 2006
All rights reserved. The material contained herein may not be reproduced, adapted, merged, translated, stored, or used without the prior
written consent of the copyright owner. The Information furnished in this publication is preliminary and subject to changes without notice.
ZMD31050
Advanced Differential Sensor Signal Conditioner
Datasheet
1.
1.1
Circuit Description
Signal Flow

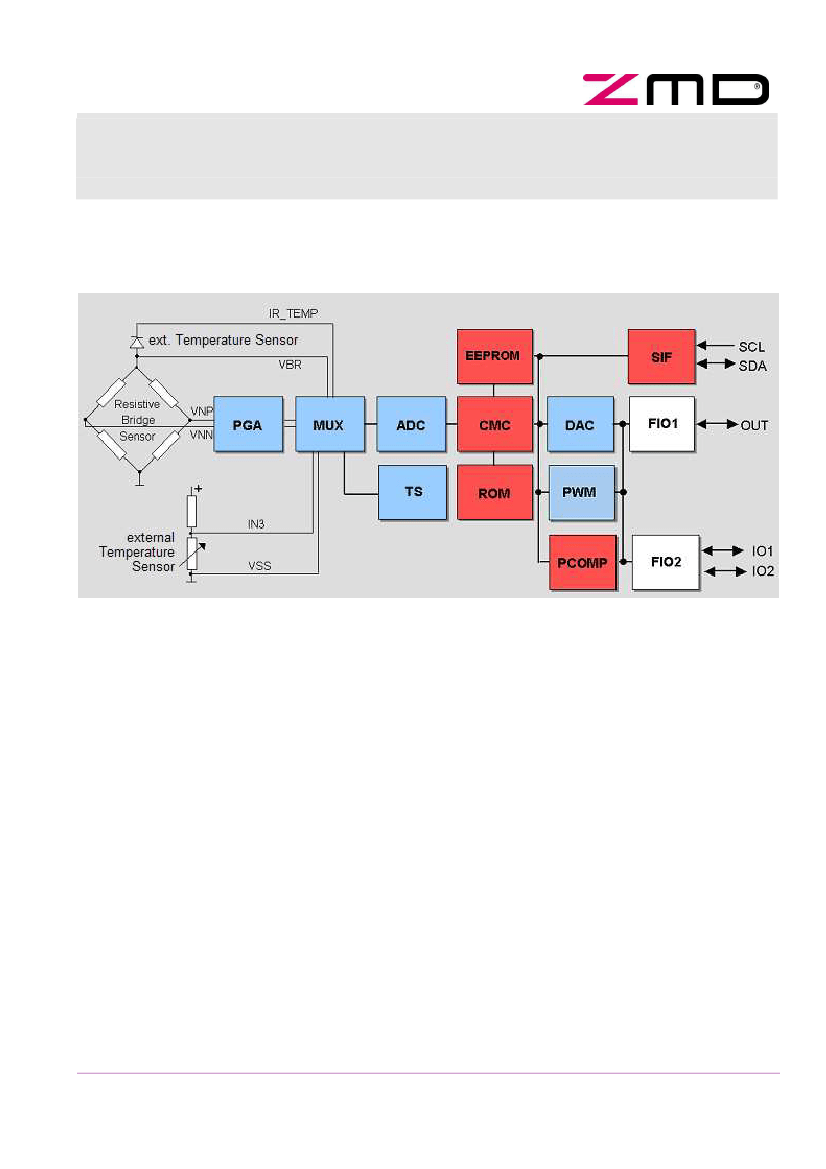

Fig.3:
ZMD31050 Block Diagram
PGA
MUX
ADC
CMC
DAC
FIO1
FIO2
SIF
PCOMP
EEPROM
TS
ROM
PWM
Programmable gain amplifier
Multiplexer
Analog-to-digital converter
Calibration microcontroller
Digital-to-analog converter
Flexible I/O 1: analog out (voltage/current), PWM2,
TM
ZACwire (one-wire-interface)
Flexible I/O 2: PWM1, SPI data out, SPI slave select, Alarm1, Alarm2
Serial interface: I2C data I/O, SPI data in, clock
Programmable comparator
Non volatile memory for calibration parameters and configuration
On-chip temperature sensor (pn-junction)
Memory for correction formula and –algorithm
PWM module
The ZMD31050’s signal path is partly analog (blue) and partly digital (red). The analog part is realized
differential – this means internal is the differential bridge sensor signal also handled via two signal
lines, which are rejected symmetrically around a common mode potential (analog ground = VDDA/2).
Consequently it is possible to amplify positive and negative input signals, which are located in the
common mode range of the signal input.
The differential signal from the bridge sensor is pre-amplified by the programmable gain amplifier
(PGA). The Multiplexer (MUX) transmits the signals from bridge sensor, external diode or separate
temperature sensor to the ADC in a certain sequence (instead of the temperature diode the internal
pn-junction (TS) can be used optionally). Afterwards the ADC converts these signals into digital values.
Datasheet, Rev. 1.03, September 04, 2008
Page
3 of 3
© ZMD AG, 2006
All rights reserved. The material contained herein may not be reproduced, adapted, merged, translated, stored, or used without the prior
written consent of the copyright owner. The Information furnished in this publication is preliminary and subject to changes without notice.
ZMD31050
Advanced Differential Sensor Signal Conditioner
Datasheet
The digital signal correction takes place in the calibration micro-controller (CMC). It is based on a
special correction formula located in the ROM and on sensor-specific coefficients (stored into the
EEPROM during calibration). Dependent on the programmed output configuration the corrected sensor
signal is output as analog value, as PWM signal or in digital format (SPI, I
2
C,
ZACwire
TM
). The output
signal is provided at 2 flexible I/O modules (FIO) and at the serial interface (SIF). The configuration
data and the correction parameters can be programmed into the EEPROM via the digital interfaces.
The modular circuit concept enables fast custom designs varying these blocks and, as a result,
functionality and die size.
1.2
Application Modes
For each application a configuration set has to be established (generally prior to calibration) by
programming the on-chip EEPROM regarding to the following modes:
Sensor channel
−
Sensor mode:
ratiometric voltage or current supply mode.
−
Input range:
The gain of the analog front end has to be chosen with respect to the maximum
sensor signal span and to this has also adjusted the zero point of the ADC
−
Additional offset compensation:
The extended analog offset compensation has to be enabled if
required, e.g. if the sensor offset voltage is near to or larger than the sensor span.
−
Resolution/response time:
The A/D converter has to be configured for resolution and
conversion scheme
(1
st
or 2
nd
order). These settings influence the sampling rate, signal
integration time and this way the noise immunity.
−
Ability to invert the sensor bridge inputs
Analog output
−
Choice of output method (voltage value, current loop, PWM) for output register 1.
−
Optional choice of additional output register 2: PWM via IO1 or alarm out module via IO1/2.
Digital communication:
The preferred protocol and its parameter have to be set.
Temperature
−
The
temperature measure source
for the temperature correction has to be chosen.
−
The temperature measure source T1 sensor type
for the temperature correction has to be chosen
(only T1 is usable
for correction!!!)
−
Optional: the
temperature measure channel
as the second output has to be chosen.
Supply voltage
: For non-ratiometric output the voltage regulation has to be configured.
Note:
Not all possible combinations of settings are allowed (see section 1.5).
The calibration procedure must include
−
Set of coefficients of calibration calculation
and, depending on configuration,
−
Adjustment of the extended offset compensation,
−
Zero compensation of temperature measurement,
−
Adjustment of the bridge current
and, if necessary,
−
Set of thresholds and delays for the alarms and the reference voltage.
Datasheet, Rev. 1.03, September 04, 2008
Page
4 of 4
© ZMD AG, 2006
All rights reserved. The material contained herein may not be reproduced, adapted, merged, translated, stored, or used without the prior
written consent of the copyright owner. The Information furnished in this publication is preliminary and subject to changes without notice.
ZMD31050
Advanced Differential Sensor Signal Conditioner
Datasheet
1.3
Analog Front End (AFE)
The analog front end consists of the programmable gain amplifier (PGA), the multiplexer (MUX) and
the analog-to-digital converter (ADC).
1.3.1.
Programmable Gain Amplifier
The following tables show the adjustable gains, the processable sensor signal spans and the allowed
common mode range.
No.
PGA
Gain a
IN
Gain
Amp1
Gain
Amp2
Gain
Amp3
Max. span
V
IN_SP
in mV/V
Input range
V
IN_CM
in % VDDA
∗
1
420
30
7
2
2
43 - 57
2
280
30
4,66
2
3
40 - 59
3
210
15
7
2
4
43 - 57
4
140
15
4,66
2
6
40 - 59
5
105
15
3,5
2
8
38 - 62
6
70
7,5
4,66
2
12
40 - 59
7
52,5
7,5
3,5
2
16
38 - 62
8
35
3,75
4,66
2
24
40 - 59
9
26,3
3,75
3,5
2
32
38 - 62
10
14
1
7
2
50
43 - 57
11
9,3
1
4,66
2
80
40 - 59
12
7
1
3,5
2
100
38 - 62
13
2,8
1
1,4
2
280
21 - 76
Table 1:
Adjustable gains, resulting sensor signal spans and common mode ranges
1.3.2.
Extended
Zero
Point
Compensation
(XZC)
The ZMD31050 supports two methods of sensor offset cancellation (zero shift):
•
•
Digital offset correction
XZC – an analog cancellation for large offset values (up to approx 300% of span)
The digital sensor offset correction will be processed at the digital signal correction/conditioning by the
CMC. The analog sensor offset pre-compensation will be needed for compensation of large offset
values, which would be overdrive the analog signal path by uncompensated gaining. For analog sensor
offset pre-compensation a compensation voltage will be added in the analog pre-gaining signal path
(coarse offset removal). The analog offset compensation in the AFE can be adjusted by 6 EEPROM
bits. It allows an analog zero point shift up to 300% of the processable signal span.
The zero point shift of the temperature measurements can also be adjusted by 6 EEPROM bits
(Z
XZC
= -20…+20) and is calculated by:
V
XZC
/ VDD
BR
= k * Z
XZC
/ ( 20 * a
IN
)
∗
Bridge in voltage mode, refer “ZMD31050 Functional description” for usable input signal/common mode range at bridge in current mode
Datasheet, Rev. 1.03, September 04, 2008
Page
5 of 5
© ZMD AG, 2006
All rights reserved. The material contained herein may not be reproduced, adapted, merged, translated, stored, or used without the prior
written consent of the copyright owner. The Information furnished in this publication is preliminary and subject to changes without notice.
京公网安备 11010802033920号
EEWORLD
