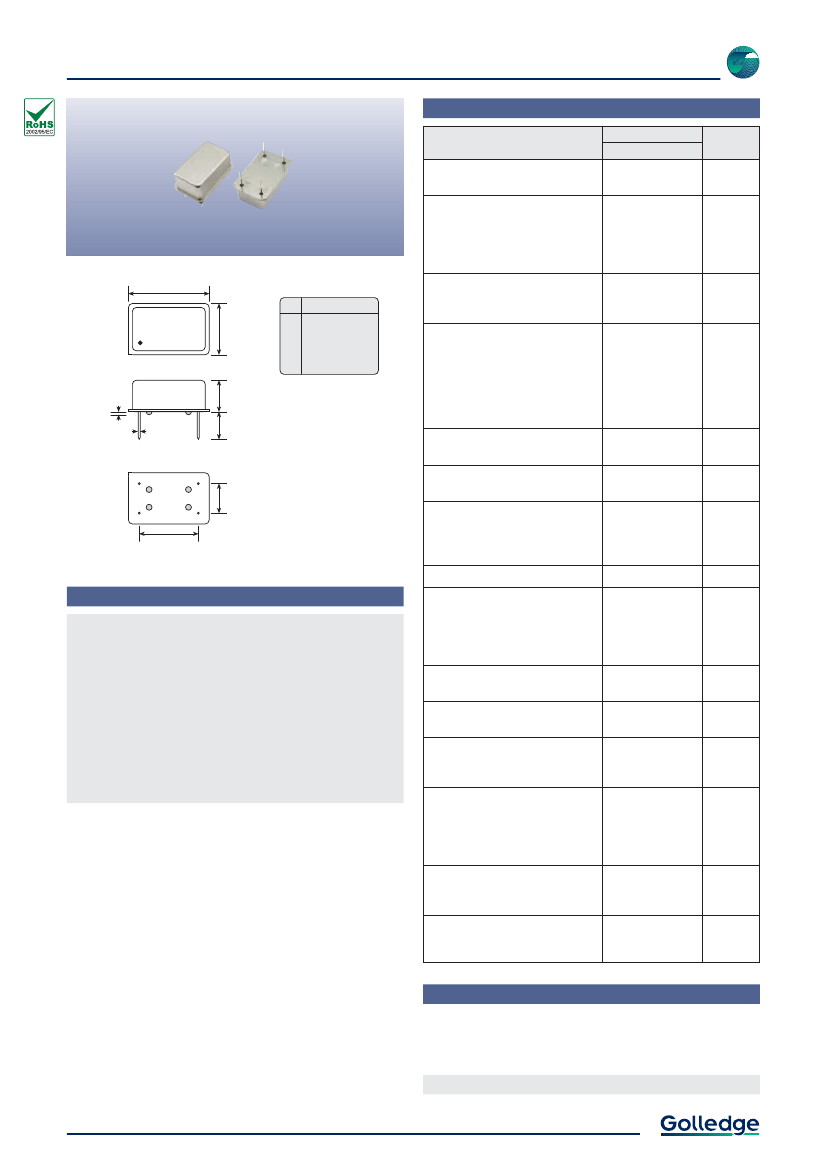

5V OCXO HCMOS Output
Specifications
MCOCXOV
Parameters
Frequency range:
10.0kHz ~ 54.0MHz
Frequency stability:
±0.7ppm max first year
±4ppm max in 10 years
±0.1ppm over V
DD
±0.2V
±0.01ppm over 10% change in load
Product
MCOCXOV
V5
R1
A
TA
B
TB
C
TC
Option
Codes
20.14
±0.08
PIN
12.52
±0.08
1
7
8
14
7.80
±0.20
6.35
±0.50
CONNECTION
Freq adjustment
Ground
Output
Supply
Short term stability:
5x10
-10
, 0.1 to 30s
5x10
-11
over 1s typ
Temperature stability:
±0.2ppm max, 0 to +60°C
±0.075ppm max, 0 to +60°C
±0.3ppm max, -20 to +70°C
±0.15ppm max, -20 to +70°C
±0.5ppm max, -40 to +85°C
±0.25ppm max, -40 to +85°C
Operable temperature range:
-40 to +85°C
0.80
0.46Ø
1
14
7
7.62
8
Storage temperature range:
-65 to +125°C
Output waveform:
HCMOS compatible
‘0’=+0.4V max, ‘1'=V
DD
-0.5V min
40:60 max
Rise / fall times:
7ns / 7ns max
15.24
Features
Compact 14-pin DIL package (SMD optional)
5.0V supply voltage
HCMOS compatible output
Very fast warmup
Low power consumption
Wide temperature range available
Frequency adjustment:
Control voltage (pin 1)
±4ppm min, 0.5V ~ 5.0V
Variable resistor (pins 1 to 7)
±4ppm min, 0 ~ 10kΩ
Supply voltage (V
DD
):
+5.0V (±0.2V)
D1
D2
Input current:
80mA max @ +30°C
120mA max @ -20°C
Warm up:
within spec after 30s @ 0°C
current 250mA max during 10s
Phase noise (typ @ 10MHz):
-100dBc/Hz @ 10Hz
-130dBc/Hz @ 100Hz
-140dBc/Hz @ 1kHz
-145dBc/Hz @ 10kHz
Shock & vibration:
2,000G, 0.3ms ½-sine
10.0 ~ 2,000Hz, 10G
Package:
Through hole 14 pin DIL
25x22mm SMD carrier PCB
Formed leads SMD
Standard.
Optional - Please specify required code(s) when ordering
Ordering Information
Product name + option codes + frequency
eg:
MCOCXOV-AR1 12.80MHz
MCOCXOV-TBV5 16.3840MHz
Option code X (eg MCOCXOV/X) denotes a custom spec.
Product is NOT designed to withstand 260°C reflow processing
Tel:
+44 1460 256 100
05 Jul 2010
Fax:
+44 1460 256 101
E-mail:
sales@golledge.com
Web:
www.golledge.com
